PBUM-005E(Rev001;130322)

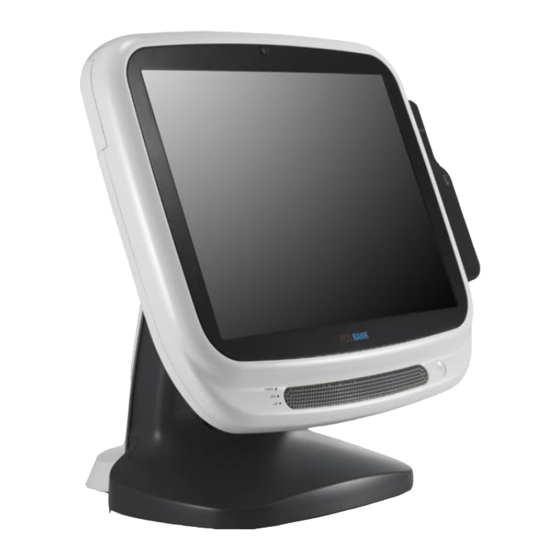

Point-of-sale system
AnyShop D5
User's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AnyShop D5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSBank AnyShop D5

Summary of Contents for POSBank AnyShop D5

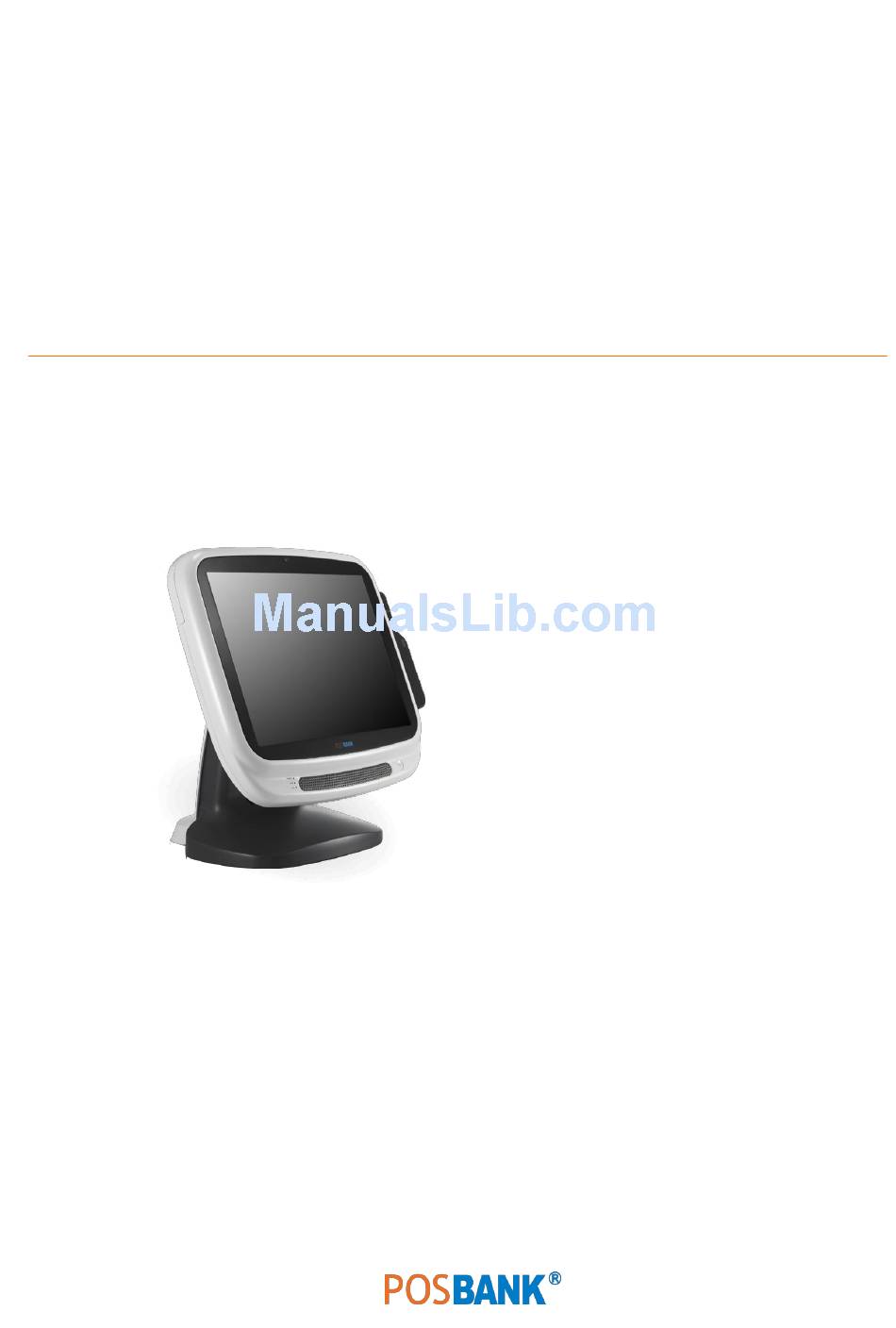

  • Page 1 PBUM-005E(Rev001;130322) Point-of-sale system AnyShop D5 User’s manual...

  • Page 2: Table Of Contents

    -Table of Contents- POSBANK USER’S MANUAL REVISION HISTORY .................................. 4 PREFACE ................................................. 5 SYMBOL; MARK ............................................6 COPYRIGHT ..............................................7 WARRANTY ..............................................8 SAFETY INSTRUCTIONS ..........................................9 NOTICE ................................................ 10 LIABILITY LIMITATION ..........................................11 INSTALLATION RECOMMENDATIONS ....................................12 1. PRODUCT OVERVIEW ..................................13 (1) INSIDE YOUR PACKAGE ..............................................
  • Page 3 Copyright© POSBANK Co., Ltd. All rights reserved. Specifications and information contained in this manual are furnished for informational use only, and are subject to change at any time without notice. The information contained in this document is subject to change without notice.

  • Page 4: Posbank User's Manual Revision History

    POSBANK User’s manual Revision History Changes to the AnyShop D5 User’s manual are listed below. Rev No. Revision History Date /author PBUM-005E(Rev001;130322) 2013.03.22...

  • Page 5: Preface

    Preface This User's Guide gives information about main unit/IO port layout, basic setup, component installation, and board layout for point of sale system "AnyShop" Intended Audience The User's Guide is intended for technically qualified personnel. It is not intended for general audiences. Document Organization The chapters in this Product User’s manual are arranged as follows: product package contents...

  • Page 6: Symbol; Mark

    SYMBOL; MARK CE MARK This device complies with the requirements of the EEC directive 2004/108/EC with regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive” . This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference.

  • Page 7: Copyright

    Neither this manual, nor any of the material contained herein, may be reproduced without express written consent of the author. AnyShop and POSBANK are trademarks of POSBANK Co., Ltd. in the United States and other countries. * Other names and brands may be claimed as the property of others.

  • Page 8: Warranty

    Warranty We guarantee our POS terminal product and its parts against defects in materials and workmanship, under proper use, for a standard period of 2 years from the original date of purchase. During this period, we will repair or replace defective and/or faulty products or parts without charge to the customer for parts and labor.

  • Page 9: Safety Instructions

    Safety Instructions To disconnect the machine from the electrical power supply, turn off the power switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. Read these instructions carefully.

  • Page 10: Notice

    Notice Always ensure that the correct power voltage is used as a precaution against fire and electrical shock. Avoid exposing product to direct sunlight. Do not use product in areas of high humidity. Doing so may cause low reliability and/or operational malfunction. Be careful of static electricity on PCB of system with anti-static appliances.

  • Page 11: Liability Limitation

    We recommend that you inquire about product installation, maintenance and repair service from the official service center and agent office. POSBANK takes no responsibility for malfunctions or system errors occurring after service and/or system check carried out by unofficial service providers.

  • Page 12: Installation Recommendations

    Installation Recommendations Avoid installing during thunderstorms. (Possibility of dangerous exposure to electricity.) Install away from damp spaces or water-leaks. Beware of static occurrence during installation. Use only ground connected and quality certified power cords and cables. Keep out of direct sun-light, extremely high or low temperatures, or high humidity areas. Install product away from areas prone to shocks or vibration.

  • Page 13: Product Overview

    1. Product Overview (1) Inside Your Package Please check your package and confirm its contents. The POS terminal main unit, power cable, user manual and driver CD are included in the package. If any items are missing or damaged, please contact your dealer for assistance. »...
  • Page 14 Optional Devices: CDP (Customer display) Optional Devices: 2 LCD monitor 10.1” Optional Devices: 2 LCD monitor 12.1” Optional Devices: 2 LCD monitor 15.1”...

  • Page 15: Pre-Installation Preparation

    (2) Pre-installation Preparation Remove protective film from touch-screen to prevent possible operating difficulties. Attach all optional parts before setting up the main POS unit. (3) Product Outline • Each part of product may differ depending on the specific POS model. •...

  • Page 16: Configuration

    (4) Configuration Refer to following diagram to identify the components on this side of the system. Front view LCD & Touch panel display Power LED HDD LED LAN LED Camera Smart card reader(SCR); Option Magnetic stripe reader(MSR) Power switch Dual speaker...
  • Page 17 Rear view USB port I/O port Customer display; Option Stand...

  • Page 18: I/O Port: Details

    (5) I/O port: Details * I/O ports may differ according to product model or options. I/O view Power connector Cash box port COM1, COM2, COM3 port VGA port USB x 2 Ports LAN Ports LPT port...

  • Page 19: Installation Of Optional Devices: 2Nd Display

    (6) Installation of Optional Devices: 2nd Display * The assembling method of the 2nd Display is equal for all the products. (10.1, 12.1, 15 inch) 2nd Display * Warning: Completely remove power cable when opening main unit or installing optional devices. Step 1.
  • Page 20 2nd display 2nd LCD cap When assembling, put the grooves on the bottom. Step 3. Fix with four bolts, after Place the 2nd MONITOR on the HINGE. Step 4. Fix the HINGE CAP using the HOOK. ※ Beware of the parts where grooves are located at the bottom.

  • Page 21: Setting Up: Keyboard & Mouse Connection

    (7) Setting up: Keyboard & Mouse Connection Connecting the keyboard and mouse to the PS/2 port on the bottom panel. or connecting the USB type keyboard and mouse to the USB port on the bottom panel.

  • Page 22: Setting Up: Connection Usb Port

    (8) Setting up: Connection USB Port USB ports are provided in the POS unit, two at the rear I/O and two at the side, all of which support the standard USB 2.0. Some USB devices (optional devices) are only functional with specific driver software installed. If multiple USB devices are used together, this may result in abnormal functionality.

  • Page 23: Setting Up: Connection Via Ethernet Port (Lan)

    (9) Setting up: Connection via Ethernet Port (LAN) The Ethernet port located at the rear I/O supports 10/100/1000Mbps using an RJ45 connector cable. When connected properly, the LAN LED light will be switched on. Through a network hub. Refer to the table below for the LAN port LED indications. LINK/ACT LED LINK / ACT LED SPEED LED...

  • Page 24: Setting Up: Line-Out, Mic-In, Line-In Connection

    (10) Setting up: Line-out, Mic-in, Line-in connection • Line In port (light blue): This port connects a tape, CD, DVD player, Sources. • Line Out port (lime): This port connects a headphone or a speaker.In4-channel, 6-channel and 8- channel configuration, the function of this port becomes Front Speaker Out. •...

  • Page 25: Setting Up: Power Cable Connection

    (11) Setting up: Power Cable Connection The ‘AnyShop D5’ POS system is equipped with a 12V, 5A power adaptor. Connect the cable to the DC-IN port on system IO panel. CAUTION : Do not pull on the adaptor cable! Disconnect cable with pulling the plug cap.

  • Page 26: Switching On Pos

    (12) Switching On POS Press POWER button on the POS unit. (POWER LED will light up.) The power switch is located right hand side of the main body under the display unit. Confirm that Windows loads correctly.

  • Page 27: Shutting Down Pos

    (13) Shutting Down POS * For product stability, we recommend closing Windows from the O/S. Please make sure that you have closed all applications before closing Windows. Click ‘Start’ and select ‘Turn off Computer’ Click ‘Shut Down’ to close Windows. (ex: POSReady2009 or Windows XP)

  • Page 28: System Drivers

    (14) System Drivers Please visit our website: www.posbank.com for the latest driver updates. Supported devices: Cash drawer, CDP (Customer Display Panel), MSR (Magnetic Swipe Reader) and printer. Driver installation ● Installation method : Driver will automatically install by clicking SETUP.EXE in your driver CD.

  • Page 29: Motherboard

    2. Motherboard (1) Motherboard Overview This includes description of the jumpers and connectors on the motherboard. Warring Take note of the following precautions before you install motherboard components or change any motherboard settings. Unplug the power cord from the wall socket before touching any component. Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.

  • Page 30: Motherboard Layout

    (2) Motherboard Layout This includes description of the jumpers and connectors on the motherboard. Motherboard view...
  • Page 31 NO Description NO Description SATA_PWR_CN2 SYS_FAN SATA 2 CPU_FAN SATA 1 COMPSEL3 SATA_PWR_CN1 VGA 1 LVDS1 CN29(12V DC) Mini PCIe slot CN30(24V DC) COM 6 COMP1SEL2 COM 5 COMP1SEL1 JCOMPWR2 VP1(Inverter) JCOMPWR3 F-Panel1 JCOMPWR1 GPIO1 COMPSEL5 CMOS1 CN15 COMPSEL4 15-1. JAMP1 COM 4 16-1.

  • Page 32: Side Usb Board

    (3) Side USB Board Side USB Board Connector Description To Motherboard USB...

  • Page 33: Power Switch Board

    (4) Power Switch Board Power Switch Board Connector Description Power switch...

  • Page 34: Drawer Kicker Board

    (5) Drawer Kicker Board Drawer Kicker Board Connector Description Drawer Port Serial Port Mini PCIe Slot...

  • Page 35: Drawer Port Board

    (6) Drawer Port Board Drawer Port Board Connector Description From Drawer Kicker Cash Drawer port...

  • Page 36: Harness

    (7) Harness # 201 Cable view #201-1 Cable System Connector Note Monitor SCSI Connector LVDS1 LVDS Motherboard Inverter, Touch, MSR...
  • Page 37 #208-1 J2 Cable #208-1 J2 Cable System Connector Note Motherboard Power switch, Side USB Side USB USB ports PB-56 Power sw Power switch...
  • Page 38 #83-3 Speaker cable view #83-3 Cable System Connector Note Motherboard JAMP1 Audio #138-1 HDD power cable view #138-1 Cable System Connector Note Motherboard SATA PWR CN1 SATA Power...
  • Page 39 #198-1 SATA Data cable view #198-1 Cable System Connector Note Motherboard SATA DATA I SATA 1 SATA DATA...
  • Page 40 #177-2 2 Display cable #177-2 Cable System Connector Note Motherboard VGA1 Motherboard Display Power Motherboard COM4 Diaplay Display or CDP...
  • Page 41 Monitor Harness Label Description Label Description 27-3 LVDS 19-1 Touch Inverter...
  • Page 42 #27-3 LVDS #19-1 Touch #207 LED #137 Inverter...
  • Page 43 Monitor Harness Label Description Label Description Inverter 32-3 VGA & 12V DC 27-1 LVDS...
  • Page 44 #6-2 Inverter #27-1 LVDS #32-3 VGA, 12V DC...

  • Page 45: Jumpers

    (8) Jumpers Clear RTC RAM (CLRTC) This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOSRTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.
  • Page 46 COM1, 2, 3, 4, 6RI, +12V and +5V Power Select(COMP1SELx) This jumper allows you to select COM1 RI, +5V and +12V power. Set COMP1SELx top ins 5-6 +5V power. And set COMP1SELx to pins 1-2 +12V power. Then setCOMP1SELx to pins 3-4 for RI selection. COMP1SELx COMP1SEL1 COMP1SEL2...
  • Page 47 COM5RS232, RS422, RS485 Select(JCOMPWRx) This jumper allows you to select COM5 RS232, RS422, RS485. Changing jumpers will beselected different RSxxx protocols. JCOMPWRx RS232 RS422RS485 (Default) JCOMPWR1 JCOMPWR2 JCOMPWR3 JCOMPWR2 JCOMPWR3 JCOMPWR1 This jumper allows you to select COM5 RS232, RS422, RS485. Changing jumpers will beselected different RSxxx protocols.

  • Page 48: Bios Setup Utility

    3. BIOS Setup Utility * This chapter tells how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided. (1) Managing and updating your BIOS 1.1 Creating a bootable floppy disk Do either one of the following to create a bootable floppy disk.

  • Page 49: Bios Setup Program

    (2) BIOS setup program This motherboard supports a programmable firmware chip that you can update using the provided utility described in section “2.1 Managing and updating your BIOS.” Use the BIOS Setup program when you are installing a motherboard, reconfiguring your system, or prompted to “Run Setup”...
  • Page 50 2.2 List Box This box appears only in the opening screen. The box displays an initial list of configurable items in the menu you selected. 2.3 Sub-menu Note that a right pointer symbol () appears to the left of certain fields. This pointer indicates that you can display a sub-menu from this field.

  • Page 51: Main Setup

    (3) Main Setup 3.1Main Menu Press<Del> to enter AMIBIOSCMOS Setup Utility, the Main Menu will appear on the screen. Use arrow keys to select among the items and press <Enter> to accept orenter the sub-menu. The Main BIOS setup screen has two main frames. The left frame displays all the options that can be configured. Grayed-out options can not be configured ;...
  • Page 52 the<Arrow>keys. All Advanced BIOS Setup options are described in this section. The Advanced BIOS Setup screen is shown below. The submenus are described on the following pages.
  • Page 53 3.3CPU Configuration •Max CPUID Value Limit This item allows you to limit CPUID maximum value. •Execute-Disable Bit Capability This item allows you to enable or disable the No-Execution page protection technology. •Hyper Threading Technology This item allows you to enable or disable Intel Hyper Threading technology. •Intel®...
  • Page 54 3.4IDE configuration •ATA / IDE Configuration This can be configured as Disabled, Compatible or Enhanced. •Configure SATA as This can be configured as IDE or AHCI. •SATAI/SATA2 While entering setup,the BIOS automatically detects the presence of SATA devices. This displays the status of SATA device auto-detection. •IDE Detect Time Out (Sec) This item allows you to select the time out value for detecting ATA/ ATAPI device(s).
  • Page 55 •On board Serial port1 [3F8/IRQ4] This item allows user to adjust serial port1 address and IRQ. •On board Serial port2 [2F8/IRQ3] This item allows user to adjust serial port2 address and IRQ. •On board Serial port3 [C80/IRQII] This item allows user to adjust serial port3 address and IRQ. •On board Serial port4 [C88/IRQI0] This item allows user to adjust serial port4 address and IRQ.
  • Page 56 3.5Hardware Health Configuration •CPU warning temperature Use this to set the CPU warning temperature threshold. When the system CPU reaches the warning temperature ,the buzzer will beep.
  • Page 57 3.6General ACPI Configuration •Suspend mode Select the ACPI state used for system suspend. •Report Video on S3 Resume This item allows you to invoke VABIOSPOST on S3 / STR resume.
  • Page 58 3.7Advanced ACPI Configuration •ACPI Version Features This item allows you to enable RSDP pointers to 64-bit fixed system description tables. •ACPIAPIC support Include ACPI table pointer to RSDT pointer list. •AMI OEMB table Include OEMB table pointer to R(x)SDT pointer lists. •Head less mode Enable/ Disable Head less operation mode through ACPI.
  • Page 59 3.8APM Configuration •Power Management/ APM Enable or disable APM power management function. •Restore on AC Power Loss This option allows user to set system action when AC power restores after AC Power loss. Available options include Power Off, Power On, Last Status. •Resume On Ring Disable / Enable RI wake event.
  • Page 60 3.9USB Configuration •Legacy USB Support Enables support for legacy USB. Auto option disables legacy support If no USB Devices are connected. •USB2.0 Controller Mode This item allows you to select Hi-Speed (48OMbps) or Full Speed(l2Mpbs). •BIOS EHCI Hand-Off This is a workaround for Oss without EHCI hand-off support. The EHCI owner-ship change should be claimed by EHCI driver.
  • Page 61 3.10Advanced PCI/ PnP Settings Select the PCI / PnP tab from the AIMB-2l2 setup screen to enter the Plug andPlay BIOS Setup screen. You can display a Plug and Play BIOS Setup option by highlighting it using the <Arrow> keys. All Plug and Play BIOS Setup options are described in this section.
  • Page 62 •Clear NVRAM Set this value to force the BIOS to clear the Non-Volatile Random Access Memory (NVRAM). The Optimal and Fail-Safe default setting is No. •Plug& Play O/S When set to No, BIOS configures all the devices in the system. When set to Yes and if you install a Plug and Play operating system, the operating system configures the Plug and Play devices not required for bootup.
  • Page 63 3.11Boot settings Configuration •Quick Boot This item allows BIOS to skip certain tests while booting. This will decrease the time needed to boot the system. •Quiet Boot If this option is set to Disabled,the BIOS displays normal POST messages. If Enabled, an OEM Logo is shown instead of POST messages. •Boot up Num-Lock Select the Power-on state for Numlock.
  • Page 64 3.12 Security Setup Select Security Setup from the PCM-9562 Setup main BIOS setup menu. All Security Setup options, such as pass word protect ion and virus protection are described in this section. To access the sub menu for the following items, select the item and press <Enter>...
  • Page 65 3.13Advanced Chipset Settings •North Bridge Configuration •South Bridge Configuration...
  • Page 66 3.14 North Bridge Chipset Configuration •DRAM Frequency This item allows you to manually change DRAM frequency. •Configure DRAM Timing by SPD This item allows you to enable or disable detect by DRAM SPD. •Initiate Graphic Adapter This item allows you to select which graphics controller to use as the primary boot device. •Internal Graphics Mode Select Select the amount of system memory used by the Internal graphics device.
  • Page 67 3.15 Video Function Configuration •DVMT Mode Select Displays the active system memory mode. •DVMT / FIXED Memory Specifies the amount of DVMT/ FIXED system memory to allocate for video memory. •Boot Display Device Select boot display device at post stage. •Flat Panel Type This item allows you to select which panel resolution you want.
  • Page 68 3.16 South Bridge Chipset Configuration •USB Functions Select : Disabled, 2 USB Ports, 4USB Ports, 6USB Ports or 8USB Ports. •USB 2.0 Controller Enables or disables the USB2.O controller. •LAN controller Enables or disables the GbE controller. •SLP_S4 # Min. Assertion Width This item allows you to set a delay of a set number of seconds.
  • Page 69 3.17 Exit Option •Save Changes and Exit When you have completed system configuration, select this option to you’re your changes, exit BIOS setup and reboot the computer so the new system configuration parameters can take effect. Select Save Changes and Exit from the Exit menu and press <Enter>. The following message appears: Save Configuration Changes and Exit Now? [Ok] / [Cancel]...

  • Page 70: Troubleshooting

    4. Troubleshooting (1) Network Issues Symptom Corrective Procedure ▪ Check if hub or switch is working correctly Cannot access LAN ▪ Check RJ45 cable connection ▪ Check if LAN LEDs are on/off ▪ Reinstall LAN card ▪ Replace motherboard (2) MSR Issues Symptom Corrective Procedure ▪...

  • Page 71: Touch-Screen Issues

    (5) Touch-screen Issues Symptom Corrective Procedure ▪ Check touch-screen cable connection Touch-screen doesn’t detect touch operations ▪ Check motherboard and LCD cable connection ▪ Check BIOS set-up (6) Power Issues Symptom Corrective Procedure ▪ Check A/C cable connection System switches off abruptly and system does not load ▪...

  • Page 72: Maintenance

    5. Maintenance Safety Warning POSBANK will not be held responsible for repairs conducted via service providers other than those officially specified by the seller. General Guidelines Always disconnect the unit from the power outlet. Disconnect all cables from the POS main unit before attempting reparation.

  • Page 73: Anyshop Module Pos System Replacement

    AnyShop Module POS System Replacement (1) Separating LCD module LCD module Step 1. Lift up the LCD display.
  • Page 74 LCD module Step 2. Turn the 2 hand-screws to “open” direction. Step 3. Remove the monitor cable. Step 4. Lift up the LCD module and detach from the main body.
  • Page 75 Separating LCD module Step 5. Separate LCD monitor module. LCD monitor module is now removed.

  • Page 76: Separating Msr Module

    (2) Separating MSR module LCD module Step 1. Remove 2 screws from side using hand. (as shown above) Step 2. Remove the cable. (RJ-45 connector) Step 3. Separate a MSR...

  • Page 77: Separating Hinge Module

    (3) Separating Hinge module HINGE module Step 1. Separate LCD module. (Please refer to P.105~107 for “Separating LCD module”) Step 2. Remove the 4 screws. Step 3. Separate the hinge module.

  • Page 78: Separating

    (4) Separating Back cover Back cover Step 1. Remove the 2 screws on two sides. Step 2. Remove the Back cover by pushing it outward. Step 3. Separate the Back cover.

  • Page 79: Separating Customer Display(Cdp)

    (5) Separating Customer display(CDP) Customer display(CDP) Step 1. Separate the Back cover (Please refer to P.110 ) Step 2. Remove the 2 screws used for clamping CDP. Step 3. Separate the CDP Bracket after removing 2 screws. Step 4. Remove the cable. Step 5.

  • Page 80: Separating Motherboard

    (6) Separating Motherboard Separating Motherboard Step 1. Separate the Back cover (Please refer to P.110 ) Step 2. Remove the 2 screws of (1). Step 3. Remove the Motherboard bracket by pushing it upward.
  • Page 81 Separating motherboard Step 4. Remove the 4 screws. Step 5. Replace the motherboard.

  • Page 82: Motherboard Replacement

    (7) Motherboard Replacement Motherboard Replacement Step 1. Remove the 8 screws on reverse side of main unit using a (+) driver and take off the rear cover. Rear cover is now removed. Step 2. Next, remove the last 8 screws as shown above.
  • Page 83 Motherboard Replacement Cash box port 32mm Six-angle screws Step 3. Separate the Cash box port after removing 1 screws. Step 4. remove the 3 screws after removing Six-angle 1 screws. Motherboard is now removed. Step 5. Remove Replace motherboard and reassemble unit using the reverse procedure of steps 1-4 above.

  • Page 84: Heat Sink Replacement

    (8) Heat Sink Replacement Heat Sink Replacement Step 1. Separate the Motherboard mounting panel. (Please refer to P.90~91) Step 2. Reverse the Heat Sink. Step 3. Separate the Heat Sink after removing 5 screws. HEAT SINK...

  • Page 85: Memory Replacement

    (9) Memory Replacement Memory Replacement Memory Memory Configurations You may install 256 MB, 512 MB, 1GB, 2 GB and 4G unbuffered ECC or non-ECC DDR SO-DIMMs into the SO-DIMM sockets using the memory configurations in this section.
  • Page 86 Memory Replacement Step 1. Remove motherboard mounting panel (Please refer to P.90~91) Step 2. locate the memory(SO-DIMM) socket. (see Figure)
  • Page 87 Memory Replacement Step 3. Gently spread the retaining clips at each end of the memory socket. The memory(SO-DIMM) pops out of the socket. Step 4. Remove the memory(SO-DIMM) from the socket.
  • Page 88 Memory Replacement Step 5. To replace new memory; Position the new memory above the socket. Step 6. Align the small notch at the bottom edge of the memory with the keys in the socket. Step 7. When the memory is inserted, push down on the top edge of the memory until the retaining clips snap into place.

  • Page 89: Separating Usb Pcb

    (10) Separating USB PCB USB PCB Step 1. Separate the Back cover. (Please refer to Back cover separation part) Step 2. Separate the USB PCB after removing 2 screws.

  • Page 90: Separating Ssd

    (11) Separating SSD Step 1 Step 1. Raise the main LCD Module. Pull the bottom and lift up the I/O port cover. Step 2. Pull out the SSD cover from the bottom and remove. Step 3. Press up as shown and SSD will be ejected.

  • Page 91: Specification

    Specification AnyShop D5 Intel Atom processor D525 (1M Cache, 1.8 GHz, Dual Core for Pineview D) Chipset Intel ICH8M Storage SATA HDD 2.5inch (Default 320GB), SSD is available by option Memory DDR3-800MHz SODIMM 2GB (MAX. 4GB) Integrated Intel Gen3.5+GFX Render Core 400MHz (Pineview-D) Resolution 15"...
