POSBank BLUO D25 User Manual

Point-of-sale system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

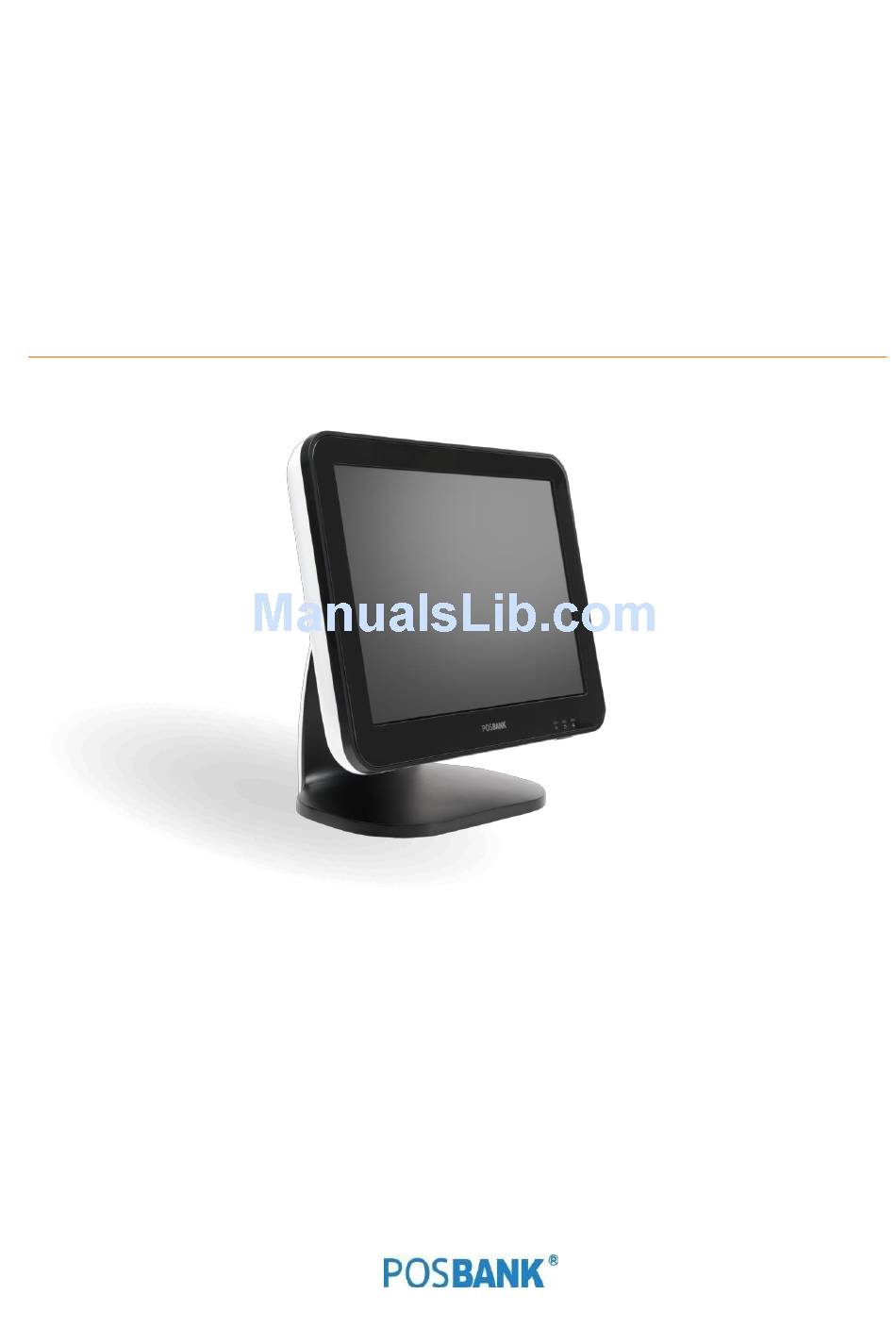

BLUO_D25_UM_eng_PBUM_E(Rev002;140926)
Point-of-sale system
BLUO D25
Use'r manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLUO D25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSBank BLUO D25

Summary of Contents for POSBank BLUO D25

  • Page 1 BLUO_D25_UM_eng_PBUM_E(Rev002;140926) Point-of-sale system BLUO D25 Use’r manual...

  • Page 2: Table Of Contents

    (12) SWITCHING ON POS ....................................27 (13) SHUTTING DOWN POS ..................................... 28 (14) SYSTEM DRIVERS ..................................... 29 2. BLUO D25 MODULE REPLACEMENT ..........................30 (1) SEPARATING LCD MONITOR MODULE ............................... 30 (2) SEPARATING HDD MODULE ..................................32 (3) SEPARATING MOTHER BOARD & SUB PCB MODULE ..........................36 (4) SEPARATING ADAPTER MODULE ................................

  • Page 3: Posbank User Manual Revision History

    POSBANK Use’r manual Revision History Changes to the BLUO D25 Use’r manual are listed below. Rev No. Revision History Date /author BLUO_D25_UM_eng_PBUM_(Rev001;140221) 2014.07. 18 BLUO_D25_UM_eng_PBUM_(Rev002;140926) 2014.09.26...

  • Page 4: Specification

    Specification BLUO D25 Intel Atom processor D2550 (1MB Cache, 1.86 GHz, Dual Core for Cedarview-D) Chipset Intel NM10 SATA2(3Gb/s) 2.5 inch HDD or HDD (Max. 2 Optional) Storage Support AHCI Memory DDR3-1066MHz SODIMM 2GB (MAX. 4GB) Graphic Integrated Intel GMA HD 3650 Resolution 15"...

  • Page 5: Specification - Outside Size

    Specification – Outside size...

  • Page 6: Preface

    Preface This User's Guide gives information about main unit/IO port layout, basic setup, component installation, and board layout for point of sale system "BLUO D25" Intended Audience The User's Guide is intended for technically qualified personnel. It is not intended for general audiences.

  • Page 7: Symbol; Mark

    SYMBOL; MARK CE MARK This device complies with the requirements of the EEC directive 2004/108/EC with regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive”. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference.

  • Page 8: Copyright

    Neither this manual, nor any of the material contained herein, may be reproduced without express written consent of the author. BLUO D25 and POSBANK are trademarks of POSBANK Co., Ltd. in the United States and other countries. * Other names and brands may be claimed as the property of others.

  • Page 9: Warranty

    Warranty We guarantee our POS terminal product and its parts against defects in materials and workmanship, under proper use, for a standard period of 2 years from the original date of purchase. During this period, we will repair or replace defective and/or faulty products or parts without charge to the customer for parts and labor.

  • Page 10: Safety Instructions

    Safety Instructions To disconnect the machine from the electrical power supply, turn off the power switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. Read these instructions carefully.

  • Page 11: Notice

    Notice Always ensure that the correct power voltage is used as a precaution against fire and electrical shock. 2. Avoid exposing product to direct sunlight. Do not use product in areas of high humidity. Doing so may cause low reliability and/or operational malfunction. Be careful of static electricity on PCB of system with anti-static appliances.

  • Page 12: Liability Limitation

    This product is qualified by FCC, CE and KC compliances, and is thus governed by these qualifications’ safety regulations. However, the product can affect and be affected by other high frequencies generated around it. As such, POSBANK does not consider liability for any system error or disorder due to this issue.

  • Page 13: Installation Recommendations

    Installation Recommendations Avoid installing during thunderstorms. (Possibility of dangerous exposure to electricity.) Install away from damp spaces or water-leaks. Beware of static occurrence during installation. Use only ground connected and quality certified power cords and cables. Keep out of direct sun-light, extremely high or low temperatures, or high humidity areas. Install product away from areas prone to shocks or vibration.

  • Page 14: Product Overview

    2. The POS terminal main unit, power cable, user manual and driver CD are included in the package. If any items are missing or damaged, please contact your dealer for assistance. » All user manuals and drivers are available for download on our website: www.posbank.com BLUO D25 Main unit...
  • Page 15 Optional Devices: 2 LCD monitor 12.1” Optional Devices: 2 LCD monitor 10”...

  • Page 16: Pre-Installation Preparation

    Remove protective film from touch-screen to prevent possible operating difficulties. 2. Attach all optional parts before setting up the main POS unit. (3) Product Outline • Each part of product may differ depending on the specific POS model. • Model-specific data sheets are provided on our website at www.posbank.com...

  • Page 17: Configuration

    (4) Configuration Refer to following diagram to identify the components on this side of the system. Front view LCD MONITOR & Touch panel display LAN LED Storage(Default: HDD) LED Power LED Magnetic stripe reader(MSR); Option Smart card reader(SCR); Option Dallas I-button reader; Option Power switch...
  • Page 18 Side view I/O port cover Storage (Default: HDD) Customer display; Option USB port ; Option...

  • Page 19: I/O Port: Details

    (5) I/O port: Details * I/O ports may differ according to product model or options. I/O view I/O view Raise the I/O COVER.
  • Page 20 Standard I/O port...

  • Page 21: Setting Up: Keyboard & Mouse Connection

    (6) Setting up: Keyboard & Mouse Connection Connecting the keyboard to the PS/2 port on the bottom panel. or connecting the USB type keyboard and mouse to the USB port on the bottom panel.

  • Page 22: Setting Up: Connection Usb Port

    (7) Setting up: Connection USB Port USB ports are provided in the POS unit, two at the rear I/O and four at the side, all of which support the standard USB. Some USB devices (optional devices) are only functional with specific driver software installed. If multiple USB devices are used together, this may result in abnormal functionality.

  • Page 23: Setting Up: Connection Via Ethernet Port (Lan)

    (8) Setting up: Connection via Ethernet Port (LAN) The Ethernet port located at the rear I/O supports 10/100/1000Mbps using an RJ45 connector cable. When connected properly, the LAN LED light will be switched on. Through a network hub. Refer to the table below for the LAN port LED indications. LINK / ACT LED SPEED LED LINK/ACT LED...

  • Page 24: Setting Up: Line-Out, Mic-In, Line-In Connection

    (9) Setting up: Audio-out, Mic-in connection • Audio Out port (lime): This port connects a headphone or a speaker.In4-channel, 6-channel and 8-channel configuration, the function of this port becomes Front Speaker Out. • Microphone port (pink): This port connects a microphone.

  • Page 25: Setting Up: Printer Connection

    (10) Setting up: Printer Connection Connect printer cable to either Serial &USB port as required.

  • Page 26: Setting Up: Power Cable Connection

    (11) Setting up: Power Cable Connection The ‘BLUO D25’ POS system is equipped with a 12V/ 5A power adapter. Connect the cable to the DC-IN port on system IO panel. CAUTION : Do not pull on the adapter cable! Disconnect cable with pulling the plug cap.

  • Page 27: Switching On Pos

    (12) Switching On POS Press POWER button on the POS unit. (POWER LED will light up.) The power switch is located right hand side of the main body under the display unit. 2. Confirm that Windows loads correctly.

  • Page 28: Shutting Down Pos

    (13) Shutting Down POS * For product stability, we recommend closing Windows from the O/S. Please make sure that you have closed all applications before closing Windows. Click ‘Start’ and select ‘Turn off Computer’ 2. Click ‘Shut Down’ to close Windows. (ex: POSReady2009 or Windows XP)

  • Page 29: System Drivers

    (14) System Drivers Please visit our website: www.posbank.com for the latest driver updates. Supported devices: Cash drawer, CDP (Customer Display Panel), MSR (Magnetic Stripe Reader) and printer. Driver installation ● Installation method : Driver will automatically install by clicking SETUP.EXE in your driver CD.

  • Page 30: Bluo D25 Module Replacement

    2. BLUO D25 Module Replacement (1) Separating LCD Monitor module * Warning: Completely remove power cable when opening main unit or installing optional devices. LCD Monitor module Step1. Please lift up the I/O cover Step2. Remove the adapter cable. Disconnect cap from base of Unit.
  • Page 31 LCD monitor module Step4. Lift up the LCD monitor module and detach from the Stand.

  • Page 32: Separating Hdd Module

    (2) Separating HDD module * Warning: Completely remove power cable when opening main unit or installing optional devices. HDD Module Step1. Please lift up the I/O cover Step2. Remove the adapter cable. Disconnect cap from base of Unit. Caution Power must be disconnected before replacing HDD.
  • Page 33 HDD Module Step4. See printed image for details. [Zoom-in.] Check an arrow sign.
  • Page 34 HDD Module Step5. Lift up the HDD & HDD Tray. Step6. Open four Tray hinges carefully in opposite directions as in image. Step7. HDD will be separated smoothly. Push...
  • Page 35 HDD Module Step8. Assemble HDD bottom to join Tray bottom. Caution Power must be disconnected before replacing HDD. Before replace the device, remove static electricity of technician.

  • Page 36: Separating Mother Board & Sub Pcb Module

    (3) Separating Mother board & SUB PCB module * Warning: Completely remove power cable when opening main unit or installing optional devices. Mother board Module & SUB PCB Step1. Please lift up the I/O cover Step2. Remove the adapter cable. Disconnect cap from base of Unit.
  • Page 37 Mother board Module & SUB PCB Step4. Turn two hand screws. Step5. Lift up the LCD monitor module and detach from the Stand.
  • Page 38 Mother board Module & SUB PCB Step6. Remove the two screw and Disassembly Rear case. Step7. Turn two hand screws and remove Main bracket.
  • Page 39 Mother board Module & SUB PCB SUB PCB Step8. Turn screws and replace Mother board. Step9. Turn screws and replace SUB PCB. Mother board Step10. Reassemble a unit using the Reverse procedure of step 1-7 above.

  • Page 40: Separating Adapter Module

    (4) Separating Adapter module * Warning: Completely remove power cable when opening main unit or installing optional devices. Adapter module Step1. Please lift up the I/O cover Caution Power must be disconnected before replacing HDD. Before replace the device, remove static electricity of technician.
  • Page 41 Adapter module Adapter Step4. Turn hand screws and remove Adapter bracket. Step5. Replace the Adapter. Adapter bracket...

  • Page 42: Separating Stand Back

    (5) Separating Stand back * Warning: Completely remove power cable when opening main unit or installing optional devices. Stand back Step1. Press upper side of Stand as in image Step2. Pull up the hook on bottom of the back side of stand...
  • Page 43 Stand back Step 3. Disassemble Stand back by pulling down to outward. Caution Remove AC cable before disassembling Stand back.

  • Page 44: Installation Of Option Device

    3. Installation of option device (1) Installation CDP module - Option * Warning: Completely remove power cable when opening main unit or installing optional devices. CDP - Option Step1. Please lift up the I/O cover Step2. Remove the adapter cable. Disconnect cap from base of Unit.
  • Page 45 CDP - Option Step4. Assemble the CDP with the Hinge of the body. Step5. Fasten 3 screws to fix the CDP. Step6 . Put holes in the sample place. (RJ11 Port)
  • Page 46 CDP - Option Step7. Reassemble a unit using the Reverse procedure of step 1-3 above.

  • Page 47: Installation 2Nd Display Module-Option

    (2) Installation 2 Display module - Option * Warning: Completely remove power cable when opening main unit or installing optional devices. 2nd display : 10inch, 12.1inch Display - Option Step1. Please lift up the I/O cover. Step2. Remove the adapter cable. Disconnect cap from base of Unit.
  • Page 48 2nd display : 10inch, 12.1inch Display - Option Step4. Assemble the 2 display with the Hinge of the body. Step5. Fasten 3 screws to fix the 2 display. Step6. Put holes in the sample place. ( RJ11, VGA Port)
  • Page 49 2nd display : 10inch, 12.1inch Display - Option Step7. Reassemble a unit using the Reverse procedure of step 1-3 above.

  • Page 50: Installation Msr Module-Option

    (3-1) Installation MSR module - Option * Warning: Completely remove power cable when opening main unit or installing optional devices. MSR - Option Step 1. Lift up the I/O Cover. Step2. Assemble 2 hand screws from Side using hand. (as show above)
  • Page 51 MSR - Option Step3. Assemble the MSR. Step4. I/O part put holes in the sample place. (RJ45 PORT)
  • Page 52 MSR - Option Step5. Access to POSBANK homepage Step6. Click on the button on the toolbar (Position : SUPPORT -> Firmware and Drivers ) Step7. Search the MSR at search engine. Step8. Download the MSR mapper file (file name : [POS Peripherals]MSR Utility _Magnetic Stripe Reader(MSR) Utility) Step9.
  • Page 53 Step10. Click NEXT.. Step11. After the installation is complete 'Select Device' to Make sure that the choice is normally a FW update.
  • Page 54 Check MSR Module type C type Do – MSR DO not – SCR, I-button Interface - Only USB D type Do – MSR DO not –SCR, I-button Interface – USB, Serial E type Do- MSR, SCR, I-button Do not-X Interface – USB, Serial...

  • Page 55: Installation Msr+Scr+I-Button Module-Option

    (3-2) Installation MSR+SCR+I-Button module - Option * Warning: Completely remove power cable when opening main unit or installing optional devices. MSR+SCR+I-Button - Option Step 1. Lift up the I/O Cover. Step2. Assemble 2 hand screws from Side using hand. (as show above)
  • Page 56 MSR+SCR+I-Button – Option Step3. Assemble the MSR+SCR+I-BUTTON. Step4. I/O part put holes in the sample place. (RJ45 PORT)
  • Page 57 MSR - Option Step5. Access to POSBANK homepage Step6. Click on the button on the toolbar (Position : SUPPORT -> Firmware and Drivers ) Step7. Search the MSR at search engine. Step8. Download the MSR mapper file (file name : [POS Peripherals]MSR Utility _Magnetic Stripe Reader(MSR) Utility) Step9.
  • Page 58 Step10. Click NEXT.. Step11. After the installation is complete 'Select Device' to Make sure that the choice is normally a FW update.
  • Page 59 Change the SCR+I-BUTTON Module. Step1. Separate the SCR+I-BUTTON from MSR module CABLE Step2. Turn screws and change the SCR module and I-button. I-button...

  • Page 60: Installation Speakers Module-Option

    (4) Installation Speakers module - Option * Warning: Completely remove power cable when opening main unit or installing optional devices. Speaker - Option Step1. Please lift up the I/O cover Step2. Remove the adapter cable. Disconnect cap from base of Unit. Caution Power must be disconnected before replacing HDD.
  • Page 61 Speaker - Option Step4. Turn two hand screws. Step5. Lift up the LCD monitor module and detach from the Stand.
  • Page 62 Speaker - Option Step6. Remove the two screws and disassembly Rear cover. Step7. Turn two hand screws and remove Main bracket.
  • Page 63 Speaker - Option Step8. Assemble 2 Speakers to inner Side of body by screw. Step9. Connect each Speaker to Speaker cable. Step10. Reassemble a unit using the Reverse procedure of step 1-7 above.

  • Page 64: Installation Lpt Module-Option

    (5) Installation LPT module - Option * Warning: Completely remove power cable when opening main unit or installing optional devices. LPT - Option Step1. Please lift up the I/O cover Step2. Remove the adapter cable. Disconnect cap from base of Unit. Caution Power must be disconnected before replacing HDD.
  • Page 65 LPT - Option Step4. Turn two hand screws. Step5. Lift up the LCD monitor module and detach from the Stand.
  • Page 66 LPT - Option Step6. Remove the two screw and Disassembly Rear case. Step7. Turn two hand screws and remove Main bracket.
  • Page 67 LPT - Option Step8. Remove the LPT dummy from I/O bracket. Step9. Assemble the LPT with the I/O bracket. LPT dummy...
  • Page 68 LPT - Option Step10. Reassemble a unit using the Reverse procedure of stpe1-5 above.

  • Page 69: Installation Usb Pcb Module-Option

    (6) Installation USB PCB module - Option * Warning: Completely remove power cable when opening main unit or installing optional devices. USB PCB - Option Step1. Please lift up the I/O cover Step2. Remove the adapter cable. Disconnect cap from base of Unit. Caution Power must be disconnected before replacing HDD.
  • Page 70 USB PCB - Option Step4. Turn two hand screws. Step5. Lift up the LCD monitor module and detach from the Stand.
  • Page 71 USB PCB - Option Step6. Remove the two screw and Disassembly Rear case. Step7. Turn two hand screws and remove Main bracket.
  • Page 72 USB PCB - Option Step8. Use cutter and ripper to remove USB dummy. [ZOOM IN]...
  • Page 73 USB PCB - Option Step9. Mother board put holes in the Sample place (as show above) Step10. Reassemble a unit using the Reverse procedure of stpe1-5 above.

  • Page 74: Installation Ram Module-Option

    (7) Installation RAM module - Option * Warning: Completely remove power cable when opening main unit or installing optional devices. RAM - option Step1. Please lift up the I/O cover. Step2. Remove the adapter cable. Disconnect cap from base of Unit. Caution Power must be disconnected before replacing HDD.
  • Page 75 RAM - option Step4. Turn two hand screws. Step5. Lift up the monitor module and detach from the Stand.
  • Page 76 RAM - option Step6. Remove the two screw and Disassembly Rear case. Step7. Turn two hand screws and remove Main bracket.
  • Page 77 RAM - option Step8. Place Mother board as in image. Stetp9. Install the Memory. [ZOOM-IN]...
  • Page 78 RAM - option Step10. Assemble the SODIMM from the socket. DDR SODIMM notch...
  • Page 79 RAM - option Step11. Reassemble a unit using the Reverse procedure of stpe1-5 above.

  • Page 80: Installation 2Nd Storage (Hdd) Module-Option

    (8) Installation 2 storage (HDD) module - Option * Warning: Completely remove power cable when opening main unit or installing optional devices. 2nd storage (HDD) - Option Step1. Please lift up the I/O cover. Step2. Remove the adapter cable. Disconnect cap from base of Unit. Caution Power must be disconnected before replacing HDD.
  • Page 81 2nd storage (HDD) - Option Step4. Turn two hand screws. Step5. Lift up the LCD monitor module and detach from the Stand.
  • Page 82 2nd storage (HDD) - Option Step6. Remove the two screw and Disassembly Rear case. Step7. Turn two hand screws and remove Main bracket.
  • Page 83 2nd storage (HDD) - Option Step8. Assemble 4 screw from HDD bracket. (as show above) [ZOOM IN 1-2]...
  • Page 84 2nd storage (HDD) - Option ZOOM-1 Step9.Turn two screws and Assemble HDD bracket. ZOOM-2 Step10. Connect each Data cable and Power cable...
  • Page 85 2nd storage (HDD) - Option Step11. Reassemble a unit using the Reverse procedure of stpe1-5 above.

  • Page 86: Installation Smart Battery Module-Option

    (9) Installation Smart battery module - Option * Warning: Completely remove power cable when opening main unit or installing optional devices. Smart battery - Option Step1. Please lift up the I/O cover Step2. Remove the adapter cable. Disconnect cap from base of Unit. Caution Power must be disconnected before replacing HDD.
  • Page 87 Smart battery - Option Step4. Turn two hand screws. Step5. Lift up the LCD monitor module and detach from the Stand.
  • Page 88 Smart battery - Option Step6. Remove the two screw and Disassembly Rear case. Step7. Turn two hand screws and remove Main bracket.
  • Page 89 Smart battery - Option Smart battery module Step8. Push and sliding the smart battery module. Step9. Turn two screws and assemble the Smart battery module. Smart battery board Step10. holes in the sample place. (Image reference) and connect smart battery board.
  • Page 90 Smart battery - Option Smart battery board Step11. Connect cable to other sub smart battery board Step12. Reassemble Mother board reverse procedure of ‘Step1-7’. Step13. Reassemble a unit using the Reverse procedure of stpe1-5 above.

  • Page 91: Installation Cash Drawer Module-Option

    (10) Installation Cash drawer module - Option * Warning: Completely remove power cable when opening main unit or installing optional devices. Cash drawer - Option Step1. Please lift up the I/O cover. Step2. Remove the adapter cable. Disconnect cap from base of Unit. Caution Power must be disconnected before replacing HDD.
  • Page 92 Cash drawer - Option Step4. Turn two hand screws. Step5. Lift up the LCDmonitor module and detach from the Stand.
  • Page 93 Cash drawer - Option Step6. Remove the two screw and Disassembly Rear case. Step7. Turn two hand screws and remove Main bracket.
  • Page 94 Cash drawer - Option Step8. Use cutter or ripper to remove Io bracket blanking. [ZOOM-IN]...
  • Page 95 Cash drawer - Option Step9. Assemble a hexa bolt and fasten Screw to cash drawer. [ZOOM-IN]...
  • Page 96 Cash drawer - Option Step10. Assemble cable to Mini PCI Board. Step11 Insert Mini PCI Board and fasten two screws.
  • Page 97 Cash drawer - Option [ZOOM-IN] Cash drawer No1. : Cash drawer to Mini PCI No2. : Mini PCI to Mother board(COM5) MINI PCI...

  • Page 98: Motherboard

    4. Motherboard (1) Motherboard Overview This includes description of the jumpers and connectors on the motherboard. Warring Take note of the following precautions before you install motherboard components or change any motherboard settings. Unplug the power cord from the wall socket before touching any component. Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.

  • Page 99: Motherboard Layout

    (2) Motherboard Layout This includes description of the jumpers and connectors on the motherboard. Motherboard view...
  • Page 100 NO Description NO Description External USB Inverter USB9 12V/5V Select for 2 Display SYS FAN Display (VGA + COM4) Power switch COM2 12V/R1/5V Reset switch COM1 12V/R1/5V 12V/5V Select for 2 LVDS PS/2 LVDS + COM4 Battery Monitor Main Cable CPU FAN Resistive 5-wire touch SATA Power CN1...

  • Page 101: Jumpers

    (3) Jumpers Clear CMOS (CMOS1) This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which includes system setup information such as system passwords.
  • Page 102 2.COM1, COM2, RI/+5V/+12V Select (JCOMPWR1 / JCOMPWR2) R1 (Default) +12V 3. LVDS Backlight control mode (JLVDS_P1) None PWM PWM Mode Mode (Default)
  • Page 103 4. LVDS Backlight power selection(JLVDS_P3) 3.3V (Default) 5. VGA2 power selection(CRT_SEL) (Default)
  • Page 104 6. Onboard Touch function Enable/Disable selection(USB_SEL) Enable Disable (Default)

  • Page 105: Bios Setup Utility

    5. BIOS Setup Utility * This chapter tells how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided. (1) BIOS setup program This motherboard supports a programmable firmware chip that you can update using the provided utility described in section “2.1 Managing and updating your BIOS.”...
  • Page 106 1.1 Legend Box The keys in the legend bar allow you to navigate through the various setup menus. Key(s) Function Description General help, only for Status Page Setup Menu and Option Page Setup Menu Return to the main menu from a sub-menu or prompts you to quit the setup program ←,→...
  • Page 107 1.2 List Box This box appears only in the opening screen. The box displays an initial list of configurable items in the menu you selected. 1.3 Sub-menu Note that a right pointer symbol (▶) appears to the left of certain fields. This pointer indicates that you can display a sub-menu from this field.

  • Page 108: Bios Setup

    (2) BIOS Setup 2.1 BIOS Menu Screen When you enter the BIOS, the following screen appears. The BIOS menu screen displays the items that allow you to make changes to the system configuration. To access the menu items, press the up/down/right/left arrow key on the keyboard until the desired item is highlighted, then press [Enter] to open the specific menu.
  • Page 109 2.2 Main Setup This menu gives you an overview of the general system specifications. The BIOS automatically detects the items in this menu. Use this menu for basic system configurations, such as time, date etc. 1. System Language English 2. System Time The time format is <Hour>,<Minute>,<Second>.
  • Page 110 2.3 Advanced BIOS Setup Select the Advanced tab from the setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as Chipset configuration, to go to the sub menu for that item.
  • Page 111 2.4 Launch PXE 0Prom [Disable] Configuration options: [Disabled] [Enabled]...
  • Page 112 2.5 ACPI Settings [S3 (suspend to RAM)] System ACPI parameters. Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed . Wake on LAN control [Disabled] Enable/Disable WOL function Wake on Ring control [Disabled] Enable/Disable Wake on Ring function PS2 KB/MS PME control[Disabled] PS2 keyboard/Mouse PME Control any key or click as wake up event.
  • Page 113 2.6 CPU Configuration Hyper-Threading[Enabled] Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) And Disable for other OS(OS not optimized for Hyper-Threading Technology) Execute Disable Bit [Enabled] XD can prevent certain classes of malicious buffer overflow attacks when combine with a supporting OS (Windows Server 2003 SP1,Windows XP SP2,SuSE Linux9.2, RedHat Enterprise 3 update 3.) Limit CPUID Maximum[Disable] Disable for Windows XP...
  • Page 114 2.7 IDE Configuration • IDE Devices configuration SATA Controller[Enable] SATA ports(1-2)Device names if Present and Enable. Configuration SATA as [AHCI] Select a configuration for SATA controller . SATA Port 1/2 [Enable] SATA port(1-2) Enable/Disable...
  • Page 115 2.8. USB Configuration • USB configuration Parameters Legacy USB support [Enable] Enables Legacy USB support AUTO option disable legacy support if no USB device are connected DISABLE option will keep USB device available only for EFI applications EHCI Hand-off[Enable] This is a workaround for OSes without EHCI hand-off support the EHCI ownership change should be claimed by EHCI driver .
  • Page 116 2.9 Super I/O Configruation • System supper I/O CHIP parameters Serial Port 1 configuration Set parameters of serial port 1 (COM1) Serial Port 2 configuration Set parameters of serial port 2 (COM2) Parallel Port configuration Set parameters of parallel port Serial Port 3 configuration Set parameters of serial port 3 (COM3) Serial Port 4 configuration...
  • Page 117 Serial Port 6 configuration Set parameters of serial port 6 (COM6) AC Power Loss state[Always OFF] Set the state after power loss. Watch Dog count Mode[Second(s) Mode] Select watch Dog count mode. Watch Dog Time-out Value Timer will start to count from end of POST .00- Time out Disable.
  • Page 118 2.10 Hardware Monitor Smart Fan Mode configuration Smart Fan Mode select...
  • Page 119 System smart fan mode [Disable] System smart Fan mode select CPU smart fan mode [Disable] System smart Fan mode select...
  • Page 120 2.11 Chipset...
  • Page 121 2.12 Host Bridge Host bridge parameters Memory Frequency and Timing Display memory Frequency and Timing settings.
  • Page 122 2.13 Boot Display Configuration...
  • Page 123 2.14 LCD Panel type [VBIOS Default] Select LCD Panel used by internal Graphics Device by Select the appropriate setup item.
  • Page 124 Color depth [24Bits] Select color Depth for LVDS...
  • Page 125 2.15 South Bridge parameters Into South Bridge Subdiredtory...
  • Page 126 TPT Devices Set parameters of INTEL IO controller Hub(TPT) devices PCI Express Root port 4 Set parameters of PCI Express Root port 4 settings Onboard LAN controller [Enabled] Enable or Disable onboard LAN controller...
  • Page 127 2.16 Boot...
  • Page 128 2.17 Security Administrator password Set administrator password User password Set User password...
  • Page 129 2.18 Save & Exit Save Changes and Exit  Exit system setup after saving the changes. Discard changes and Exit  Exit system setup without saving any changes. Save changes and Reset  Reset teh system after saving the changes. Discard changes and Reset ...
  • Page 130 Discard changes done so far to any of the setup options. Restore Defaults  Restore/Load Default values for all the setup options. Save as User Defaults  Save the changes done so far as User Defaults Restore User Defaults  Restore the User Default to all teh setup options.

  • Page 131: Troubleshooting

    6. Troubleshooting (1) Network Issues Symptom Corrective Procedure ▪ Check if hub or switch is working correctly Cannot access LAN ▪ Check RJ45 cable connection ▪ Check if LAN LEDs are on/off ▪ Reinstall LAN card ▪ Replace motherboard (2) MSR Issues Symptom Corrective Procedure ▪...

  • Page 132: Touch-Screen Issues

    (5) Touch-screen Issues Symptom Corrective Procedure ▪ Check touch-screen cable connection Touch-screen doesn’t detect touch ▪ Check motherboard and LCD cable connection operations ▪ Check BIOS set-up (6) Power Issues Symptom Corrective Procedure ▪ Check A/C cable connection System switches off abruptly and ▪...

  • Page 133: Maintenace

    Maintenance Safety Warning POSBANK will not be held responsible for repairs conducted via service providers other than those officially specified by the seller. General Guidelines Always disconnect the unit from the power outlet. 2. Disconnect all cables from the POS main unit before attempting reparation.
