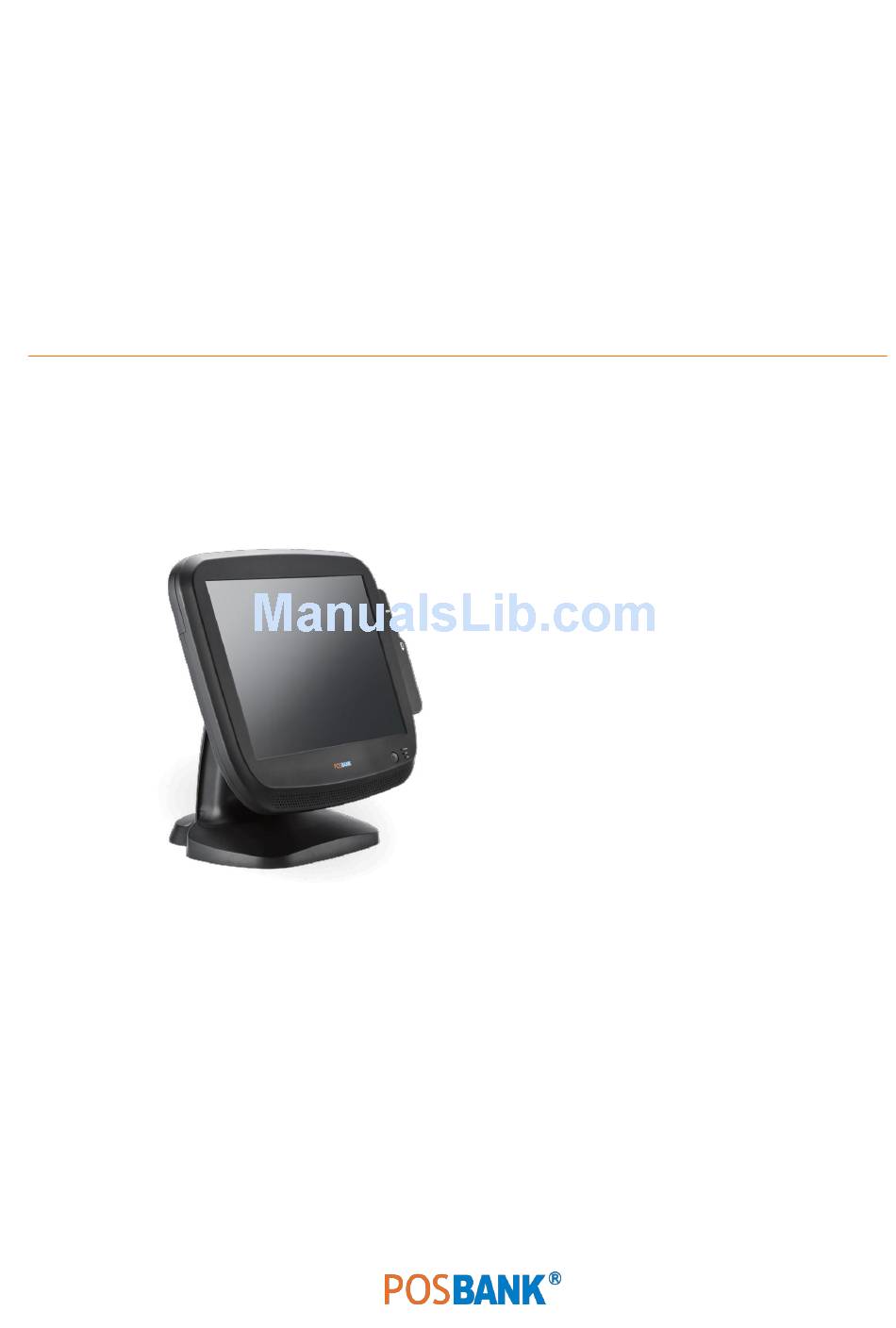

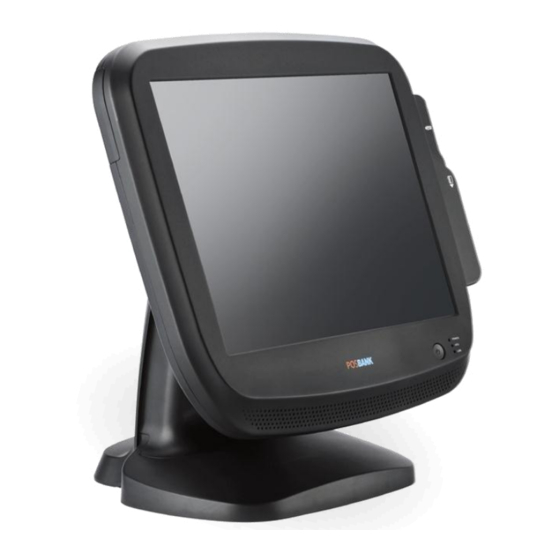

  • Page 1 PBUM-017E(Rev004;130530) Point-of-sale system AnyShop Eco User’s manual...

  • Page 2: Table Of Contents

    (6) POWER ISSUES ................................................. 64 (7) PS/2 KEYBOARD ISSUES ............................................... 64 (8) BOOTING ISSUES................................................64 5. MAINTENANCE ....................................65 ANYSHOP ECO MODULE POS SYSTEM REPLACEMENT ................................66 (1) DETACHING MAIN UNIT ............................................... 66 (2) SEPARATING MSR MODULE ............................................68 (3) HDD REPLACEMENT ..............................................69 (4) MOTHERBOARD REPLACEMENT ..........................................

  • Page 3: Copyright

    Neither this manual, nor any of the material contained herein, may be reproduced without express written consent of the author. AnyShop and POSBANK are trademarks of POSBANK Co., Ltd. in the United States and other countries. * Other names and brands may be claimed as the property of others.

  • Page 4: Warranty

    Warranty We guarantee our POS terminal product and its parts against defects in materials and workmanship, under proper use, for a standard period of 2 years from the original date of purchase. During this period, we will repair or replace defective and/or faulty products or parts without charge to the customer for parts and labor.

  • Page 5: Posbank User's Manual Revision History

    POSBANK User’s manual Revision History Changes to the AnyShop Eco User’s manual are listed below. Rev No. Revision History Date /author PBUM-017E(Rev001;120131) 2012.01.31 PBUM-017E(Rev002;120717) Modify 2012.07.17 PBUM-017E(Rev003;121011) Separating add. / spec modify 2012.10.11 PBUM-017E(Rev004;130530) Separating add. / spec modify 2013.05.30...

  • Page 6: Preface

    Preface This User's Guide gives information about main unit/IO port layout, basic setup, component installation, and board layout for point of sale system "AnyShop Eco" Intended Audience The User's Guide is intended for technically qualified personnel. It is not intended for general audiences.

  • Page 7: Symbol; Mark

    SYMBOL; MARK CE MARK This device complies with the requirements of the EEC directive 2004/108/EC with regard to “Electromagnetic compatibility” and 2006/95/EC “Low Voltage Directive” . This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference.

  • Page 8: Safety Instructions

    Safety Instructions To disconnect the machine from the electrical power supply, turn off the power switch and remove the power cord plug from the wall socket. The wall socket must be easily accessible and in close proximity to the machine. Read these instructions carefully.

  • Page 9: Notice

    Notice Always ensure that the correct power voltage is used as a precaution against fire and electrical shock. Avoid exposing product to direct sunlight. Do not use product in areas of high humidity. Doing so may cause low reliability and/or operational malfunction. Be careful of static electricity on PCB of system with anti-static appliances.

  • Page 10: Liability Limitation

    We recommend that you inquire about product installation, maintenance and repair service from the official service center and agent office. POSBANK takes no responsibility for malfunctions or system errors occurring after service and/or system check carried out by unofficial service providers.

  • Page 11: Installation Recommendations

    Installation Recommendations Avoid installing during thunderstorms. (Possibility of dangerous exposure to electricity.) Install away from damp spaces or water-leaks. Beware of static occurrence during installation. Use only ground connected and quality certified power cords and cables. Keep out of direct sun-light, extremely high or low temperatures, or high humidity areas. Install product away from areas prone to shocks or vibration.

  • Page 12: Product Overview

    The POS terminal main unit, power cable, user manual and driver CD are included in the package. If any items are missing or damaged, please contact your dealer for assistance. www.posbank.com/www.easyset.org » All user manuals and drivers are available for download on our website: AnyShop Eco Main unit Adapter / Power cord Installation guide Drivers CD...
  • Page 13 Optional Devices: 12 inch LCD monitor” Optional Devices: Customer Display (CDP) Optional Devices: CDP (Customer display)

  • Page 14: Pre-Installation Preparation

    (2) Pre-installation Preparation Remove protective film from touch-screen to prevent possible operating difficulties. Attach all optional parts before setting up the main POS unit. (3) Product Outline • Each part of product may differ depending on the specific POS model. •...

  • Page 15: Configuration

    (4) Configuration Refer to following diagram to identify the components on this side of the system. Front view LCD & Touch panel display Power LED HDD LED LAN LED Magnetic stripe reader(MSR); Option Smart card reader(SCR); Option Power switch...
  • Page 16 Rear view USB port I/O port Customer display (CDP) - optional Stand...
  • Page 17 Standard I/O port...

  • Page 18: Installation Of Optional Devices: Cdp Installation

    (5) Installation of Optional Devices: CDP Installation * Warning: Completely remove AC power cable when opening main unit or installing optional devices. CDP Installation Step 1. Insert (-) driver in the grooves marked: and detach cover from rear of main unit. Step 2.

  • Page 19: Installation Of Optional Devices: 2Nd Display Installation

    (6) Installation of Optional Devices: 2nd Display Installation * Warning: Completely remove AC power cable when opening main unit or installing optional devices. 12 inch LCD Monitor Step 1. Remove both screws as shown above and remove cover. Step 2. Replace standard cover with “Optional Cover”...
  • Page 20 12 inch LCD Monitor Step 3. Use 2nd display cable to connect monitor to main unit. Step 4. Place monitor into frame and insert the 4 screws as shown. Step 5. Use the 2 remaining screws to secure the unit, and finally replace the cover.
  • Page 21 12 inch LCD Monitor Step 6. Testing: CDP is successfully installed when system boots after powering on. (CDP and 12 inch LCD Monitor are used only with COM4 port.)

  • Page 22: Setting Up: Keyboard & Mouse Connection

    (7) Setting up: Keyboard & Mouse Connection Connecting the keyboard and mouse to the PS/2 port on the bottom panel. or connecting the USB type keyboard and mouse to the USB port on the bottom panel.

  • Page 23: Setting Up: Connection Usb Port

    (8) Setting up: Connection USB Port Four USB ports are provided in the POS unit, two at the rear I/O and two at the side, all of which support the standard USB 2.0. Some USB devices (optional devices) are only functional with specific driver software installed. If multiple USB devices are used together, this may result in abnormal functionality.

  • Page 24: Setting Up: Connection Via Ethernet Port (Lan)

    (9) Setting up: Connection via Ethernet Port (LAN) The Ethernet port located at the rear I/O supports 10/100/1000Mbps using an RJ45 connector cable. When connected properly, the LAN LED light will be switched on.. LINK/ACT LED LINK / ACT LED SPEED LED Status Description...

  • Page 25: Setting Up: Line-Out, Mic-In, Line-In Connection

    (10) Setting up: Line-out, Mic-in, Line-in connection • Line In port (light blue): This port connects a tape, CD, DVD player, Sources. • Line Out port (lime): This port connects a headphone or a speaker.In4-channel, 6-channel and 8- channel configuration, the function of this port becomes Front Speaker Out. •...

  • Page 26: Setting Up: Printer Connection

    (11) Setting up: Printer Connection Connect printer cable to either Serial or USB port as required.

  • Page 27: Setting Up: Power Cable Connection

    (12) Setting up: Power Cable Connection Insert power cable into power connector socket. CAUTION : Do not pull on the adaptor cable! Disconnect cable with pulling the plug cap.

  • Page 28: Switching On Pos

    (13) Switching On POS The power switch is located right hand side of the speaker. When connected to AC source, the POWER LED will be lighted-on automatically. The unit's status can be determined by each LED lamp. Indicator modes are as follows; AC input OK : POWER LED is lit (Green) Operation mode : HDD LED is blinking (Red) When connected LAN : LAN LED is blinking (Yellow)

  • Page 29: Shutting Down Pos

    (14) Shutting Down POS * For product stability, we recommend closing Windows from the O/S. Please make sure that you have closed all applications before closing Windows. Click ‘Start’ and select ‘Turn off Computer’ Click ‘Shut Down’ to close Windows. (ex: POSReady2009 or Windows XP)

  • Page 30: System Drivers

    (15) System Drivers Please visit our website: www.posbank.com for the latest driver updates. Supported devices: Cash drawer, CDP (Customer Display Panel), MSR (Magnetic Swipe Reader) and printer. Driver installation ● Installation method : Driver will automatically install by clicking SETUP.EXE in your driver CD.

  • Page 31: Motherboard

    2. Motherboard (1) Motherboard Overview This includes description of the jumpers and connectors on the motherboard. Warring Take note of the following precautions before you install motherboard components or change any motherboard settings. Unplug the power cord from the wall socket before touching any component. Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.

  • Page 32: Motherboard Layout

    (2) Motherboard Layout This includes description of the jumpers and connectors on the motherboard. Motherboard view...
  • Page 33 NO Description NO Description SATA_PWR_CN2 SYS_FAN SATA 2 CPU_FAN SATA 1 COMPSEL3 SATA_PWR_CN1 VGA 1 LVDS1 CN29(12V DC) Mini PCIe slot CN30(24V DC) COM 6 COMP1SEL2 COM 5 COMP1SEL1 JCOMPWR2 VP1(Inverter) JCOMPWR3 F-Panel1 JCOMPWR1 GPIO1 COMPSEL5 CMOS1 CN15 COMPSEL4 15-1. JAMP1 COM 4 16-1.

  • Page 34: Side Usb Board

    (3) Side USB Board Side USB Board Connector Description To Motherboard USB...

  • Page 35: Power Switch Board

    (4) Power Switch Board Power Switch Board Connector Description Power switch...

  • Page 36: Drawer Kicker Board

    (5) Drawer Kicker Board Drawer Kicker Board Connector Description Drawer Port Serial Port Mini PCIe Slot...

  • Page 37: Drawer Port Board

    (6) Drawer Port Board Drawer Port Board Connector Description From Drawer Kicker Cash Drawer port...

  • Page 38: Jumpers

    (7) Jumpers Clear RTC RAM (CLRTC) This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOSRTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.
  • Page 39 COM1, 2, 3, 4, 6RI, +12V and +5V Power Select(COMP1SELx) This jumper allows you to select COM1 RI, +5V and +12V power. Set COMP1SELx top ins 5-6 +5V power. And set COMP1SELx to pins 1-2 +12V power. Then setCOMP1SELx to pins 3-4 for RI selection. COMP1SELx COMP1SEL1 COMP1SEL2...
  • Page 40 COM5RS232, RS422, RS485 Select(JCOMPWRx) This jumper allows you to select COM5 RS232, RS422, RS485. Changing jumpers will beselected different RSxxx protocols. JCOMPWRx RS232 RS422RS485 (Default) JCOMPWR1 JCOMPWR2 JCOMPWR3 JCOMPWR2 JCOMPWR3 JCOMPWR1 This jumper allows you to select COM5 RS232, RS422, RS485. Changing jumpers will beselected different RSxxx protocols.

  • Page 41: Bios Setup Utility

    3. BIOS Setup Utility * This chapter tells how to change the system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided. (1) Managing and updating your BIOS 1.1 Creating a bootable floppy disk Do either one of the following to create a bootable floppy disk.

  • Page 42: Bios Setup Program

    (2) BIOS setup program This motherboard supports a programmable firmware chip that you can update using the provided utility described in section “2.1 Managing and updating your BIOS.” Use the BIOS Setup program when you are installing a motherboard, reconfiguring your system, or prompted to “Run Setup”...
  • Page 43 2.2 List Box This box appears only in the opening screen. The box displays an initial list of configurable items in the menu you selected. 2.3 Sub-menu Note that a right pointer symbol () appears to the left of certain fields. This pointer indicates that you can display a sub-menu from this field.

  • Page 44: Main Setup

    (3) Main Setup 3.1Main Menu Press<Del> to enter AMIBIOSCMOS Setup Utility, the Main Menu will appear on the screen. Use arrow keys to select among the items and press <Enter> to accept orenter the sub-menu. The Main BIOS setup screen has two main frames. The left frame displays all the options that can be configured. Grayed-out options can not be configured ;...
  • Page 45 the<Arrow>keys. All Advanced BIOS Setup options are described in this section. The Advanced BIOS Setup screen is shown below. The submenus are described on the following pages.
  • Page 46 3.3CPU Configuration •Max CPUID Value Limit This item allows you to limit CPUID maximum value. •Execute-Disable Bit Capability This item allows you to enable or disable the No-Execution page protection technology. •Hyper Threading Technology This item allows you to enable or disable Intel Hyper Threading technology. •Intel®...
  • Page 47 3.4IDE configuration •ATA / IDE Configuration This can be configured as Disabled, Compatible or Enhanced. •Configure SATA as This can be configured as IDE or AHCI. •SATAI/SATA2 While entering setup,the BIOS automatically detects the presence of SATA devices. This displays the status of SATA device auto-detection. •IDE Detect Time Out (Sec) This item allows you to select the time out value for detecting ATA/ ATAPI device(s).
  • Page 48 •On board Serial port1 [3F8/IRQ4] This item allows user to adjust serial port1 address and IRQ. •On board Serial port2 [2F8/IRQ3] This item allows user to adjust serial port2 address and IRQ. •On board Serial port3 [C80/IRQII] This item allows user to adjust serial port3 address and IRQ. •On board Serial port4 [C88/IRQI0] This item allows user to adjust serial port4 address and IRQ.
  • Page 49 3.5Hardware Health Configuration •CPU warning temperature Use this to set the CPU warning temperature threshold. When the system CPU reaches the warning temperature ,the buzzer will beep.
  • Page 50 3.6General ACPI Configuration •Suspend mode Select the ACPI state used for system suspend. •Report Video on S3 Resume This item allows you to invoke VABIOSPOST on S3 / STR resume.
  • Page 51 3.7Advanced ACPI Configuration •ACPI Version Features This item allows you to enable RSDP pointers to 64-bit fixed system description tables. •ACPIAPIC support Include ACPI table pointer to RSDT pointer list. •AMI OEMB table Include OEMB table pointer to R(x)SDT pointer lists. •Head less mode Enable/ Disable Head less operation mode through ACPI.
  • Page 52 3.8APM Configuration •Power Management/ APM Enable or disable APM power management function. •Restore on AC Power Loss This option allows user to set system action when AC power restores after AC Power loss. Available options include Power Off, Power On, Last Status. •Resume On Ring Disable / Enable RI wake event.
  • Page 53 3.9USB Configuration •Legacy USB Support Enables support for legacy USB. Auto option disables legacy support If no USB Devices are connected. •USB2.0 Controller Mode This item allows you to select Hi-Speed (48OMbps) or Full Speed(l2Mpbs). •BIOS EHCI Hand-Off This is a workaround for Oss without EHCI hand-off support. The EHCI owner-ship change should be claimed by EHCI driver.
  • Page 54 3.10Advanced PCI/ PnP Settings Select the PCI / PnP tab from the AIMB-2l2 setup screen to enter the Plug andPlay BIOS Setup screen. You can display a Plug and Play BIOS Setup option by highlighting it using the <Arrow> keys. All Plug and Play BIOS Setup options are described in this section.
  • Page 55 •Clear NVRAM Set this value to force the BIOS to clear the Non-Volatile Random Access Memory (NVRAM). The Optimal and Fail-Safe default setting is No. •Plug& Play O/S When set to No, BIOS configures all the devices in the system. When set to Yes and if you install a Plug and Play operating system, the operating system configures the Plug and Play devices not required for bootup.
  • Page 56 3.11Boot settings Configuration •Quick Boot This item allows BIOS to skip certain tests while booting. This will decrease the time needed to boot the system. •Quiet Boot If this option is set to Disabled,the BIOS displays normal POST messages. If Enabled, an OEM Logo is shown instead of POST messages. •Boot up Num-Lock Select the Power-on state for Numlock.
  • Page 57 3.12 Security Setup Select Security Setup from the PCM-9562 Setup main BIOS setup menu. All Security Setup options, such as pass word protect ion and virus protection are described in this section. To access the sub menu for the following items, select the item and press <Enter>...
  • Page 58 3.13Advanced Chipset Settings •North Bridge Configuration •South Bridge Configuration...
  • Page 59 3.14 North Bridge Chipset Configuration •DRAM Frequency This item allows you to manually change DRAM frequency. •Configure DRAM Timing by SPD This item allows you to enable or disable detect by DRAM SPD. •Initiate Graphic Adapter This item allows you to select which graphics controller to use as the primary boot device. •Internal Graphics Mode Select Select the amount of system memory used by the Internal graphics device.
  • Page 60 3.15 Video Function Configuration •DVMT Mode Select Displays the active system memory mode. •DVMT / FIXED Memory Specifies the amount of DVMT/ FIXED system memory to allocate for video memory. •Boot Display Device Select boot display device at post stage. •Flat Panel Type This item allows you to select which panel resolution you want.
  • Page 61 3.16 South Bridge Chipset Configuration •USB Functions Select : Disabled, 2 USB Ports, 4USB Ports, 6USB Ports or 8USB Ports. •USB 2.0 Controller Enables or disables the USB2.O controller. •LAN controller Enables or disables the GbE controller. •SLP_S4 # Min. Assertion Width This item allows you to set a delay of a set number of seconds.
  • Page 62 3.17 Exit Option •Save Changes and Exit When you have completed system configuration, select this option to you’re your changes, exit BIOS setup and reboot the computer so the new system configuration parameters can take effect. Select Save Changes and Exit from the Exit menu and press <Enter>. The following message appears: Save Configuration Changes and Exit Now? [Ok] / [Cancel]...

  • Page 63: Troubleshooting

    4. Troubleshooting (1) Network Issues Symptom Corrective Procedure ▪ Check if hub or switch is working correctly Cannot access LAN ▪ Check RJ45 cable connection ▪ Check if LAN LEDs are on/off ▪ Reinstall LAN card ▪ Replace motherboard (2) MSR Issues Symptom Corrective Procedure ▪...

  • Page 64: Touch-Screen Issues

    (5) Touch-screen Issues Symptom Corrective Procedure ▪ Check touch-screen cable connection Touch-screen doesn’t detect touch operations ▪ Check motherboard and LCD cable connection ▪ Check BIOS set-up (6) Power Issues Symptom Corrective Procedure ▪ Check A/C cable connection System switches off abruptly and system does not load ▪...

  • Page 65: Maintenance

    5. Maintenance Safety Warning POSBANK will not be held responsible for repairs conducted via service providers other than those officially specified by the seller. General Guidelines Always disconnect the unit from the power outlet. Disconnect all cables from the POS main unit before attempting reparation.

  • Page 66: Anyshop Eco Module Pos System Replacement

    AnyShop Eco Module POS System Replacement (1) Detaching Main Unit Main Unit Step 1. Remove the 2 screws as shown above and take off cover. Step 2. Remove the 8 screws from the frame under the cover.
  • Page 67 Main Unit Step 3. Detach main unit from stand. Step 4. Main unit is now detached.

  • Page 68: Separating Msr Module

    (2) Separating MSR module MSR Installation Step 1. Remove dummy cover at the rear left of the main unit. » PS2, USB and Serial port connections are supported Step 2. Connect MSR cable to MSR unit. Step 3. Affix MSR to main unit using 2 screws as shown.

  • Page 69: Hdd Replacement

    (3) HDD Replacement HDD Replacement Step 1. Remove HDD cover from main unit. Step 2. Press down as shown and HDD will be ejected. Step 3. Insert new HDD and replace cover.

  • Page 70: Motherboard Replacement

    (4) Motherboard Replacement Motherboard Replacement » We recommend removing MSR, HDD and CDP before replacing the motherboard. Step 1. Remove the 8 screws on reverse side of main unit using a (+) driver and take off the rear cover. Rear cover is now removed...
  • Page 71 Motherboard Replacement Step 2. Next, remove the last 4 screws as shown above. Step 3. Remove cable from motherboard. Motherboard is now removed. Step 4. Replace with new motherboard and reassemble unit using the reverse procedure of steps 1-6 as shown previously.

  • Page 72: Specification

    Specification AnyShop Eco Intel Atom processor D525 (1M Cache, 1.8 GHz, Dual Core for Pineview D) Chipset Intel ICH8M Storage SATA HDD 2.5inch (Default 320GB), SSD is available by option Memory DDR3-800MHz SODIMM 2GB (MAX. 4GB) Integrated Intel Gen3.5+GFX Render Core 400MHz (Pineview-D) Display 15"...
