Summary of Contents for Redarc Monocrystalline

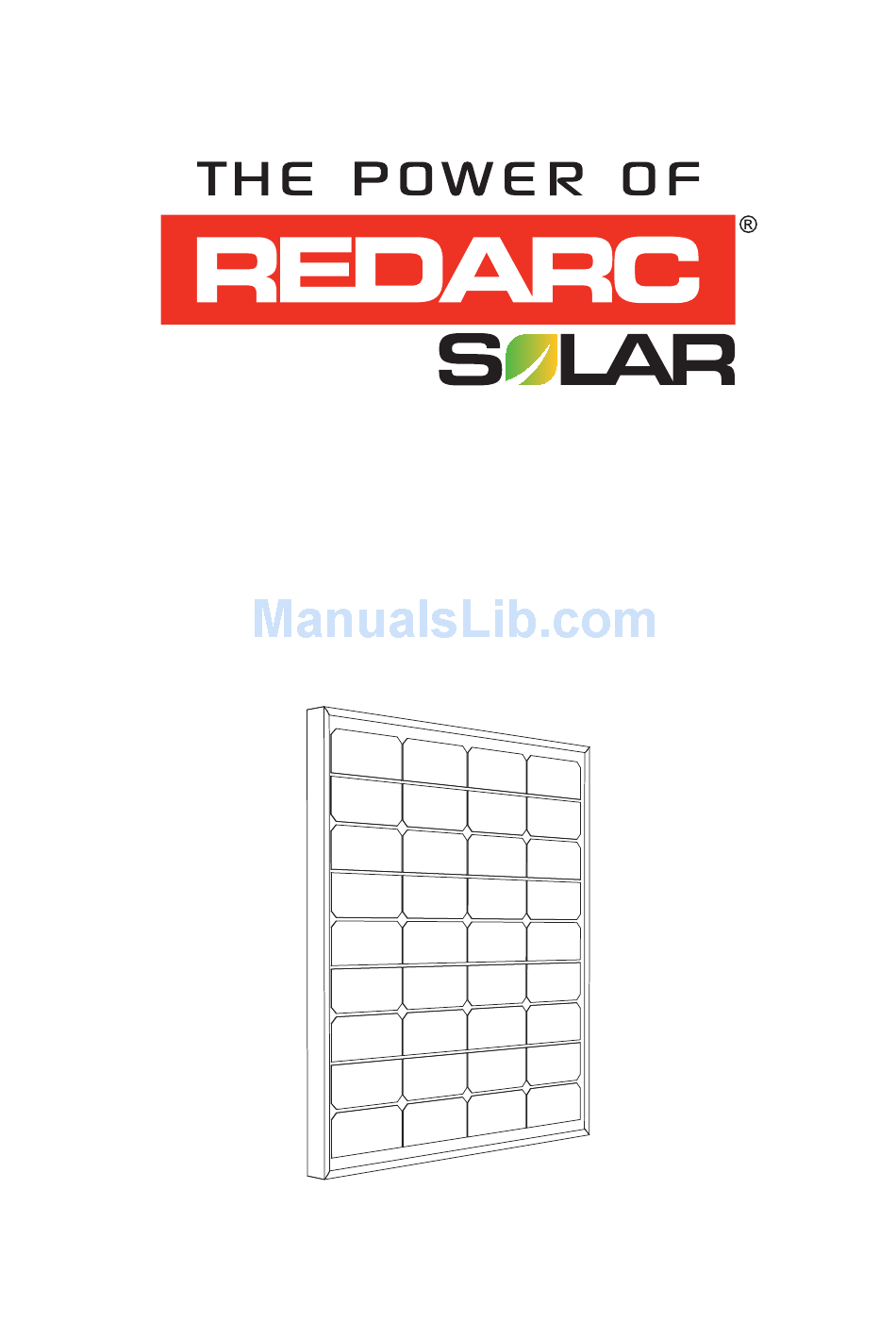

  • Page 1 Monocrystalline Solar Panels...
  • Page 2: The Monocrystalline Solar Panel

    THE MONOCRYSTALLINE SOLAR PANEL REDARC Monocrystalline Solar Panels are highly effi cient with a robust design. A tempered glass coating and a sturdy double channel aluminium frame ensure that our panels will withstand harsh road conditions and extreme weather conditions.
  • Page 3: Table Of Contents

    Specifi cations 80watt Monocrystalline Solar Panel Specifi cations 120watt Monocrystalline Solar Panel Specifi cations 150watt Monocrystalline Solar Panel Specifi cations 150watt Monocrystalline SlimLine Solar Panel Specifi cations System Installation Angle to the Sun Aluminium Adjustable Mounts ABS Plastic Mountings System Wiring...
  • Page 4: 50Watt Monocrystalline Solar Panel

    50WATT MONOCRYSTALLINE SOLAR PANEL 35mm 540mm SPECIFICATIONS Model SMR1050 Short circuit Current 3.00A Construction Monocrystalline Tolerance ±3% Peak Power Frame Anodized Aluminium Net Weight 4.5kg Cable length 750mm Dimensions 645x540x35mm Operating temp. -40° to +85°C Max power Voltage 18.00V Std. test conditions AM1.5 1000W/m²...
  • Page 5: 80Watt Monocrystalline Solar Panel

    80WATT MONOCRYSTALLINE SOLAR PANEL 35mm 540mm SPECIFICATIONS Model SMR1080 Short circuit Current 4.80A Construction Monocrystalline Tolerance ±3% Peak Power Frame Anodized Aluminium Net Weight 6.5kg Cable length 800mm Dimensions 963x540x35mm Operating temp. -40° to +85°C Max power Voltage 18.00V Std. test conditions AM1.5 1000W/m²...
  • Page 6: 120Watt Monocrystalline Solar Panel

    120WATT MONOCRYSTALLINE SOLAR PANEL 35mm 808mm SPECIFICATIONS Model SMR1120 Short circuit Current 7.22A Construction Monocrystalline Tolerance ±3% Peak Power 120W Frame Anodized Aluminium Net Weight 9.5kg Cable length 800mm Dimensions 963x808x35mm Operating temp. -40° to +85°C Max power Voltage 18.50V Std.
  • Page 7: 150Watt Monocrystalline Solar Panel

    150WATT MONOCRYSTALLINE SOLAR PANEL 35mm 808mm SPECIFICATIONS Model SMR1150 Short circuit Current 8.80A Construction Monocrystalline Tolerance ±3% Peak Power 150W Frame Anodized Aluminium Net Weight 11.0kg Cable length 800mm Dimensions 1210x808x35mm Operating temp. -40° to +85°C Max power Voltage 18.50V Std.
  • Page 8: 150Watt Monocrystalline Slimline Solar Panel

    150WATT MONOCRYSTALLINE SLIMLINE SOLAR PANEL 35mm 670mm SPECIFICATIONS Model SMR1150-SL Short circuit Current 9.00A Construction Monocrystalline Tolerance ±3% Peak Power 150W Frame Anodized Aluminium Net Weight 12.0kg Cable length 800mm Dimensions 1480x670x35mm Operating temp. -40° to +85°C Max power Voltage 18.40V...
  • Page 9: System Installation

    SYSTEM INSTALLATION ANGLE TO THE SUN REDARC solar panels will perform at their peak with the panel face angled directly towards the sun. In practice this is not always achievable, so REDARC recommend having your panels face NORTH at an angle of between 20° and 40° from the ground. This will ensure the best total output from your panel across the course of the day, no matter what season.
  • Page 10: Aluminium Adjustable Mounts

    SYSTEM INSTALLATION ALUMINIUM MOUNTS Aluminium angled mounting kits are perfect for mounting solar panels to your Caravan or Camper-trailer. Aluminium mounting kits allow adjustment of the angle of the panel to the sun. The frame can be angled when camping and laid fl at again ready for travel. Aluminium angled mounting kits are suitable for mounting panels to Camper-trailers or Caravans.
  • Page 11: Abs Plastic Mountings

    SYSTEM INSTALLATION ABS PLASTIC MOUNTS ABS Plastic Corner, Side and Spoiler mounts are designed to mount single or multiple panels to your RV or Caravan roof. The ABS plastic can be mounted using silicon adhesive, specifi cally designed adhesive tape or screw mounted. The panels are then mounted to the ABS plastic mounts using standard metal screws.
  • Page 12 SYSTEM INSTALLATION ABS PLASTIC MOUNTS 145mm 145mm SMI9001 4 x ABS Plastic Corner Mounts 65mm 50mm 65mm 180mm SMI9002 2 x ABS Plastic Side Mounts (for mounting multiple panels) 525mm SMI9003 2 x ABS Plastic Spoiler Mounts (for lower wind resistance)
  • Page 13 SYSTEM INSTALLATION CAUTION Be aware of shading that can occur as a result of roof mounted accessories on your caravan or motorhome. Shading sections of your solar panels will signifi cantly reduce your solar panels performance. Care must be taken to avoid the possibility of shading as much as possible during the installation process.
  • Page 14: System Wiring

    SYSTEM WIRING WIRING MULTIPLE PANELS ‘Y’ Connectors Cable kits available for available for second panel second battery installation installation Fuse Fuse WIRING MULTIPLE PANELS OF DIFFERENT TYPES Amorphous Flexible and Folding Solar Panels are also suitable for this installation. ‘Y’ Connectors available for Cable kits second panel...
  • Page 15 SYSTEM WIRING...
  • Page 16: Wiring Precautions

    Ensure that all MC4 connections are crimped with the correct MC4 crimping tool. Contact REDARC for more information on purchasing this tool. • All cable entries into the vehicle must be suitably sealed, REDARC Single or Double Cable Glands are recommended. •...
  • Page 17: Accessories

    SYSTEM WIRING ACCESSORIES SRC0001-CK - MC4 CONNECTOR KIT Comes with 1 x Male MC4 connector and crimp and 1 x Female MC4 connector and crimp. SRC0006 - MC4 ‘Y’ ADAPTOR KIT • For connecting 2 positive and 2 negative MC4 connectors in parallel.
  • Page 18 Friendly, personalised, professional service and product support In the unlikely event that a technical issue arises with a Redarc product, customers are encouraged to initially contact the Redarc Technical In the unlikely event that a technical issue arises with a Redarc product, customers are encouraged to initially contact the Redarc Technical...
  • Page 19 Redarc in writing at the postal address or email address specifi ed in in accordance with the instructions of Redarc.
  • Page 20 AUSTRALIAN DESIGNED AND ENGINEERED This product has been specifi ed and tested in Australia in accordance with REDARC specifi cations and testing requirements by REDARC Engineers. You can be assured that this product meets the stringent quality levels of all REDARC products.
