Redarc SPRP1180 Instruction Manual

Redarc SPRP1180 Instruction Manual

Monocrystalline fixed solar panel
Hide thumbs Also See for SPRP1180:
Table of Contents

Advertisement

Quick Links

Download this manual

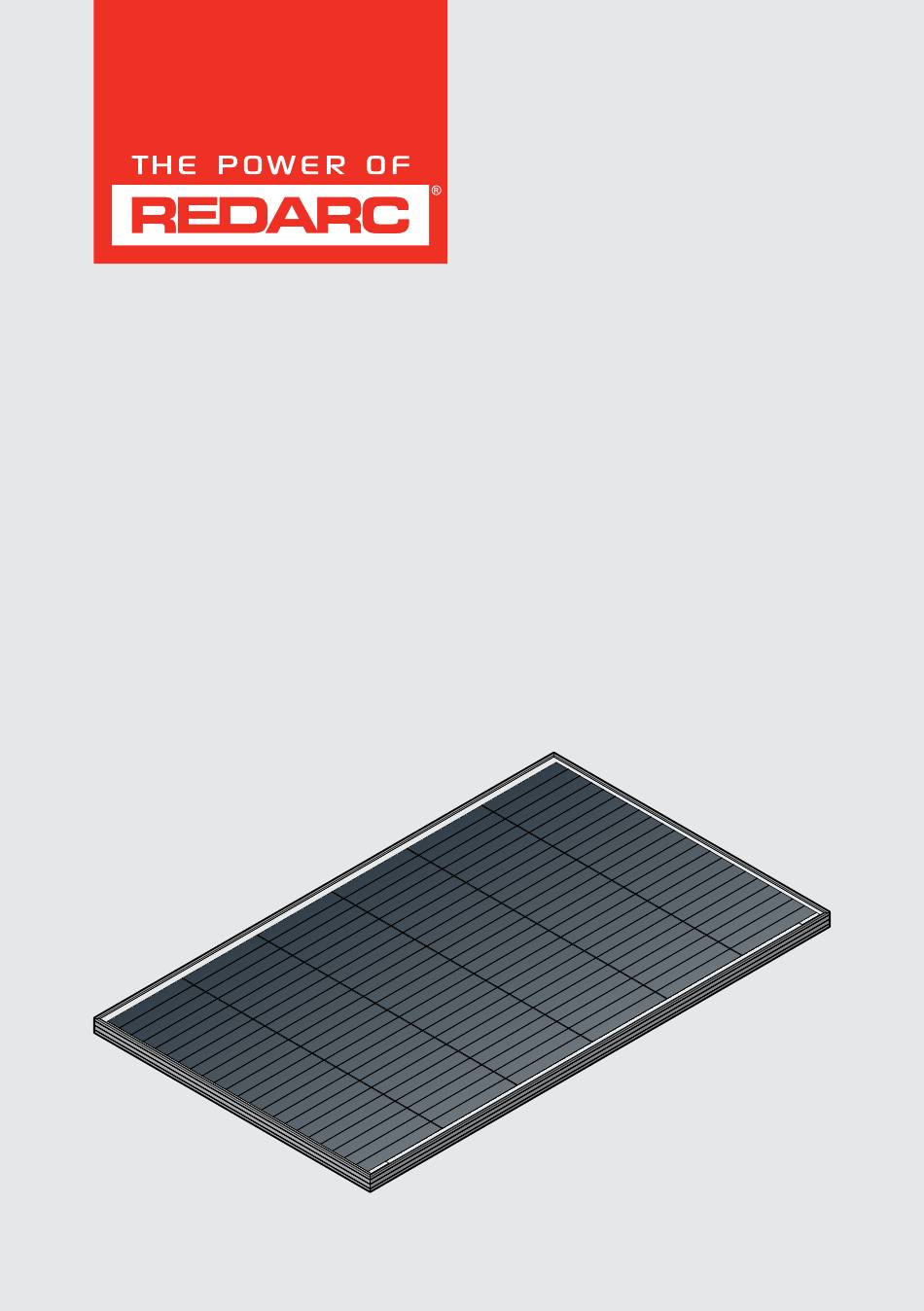

Monocrystalline
Fixed Solar Panel
MODELS
SPRP1180
ƒ
SPRP1200
ƒ
| 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPRP1180 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Redarc SPRP1180

Summary of Contents for Redarc SPRP1180

  • Page 1 Monocrystalline Fixed Solar Panel MODELS SPRP1180 ƒ SPRP1200 ƒ...

  • Page 2: Warnings And Safety Instructions

    Ensure the solar cells are not exposed to REDARC recommends that the Solar Panel referenced in light when making electrical connections to the Panel to reduce the chance of an electrical spark.

  • Page 3: Product Overview

    PRODUCT OVERVIEW REDARC Monocrystalline Solar Panels are highly efficient with a robust design. A tempered glass coating combined with an anodized aluminium frame ensures that our Solar Panels will withstand harsh road and extreme weather conditions. SPRP1200 Monocrystalline Cells Anodized...
  • Page 4 180 W SOLAR PANEL SPECIFICATIONS 670 mm (26.4") 35 mm (1.4") Product Number Short Circuit Current SPRP1180 8.2 A Maximum Power 180 W Maximum Power ±3% Tolerance Cell Type Monocrystalline –40°C to +85°C Operating Temperature Cable Length 900 mm (35.4") (–40°F to +185°F)
  • Page 5 200 W SOLAR PANEL SPECIFICATIONS 1300 mm (51.2") 35 mm (1.4") Product Number Short Circuit Current SPRP1200 8.5 A Maximum Power 200 W Maximum Power ±3% Tolerance Cell Type Monocrystalline –40°C to +85°C Operating Temperature Cable Length 900 mm (35.4") (–40°F to +185°F) Connector Type MC4 Style Connector...
  • Page 6 SOLAR OPTIMISATION ANGLE TO THE SUN REDARC Solar Panels will perform at their peak when the monocrystalline cells are angled directly towards the sun (this is not always achievable). REDARC recommends having the Solar Panel/s angled between 20° and 40° from the ground to ensure the best total...

  • Page 7: Installation - Mounting

    SOLAR MOUNTING BRACKETS The REDARC Solar Mounting Brackets are designed to mount a single Solar Panel to the roof of your vehicle. Refer to the Mounting Brackets supplied Instruction Manual for installation instructions.
  • Page 8 ABS PLASTIC MOUNTS ABS Plastic Corner, Side and Spoiler Mounts (SMI9001, SMI9002 and SMI9007) are designed to mount single or multiple Panels to your RV or Caravan roof without needing to drill directly on your RV or Caravan roof. Refer to the diagram below to determine which ABS Mount is suitable for your setup and the ABS Plastic Mount Instruction Manual for installation instructions.

  • Page 9: Installation & Wiring

    ƒ recommended for routing a single cable into your vehicle, caravan or RV. REDARC recommends when using a regulator that it is installed as close as possible to the auxiliary battery/s. ƒ Ensure the cable length from the Solar Panel to the regulator does not exceed 10 m (32'8").
  • Page 10 SYSTEM WIRING — ANDERSON™ TO BATTERY CLIP CABLE Solar Regulator* Remote SRPA0120, Monitor* SRPA0240 or SRPA-RM SRPA0360 Anderson™ to MC4 Style Connectors to Battery Clip Cable* Anderson™ Cable* 1.5 m (4'11") SRC0009 1.5 m (4'11") SRC0017 Regulator Fuse Size Fuse** SRPA0120 20 A SRPA0240...

  • Page 11: Series Connections

    SERIES AND PARALLEL CONNECTIONS Solar arrays can be connected in series or parallel as demonstrated below. NOTICE: ƒ Ensure that the Regulator input is rated for the sum of the maximum open circuit voltage of each Panel connected in series. ƒ...

  • Page 12: Parallel Connections

    *Not supplied. For other installations, appropriate sized fuses and cables must be used and be determined according to your installation requirements. **Butt splice crimp connections are recommended for fixed Solar Panel installation. ***REDARC BCDC Battery Chargers have a built in regulator, DO NOT install a regulator between the Solar Panel and BCDC Battery Charger. 12 | Installation — Wiring...

  • Page 13: Limited Warranty

    DE24 8HG, Derby Poland Design, product configuration and technical specifications are subject to change without notice. | Copyright © REDARC Electronics Pty Ltd. All rights reserved. | REDARC® and THE POWER OF REDARC® are trademarks of REDARC Electronics Pty Ltd.
  • Page 14 NOTES 14 | Notes...
  • Page 15 Notes | 15...
  • Page 16 Tech Support 1300 REDARC (1300-733-272) Australia +61 8 8322 4848 New Zealand +64 9 222 1024 UK & Europe +44 (0)20 3930 8109 +1 (704) 247-5150 Canada +1 (604) 260-5512 Mexico +52 (558) 526-2898 redarcelectronics.com INST231-3...
