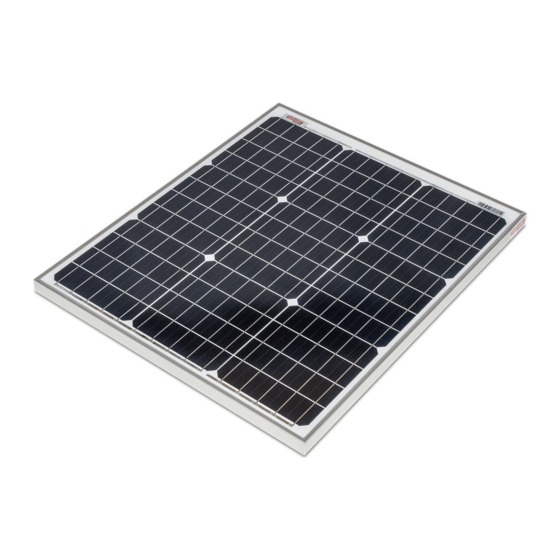

- Page 1 Monocrystalline Solar Panels SMSP1050, SMSP1080, SMSP1120, SMSP1180 & SMSP1200...
- Page 2 THE MONOCRYSTALLINE SOLAR PANEL REDARC Monocrystalline Solar Panels are highly efficient with a robust design. A tempered glass coating combined with an anodized aluminium frame ensure that our panels will withstand harsh road conditions and extreme weather conditions. WARNING & SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS —...
-
Page 3: Table Of Contents
CONTENTS Panel Features 50 Watt Monocrystalline Solar Panel 80 Watt Monocrystalline Solar Panel 120 Watt Monocrystalline Solar Panel 180 Watt Monocrystalline Solar Panel 200 Watt Monocrystalline Solar Panel Solar Optimisation Angle to the Sun System Installation ... -
Page 4: 50 Watt Monocrystalline Solar Panel
50 WATT MONOCRYSTALLINE SOLAR PANEL 1000V SPECIFICATIONS Model SMSP1050 Conversion efficiency 20.6% Peak power 50 W Operating temperature −40°C to +85°C Max system voltage 600 V DC Max power voltage 20.0 V Cell construction Max power current Monocrystalline 2.5 A Cable length Open circuit voltage 900 mm 22.3 V Frame... - Page 5 80 WATT MONOCRYSTALLINE SOLAR PANEL PV-JB018 SPECIFICATIONS Model SMSP1080 Conversion efficiency 20.6% Peak power 80 W Operating temperature −40°C to +85°C Max system voltage Max power voltage 600 V DC 20.0 V Cell construction Max power current Monocrystalline 4.0 A Cable length Open circuit voltage 900 mm 22.3 V Frame...
-
Page 6: 120 Watt Monocrystalline Solar Panel
120 WATT MONOCRYSTALLINE SOLAR PANEL PV-JB018 SPECIFICATIONS Model SMSP1120 Conversion efficiency 20.6% Peak power 120 W Operating temperature −40°C to +85°C Max system voltage Max power voltage 600 V DC 20.0 V Cell construction Max power current Monocrystalline 6.0 A Cable length Open circuit voltage 900 mm 22.3 V Frame... -
Page 7: 180 Watt Monocrystalline Solar Panel
180 WATT MONOCRYSTALLINE SOLAR PANEL PV-JB018 SPECIFICATIONS Model SMSP1180 Conversion efficiency 20.6% Peak power 180 W Operating temperature −40°C to +85°C Max system voltage Max power voltage 600 V DC 20.0 V Cell construction Max power current Monocrystalline 9.0 A Cable length Open circuit voltage 900 mm 22.3 V Frame... -
Page 8: 200 Watt Monocrystalline Solar Panel
200 WATT MONOCRYSTALLINE SOLAR PANEL XC908 SPECIFICATIONS Model SMSP1200 Conversion efficiency 20.6% Peak power 200 W Operating temperature −40°C to +85°C Max system voltage Max power voltage 600 V DC 20.0 V Cell construction Max power current Monocrystalline 10.0 A Cable length Open circuit voltage 900 mm 22.3 V Frame... -
Page 9: Solar Optimisation
SOLAR OPTIMISATION ANGLE TO THE SUN REDARC solar panels will perform at their peak with the panel face angled directly towards the sun. In practice this is not always achievable, so REDARC recommends having your panels face NORTH at an angle of between 20° and 40° from the ground. This will ensure the best total output from your panel across the course of the day, no matter what season. -
Page 10: System Installation
SYSTEM INSTALLATION ABS PLASTIC MOUNTS ABS Plastic Corner, Side and Spoiler mounts are designed to mount single or multiple panels to your RV or caravan roof. The ABS plastic can be mounted using silicon adhesive, specifically designed adhesive tape or screws. The panels are then mounted to the ABS plastic mounts using standard metal screws. - Page 11 SYSTEM INSTALLATION ABS PLASTIC MOUNTS SMI9001 145mm 4 × ABS Plastic Corner Mounts 145mm 65mm SMI9002 50mm 2 × ABS Plastic Side 65mm Mounts (for mounting multiple panels) 180mm SMI9003 525mm 2 × ABS Plastic Spoiler Mounts (to suit SMSP1050) SMI9007 670mm 2 ×...
- Page 12 SYSTEM INSTALLATION CAUTION Be aware of shading that can occur as a result of roof mounted accessories on your caravan or motorhome. Shading sections of your solar panels will significantly reduce your solar panels performance. Care must be taken to avoid the possibility of shading in the final installation position. During the installation process, ensure that the panels are covered with an opaque material to prevent potentially dangerous voltages from inadvertently being generated.
-
Page 13: System Wiring
(of the same wattage) in series will multiply the system voltage by 2 and keep the output current at the same level. Parallel connections should be made using ‘Y’ connectors available through REDARC Solar suppliers. Series connections should be made by connecting the negative connector of one panel to the positive of the next. -
Page 14: Standard Bms Installation
TYPICAL MANAGER SETUP *1 The size of this fuse relates to the total current draw of all the loads connected to the House Battery, and should be rated slightly higher than this. REDARC recommends the use of MIDI Style Fuses. - Page 15 Display BMS1230S3 Panel Start MAINS Battery MODEL BMS1230S3 The Redarc CAN system is Please refer to owners AC INPUT 230V, 50-60Hz, 560W designed to operate Redarc VEHICLE INPUT 9 - 32VDC, 520W manual for appropriate wire CAN based devices only.
-
Page 16: Wiring Precautions
• Ensure that all MC4 connections are crimped with the correct MC4 crimping tool. Contact REDARC for more information on purchasing this tool. • All cable entries into the vehicle must be suitably sealed, REDARC Single or Double Cable Glands are recommended. -
Page 17: Accessories
SYSTEM WIRING ACCESSORIES SRC0001-CK - MC4 CONNECTOR KIT Comes with 1 × Male MC4 connector and crimp and 1 × Female MC4 connector and crimp. SRC0006 - MC4 ‘Y’ ADAPTOR KIT • For connecting 2 positive and 2 negative MC4 connectors in parallel. - Page 18 1; and the claim is notified to REDARC in writing at the postal address or email any component of or accessory for any product in clause 1.1 address specified in clause 23 and includes: to 1.6 (inclusive) manufactured or supplied by REDARC.
- Page 19 20. The agents, officers and employees of any distributor or reseller of the an authorised distributor or reseller of REDARC, which clearly Solar Products and of REDARC are not authorised to vary or extend the shows the date and place of purchase.
- Page 20 For free technical assistance please contact: REDARC Electronics 23 Brodie Road North, Lonsdale SA (08) 8322 4848 power@redarc.com.au www.redarc.com.au/solar Copyright © 2020 REDARC Electronics Pty Ltd. All rights reserved. This product is manufactured in China. INST64-1...
