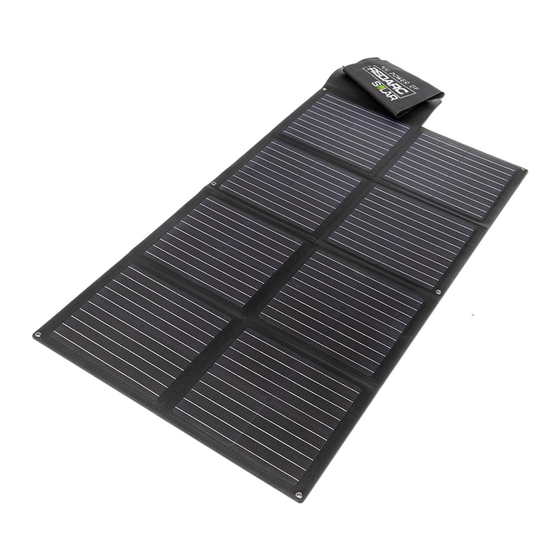

Monocrystalline Solar Blankets
SMFB1160, SMFB1160-K,
SMFB1240, SMFB1240-K,
SMFB1300 & SMFB1300-K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMFB1160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Redarc SMFB1160

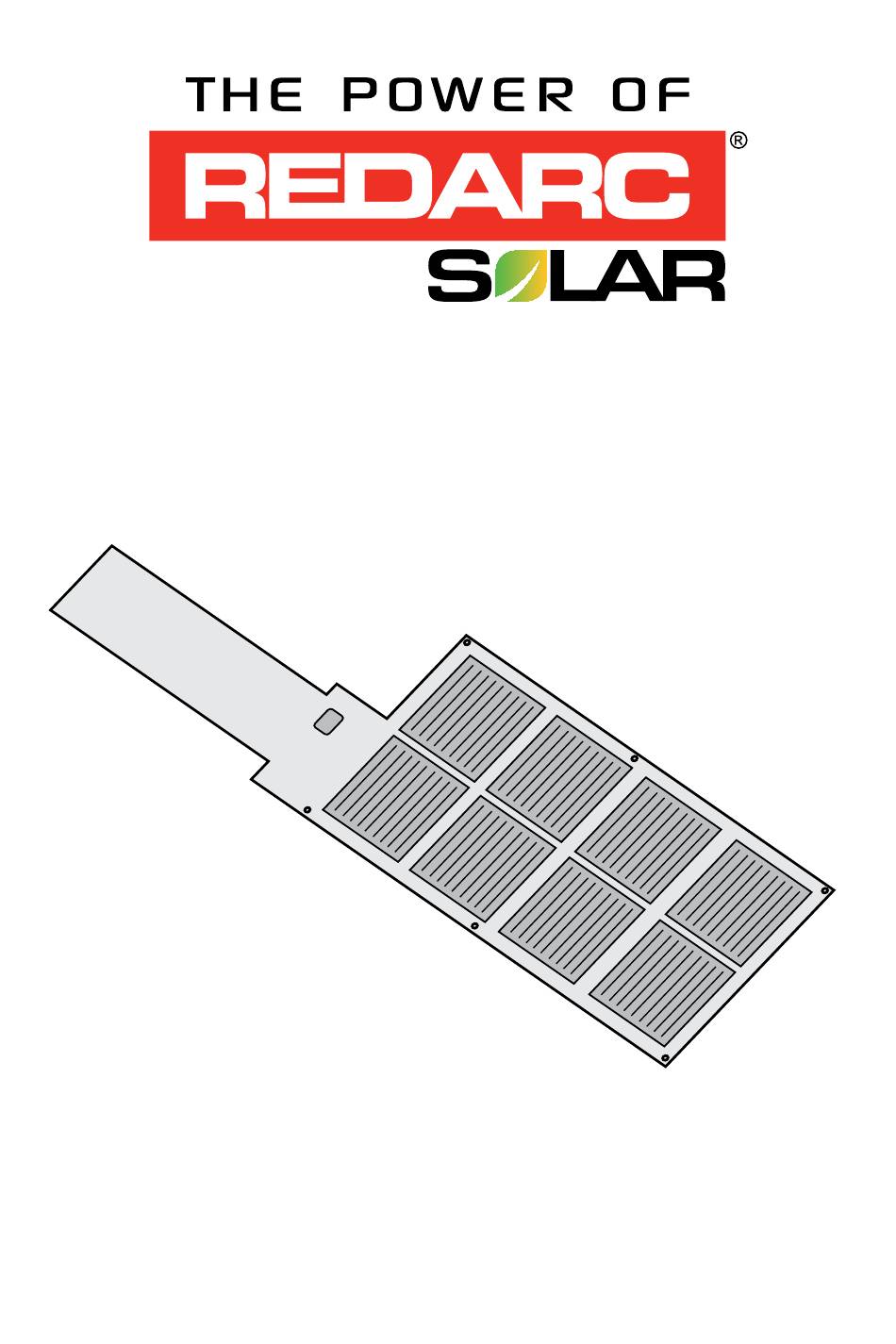

  • Page 1 Monocrystalline Solar Blankets SMFB1160, SMFB1160-K, SMFB1240, SMFB1240-K, SMFB1300 & SMFB1300-K...
  • Page 2: Monocrystalline Solar Blankets

    MONOCRYSTALLINE SOLAR BLANKETS REDARC Solar Blankets are designed to provide high efficiency in a robust, flexible construction. They are constructed using heavy duty canvas and robust materials making them suitable for off–road and outback conditions. WARNING AND IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS —...
  • Page 3: Table Of Contents

    CONTENTS MONOCRYSTALLINE SOLAR BLANKETS ���������������������������������������������������������������������������������� WARNING AND IMPORTANT SAFETY INSTRUCTIONS ��������������������������������������������������������������� 1 SUPPLIED PARTS������������������������������������������������������������������������������������������������������������ 2 MONOCRYSTALLINE SOLAR BLANKET FEATURES ��������������������������������������������������������������� 3 160W MONOCRYSTALLINE SOLAR BLANKET ��������������������������������������������������������������������� 4 240W MONOCRYSTALLINE SOLAR BLANKET ��������������������������������������������������������������������� 5 300W MONOCRYSTALLINE SOLAR BLANKET ��������������������������������������������������������������������� 6 SOLAR OPTIMISATION ����������������������������������������������������������������������������������������������������...
  • Page 4: Parts

    SUPPLIED PARTS Monocrystalline Solar Blanket 5 m Anderson-to-Anderson extension cable SRC0018 (kit only) 1.5 m Anderson-to-battery clip cable SRC0009 (kit only) SRPA Solar Regulator variant (kit only)
  • Page 5: Monocrystalline Solar Blanket Features

    MONOCRYSTALLINE SOLAR BLANKET FEATURES Wrap around Velcro Sleeve Anderson™ Connector Spec Label Junction Box Serial Label Eyelets for mounting Monocrystalline Cell options Tough Backing Material...
  • Page 6: 160W Monocrystalline Solar Blanket

    160W MONOCRYSTALLINE SOLAR BLANKET 740 mm / 29.1" SPECIFICATIONS Model Cell efficiency SMFB1160 1635 × 740 × 2.5 mm /  Cell type Monocrystalline Dimensions (open) 64.4" × 29.1" × 0.1" 365 × 365 × 70 mm / Backing material Dimensions (closed) Canvas 14.4" × 14.4" × 2.8" Max. power output 160 W Connector type Anderson ™ ™ Max. power voltage 18.0 V Cable length 120 mm / 4.7"...
  • Page 7: 240W Monocrystalline Solar Blanket

    240W MONOCRYSTALLINE SOLAR BLANKET 1110mm / 43.7" SPECIFICATIONS Model SMFB1240 Cell efficiency 1635 × 1110 × 2.5 mm / Cell type Monocrystalline Dimensions (open) 64.4" × 43.7" × 0.1" 365 × 365 × 75 mm / Backing material Dimensions (closed) Canvas 14.4" × 14.4" × 2.9" Max. power output Connector type 240 W Anderson ™ ™ Max. power voltage Cable length 18.0 V 120 mm / 4.7"...
  • Page 8: 300W Monocrystalline Solar Blanket

    300W MONOCRYSTALLINE SOLAR BLANKET 1110mm / 43.7" SPECIFICATIONS Model SMFB1300 Cell efficiency 1995 × 1110 × 2.5 mm / Cell type Monocrystalline Dimensions (open) 78.5" × 43.7" × 0.1" 365 × 365 × 80 mm / Backing material Canvas Dimensions (closed) 14.4" × 14.4" × 3.1" Max. power output Connector type 300 W Anderson ™ ™ Max. power voltage Cable length 17.0 V 120 mm / 4.7"...
  • Page 9: Solar Optimisation

    SOLAR OPTIMISATION Angle to the Sun REDARC Solar Blankets will perform at their peak with the Blanket face angled directly towards the sun. However, in practice this is not always achievable. REDARC recommends having the Solar Blanket/s angled between 20° and 40° from the ground. This will ensure the best total output from your Blanket across the course of the day, no matter what season.
  • Page 10: System Wiring

    5 m (16'5") SRC0018 Regulator Fuse Size Fuse SRPA0240 SRPA0360 40A (see REDARC FK40) Fuses are not supplied. For other installations, appropriate sized fuses must be used and should be determined according to specific installation requirements Monocrystalline Solar Blanket Connection — Battery Eyelet...
  • Page 11: Bcdc Solar Blanket Connection With Rk1260

    SYSTEM WIRING BCDC Solar Blanket Connection with RK1260 10 m (32.9') SRC0019 or 1.5 m (4.1') SRC0008 or 5 m (16'5") SRC0018 BCDC1225, BCDC1240 BCDC1250 RK1260 Black Blue Load Loads Fuse Fuse Fuse Purple Battery config. to vehicle wire ignition Note: Power wires must be All ground points must Start...
  • Page 12: Monocrystalline Solar Blanket Installation Guide

    Using the Solar Blanket • While in use, place the wrap around velcro sleeve behind the Blanket. • REDARC Solar Blankets are UV stabilised, however, the high level of UV exposure will still lead to some degradation of product appearance after extended use.
  • Page 13: Fuse Protection

    Fuse protection is required for wire and component protection in case of short circuit. Fuses are to be fitted as close as possible to the battery positive terminal. REDARC recommend using MIDI style bolt down fuses as they ensure a low resistance connection. The REDARC FK40 and FK60 fuse kits are recommended.
  • Page 14: Warranty

    For full warranty terms and conditions, visit the link below or refer to the contact details applicable to your region. Australia and New Zealand North America www.redarc.com.au/warranty www.redarcelectronics.com/warranty REDARC Electronics Pty Ltd REDARC Corporation 23 Brodie Road (North), c/o Shallco, Inc. Lonsdale SA 5160 308 Component Dr.
  • Page 15 NOTES...
  • Page 16 For product and technical support contact your regional distributor, call our head office between 8:00 a.m. to 5:30 p.m. Australian Central Standard Time, Monday to Friday, or send us an email. Australia power@redarc.com.au www.redarc.com.au +61 8 8322 4848 New Zealand power@redarcelectronics.co.nz...
