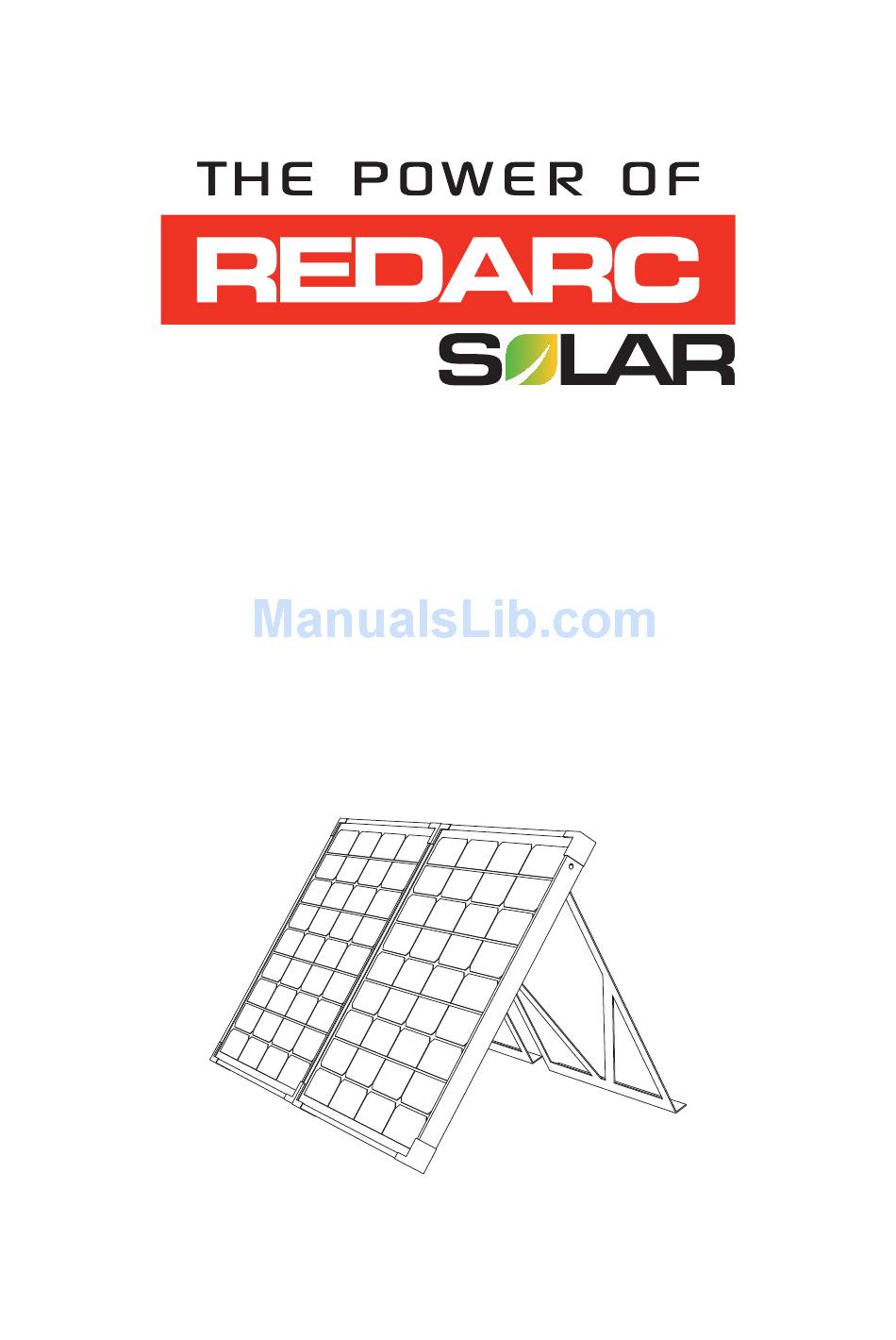

- Page 1 Monocrystalline Portable Folding Solar Panel Kits...
-
Page 2: The Monocrystalline Portable Folding Solar Panel Kit
THE MONOCRYSTALLINE PORTABLE FOLDING SOLAR PANEL KIT REDARC portable folding solar panel kits are designed to provide a complete solar charging solution for your house or auxiliary battery. They feature the folding panel, our 10 Amp or 20 Amp solar regulator, 5m of cabling, tent pegs and a strong nylon carry bag. -
Page 3: Table Of Contents
CONTENTS The Monocrystalline Portable Folding Solar Panel Kit Kit Contents The folding solar module 90watt Mono Portable Folding Solar Panel Kit Specifi cations 120watt Mono Portable Folding Solar Panel Kit Specifi cations 150watt Mono Portable Folding Solar Panel Kit Specifi cations The solar regulator Regulator function Connection... -
Page 4: The Folding Solar Module
THE FOLDING SOLAR MODULE Strong Aluminium Frame Tempered Glass Coating Monocrystalline Construction Plastic End Caps Strong Hinges Diode Protected Junction Box Quality MC4 Connectors Custom Designed Legs... -
Page 5: 90Watt Mono Portable Folding Solar Panel Kit
90WATT MONO PORTABLE FOLDING PANEL KIT 1076mm 534mm 80mm 35mm SPECIFICATIONS Model SMK1090 Short circuit Current 5.4A Construction Monocrystalline Tolerance ±3% Peak Power 90W (2 x 45W) Max system Voltage 1000VDC Net Weight 11kg Frame Anodized Aluminium Dimensions (Closed) 610x534x80mm Cable length 5000mm Dimensions (Open) -
Page 6: 120Watt Mono Portable Folding Solar Panel Kit
120WATT MONO PORTABLE FOLDING PANEL KIT 1076mm 534mm 80mm 35mm SPECIFICATIONS Model SMK1120 Short circuit Current 7.2A Construction Monocrystalline Tolerance ±3% Peak Power 120W (2 x 60W) Max system Voltage 1000VDC Net Weight 14kg Frame Anodized Aluminium Dimensions (Closed) 810x534x80mm... -
Page 7: 150Watt Mono Portable Folding Solar Panel Kit
150WATT MONO PORTABLE FOLDING PANEL KIT 1630mm 534mm 120mm SPECIFICATIONS Model SMK1150 Short circuit Current 9.0A Construction Monocrystalline Tolerance ±3% Peak Power 150W (3 x 50W) Max system Voltage 1000VDC Net Weight 16.5kg Frame Anodized Aluminium Dimensions (Closed) 610x534x120mm Cable length 5000mm Dimensions (Open) 610x1630x35mm... -
Page 8: The Solar Regulator
THE SOLAR REGULATOR REGULATOR FUNCTION Battery type Charge Priority MODE Temperature sensor Charge Frequency Charging battery 1 Charging battery 2 Remote Remote temperature meter sensor (optional) CONNECTION The regulator should be connected to the battery according to the diagram above. The connection order is indicated by the numbers circled. -
Page 9: Setting Modes
SETTING MODES Press the Set button to start the mode select process. Press the Set button to cycle through to the mode required. • Battery Type • Charge Priority • Charge Frequency Once the correct mode is selected, press and hold the Set button for 5 seconds, until the LED and setting begin to fl... -
Page 10: The Display Screen
THE DISPLAY SCREEN MONITOR FUNCTION Error Charge Mounting Frame Screen Set Button Right Button Left Button Mode Button SCREEN FUNCTION Battery 1 Solar Battery 2 Icon Icon Icon Remote temp. Icon Temperature Unit sensor Icon Icon Setting Icon Error Cycle Backlight Self test Icon... -
Page 11: Monitor Operation
MONITOR OPERATION KEY: Mode Left Right Solar Panel Information Battery 1 Information Battery 2 Information Temperature & Time Information Press Set Temperature Units Set Backlight Timeout Set Backlight Brightness Set Data Repeat option (See below) This will cycle through your solar panel, Battery 1, Battery 2 or Temperature data. Set Time (hours) Decrease Hours Increase Hours... -
Page 12: System Wiring
The supplied MC4 connectors are suitably rated for up to 30A, if multiple panels are used to the point of exceeding this rating, alternative connectors should be sourced. • When connecting panels from an existing setup, or non-Redarc brand panels, please ensure that the panels are diode protected, as they may be damaged if they are not. •... -
Page 13: Installing Multiple Panels
INSTALLING MULTIPLE PANELS 1.5m Supplied ‘Y’ Connectors 0.5m 5.0m available for Cable kits Supplied Supplied second panel available for (Alligator Clips & installation second battery Anderson Plug) installation Fuse Fuse Ratings: Regulator Fuse Size SRP0120 SRP0240 Fuses are not supplied. For other installations, appropriate sized fuses must be used and should be determined according to specific installation requirements. - Page 14 Friendly, personalised, professional service and product support In the unlikely event that a technical issue arises with a Redarc product, customers are encouraged to initially contact the Redarc Technical In the unlikely event that a technical issue arises with a Redarc product, customers are encouraged to initially contact the Redarc Technical...
- Page 15 Redarc in writing at the postal address or email address specifi ed in in accordance with the instructions of Redarc.
- Page 16 AUSTRALIAN DESIGNED AND ENGINEERED This product has been specifi ed and tested in Australia in accordance with REDARC specifi cations and testing requirements by REDARC Engineers. You can be assured that this product meets the stringent quality levels of all REDARC products.
