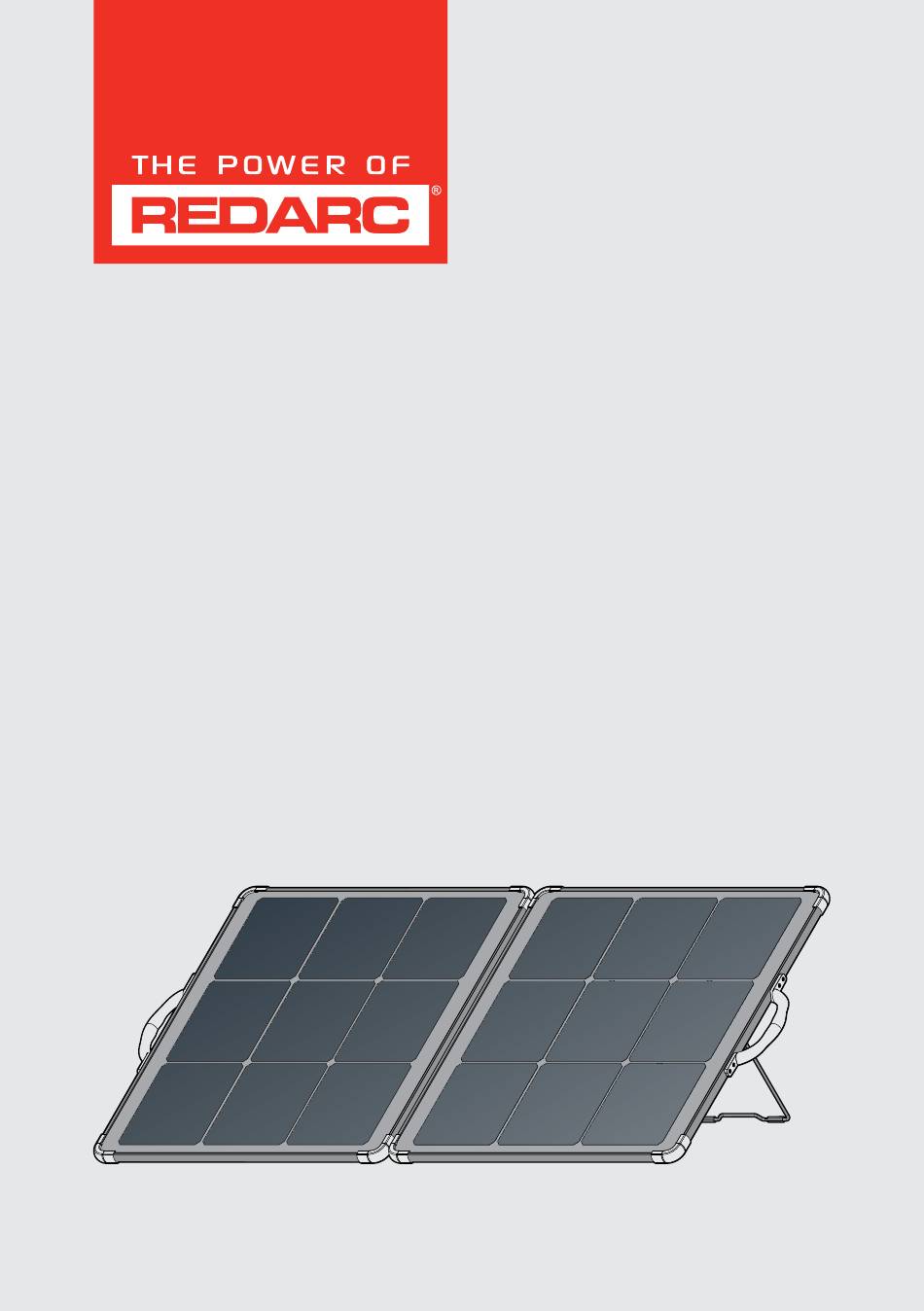

- Page 1 Monocrystalline Folding Solar Panels MODELS: SMFP1130 ƒ SMFP1130-K ƒ SMFP1200 ƒ SMFP1200-K ƒ...
- Page 2 Ensure the solar cells are not exposed to REDARC recommends that the Solar Panel referenced in light when making electrical connections to the Panel to reduce the chance of an electrical spark.
- Page 3 PRODUCT OVERVIEW REDARC Monocrystalline Folding Solar Panels are designed to provide a solar charging solution for your auxiliary battery. With an adjustable lightweight leg design, the Panels can be conveniently angled towards the sun. The Solar Panels feature an ETFE protective coating and a genuine Anderson™ SB™ 50 connector for convenience of plug-and-play portability.
- Page 4 130 W SOLAR PANEL SPECIFICATIONS 1193 mm (47") 50 mm (2") 595 mm (23.4") 25 mm (1") Product Number SMFP1130 Short Circuit Current 6.5 A Maximum Power Maximum Power 130 W ±3% Tolerance Cell Type Monocrystalline Operating –40°C to +85°C Cable Length 300 mm (11.8")
- Page 5 200 W SOLAR PANEL SPECIFICATIONS 50 mm (2") 1180 mm (46.5") 25 mm (1") Product Number SMFP1200 Short Circuit Current 11.65 A Maximum Power 200 W Maximum Power ±3% Tolerance Cell Type Monocrystalline Operating –40°C to +85°C Cable Length 300 mm (11.8") Temperature (–40°F to +185°F) Connection Type...
- Page 6 SOLAR OPTIMISATION ANGLE TO THE SUN REDARC Solar Panels will perform at their peak when the monocrystalline cells are angled directly towards the sun (this is not always achievable). REDARC recommends having the Solar Panel/s angled between 20° and 40° from the ground to ensure the best total output from your Panel across the course of the day, no matter what season.
- Page 7 Ensure that appropriate fuses are used when connecting to a battery. ƒ ƒ REDARC recommends when using a regulator that it is installed as close as possible to the battery(s). Ensure the cable length from the Solar Panel to the regulator does not exceed 10 m (33'). ƒ...
- Page 8 SYSTEM WIRING — ANDERSON™ TO BATTERY CLIP CABLE Remote Solar Monitor* Regulator** SRPA-RM Anderson™ to Battery Clip Cable** Anderson™ to Anderson™ Cable** Regulator Fuse Size SRPA0120 20 A Fuse* SRPA0240 30 A SRPA0360 40 A Fuses are not supplied. For other installations, appropriate sized fuses must be used and should be determined according to speci c installation requirements.
- Page 9 Connecting two identical Panels (of the same wattage) in parallel will multiply the total output current by 2 and keep the system voltage at the same level. Parallel connections can be made using the REDARC Parallel Anderson™ to Anderson™ cable (SRC0012) and the REDARC 1.5 m Anderson™ to Anderson™...
- Page 10 WIRING PANELS IN PARALLEL Solar Regulator** Anderson™ to Anderson™ cable connection** Fuse* Anderson™ to Anderson™ Parallel Anderson™ cable connection** to Anderson™ cable* 0.3 m (1') SRC0012 Auxiliary *Not supplied. For other installations, appropriate sized fuses and cables must be Battery used and should be determined according to speci c installation requirements.
- Page 11 DE24 8HG, Derby Poland Design, product configuration and technical specifications are subject to change without notice. | Copyright © REDARC Electronics Pty Ltd. All rights reserved. | REDARC® and THE POWER OF REDARC® are trademarks of REDARC Electronics Pty Ltd.
- Page 12 Tech Support 1300 REDARC (1300-733-272) Australia +61 8 8322 4848 New Zealand +64 9 222 1024 UK & Europe +44 (0)20 3930 8109 +1 (704) 247-5150 Canada +1 (604) 260-5512 Mexico +52 (558) 526-2898 redarcelectronics.com INST232-1...
