Formax FD 320 Operator's Manual

Document folder
Hide thumbs

Advertisement

Table of Contents

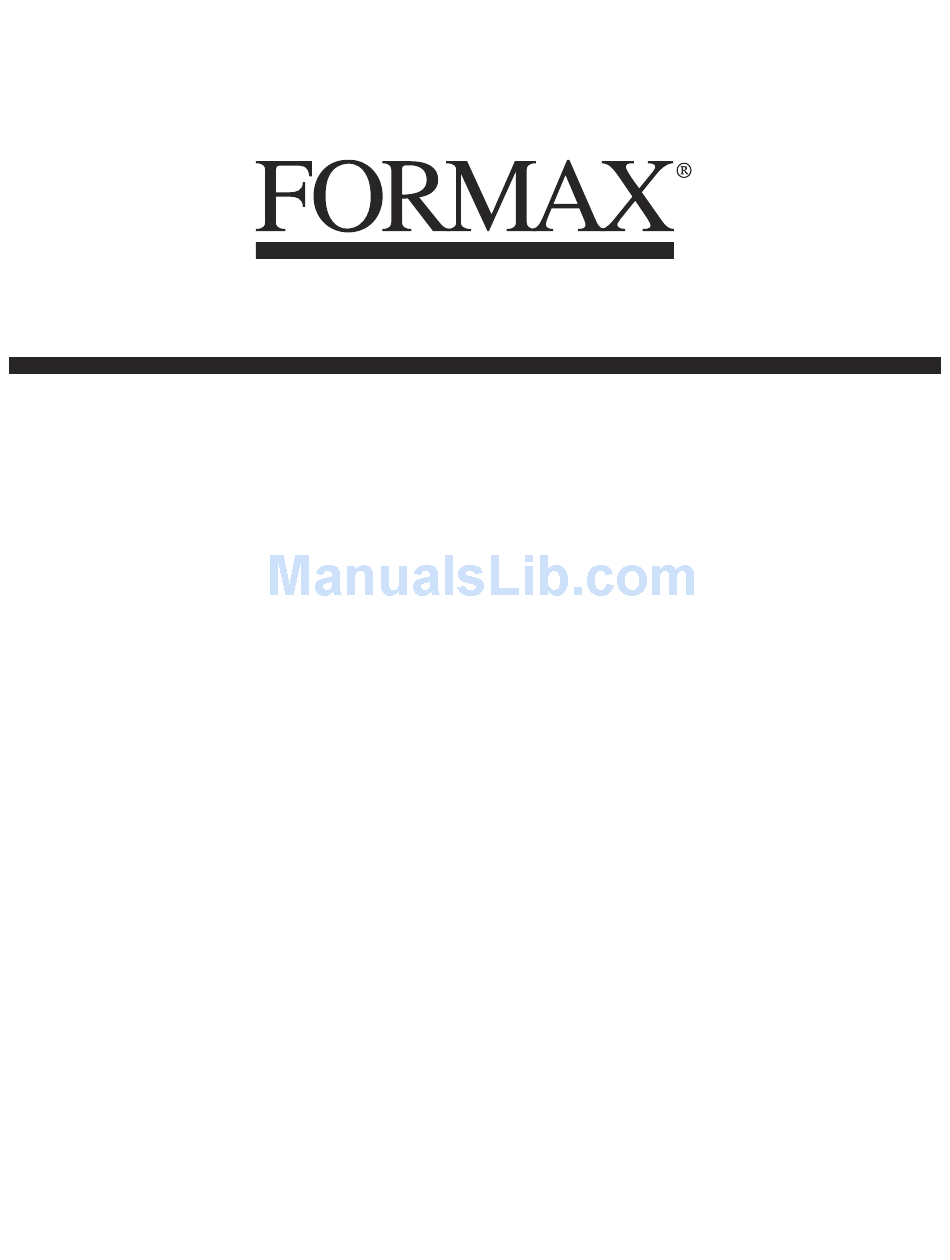

FD 320
Document Folder
8/05
OPERATOR MANUAL
THIRD EDITION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD 320 and is the answer not in the manual?

Questions and answers

Related Manuals for Formax FD 320

Summary of Contents for Formax FD 320

  • Page 1 FD 320 Document Folder OPERATOR MANUAL THIRD EDITION 8/05...
  • Page 2 TABLE OF CONTENTS TOPIC PAGE DESCRIPTION, SPECIFICATIONS UNPACKING, SETUP OPERATION UPPER & LOWER FOLD PLATE REMOVAL TROUBLE-SHOOTING...

  • Page 3: Specifications

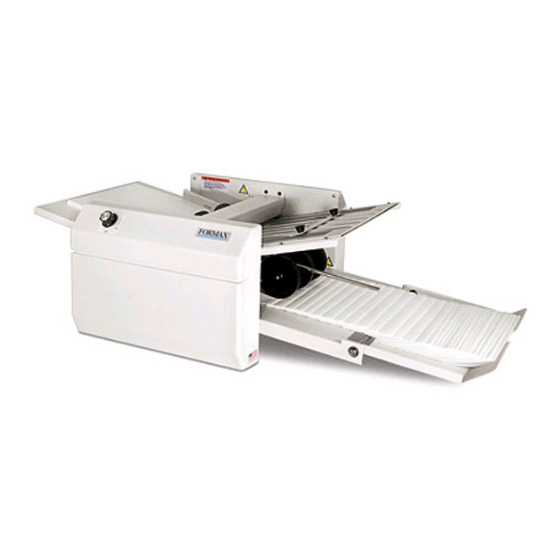

    DESCRIPTION FUNCTION The FD 320 Folder is designed to perform a wide variety of folds using a variety of paper weights. The fold plates are manually adjusted for standard folds and custom folds. SPECIFICATIONS SPEED: Up to 11,000 sheets per hour MAXIMUM PAPER SIZE: 11.75”...
  • Page 4 UNPACKING Check package for shipping damage. If there is shipping damage, do not discard the box. CAUTION: Two people must lift machine out of the box. 1. Unfold the infeed paper tray (part 1, figure 1 below) and insert the paper ramp (part 2) into place. 2.
  • Page 5 OPERATION Adjusting the fold plates: To adjust fold plates to desired fold and length of paper, first loosen the two thumbscrews on each of the two fold plates. Second, align the center bar so the marks on each side of the fold plates match Letter, accordion and half folds are clearly marked on each fold plate with blue lines.
  • Page 6 UPPER & LOWER FOLD PLATE REMOVAL Removing upper fold plate: Using both hands (putting one hand on the front of the fold plate and one on the end of the fold plate) holding firmly lift end of plate ½” and pull the fold plate back in the same angle. (Fig. 1) Installing upper fold plate: Slide fold plate on the top of the upper guide pins and ensure that the lower guide pins are in the slots of the front of the fold plate pushing in and then down until plate locks into place.

  • Page 7: Troubleshooting

    TROUBLESHOOTING PROBLEM: POSSIBLE CAUSE: SOLUTION: Folder will not start Machine not plugged into an Plug machine into an active outlet active wall outlet Speed control not turned on Turn speed control on Fuse blown Replace blown fuse Fold plate not inserted Insert fold plate Paper will not feed Paper guides too tight...
