Remove the masking tape from the aileron and double-check that the servo horn and the aileron are still centered. If the aileron
is not centered, adjust the clevis until it is. Move the aileron up and down several times to ensure that the linkage assembly does
not bind. It should operate smoothly in both directions.
Repeat the previous procedures to install the second control horn and clevis assembly to the aileron on the other half of the wing.
IMPORTANT If you will be flying your Magic Formula 3D ARF using a non-computer radio system without mixing capabilities,
you will need to plug a Y-Harness into the two aileron servo leads at this time. This will allow both aileron servos to be plugged into
the aileron channel in your receiver.
If you will be flying your Magic Formula 3D ARF using a computer radio with mixing capabilities, you may want to plug each aileron
servo lead into your receiver separately (into Ch. 1 and Ch. 6) to take advantage of your radio's mixing capabilities.

SECTION 18: COWLING INSTALLATION

(1) Molded Cowling
(1) Spinner Assembly w/Backplate & Screws
Kwik Bond Thin C/A
# 1 Phillips Head Screwdriver
Excel Modeling Knife
Electric Drill
5/64" Drill Bit
Ernst Airplane Stand
STEP 1: ALIGNING THE COWLING
Remove the high speed needle valve and muffler assembly from your engine and set them aside.
into the outermost hole in the control horn.
or twisting when installing the clevis.
YOU'LL NEED THE FOLLOWING PARTS FROM THE KIT:
YOU'LL NEED THE FOLLOWING TOOLS AND SUPPLIES:
cut out the molded air-intake hole in the front of the cowling, using the
molded scribe line as a guide.

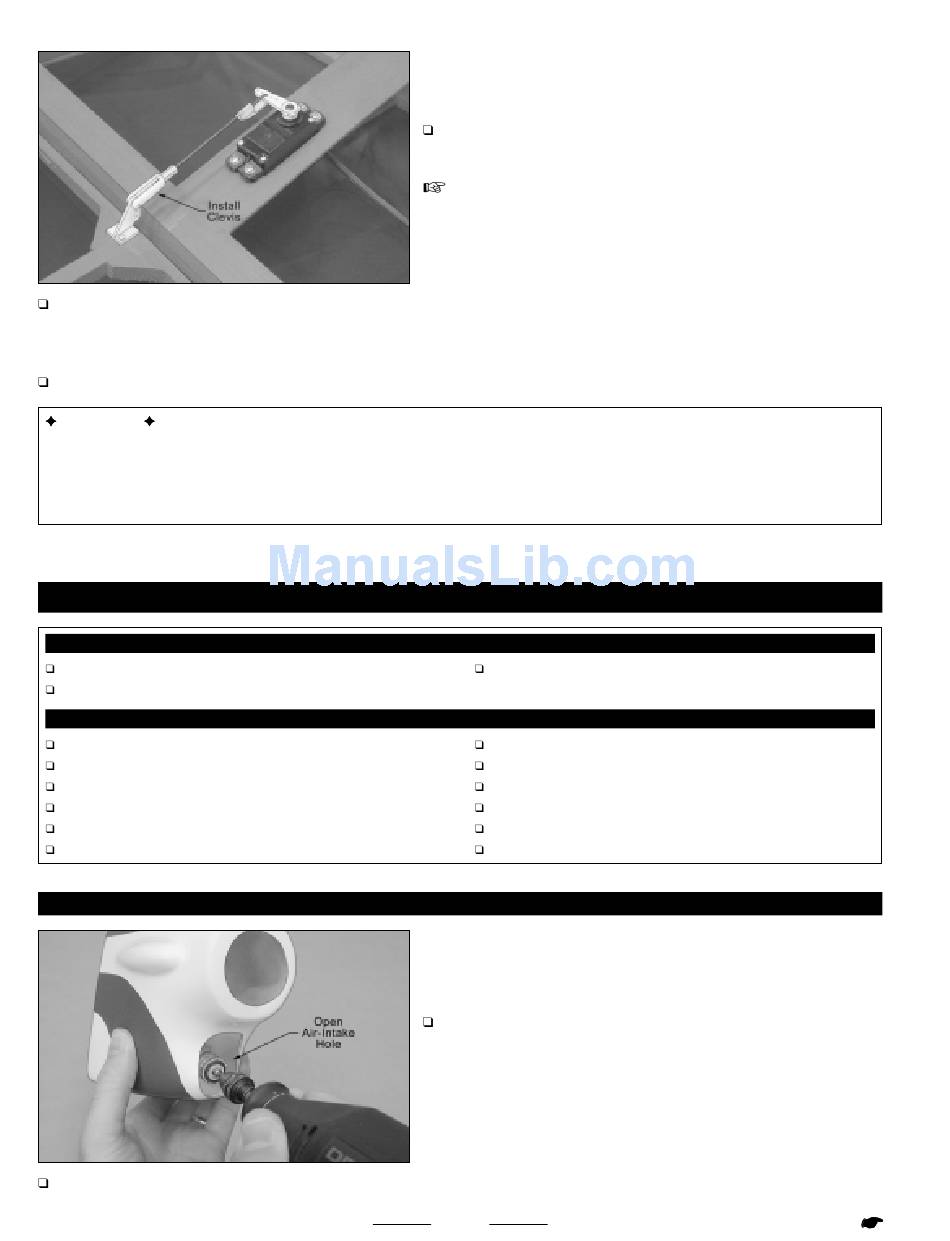

Thread one nylon clevis onto the pushrod wire and snap the clevis
Hold the pushrod wire with a pair of pliers to prevent it from turning
(4) M3 x 5mm Wood Screws
Ruler
Pencil
Rotary Tool w/Cutting Disc & Sanding Drum
220 Grit Sandpaper w/Sanding Block
Masking Tape
Paper Towels
Using a rotary tool with a cutting disc and a sanding drum, carefully
36 Continued On Next Page
