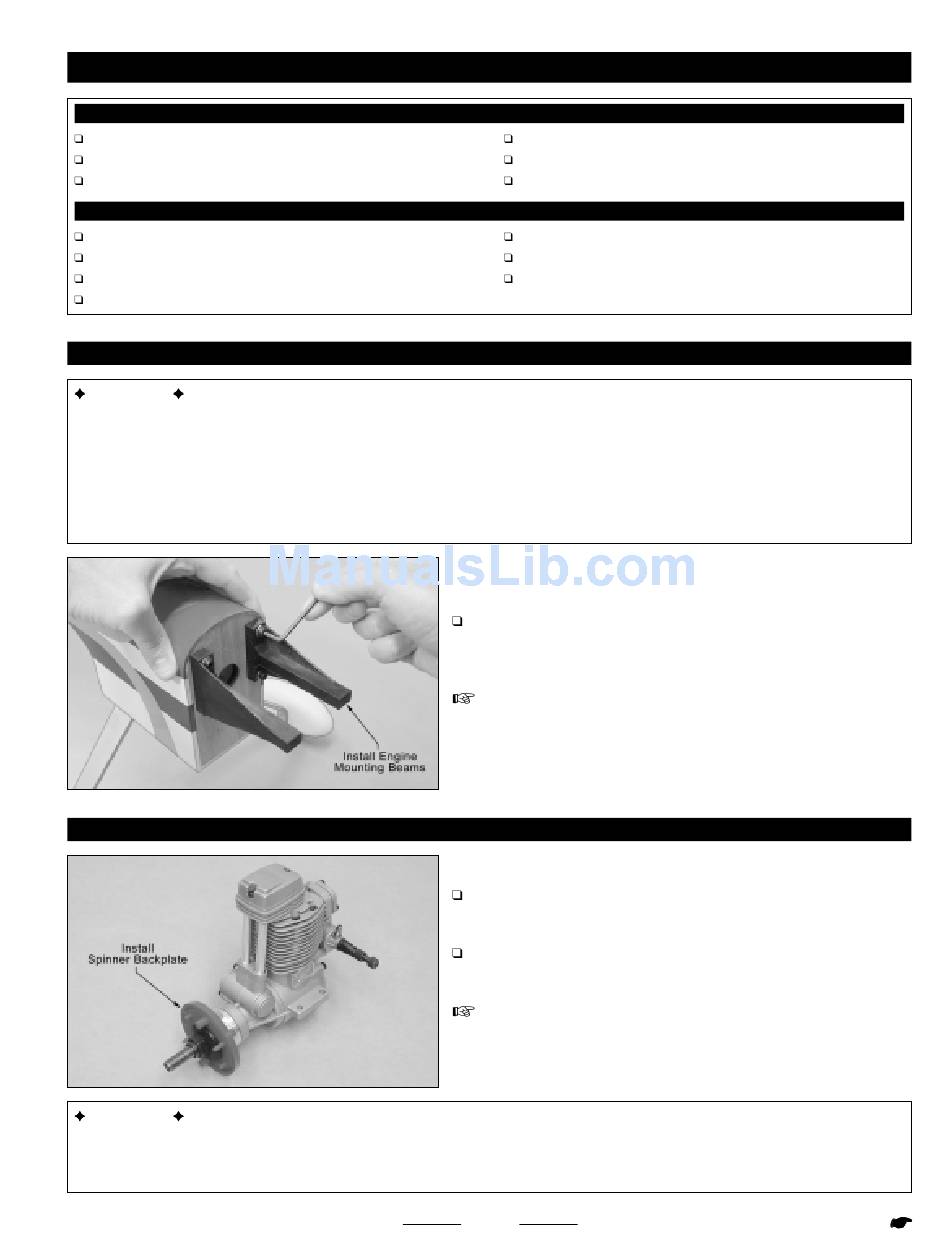

SECTION 12: ENGINE INSTALLATION

(2) Engine Mounting Beams
(4) M4 x 20mm Socket-Cap Screws
(4) M4 x 25mm Socket-Cap Screws
Pacer Z-42 Blue Threadlocker
3mm Hex Wrench
Adjustable Wrench
Electric Drill
STEP 1: INSTALLING THE ENGINE MOUNTING BEAMS
IMPORTANT The following procedures outline the installation of a four-stroke engine. If you are installing a two-stroke
engine, the installation procedures are the same. The Magnum XL .70RFS engine is shown.
The mounting holes in the firewall are prespaced to fit the Magnum XL .61ARNV two-stroke engine and the Magnum XL .70RFS
four-stroke engine. If you are using a different size engine, such as the XLS .52A two-stroke engine or the XL .61RFS four-stroke
engine, you will have to modify the spacing of the mounting holes. This can be done by removing the blind nuts and gluing pieces
of hardwood dowel into the existing holes. You can then redrill the holes to fit your engine's width and reinstall the blind nuts.
Note that the engine is mounted inverted to fit properly within the cowling and to allow the muffler to exit the side of the fuselage.
STEP 2: ALIGNING AND INSTALLING THE ENGINE
IMPORTANT So that the cowling will line up properly when it's installed later, the engine must be spaced out correctly from
the firewall. The distance from the firewall to the back of the spinner backplate should be 4-1/2". This measurement is the same
whether you're installing a two-stroke engine or a four-stroke engine. This measurement will allow a 1/16" wide gap between the
front of the cowling and the spinner backplate, and allow the cowling to overlap the fuselage approximately 1/4".
YOU'LL NEED THE FOLLOWING PARTS FROM THE KIT:
YOU'LL NEED THE FOLLOWING TOOLS AND SUPPLIES:
M4 x 20mm socket-cap screws and four M4 flat washers. Tighten the
screws firmly to hold the engine mounting beams securely in place.
thread the screws into. We suggest applying Blue Threadlocker to the
screws to prevent them from loosening during flight.
lever (if applicable) from your engine and set them aside.
the propeller washer and nut included with your engine.
need to enlarge the diameter of the hole in the spinner backplate to fit.
Use a drill bit or a propeller reamer to do this.
(4) M4 Lock Nuts
(12) M4 Flat Washers
(1) Spinner Assembly w/Backplate & Screws
3/32" & 5/32" Drill Bits
Ruler
Pencil
Install the two engine mounting beams onto the firewall, using four
Blind nuts have been preinstalled into the back of the firewall to
Remove the muffler assembly, high speed needle valve and choke
Install the spinner backplate onto your engine's crankshaft, using
Depending on the diameter of your engine's crankshaft, you may
23 Continued On Next Page
