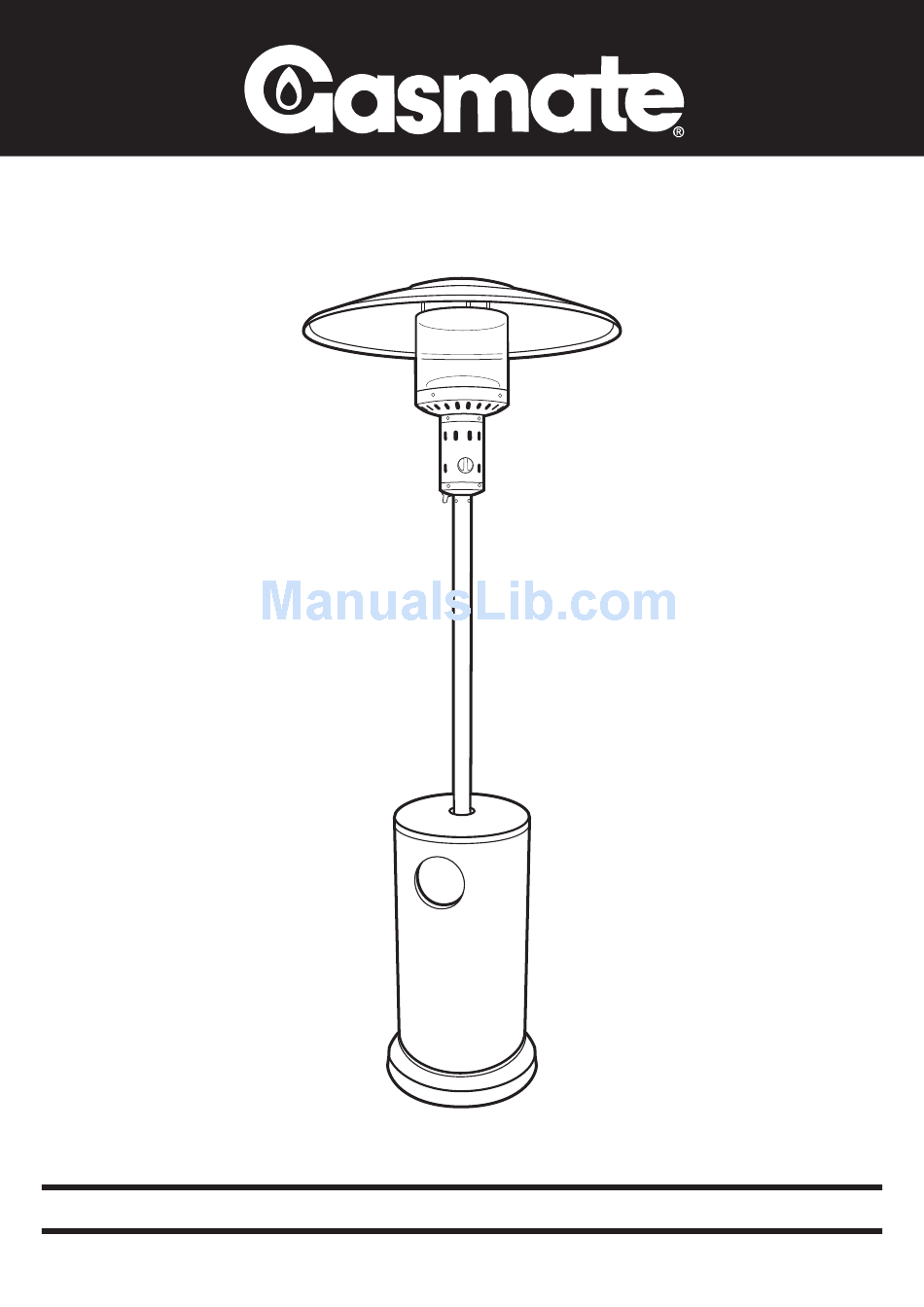

Model No. GM124-003 and GM124-004
FEATURES:
• The ideal solution for
extending the season for
outdoor entertaining
• Maximum output 39.6 MJ/hr
• Direct ignition
• Adjustable heat output
• Safety 'tip-over' switch and
flame safe-guard system
• Wheels for effortless moving
• Operates for approximately 11
hours on high using a properly
filled 9kg LPG cylinder
• Complete with hose and
regulator
• Height: 2.2m
• Tested to NZ Standards
Important: The installer or seller must leave these instructions with the consumer.
3413-04/12
Patio Heater
Retain these instructions for future use.
FOR YOUR SAFETY
If you smell gas:
1. Shut off the gas to the
appliance.
2. Extinguish any open flame.
3. If odour continues,
immediately call your gas
supplier.
Do not store or use gasoline or
other flammable vapour and
liquids in the vicinity of this or
any other appliance.
WARNING:
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property
damage.
Read the instructions thoroughly
before installing or servicing this
equipment.
FOR OUTDOOR USE
ONLY
OPERATES ON LPG
Advertisement
Table of Contents
Related Manuals for Gasmate GM124-003
Summary of Contents for Gasmate GM124-003
- Page 1 Patio Heater Model No. GM124-003 and GM124-004 FEATURES: FOR YOUR SAFETY If you smell gas: • The ideal solution for extending the season for 1. Shut off the gas to the outdoor entertaining appliance. • Maximum output 39.6 MJ/hr 2. Extinguish any open flame. • Direct ignition 3. If odour continues, immediately call your gas • Adjustable heat output supplier. • Safety ‘tip-over’ switch and Do not store or use gasoline or flame safe-guard system other flammable vapour and • Wheels for effortless moving liquids in the vicinity of this or • Operates for approximately 11 any other appliance.
-
Page 2: Installation
Installation, Operation and Maintenance Instructions INSTALLATION Combustible materials are considered to be wood, Important Safety Rules: compressed paper, plant fibres, plastic, plexiglas or This appliance must only be used in a well ventilated other materials capable of being ignited and burned. area. Such materials shall be considered combustible even 1. This appliance shall not be installed or used indoors, though flame proofed, fire-retardant treated or plastered. in buildings, garages or any other enclosed area. Additional clearance may be required for glass, painted surfaces and other materials which may be damaged by 2. DO NOT place articles on or against this appliance. radiant or convection heat. 3. DO NOT use or store flammable materials near this 4. The appliance must be placed on a level and adequate appliance. footing and be readily accessible. 4. Children and adults should be alerted to the hazards 5. The gas manifold supply pressure must be regulated of high surface temperatures, burns and clothing at 2.75 kPa utilising an approved regulator ignition. (supplied with appliance). 5. Children should be carefully supervised when they 6. The appliance must be inspected before each use, and are in the area of the appliance. - Page 3 7. The hose assembly should be properly located out of 6. Leak test the connection using a soapy water solution. pathways where people may trip over it. The hose Ensure no bubbles appear before proceeding. must be protected from contact with hot or sharp 7. Slowly open the gas cylinder valve all the way. Do not surfaces both during use and while in storage. The put excessive force on the valve at the full open hose assembly should be visually inspected prior to position, to avoid damaging the valve. each use of the appliance. If excessive abrasion or 8. Light the appliance as per the instructions provided. wear is evident, or the hose is cut, it must be replaced prior to operating the appliance. The Any modification to the appliance not described in th e replacement hose assembly may be obtained from installation instructions may compromise the safety of the distributor. this appliance. Special concern is as follows: 8. DO NOT use any pressure regulator or hose (1) DO NOT bypass thermocouple safety burner; assembly other than those supplied with the appliance. Replacement pressure regulator and hose (2) DO NOT operate appliance without the guards; assembly must be those specified. Replacement parts Clothing or other flammable materials should not be hung may be obtained from the distributor. from the appliance, or placed on or near the appliance. 9. Installation and use of this appliance must conform The area above the burner may be extremely hot. with New Zealand Standard 5261 “Gas Installations”. Direct contact with these metal surfaces should be avoided in order to prevent burns or clothing ignition.
- Page 4 PATIO HEATER - For Outdoor Use Only Minimum Clearance from Combustible Surfaces*: 760mm Burner head Cylinder housing 460mm *Combustible materials are considered to be wood, compressed paper, plant fibres, plastic or other materials that are capable of being ignited and burned.
-
Page 5: General Assembly
GENERAL ASSEMBLY Connecting & Disconnecting to Gas Source IMPORTANT: Before connecting and disconnecting appliance to gas source, make sure control knob is in ‘OFF’ position. CAUTION: When the appliance is not in use, the gas must be turned off at the cylinder. Familiarise yourself with the general information and safety guidelines located at the front of this manual. Check: 1. The cylinder is filled. A sloshing sound will be heard when shaken. 2. The control knob is in the ‘OFF’ position. Connecting 1. Ensure cylinder valve is in its full off position. 2. Check for any damage to either the cylinder connection or the hose. NEVER attempt to use damaged equipment. 3. When connecting the hose to the cylinder tighten the nut to a positive stop by hand. 4. Open cylinder valve fully. If a leak can be heard at either end of the hose turn cylinder off and tighten joint. Wait 5 minutes before re-testing and use a soapy water solution to check the joint. If bubbles appear the connection will need to be re-tightened. Refer to page 7 for more detailed instructions on connecting the appliance to the cylinder. Disconnecting 1. Ensure the burner control is in the ‘OFF’ position. -
Page 6: Assembly Instructions
ASSEMBLY INSTRUCTIONS Tools Required - Adjustable spanner Note: Remove any transit protection material Step 1 Step 2 Step 3 1-1. Put the 3 post brackets on each 2-1. Put the post on the top of 3 post Place the cylinder housing on the position on the base as shown in brackets. stand. the picure. 2-2. Use 6 M6 x35mm bolts and 1-2. Use 3 M8 x 16mm bolts to join nuts to connect the post to the the post brackets and base. post brackets. Tighten the bolts and nuts. 2-3. Fill the plastic container in the base with sand. Step 4 Step 5 Step 6 4-1. Secure the 3 90mm pins 5-1. Overlap the 3 parts of reflector 6-1. Place a washer on each reflector (reflector support bolts) on the segments and attach with 3 support bolt. cap of flame screen. screws, washers and nuts. 6-2. Fasten the reflector with 3 4-2. Route the gas hose up through 5-2. Place round part of reflector over... - Page 7 ASSEMBLY INSTRUCTIONS STEP 7 STEP 8 Ensure cylinder valve is in its full off position. Check Turn on the gas cylinder ensuring that the control knob on the outdoor heater is turned OFF at this point. for any damage to either the cylinder connection or the hose.
-
Page 8: Troubleshooting
TEST FIRING APPLIANCE Test fire heater, following the lighting instructions on heater post. Leak test all gas connections with soapy water. Soap bubbles indicate gas leakage. DO NOT use a match to test for gas leaks. WARNING: White smoke may appear around the radiant head during the first minute of the initial firing. TROUBLE SHOOTING Problem Possible Causes Main burner won’t light • No gas • Low gas pressure • Blockage in orifice • Manual valve not in ‘LOW’ or ‘HIGH’ position Note: If the appliance cannot be adjusted to perform correctly it should not be used until serviced or repaired. Warning: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Any modifications or adjustments made to product without prior authority from the manufacturer will void any warranty claims. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. LIGHTING INSTRUCTIONS Step 1. Ensure that the control knob is off. Slowly open the gas cylinder valve. Step 2. Push in control knob and turn anti-clockwise to ‘HIGH’ whilst simultaneously pushing the ignitor button several times. Step 3. Check for flame at the burner. If burner does not light immediately turn control knob to ‘OFF’ position and try again from the start. Allow 30 seconds between ignition attempts for gas to dissipate. Several attempts may be necessary. Failure to follow this lighting procedure may result in flame roll out beyond the emitter grid. - Page 9 The following figures are diagrammatic representations of outdoor areas. Rectangular areas have been used in these The following figures are diagrammatic representations of outdoor areas. Rectangular areas have been used in these figures - the same principles apply to any other shaped area. figures – the same principles apply to any other shaped area. Gasmate ® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Gasmate is a registered trademark of: Sitro Group Australia Pty Ltd www.sitro.com.au ®...
