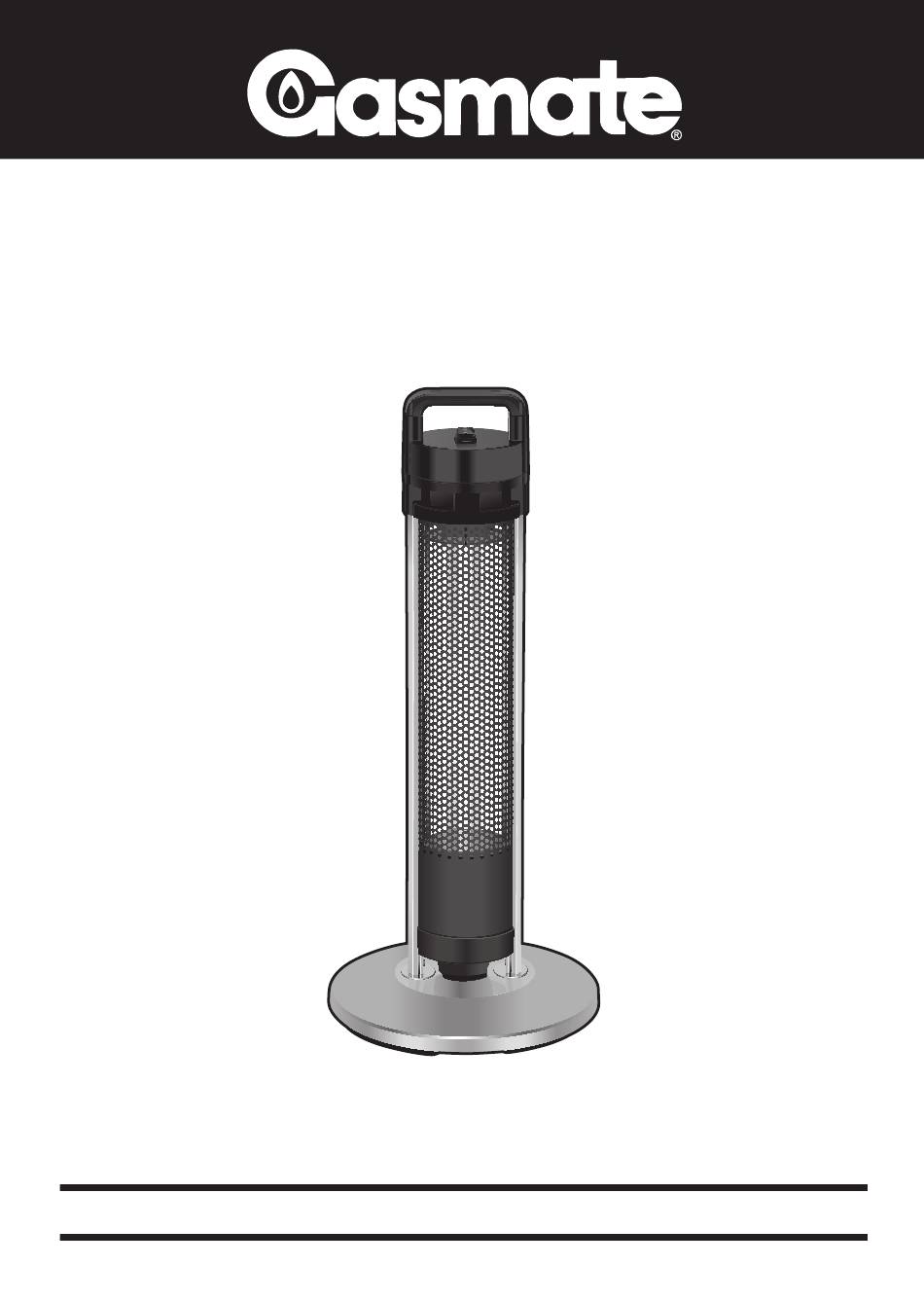

Electric Area Heater
Model No. GM135-009
Designed for outdoor use
.
Important: Retain these instructions for future use
4149-05/15

Advertisement

Table of Contents
loading

Related Manuals for Gasmate GM135-009

Summary of Contents for Gasmate GM135-009

  • Page 1 Electric Area Heater Model No. GM135-009 Designed for outdoor use Important: Retain these instructions for future use 4149-05/15...

  • Page 2: Before First Use

    INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS BEFORE FIRST USE • Do not locate in areas of high foot traffic, • Read and follow all the instructions below even ensure the power cord and heater are in if you feel you are familiar with the heater. view to avoid accidents.

  • Page 3: For Your Safety

    Installation • The use of extension cords may cause This heater is not designed for use within 1m or power voltage loss which will result in above a water source. damage to the heater this will NOT be Ensure that the heater is not positioned directly covered under warranty.

  • Page 4: Specific Safety Instructions

    SPECIFIC SAFETY INSTRUCTIONS WARNINGS Do not use the heater in areas where there is a • DO NOT attempt to modify the heater, power risk of explosion or fire from flammable gases. cord, power plug or the supplied accessories Ensure that the heating area is kept clear of in any way.

  • Page 5: Electrical Data

    Base connection to the mains supply. If in doubt always Screw M6*20 consult a qualified electrician. Washer Technical Specification Screw M4*35 Cord Clip Model GM135-009 Plug Voltage: 220V-240V~ 50Hz Input Wattage: 2000W Accessories Pack Check List: Unit Weight: 11.6Kg IP Rating:...

  • Page 6: Installation

    ASSEMBLY INSTRUCTIONS INSTALLATION Step 3 Step 1 Then slide Base Cover (#3) , Base (#4) and Put the main body up-side-down (Fig. A). Slide Washer (#6) onto Base Bracket (#1) respectively. Deco. Board (#2) onto Base Bracket (#1). Fix Washer (#6), Base (#4), Base Cover (#3) and Base Bracket (#1) with Screw M6*20 (#5).

  • Page 7: Positioning The Heater

    4. To turn off - switch heater OFF at centre switch and turn off power point. 5. Unplug lead from power point when not in use. Gasmate ® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber, Hamilton, N.Z.
