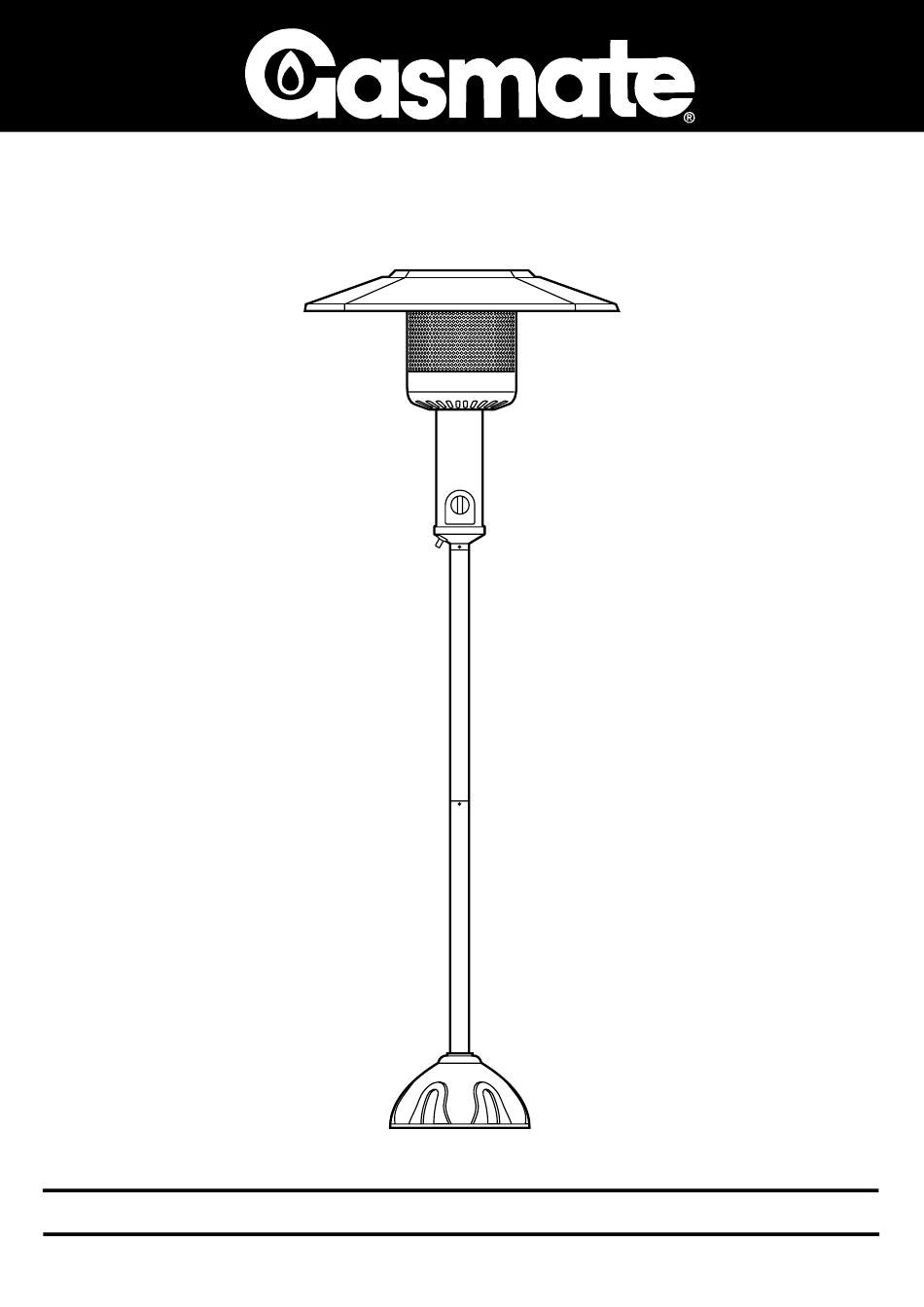

Natural Gas Patio Heater Series
Model No. NG1P45, NG2P45, NGW45 & NGH45
FEATURES:
• The ideal solution for extending the
season for outdoor entertaining
• Creates a stylish and attractive ambience
• Casts an approximate 3 to 5 metre
circle of radiant sun-like warmth
• Piezo ignition
• Adjustable heat output
• Flame safeguard system for enhanced
safety
• Stainless steel burner for extra long-term
reliability
• Durable and weather resistant
• Sectional reflector
• Efficient & powerful output
• AGA approved
NOTE TO INSTALLER:
TEST OPERATION OF APPLIANCE
BEFORE LEAVING.
Important: The installer or seller must leave these instructions with the consumer.
01940 11/05
Special warranty conditions apply
FOR YOUR SAFETY
If you smell gas:
1. Shut off the gas to the
appliance.
2. Extinguish any open flame.
3. If odour continues,
immediately call your gas
supplier.
Do not store or use gasoline or
other flammable vapour and liquids
in the vicinity of this or any other
appliance.
WARNING:
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage.
Read the instructions thoroughly
before installing or servicing this
equipment.
THIS APPLIANCE MUST NOT BE
INSTALLED OR USED INDOORS.
NATURAL GAS APPLIANCE. TO
BE INSTALLED ONLY BY AN
AUTHORISED PERSON.
THE AUTHORISED PERSON WILL
PROVIDE A CERTIFICATE OF
COMPLIANCE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gasmate NG1P45
Summary of Contents for Gasmate NG1P45
- Page 1 Natural Gas Patio Heater Series Model No. NG1P45, NG2P45, NGW45 & NGH45 FEATURES: FOR YOUR SAFETY If you smell gas: • The ideal solution for extending the season for outdoor entertaining 1. Shut off the gas to the appliance. • Creates a stylish and attractive ambience 2.
- Page 2 Installation, Operation and Maintenance Instructions 3. Proper clearance from combustible materials must be Important Safety Rules: maintained at all times. The minimum clearances are This appliance must only be used in a well ventilated as follows: area. Minimum Clearance from Combustibles: 1.
-
Page 3: Essential Information
Installation, Operation and Maintenance Instructions ESSENTIAL INFORMATION INSTALLATION Standards Australia formulates standards and codes for Natural Gas Heaters must be installed by an Authorised such products, to which SITRO Group Australia (SGA) Person. complies in the manufacture of all heaters, so as to provide Heaters can be floor mounted or suspended overhead on a product of premium quality and of a high safety standard. -
Page 4: Gas Piping
7. The heater must be permanently fixed on a level and adequate footing. Attachment may be made utilising the holes located in the heater base plate. PARTS LIST Part description Quantity Model No. NG1P45 NG2P45 NGW45 NGH45 Post 1 piece Post 2 piece Post A Post B Post C... -
Page 5: Reflector Assembly
REFLECTOR ASSEMBLY STEP A Position the 4 segments of the reflector to overlap together. Secure using 8 screws and dome nuts as illustrated. STEP B Place the round part of the reflector over the 4 assembled segments. Secure using 4 screws and dome nuts as illustrated. -
Page 6: Heater Assembly
HEATER ASSEMBLY NOTE: Recommended clearances must be maintained for ALL configurations. TOOLS REQUIRED: Drill 10mm masonary drill bit Adjustable spanner Phillips head screwdriver STEP 1. Firmly attach the base plate using the three expanding fasteners to a concrete footing OR alternatively for NGW45 to a rigid pillar, wall or ceiling using four expanding fasteners. - Page 7 FLOOR MOUNTED PATIO HEATER - Model No. NG1P45, NG2P45 For Outdoor Use Only Minimum Clearance from Combustible Surfaces*: *Combustible materials are considered to be wood, compressed paper, plant fibres, plastic or other materials that are capable of being ignited and burned.
- Page 8 WALL MOUNTED PATIO HEATER - Model No. NGW45 For Outdoor Use Only Minimum Clearance from Combustible Surfaces*: *Combustible materials are considered to be wood, compressed paper, plant fibres, plastic or other materials that are capable of being ignited and burned.
-
Page 9: Various Configurations
VARIOUS CONFIGURATIONS Version 1. Bracket Mounted to Ceiling Version 2. Bracket Mounted to Wall Version 3. Bracket Mounted to Brick Pillar / Wall... -
Page 10: Troubleshooting
TEST FIRING HEATER Test fire heater, following the lighting instructions on heater post. Leak test all gas connections with soapy water. Soap bubbles indicate gas leakage. DO NOT use a match to test for gas leaks. Warning: White smoke may appear around the radiant head during the first minute of the initial firing. TROUBLE SHOOTING Problem Possible Causes... -
Page 11: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with one of the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover (see Example 1). - Page 12 Gasmate is a registered trademark of: Sitro Group Australia Pty Ltd www.sitro.com.au ® AberGas Ltd - Hamilton, N.Z www.abergas.co.nz...
