Amped Wireless TAP-R2 Setup Manual

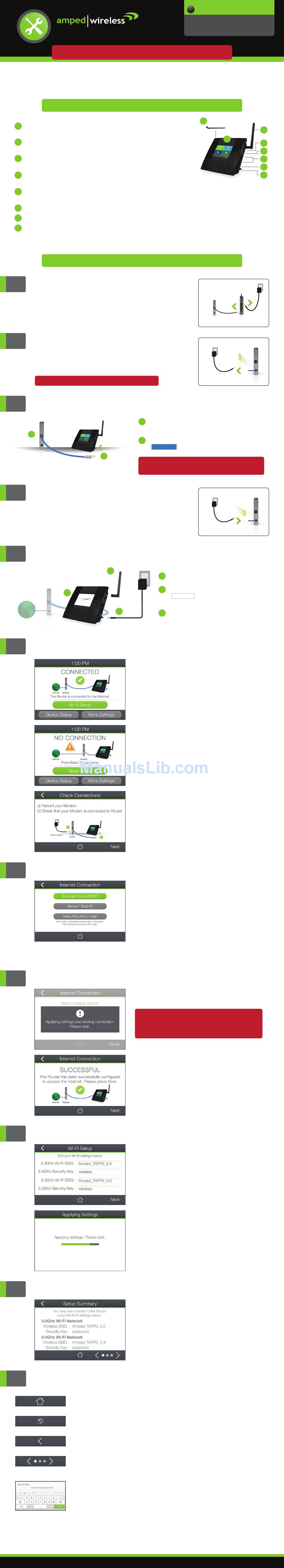

SETUP GUIDE
HIGH POWER TOUCH SCREEN AC750 WI-FI ROUTER
LCD Screen: 3.5" LCD touch screen. Displays the user interface
1
for configuring the Router.
2 Stylus: Input tool that assists in navigating the LCD
touch screen menu.
3 Antenna RJ-SMA antenna connector. Compatible with all
Connector:
antennas that have RP-SMA connectors.
Reset: Button used to reset device. Push down once to reboot,
4
hold down for 5-10 seconds to reset to factory default settings.
USB Port: USB 2.0 Port used to attach USB storage devices, such as a USB flash drive or external hard
5
drive, for file sharing.
6 Wired Ports: RJ-45 ports for connecting wired computers or network devices.
7 Modem: RJ-45 port for connecting to your Broadband Modem.
8 Power (PWR): Power adapter port. DC 12V 1A.
Disconnect & Power Off your
1
Existing Router
Disconnect your existing router from your computer, your
broadband modem, and a power outlet. If you do not have
an existing router please continue to Step 2.
2
Power Off your Modem
Power off the modem by disconnecting the modem's power
adapter from the power outlet. If your modem has a backup
battery, remove the backup battery from your modem.
Do NOT power on your modem until Step 4.
3
Connect the Router to your Modem
a
Modem
4
Power On your Modem
Plug in the power adapter and reinsert the backup battery
(if available) to power on the modem.
Allow a minute or two for the modem to initiate.
5
Attach Antenna & Power On
c
Internet Modem
6
Welcome to the Dashboard
7

Internet Connection Setup

8
Automatic Setup - Welcome to the Setup Wizard
9
Personalize your Wi-Fi Settings
10

Setup Summary

Navigating the Touch Menu
READ FIRST
Getting to Know the Router
Setting Up Your Router
(if available)
b
a
b
Home Button:
Language Selection:
Back Arrow:
Navigation:
Keyboards/Keypads:
See back for additional connection instructions and features.
Use the included blue Ethernet cable and
a
connect one end of the cable to your modem.
Connect the other end of the cable to the blue
b
port on the Router.
Modem
Do NOT connect the power adapter to the
Router at this time.
Attach the included antenna.
a
Attach the Power Adapter to the Router's
b
PWR
able power outlet.
The Amped Wireless logo will appear
c
as the unit boots up, then the Dashboard
screen will appear.
The Dashboard will provide you with the current status
of the Router.
If your router is already configured and has Internet
access, tap Wi-Fi Setup
networks and skip ahead to Step 9 of this Setup
Guide.
If your router is not configured yet, tap
launch the Setup Wizard.
If you have not already done so in Step 2, please
reboot your Modem and check that your Modem is
connected to the Router. Once this is complete tap
Next.
Select Automatic Setup (DHCP)
automatically configure your Internet connection.
For more advanced users who wish to manually
configure their IP address settings, please tap
Manual/Static IP.
For Internet Service Providers that require a login and
password to access the Internet, tap
a Login. This login is not the login you use to access
the Wi-Fi network. If you are not sure what this is
please contact your Internet Service Provider.
The Wizard will try to detect your Internet settings and
configure the Router. Please be patient.
If there is a problem with the Automatic Setup, the
Wizard will notify you of the issue. If you continue to
have problems, contact our Elite Support department
at 888-573-8820.
If the Internet connection detection was successful, you
will see a green check mark.
Tap Next to continue.
The default IDs of your 5GHz Wi-Fi network and
2.4GHz Wi-Fi network are:
Amped_TAPR2_2.4
To change it, tap the SSID field to configure the name of your
Wi-Fi network. Users connecting wirelessly to the Router will
use these IDs to identify your Wi-Fi networks.
The default Security Key of your Wi-Fi networks is: wireless.
To change them, tap the Security Key field and enter a
new key for each Wi-Fi network. The keys must be at
least 8 characters long.
Click Next to apply your settings.
Congratulations, the Router is now configured. The
Setup Summary provides you with the details of your
setup. You may now connect additional devices directly
to the 2 wired ports on the right panel or connect
wirelessly to the Router.
Enjoy your new Amped Wireless network!
Tap the Home icon, found on the bottom of many screens,
to return to the Dashboard at any time.
Tap the Globe icon, found on the bottom of the Settings
screen, to change the language of the menu.
Tap the Left Arrow, found on the upper left corner of many
screens, to navigate back to the previous page.
Tap the Left or Right Arrow
pages for one screen. The dots in this example indicate
there are 3 pages to see.
Tap on a Blank Field to access a keyboard or keypad
for entering in information such as your Network ID and
Security Key.
?
GOT QUESTIONS?
Phone: 888-573-8820 or 909-217-3168
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
TAP-R2
2 Stylus
1
Modem Existing Router
Remove
Backup Battery
Reinsert
Backup Battery
port and plug it into an avail-
to configure your Wi-Fi
Basic Setup
to have the Wizard
Setup Requiring
Amped_TAPR2_5.0
to navigate between multiple
3
4
5
6
7
8
Modem
Modem
to
and
v121214
