thomann Stage TRI LED Bundle Complete User Manual

Led lighting set
Hide thumbs Also See for Stage TRI LED Bundle Complete:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Stage TRI LED Bundle
Complete
LED lighting set
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stage TRI LED Bundle Complete and is the answer not in the manual?

Questions and answers

Related Manuals for thomann Stage TRI LED Bundle Complete

Summary of Contents for thomann Stage TRI LED Bundle Complete

  • Page 1 Stage TRI LED Bundle Complete LED lighting set user manual...
  • Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 08.01.2013...

  • Page 3: Table Of Contents

    7.4 Functions in 2-channel DMX mode (d.-P5)................37 7.5 Functions in 3-channel DMX mode (d.-P1)................39 7.6 Functions in 4-channel DMX mode (d.-P2)................40 7.7 Functions in 7-channel DMX mode (d.-P7)................40 7.8 Functions in 8-channel DMX mode (d.-P3) ................43 Stage TRI LED Bundle Complete...
  • Page 4 Table of contents 7.9 Functions in 14-channel DMX mode (d.-P4)................44 7.10 Functions in 15-channel DMX mode (d.-P6)................ 46 7.11 Functions of foot switch......................47 Technical specifications........................49 Cleaning............................... 50 Protecting the environment......................51 LED lighting set...

  • Page 5: General Notes

    If you sell the device to other users, be sure that they also receive this manual. Our products are subject to a process of continuous development. We therefore reserve the right to make changes without notice. Stage TRI LED Bundle Complete...
  • Page 6 General notes Symbols and signal words This section provides an overview of the symbols and signal words used in this user manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided.
  • Page 7 General notes Warning signs Type of danger Warning – hot surface. Warning – danger zone. Stage TRI LED Bundle Complete...

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used as an electronic illumination effect using LED technics. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 9 If in doubt, seek advice from a registered electrician. DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Stage TRI LED Bundle Complete...
  • Page 10 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
  • Page 11 15 minutes. NOTICE! Risk of fire Do not cover the device nor any ventilation slots. Do not place the device near any direct heat source. Keep the device away from naked flames. Stage TRI LED Bundle Complete...
  • Page 12 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.

  • Page 13: Features

    Control via DMX (7 different modes), via buttons and display on the unit and via foot switch 14 preprogrammed automatic shows Sound control Master / slave mode Additionally, a T-bar, a foot switching unit and a transportation bag is included in the scope of delivery Stage TRI LED Bundle Complete...

  • Page 14: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 15 Never connect the DMX output to audio devices such as mixers or amplifiers. DMX connections The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for pin assignment. Stage TRI LED Bundle Complete...
  • Page 16 Installation Ground, shielding DMX data (–) DMX data (+) LED lighting set...

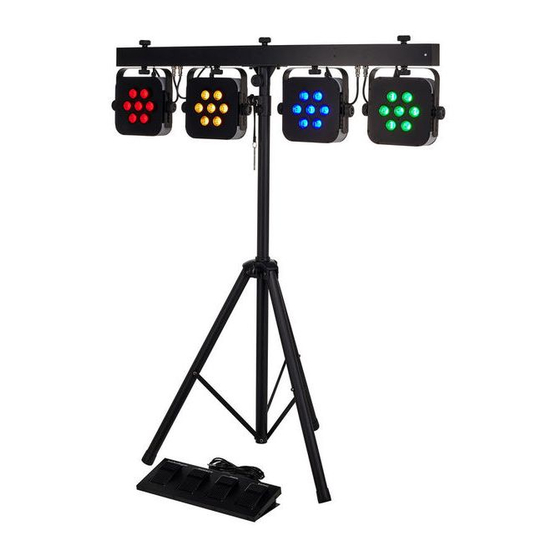

  • Page 17 The four spots (1 … 4, from left to right) are pre-installed on the T-bar. You just have to assemble the tripod and connect the foot switching unit. Locking screws for fixing the height and angle of inclination. Locking screw for fixing the spots on the T-bar and the horizontal alignment (beam direction). Stage TRI LED Bundle Complete...
  • Page 18 Installation Electrical connection of the spots on the T-bar (pre-installed). 1/4" phone socket for connecting the foot switching unit. The cable with the phone socket is pre-assembled to the foot switching unit. LED lighting set...

  • Page 19: Starting Up

    Starting up Starting up Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. Stage TRI LED Bundle Complete...
  • Page 20 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
  • Page 21 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. Stage TRI LED Bundle Complete...

  • Page 22: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Front panel LED lighting set...
  • Page 23 Selects an option of the respective operating mode, confirms the set value. 5 [Up] button To increase the displayed value by one. 6 [Down] button To decrease the displayed value by one. 7 Footswitch Input 1/4" phone socket to connect the foot switching unit. Stage TRI LED Bundle Complete...
  • Page 24 Connections and operating elements 8 DMX In DMX input. 9 DMX Out DMX output. LED lighting set...
  • Page 25 Connections and operating elements Foot switching unit Stage TRI LED Bundle Complete...
  • Page 26 Connections and operating elements 10 Foot switch Auto run Activates the operating mode ‘Automatic’. 11 Foot switch Sound active Activates the operating mode ‘Sound control’. 12 Foot switch Freeze Activates the operating mode ‘Freeze’. 13 Foot switch Blackout Activates the operating mode ‘Blackout’. LED lighting set...

  • Page 27: Operation

    If you don't press any button for about 30 seconds, the display turns off. Press any key to reac‐ tivate the display showing the last menu. The set values are retained even if you disconnect the device from the mains. Stage TRI LED Bundle Complete...
  • Page 28 Operation Operating mode ‘Built-in auto‐ A built-in automatic show can only be activated if the unit is working in stand-alone mode or matic show’ as master device in a master / slave combination. This setting is only relevant if the unit is not controlled via DMX.
  • Page 29 To adjust the fade speed, repeatedly press [Setup] until the display shows ‘Fdxx’ . Now use [Up] and [Down] to select a value between ‘Fd00’ and ‘Fd99’ . To set the strobe frequency, repeatedly press [Setup]. Now use [Up] and [Down] to select a value between ‘FS00’ (slow) and ‘FS99’ (fast). Stage TRI LED Bundle Complete...
  • Page 30 Operation DMX mode This setting is only relevant if the unit is controlled via DMX. Press [Mode] repeatedly until the display shows ‘d.xxx’ . Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [Up] and [Down] to select a value between 1 and 512 (the display shows ‘d.001’...
  • Page 31 This setting is only relevant if the unit is operated as slave device in a master / slave configura‐ tion and is not controlled via DMX. Press [Mode] repeatedly until the display shows ‘SLAv’ . Stage TRI LED Bundle Complete...
  • Page 32 Operation Sound-control A sound-controlled automatic show can only be activated if the unit is working in stand-alone mode or as master device in a master / slave combination. This setting is only relevant if the unit is not controlled via DMX. Press [Mode] repeatedly until the display shows ‘SU.xx’...
  • Page 33 DMX. Press [Mode] repeatedly until the display shows ‘Colr’ . Press [Setup]. Use [Up] and [Down] to choose from the following options: Display Description ‘r.000’ … ‘r.255’ ‘G.000’ … ‘G.255’ Green ‘b.000’ … ‘b.255’ Blue Stage TRI LED Bundle Complete...

  • Page 34: Menu Overview

    Operation 7.3 Menu overview LED lighting set...
  • Page 35 Operation Stage TRI LED Bundle Complete...
  • Page 36 Operation LED lighting set...

  • Page 37: Functions In 2-Channel Dmx Mode (D.-P5)

    Constant unicoloured pattern in blue for all LEDs 60…69 Constant unicoloured pattern in purple for all LEDs 70…79 Constant unicoloured pattern in white for all LEDs 80…89 Preprogrammed automatic show no. 1 90…99 Preprogrammed automatic show no. 2 Stage TRI LED Bundle Complete...
  • Page 38 Operation Channel Value Function 180…189 Preprogrammed automatic show no. 11 190…199 LEDs off 200…209 Constant unicoloured pattern in red for all LEDs 210…219 Preprogrammed automatic show no. 12 220…229 Preprogrammed automatic show no. 13 230…239 Preprogrammed automatic show no. 14 240…255 Sound-controlled show Function depends on channel 1 setting...

  • Page 39: Functions In 3-Channel Dmx Mode (D.-P1)

    Value Function 0…255 Intensity red (0 % to 100 %) for all LEDs 0…255 Intensity green (0 % to 100 %) for all LEDs 0…255 Intensity blue (0 % to 100 %) for all LEDs Stage TRI LED Bundle Complete...

  • Page 40: Functions In 4-Channel Dmx Mode (D.-P2)

    Operation 7.6 Functions in 4-channel DMX mode (d.-P2) Channel Value Function 0…255 Intensity red (0 % to 100 %) for all LEDs 0…255 Intensity green (0 % to 100 %) for all LEDs 0…255 Intensity blue (0 % to 100 %) for all LEDs 0…255 Dimmer (0 % to 100 %) 7.7 Functions in 7-channel DMX mode (d.-P7)
  • Page 41 Constant unicoloured pattern in purple for all LEDs 70…79 Constant unicoloured pattern in white for all LEDs 80…89 Preprogrammed automatic show no. 1 90…99 Preprogrammed automatic show no. 2 180…189 Preprogrammed automatic show no. 11 Stage TRI LED Bundle Complete...
  • Page 42 Operation Channel Value Function 190…199 LEDs off 200…209 Constant unicoloured pattern in red for all LEDs 210…219 Preprogrammed automatic show no. 12 220…229 Preprogrammed automatic show no. 13 230…239 Preprogrammed automatic show no. 14 240…255 Sound-controlled show Function depends on channel 4 setting Channel 4 = 0…79 No function Channel 4 = 80…239...

  • Page 43: Functions In 8-Channel Dmx Mode (D.-P3)

    Channel Value Function 0…255 Intensity red (0 % to 100 %) for all LEDs of spots 1 and 2 0…255 Intensity green (0 % to 100 %) for all LEDs of spots 1 and 2 Stage TRI LED Bundle Complete...

  • Page 44: Functions In 14-Channel Dmx Mode (D.-P4)

    Operation Channel Value Function 0…255 Intensity blue (0 % to 100 %) for all LEDs of spots 1 and 2 0…255 Intensity red (0 % to 100 %) for all LEDs of spots 3 and 4 0…255 Intensity green (0 % to 100 %) for all LEDs of spots 3 and 4 0…255 Intensity blue (0 % to 100 %) for all LEDs of spots 3 and 4 0…255...
  • Page 45 Intensity green (0 % to 100 %) for all LEDs of spot 4 0…255 Intensity blue (0 % to 100 %) for all LEDs of spot 4 0…255 Strobe effect, increasing speed 0…255 Dimmer (0 % to 100 %) Stage TRI LED Bundle Complete...

  • Page 46: Functions In 15-Channel Dmx Mode (D.-P6)

    Operation 7.10 Functions in 15-channel DMX mode (d.-P6) Channel Value Function 0…9 RGB mode for channels 2 to 15 10…249 Preprogrammed automatic shows 250…255 Sound-controlled show Functions of channels 2 to 15 depend on the setting of channel 1, 0…9 0…255 Dimmer (0 % to 100 %) 0…9...

  • Page 47: Functions Of Foot Switch

    Intensity blue (0 % to 100 %) for all LEDs of spot 4 7.11 Functions of foot switch Operating mode ‘Automatic’ Press the foot switch Auto Run to start loop playback of the preset programmes. Stage TRI LED Bundle Complete...
  • Page 48 Operation Operating mode ‘Sound-con‐ Press the foot switch Sound Active to start sound-controlled operation. trol’ Operating mode ‘Freeze’ Press the foot switch Freeze to freeze the current show. Press the foot switch Auto Run or Sound Active to enable a restart. Operating mode ‘Blackout’...

  • Page 49: Technical Specifications

    , 50 … 60 Hz Power consumption 90 W Fuse 5 mm × 20 mm, 2.0 A, 250 V, fast acting T-bar width 1200 mm Height (T-bar + tripod) max. 2400 mm Weight 16 kg Stage TRI LED Bundle Complete...

  • Page 50: Cleaning

    Cleaning Cleaning Optical lenses Clean the exterior of accessible optical lenses periodically to optimise light output. The fre‐ quency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device. Clean with a soft cloth using normal glass cleaning products.

  • Page 51: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Stage TRI LED Bundle Complete...
  • Page 52 Notes LED lighting set...
  • Page 53 Notes Stage TRI LED Bundle Complete...
  • Page 54 Notes LED lighting set...
