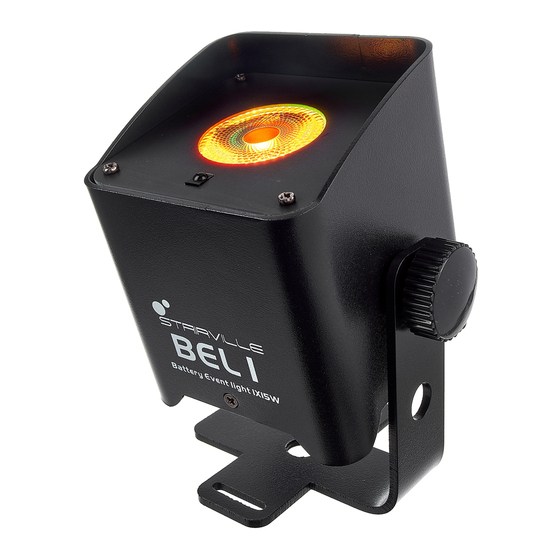

thomann STAIRVILLE BEL1 Battery Event Light 15W User Manual
  1. Manuals
  2. Brands
  3. thomann Manuals
  4. Lighting Equipment
  5. STAIRVILLE BEL1 Battery Event Light 15W
  6. User manual

thomann STAIRVILLE BEL1 Battery Event Light 15W User Manual

Led spotlight
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BEL1 Battery Event
Light 15W,
BEL1+ Battery Event
Light 15W
LED spotlight
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAIRVILLE BEL1 Battery Event Light 15W and is the answer not in the manual?

Questions and answers

Related Manuals for thomann STAIRVILLE BEL1 Battery Event Light 15W

Summary of Contents for thomann STAIRVILLE BEL1 Battery Event Light 15W

  • Page 1 BEL1 Battery Event Light 15W, BEL1+ Battery Event Light 15W LED spotlight user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 30.03.2021, ID: 461293_461292 (V2)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 8 Safety instructions..........................11 Features............................... 16 Installation..............................17 4.1 Dealing with lithium batteries..................... 22 Starting up..............................24 Connections and controls........................25 Operating..............................
  • Page 4 Table of contents 7.5 Functions in 5-channel DMX mode................... 47 7.6 Functions in 9-channel DMX mode................... 48 Technical specifications........................51 Troubleshooting............................55 Cleaning............................... 57 Protecting the environment......................58 LED spotlight...

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. BEL1 Battery EventLight 15W, BEL1+ Battery EventLight 15W...

  • Page 6: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...

  • Page 8: Symbols And Signal Words

    General information Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 9 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 10 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. LED spotlight...

  • Page 11: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 12 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices.
  • Page 13 Safety instructions WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. WARNING! Incorrect handling of lithium batteries can result in injury In the event of a short circuit, overheating or mechanical damage, lithium batteries can cause severe injuries. Follow the advice on the correct handling of lithium batteries in the present section.
  • Page 14 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
  • Page 15 Safety instructions NOTICE! Possible damage to lithium-ion batteries through incorrect storage By deep discharge, lithium-ion batteries can be permanently damaged or lose some of their capacity. Before long breaks, charge the batteries to around 50 % of their capacity and then switch off the device. Store the device at room temperature or cooler in an envi‐ ronment as dry as possible.

  • Page 16: Features

    Features Features Special features of the device: Five-colour LED (RGBAW, 15 W) Item no. 461293: Stand alone mode operation Item no. 461292: Operable in stand-alone mode or DMX Item no. 461293: Control via the supplied infrared remote control and via buttons and colour display on the unit Item no.

  • Page 17: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 18 Installation NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
  • Page 19 Installation The safety cable must be threaded through the openings in the bracket. Please note that this device must not be connected to a dimmer. Infrared sensor for the remote The infrared sensor for the remote control signals is located in front of the LEDs on the front control panel.
  • Page 20 Installation Inserting the battery into the Press the lock of the battery holder to the centre of the housing and pull out the battery holder remote control like a drawer. Insert the battery. The battery is correct if the positive pole points to the housing base of the remote control.
  • Page 21 Installation NOTICE! Possible damage to lithium-ion batteries through incorrect storage By deep discharge, lithium-ion batteries can be permanently damaged or lose some of their capacity. Before long breaks, charge the batteries to around 50 % of their capacity and then switch off the device.

  • Page 22: Dealing With Lithium Batteries

    Installation 4.1 Dealing with lithium batteries WARNING! Incorrect handling of lithium batteries can result in injury In the event of a short circuit, overheating or mechanical damage, lithium bat‐ teries can cause severe injuries. Follow the advice on the correct handling of lithium batteries in the present sec‐ tion.
  • Page 23 Installation Never attempt to recharge non-rechargeable lithium batteries. When charging lithium bat‐ teries you must use a suitable charging device intended for the purpose. Before disposing of the device remove the lithium batteries. Protect used lithium batteries against potential short circuits, e.g. by covering the poles with adhesive tape. Only use powder extinguishers or other suitable extinguishing agents to extinguish a burning lithium battery.

  • Page 24: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. LED spotlight...

  • Page 25: Connections And Controls

    Connections and controls Connections and controls BEL1 Battery EventLight 15W, BEL1+ Battery EventLight 15W...
  • Page 26 Connections and controls 1 Infrared sensor for the remote control signals 2 Mounting bracket 3 Locking screw for the mounting bracket 4 Only for item # 461292: [DMX] The LED indicates an incoming Wireless DMX signal. 5 [Sound] The LED indicates that the Sound control is active. 6 [Mic] Microphone for sound control 7 [Menu] button...
  • Page 27 Connections and controls 10 [Enter] Selects an option of the respective operating mode, confirms the set value. 11 Only for item # 461292: [W-DMX] Status LED for Wireless-DMX LED off: there is no old or current connection LED flashes quickly: connection establishment or no signal from the transmitter LED flashes slowly: connected 12 Display 13 [ON / OFF]...
  • Page 28 Connections and controls Remote control LED spotlight...
  • Page 29 Connections and controls 15 [BLACK OUT] Enables or disables blackout. 16 [AUTO] Starts or stops the Auto mode. 17 [SOUND] Starts the music-controlled automatic show. 18 [STROBE] Enables or disables the Strobe effect with the last selected colour. 19 [SPEED] Allows you to set the speed of the automatic programmes with [+] and [–].
  • Page 30 Connections and controls 22 [MANUAL] Activates the display of a constant colour, that can either be mixed individually with [R], [G] and [B] from the basic colours, or selected directly with one of the coloured buttons. 23 [FADE] Allows you to choose between the two automatic options by pressing repeatedly. 24 [R], [G], [B] Sets the intensity of the three primary colours red, green and blue when a constant colour is displayed.

  • Page 31: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. The display shows the operating mode that was selected when the unit was last powered off.
  • Page 32 Operating BEL1 Battery Event Light 15W (item no. 461293) Main menu Menu level 2 Menu level 3 Menu level 4 Meaning ‘Mode’ ‘Auto’ Automatic run ‘Prog’ ‘Sp00’ … ‘Sp99’ Programme running speed ‘Step’ ‘Sp00’ … ‘Sp99’ Colour change speed ‘Fade’ ‘Sp00’...
  • Page 33 Operating Main menu Menu level 2 Menu level 3 Menu level 4 Meaning ‘Static’ ‘Dimmer’ 0…255 Setting the overall brightness ‘Strobe’ 0…255 Stroboscope effect with adjustable speed ‘C-Macro’ 1…9 Selection of a mixed colour ‘Red’ 0…255 Intensity red (0 % to 100 %) ‘Green’...
  • Page 34 Operating Main menu Menu level 2 Menu level 3 Menu level 4 Meaning ‘Amber’ 0…255 Intensity amber (0 % to 100 %) ‘Settings’ ‘Display’ Automatic display shutdown when not in use ‘On’ Enabled ‘Off’ Disabled ‘Display Rev’ Display inversion ‘On’ On, display is rotated by 180°...
  • Page 35 Operating Main menu Menu level 2 Menu level 3 Menu level 4 Meaning ‘Linear’ Linear ‘Exp’ Exponential ‘Log’ Logarithmic ‘S Curve’ S-shaped ‘System Info’ ‘Firmware’ Show firmware version of the device ‘Timeinfo’ Operating hours display ‘Temperature’ Show device temperature BEL1+ Battery Event Light 15W (item no.
  • Page 36 Operating Main menu Menu level 2 Menu level 3 Menu level 4 Meaning ‘DMX Address’ 001…508 (5 channel Setting the DMX address mode) 001…504 (9-channel mode) ‘Mode’ ‘DMX’ Selecting a DMX mode ‘DMX 5Ch’ 5-channel DMX mode ‘DMX 9Ch’ 9-channel DMX mode ‘Auto’...
  • Page 37 Operating Main menu Menu level 2 Menu level 3 Menu level 4 Meaning ‘Step’ ‘Se00’ … ‘Se99’ Sensitivity of the built-in microphone for colour change ‘Fade’ ‘Se00’ … ‘Se99’ Sensitivity of the built-in microphone for fade effect ‘Static’ ‘Dimmer’ 0…255 Setting the overall brightness ‘Strobe’...
  • Page 38 Operating Main menu Menu level 2 Menu level 3 Menu level 4 Meaning ‘Green’ 0…255 Intensity green (0 % to 100 %) ‘Blue’ 0…255 Intensity blue (0 % to 100 %) ‘White’ 0…255 Intensity white (0 % to 100 %) ‘Amber’...
  • Page 39 Operating Main menu Menu level 2 Menu level 3 Menu level 4 Meaning ‘Off’ Disabled ‘Display Rev’ Display inversion ‘On’ On, display is rotated by 180° ‘Off’ Off, normal display ‘Limiter’ Lower the maximum brightness to extend battery life ‘On’ Enabled ‘Off’...
  • Page 40 Operating Main menu Menu level 2 Menu level 3 Menu level 4 Meaning ‘Dimmer Curve’ Dimmer curve ‘Linear’ Linear ‘Exp’ Exponential ‘Log’ Logarithmic ‘S Curve’ S-shaped ‘System Info’ ‘Firmware’ Show firmware version of the device ‘Timeinfo’ Operating hours display ‘Temperature’ Show device temperature LED spotlight...

  • Page 41: Using Wireless Dmx (W-Dmx)

    Operating 7.3 Using Wireless DMX (W-DMX) BEL1+ Battery Event Light 15W (item no. 461292) Proceed as follows to establish a connection between transmitter and spotlight: Press [Menu] to activate the main menu. Use [Up] or [Down] to select the menu item ‘Settings’...
  • Page 42 Operating Select the menu item ‘W-Dmx’ and confirm with [Enter]. Select ‘Off’ to deactivate W- DMX mode. ð The LED [W-DMX] turns off. Reactivate the connection between the transmitter and the spotlight as described under item 2 and 3. LED spotlight...

  • Page 43: Menu Overview

    Operating 7.4 Menu overview BEL1 Battery Event Light 15W (item no. 461293) BEL1 Battery EventLight 15W, BEL1+ Battery EventLight 15W...
  • Page 44 Operating LED spotlight...
  • Page 45 Operating BEL1+ Battery Event Light 15W (item no. 461292) BEL1 Battery EventLight 15W, BEL1+ Battery EventLight 15W...
  • Page 46 Operating LED spotlight...

  • Page 47: Functions In 5-Channel Dmx Mode

    Operating 7.5 Functions in 5-channel DMX mode only BEL1+ Battery Event Light 15W (item no. 461292) Channel Value Function No function 1…255 Intensity red (0 % to 100 %) No function 1…255 Intensity green (0 % to 100 %) No function 1…255 Intensity blue (0 % to 100 %) No function...

  • Page 48: Functions In 9-Channel Dmx Mode

    Operating Channel Value Function No function 1…255 Intensity amber (0 % to 100 %) 7.6 Functions in 9-channel DMX mode only BEL1+ Battery Event Light 15W (item no. 461292) Channel Value Function No function 1…255 Dimmer RGBAW (0 % to 100 %) No function 1…255 Strobe effect with increasing speed...
  • Page 49 Operating Channel Value Function No function 0…255 Intensity red (0 % to 100 %) No function 0…255 Intensity green (0 % to 100 %) No function 0…255 Intensity blue (0 % to 100 %) No function 0…255 Intensity white (0 % to 100 %) No function 0…255 Intensity amber (0 % to 100 %)
  • Page 50 Operating Channel Value Function 151…220 Colour transition effect 221…255 Automatic sound controlled show No function 1…255 Running speed automatic show, increasing LED spotlight...

  • Page 51: Technical Specifications

    Technical specifications Technical specifications BEL1 Battery BEL1+ Battery Event Event Light 15W Light 15W Item no. 461293 Item no. 461292 Light source 1 × 5in1 LED (RGBAW, 15 W) Optical properties Beam angle 25° 25° Control Infrared remote Infrared remote con‐ control trol Buttons and dis‐...
  • Page 52 Technical specifications BEL1 Battery BEL1+ Battery Event Event Light 15W Light 15W Item no. 461293 Item no. 461292 W-DMX Frequency of operation 2403 MHz…2479 MHz Max. transmission 100 mW power Transmission range 500 m Power supply External power adapter, 100 - 240 V 50/60 Hz Operating voltage 8,4 V...
  • Page 53 Technical specifications BEL1 Battery BEL1+ Battery Event Event Light 15W Light 15W Item no. 461293 Item no. 461292 Protection class IP20 Mounting options hanging, standing, tripod-mounted Dimensions (W × H × D) 97 mm × 139 mm × 75 mm Weight 0.7 kg Ambient conditions...
  • Page 54 Technical specifications Further information BEL1 Battery Event Light BEL1+ Battery Event Light Item no. 461293 Item no. 461292 Number of LEDs Colour mixture RGBAW RGBAW LED type x-in-1 x-in-1 Floor housing Fanless Remote control included included Wireless DMX Stand-alone function Housing colour black black...

  • Page 55: Troubleshooting

    Troubleshooting Troubleshooting In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Symptom Remedy The unit does not work, no light Check the mains connection and the main fuse. No response to the DMX con‐...
  • Page 56 The built-in battery can no longer Do not attempt to replace the built-in battery yourself. be recharged. Please contact our service centre. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED spotlight...

  • Page 57: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 58: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 59 Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste. Dispose of this device through an approved waste disposal firm or through your local waste facility.
  • Page 60 Notes LED spotlight...
  • Page 61 Notes BEL1 Battery EventLight 15W, BEL1+ Battery EventLight 15W...
  • Page 62 Notes LED spotlight...
  • Page 64 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
