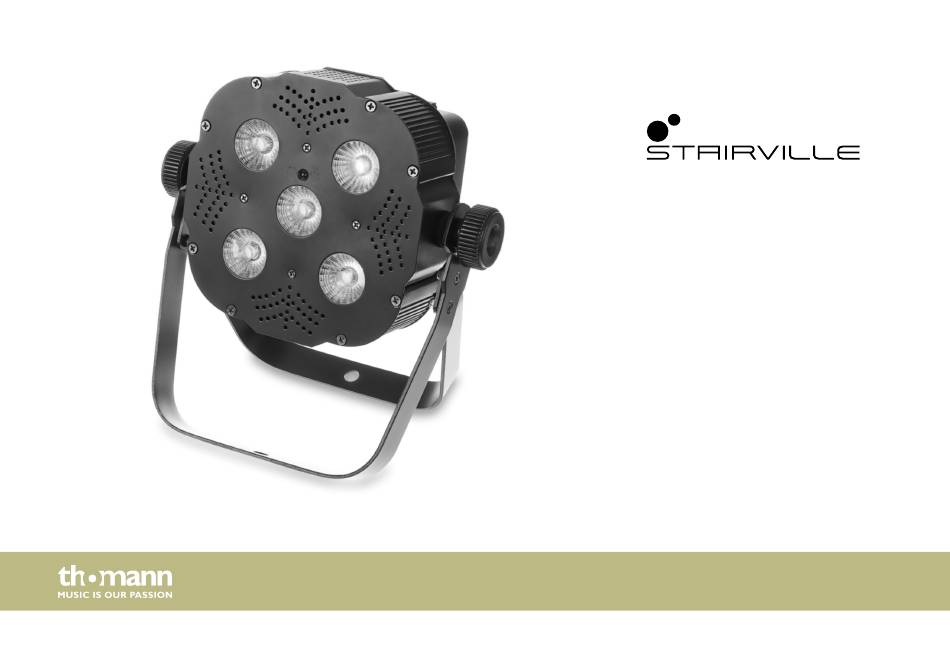

  • Page 1 Quad Par Profile 5x8W RGBW 5x8W RGB WW LED PAR user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 19.11.2021, ID: 307515, 405343, 414496, 414497 (V6)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................5 1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 7 Safety instructions..........................10 Features............................... 14 Installation..............................16 Starting up..............................21 Connections and operating elements................... 24 Operation..............................35 7.1 Starting the device...........................
  • Page 4 Table of contents 7.6 Functions in 6-channel DMX mode................... 46 7.7 Functions in 8-channel DMX mode (Stairville Quad Par Profile 5x8W RGBW, item no. 307515)............................47 7.8 Functions in 8-channel DMX mode (Stairville Quad Par Profile 5x8W RGBW, item no. 405343)............................50 Technical specifications........................

  • Page 5: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Quad Par Profile 5x8W RGBW 5x8W RGB WW...

  • Page 6: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’...
  • Page 8 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 9 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. Quad Par Profile 5x8W RGBW 5x8W RGB WW...

  • Page 10: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 11 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices.
  • Page 12 Safety instructions WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only.
  • Page 13 Safety instructions NOTICE! Possible damage due to installation of a wrong fuse The use of different types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used. NOTICE! Risk of fire due to incorrect polarity Incorrectly inserted batteries may destroy the device or the batteries.

  • Page 14: Features

    Special features of the device: Five four-colour LEDs, 8 W each – Stairville Quad Par Profile 5x8W RGBW, item no. 307515 and 414496: red, green, blue, white – Stairville Quad Par Profile 5x8W RGB WW, item no. 405343 and 414497: red, green, blue, warm white Control via DMX (three different modes), via buttons and display on the device and sup‐...
  • Page 15 Features For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. Quad Par Profile 5x8W RGBW 5x8W RGB WW...

  • Page 16: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 17 Installation NOTICE! Risk of overheating The distance between light output and the illuminated surface must be more than 1.5 m (19.7in). Provide sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
  • Page 18 Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Please note that this device must not be connected to a dimmer. LED PAR...
  • Page 19 Installation Mounting options You can install the unit in hanging or standing position. When in use, the device must always be attached to a solid surface or an approved truss. Use the openings provided on the two- piece bracket for attaching. Always work from a stable platform whenever installing, moving or servicing the unit.
  • Page 20 Installation Inserting the battery into the Press the lock of the battery holder to the centre of the housing and pull out the battery holder remote control like a drawer. Insert the battery. The battery is correct if the positive pole points to the housing base of the remote control.

  • Page 21: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Quad Par Profile 5x8W RGBW 5x8W RGB WW...
  • Page 22 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
  • Page 23 Starting up DMX indicator If the unit is in DMX mode and a DMX controller is connected and turned on, the ‘d’ is flashing in the first digit of the display. Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show.

  • Page 24: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Overview & ä ö & LED PAR...
  • Page 25 Connections and operating elements 1 Front panel 2 Infrared sensor for the remote control signals 3 Bottom side with inputs (DMX and power supply). 4 Locking screws for the mounting brackets 5 Rubber feet for floor placement 6 Lateral controls 7 Top side and outputs (DMX and power supply for other devices) 8 Mounting brackets for floor placement or hanging Quad Par Profile 5x8W RGBW 5x8W RGB WW...
  • Page 26 Connections and operating elements Top side DMX Out Power Out LED PAR...
  • Page 27 Connections and operating elements 16 [DMX Out] DMX output 17 Openings for safety cable 18 [POWER Out] IEC chassis socket for the power supply cable to the next unit. Quad Par Profile 5x8W RGBW 5x8W RGB WW...
  • Page 28 Connections and operating elements Bottom Power In DMX In LED PAR...
  • Page 29 Connections and operating elements 9 [POWER In] IEC chassis plug for power supply with fuse holder 10 [DMX In] DMX input Quad Par Profile 5x8W RGBW 5x8W RGB WW...
  • Page 30 Connections and operating elements Operating elements at the side. Mode Setup Down LED PAR...
  • Page 31 Connections and operating elements 11 Display 12 [Down] Navigates downwards in a menu list. Decreases the displayed value by one. 13 [Up] Navigates upwards in a menu list. Increases the displayed value by one. 14 [Setup] Selects an option of the respective operating mode. 15 [Mode] Activates the main menu and toggles between menu items.
  • Page 32 Connections and operating elements Infrared remote control (item no. 322277) Since the universal remote control can be used for several device types, some buttons may not be assigned and therefore have no function. & IR REMOTE ö BLACK AUTO SOUND SENSI- STROBE SPEED...
  • Page 33 Connections and operating elements 1 [BLACK OUT] Enables or disables blackout. 2 [AUTO] Activates the ‘Automatic‘ mode. 3 [SOUND] Activates the Sound-controlled mode. 4 [STROBE] Enables or disables the Strobe effect with the last selected colour 5 [SPEED] Enables the setting mode for the Strobe speed. Adjust the speed using [+] and [–]. 6 [SENSITIVITY] Enables the setting mode for the sound control.
  • Page 34 Connections and operating elements 8 [FADE / SNAP] No function 9 [MANUAL] Activates the display of a constant colour, that can either be mixed individually with [R], [G] and [B] from the basic colours, or selected directly with one of the coloured buttons. 10 [R], [G], [B] Sets the intensity of the three primary colours red, green and blue when a constant colour is displayed.

  • Page 35: Operation

    Operation Operation 7.1 Starting the device Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. 7.2 Operating controls on the device Press [Mode] to activate the main menu and select an operating mode.
  • Page 36 Operation Operating mode ‘Preprog‐ A preprogrammed automatic show can only be activated when the unit is operating in stand- rammed automatic show’ alone mode or as master in a master / slave combination. This setting takes effect only when the device is not operated under DMX control. Press [Mode] repeatedly until the display shows ‘Pr.xx’...
  • Page 37 Operation Operating mode ‘Automatic’ Automatic operation can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination. This setting takes effect only when the device is not operated under DMX control. Press [Mode] repeatedly until the display shows ‘AUTO’...
  • Page 38 Operation DMX mode This setting is only relevant if the device is being controlled via DMX. Press [Mode] until the display shows ‘d.xxx’ . Now you can set the number of the first DMX channel used by the device (DMX address). Use [Up] and [Down] to select a value between 1 and 512 (display shows ‘d.001’...
  • Page 39 Operation Operating mode ‘Slave’ This setting is only relevant if the device is serving as Slave in a Master / Slave configuration and is not controlled via DMX. Press [Mode] until the display shows ‘SLAv’ . Sound control The sound controlled automatic show can only be activated when the unit is operating in stand alone mode or as master in a master / slave combination.
  • Page 40 Operation Constant colour A constant colour can only be activated when the unit is operating in stand-alone mode or as master in a master / slave combination. This setting takes effect only when the device is not operated under DMX control. Press [Mode] until the display shows ‘Colr’...

  • Page 41: Menu Overview

    Operation 7.3 Menu overview d001 AUT0 Pr01 SLAu Soud CoLr 1__r FS00 d512 4-ch SU00 r000 2_r9 FS99 6-ch SU31 r255 8-ch 3_r9 9000 13on 9255 00FF b000 SP01 FS00 Pr02 b255 Pr10 SP99 FS99 u000 SPFL u255 Quad Par Profile 5x8W RGBW 5x8W RGB WW...

  • Page 42: Remote Control

    Operation 7.4 Remote control Operating mode ‘Preprog‐ A preprogrammed automatic show can only be activated when the unit is operating alone or rammed automatic show’ as master in a master-slave combination. This setting is only relevant if the device is not con‐ trolled via DMX.
  • Page 43 Operation Sound control The sound-controlled automatic show can only be activated when the unit is operating alone or as master in a master-slave combination. This setting is only relevant if the device is not con‐ trolled via DMX. Press [SOUND]. The display shows ‘SUxx’ , the sound-controlled automatic show is activated. Use [%], [+] and [–] to set the sensitivity for the sound control in a range between ‘SV.00’...
  • Page 44 Operation Constant colour A constant colour can only be activated when the unit is operating alone or as master in a master-slave combination. This setting is only relevant if the device is not controlled via DMX. Press [MANUAL]. Now you can either call up a predefined colour directly with one of the col‐ oured buttons, or mix a colour individually from the basic colours.

  • Page 45: Functions In 4-Channel Dmx Mode

    Operation Blackout Press [BLACKOUT] to switch the LEDs off or on again. Then the unit continues to operate in the last selected operating mode. The Blackout function is only available when the unit is not controlled via DMX. 7.5 Functions in 4-channel DMX mode Channel Value Function...

  • Page 46: Functions In 6-Channel Dmx Mode

    Operation 7.6 Functions in 6-channel DMX mode Channel Value Function 0…255 Intensity Red (0 % to 100 %) 0…255 Intensity Green (0 % to 100 %) 0…255 Intensity Blue (0 % to 100 %) 0…255 Intensity White / Warm White (0 % to 100 %) 0…255 Dimmer (0 % to 100 %) 0…255...

  • Page 47: Functions In 8-Channel Dmx Mode

    Operation 7.7 Functions in 8-channel DMX mode (Stairville Quad Par Profile 5x8W RGBW, item no. 307515) Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Intensity Red (0 % to 100 %), if channel 6 = 0 0…255 Intensity Green (0 % to 100 %), if channel 6 = 0 0…255...
  • Page 48 Operation Channel Value Function 75…99 Preprogrammed automatic show no. 4 100…124 Preprogrammed automatic show no. 5 125…149 Preprogrammed automatic show no. 6 150…174 Preprogrammed automatic show no. 7 175…199 Preprogrammed automatic show no. 8 200…224 Preprogrammed automatic show no. 9 225…249 Preprogrammed automatic show no.
  • Page 49 Operation Channel Value Function 76…93 Light green 94…113 Light blue 114…132 Blue 133…151 Purple 152…170 Pink 171…189 White 190…208 209…227 Green 228…246 Blue 247…255 Red + Green + Blue + White Process speed, if channel 6 = 25…255: Quad Par Profile 5x8W RGBW 5x8W RGB WW...

  • Page 50: Functions In 8-Channel Dmx Mode

    Operation Channel Value Function 0…255 Increasing speed 0…255 Strobe effect, increasing speed 7.8 Functions in 8-channel DMX mode (Stairville Quad Par Profile 5x8W RGBW, item no. 405343) Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Intensity Red (0 % to 100 %), if channel 6 = 0 0…255...
  • Page 51 Operation Channel Value Function Manual mode, all colours can be adjusted via channels 2 to 5 1…24 Constant colour, depending on channel 7 25…49 Preprogrammed automatic show no. 2 50…74 Preprogrammed automatic show no. 3 75…99 Preprogrammed automatic show no. 4 100…124 Preprogrammed automatic show no.
  • Page 52 Operation Channel Value Function 0…17 Dark 18…35 Red + green + blue 36…53 54…71 Red + green 72…89 Red + green 90…107 Green 108…125 Green + blue 126…143 Blue 144…161 Red + blue 162…179 Red + blue 180…197 Warm white 198…215 Red + warm white 216…233...
  • Page 53 Operation Channel Value Function 234…251 Blue + white 252…255 Red + green + blue + warm white Process speed, if channel 6 = 25…255: 0…255 Increasing speed 0…255 Strobe effect, increasing speed Quad Par Profile 5x8W RGBW 5x8W RGB WW...

  • Page 54: Technical Specifications

    Technical specifications Technical specifications Stairville Quad Par Profile Stairville Quad Par Profile 5x8W RGBW 5x8W RGBW Item no. 307515 Item no. 414496 Light source 5 × 4in1 LED (RGBW), 8 W each Light source properties Light output approx. 9000 Lux @ 1 m approx.
  • Page 55 Technical specifications Stairville Quad Par Profile Stairville Quad Par Profile 5x8W RGBW 5x8W RGBW Item no. 307515 Item no. 414496 DMX control XLR chassis socket, 3-pin Power consumption 32 W Supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 1 A, 250 V, slow-blow...
  • Page 56 Technical specifications Stairville Quad Par Profile Stairville Quad Par Profile 5x8W RGB WW 5x8W RGB WW Item no. 405343 Item no. 414497 Light source 4 × 4in1 LED (RGB WW), 8 W each Light source properties Light output approx. 9000 Lux @ 1 m approx.
  • Page 57 Technical specifications Stairville Quad Par Profile Stairville Quad Par Profile 5x8W RGB WW 5x8W RGB WW Item no. 405343 Item no. 414497 Supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 1 A, 250 V, slow-blow...
  • Page 58 Technical specifications Further information Stairville Quad Par Stairville Quad Par Stairville Quad Par Stairville Quad Par Profile 5x8W RGBW Profile 5x8W RGBW Profile 5x8W RGB WW Profile 5x8W RGB WW Item no. 307515 Item no. 414496 Item no. 405343 Item no. 414497 Construction Flat PAR Flat PAR...

  • Page 59: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 60: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation.
  • Page 61 Troubleshooting Symptom Remedy The unit does not work, no light. Check the mains connection and the main fuse. No response to the DMX con‐ 1. If the unit is in DMX mode and a DMX controller is troller. connected and turned on, the ‘d’ flashes in the first posi‐ tion of the display.
  • Page 62 Troubleshooting If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED PAR...

  • Page 63: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 64: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 65 Protecting the environment Disposal of your old device This product is subject to the European Waste Electrical and Electronic Equipment Directive (WEEE) in its currently valid version. Do not dispose with your normal household waste. Dispose of this device through an approved waste disposal firm or through your local waste facility.
  • Page 66 Notes LED PAR...
  • Page 68 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
