- Page 1 Travel Pack 8 PA System...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 08.02.2024, ID: 574446...
-
Page 3: Table Of Contents
Table of contents Table of contents General information......................4 1.1 Symbols and signal words................... 4 Safety instructions......................... 5 Features............................6 Installation..........................7 Connections and controls....................9 Technical specifications....................13 Plug and connection assignment................. 15 Protecting the environment................... 17 Travel Pack 8 PA System... -
Page 4: General Information
Our products and documentation are subject to a process of continuous develop‐ ment. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. -
Page 5: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for amplification, mixing and playback of signals from musical instruments and microphones. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. -
Page 6: Features

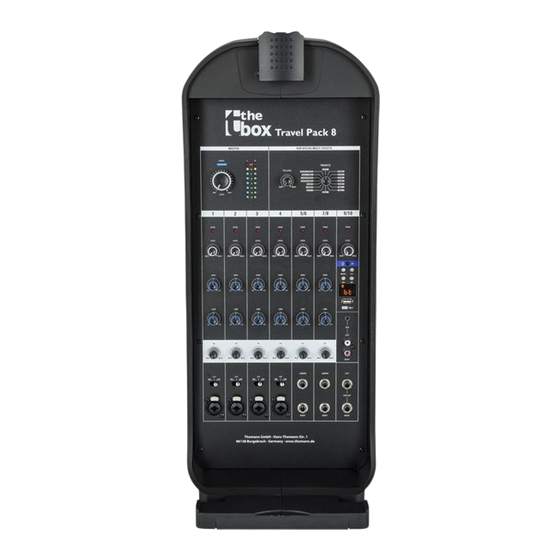

Features Features 2 × passive 12-inch speakers 1 × connected, detachable powermixer 1 × built-in storage compartment for speaker and power cables and the infrared remote control The speakers and the powermixer can be assembled for transport 10-channel power mixer with 600 W RMS Built-in media player for MP3 files from a USB flash drive Bluetooth®... -
Page 7: Installation
Installation Installation NOTICE! Possible property damage to adjacent devices due to magnetic fields. Speakers generate a static magnetic field. This magnetic field can affect other neighbouring units and in unfavourable cases damage them. Ensure that speakers are always a sufficient distance away from sensitive equipment that may be affected by an external magnetic field. - Page 8 Installation Connection options Travel Pack 8 HIGH HIGH HIGH HIGH HIGH HIGH Travel Pack 8 Travel Pack 8 PA System...
-
Page 9: Connections And Controls
Connections and controls Connections and controls Front Travel Pack 8 & ö HIGH HIGH HIGH HIGH HIGH HIGH Thomann GmbH · Hans-Thomann-Str. 1 96138 Burgebrach · Germany · www.thomann.de Travel Pack 8 PA System... - Page 10 Connections and controls 1 [LEVEL] | Rotary control for adjusting the overall volume of the device (sum of all input signals) 2 [POWER] | Status LED. This LED lights when the device is on. 3 [LIMIT] | Status LED. The LEDs flash red if the signals of the output level are overloaded. Decrease the volume in case of overload.
- Page 11 Connections and controls Back Travel Pack 8 21 [220-240V~50/60Hz] | Rubber panel plug for the power supply of the device 22 [FUSE] | Fuse holder 23 [POWER] | Main switch. Turns the device on and off. 24 [SPEAKER OUTPUTS] | Signal output for connecting the included passive speakers, designed as 6.35-mm jack sockets Travel Pack 8 PA System...
- Page 12 Connections and controls Remote control for the media player | Button for starting/pausing playback PLAY/PAUSE CHANNEL 26 [CH-]/[CH+] | No function < VOL- VOL+ 27 [–]/[+] | Button for increasing or reducing the volume | Button for selecting the previous or next piece PREV NEXT 29 [MODE] | Button for selecting the signal source (Bluetooth®, USB, AUX).
-
Page 13: Technical Specifications
Technical specifications Technical specifications Powermixer Input connections Power supply 1 × rubber panel plug C14 Microphone/line input 4 × XLR/jack combo socket, balanced Line input 4 × 6.35-mm jack socket, balanced 2 × cinch socket, unbalanced AUX input 1 × 3.5 mm jack socket USB 3.0 Output connections Monitor output... - Page 14 Technical specifications Ambient conditions Temperature range 0 °C - 40 °C Relative humidity 20%…80% (non-condensing) Speakers Configuration 1 × 12-inch woofer 1 × 8-inch mid-range speaker 1 × 1-inch compression driver Input connections 1 × 6.35-mm jack socket Frequency range 50 Hz …...
-
Page 15: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 16 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding Travel Pack 8 PA System...
-
Page 17: Protecting The Environment
Repairing a device or passing it on to another user is an ecologically valuable alternative to disposal. You can return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de. If your old device contains personal data, delete those data before disposing of it. - Page 18 Notes Travel Pack 8 PA System...
