Bearing plate
Bearing house nuts

Fit the motor

Fit the motor to the motor plate using the 3 small machine screws supplied. These screws should be "just" tight to keep
motor noise to a minimum. The motor fits on the underside of the motor plate – see "diagram of sub-chassis assembly".
The motor plate is adjustable to enable optimum belt tension to be achieved – The belt tension is set by rotating the
whole motor assembly on it's pivot point. The motor is held in position by the friction of the pivot assembly. If for any
reason this becomes slack you may need to tighten up the pivot bolt. Ideally the centre of the pulley should be
approximately 124 mm from the centre of the bearing house. Generally the optimum position is such that marker bolt in
the "slot" is located at approx the mid point of the slot and this provides a useful reference point. Install Sub-chassis &
Fit springs

Fit the Sub-Chassis

Offer up the sub-chassis assembly into the plinth and fit the springs as shown in the " diagram of support rods and
spring arrangement". Each particular spring is of a different compliance and should be in the positions shown in the

"diagram showing spring positions

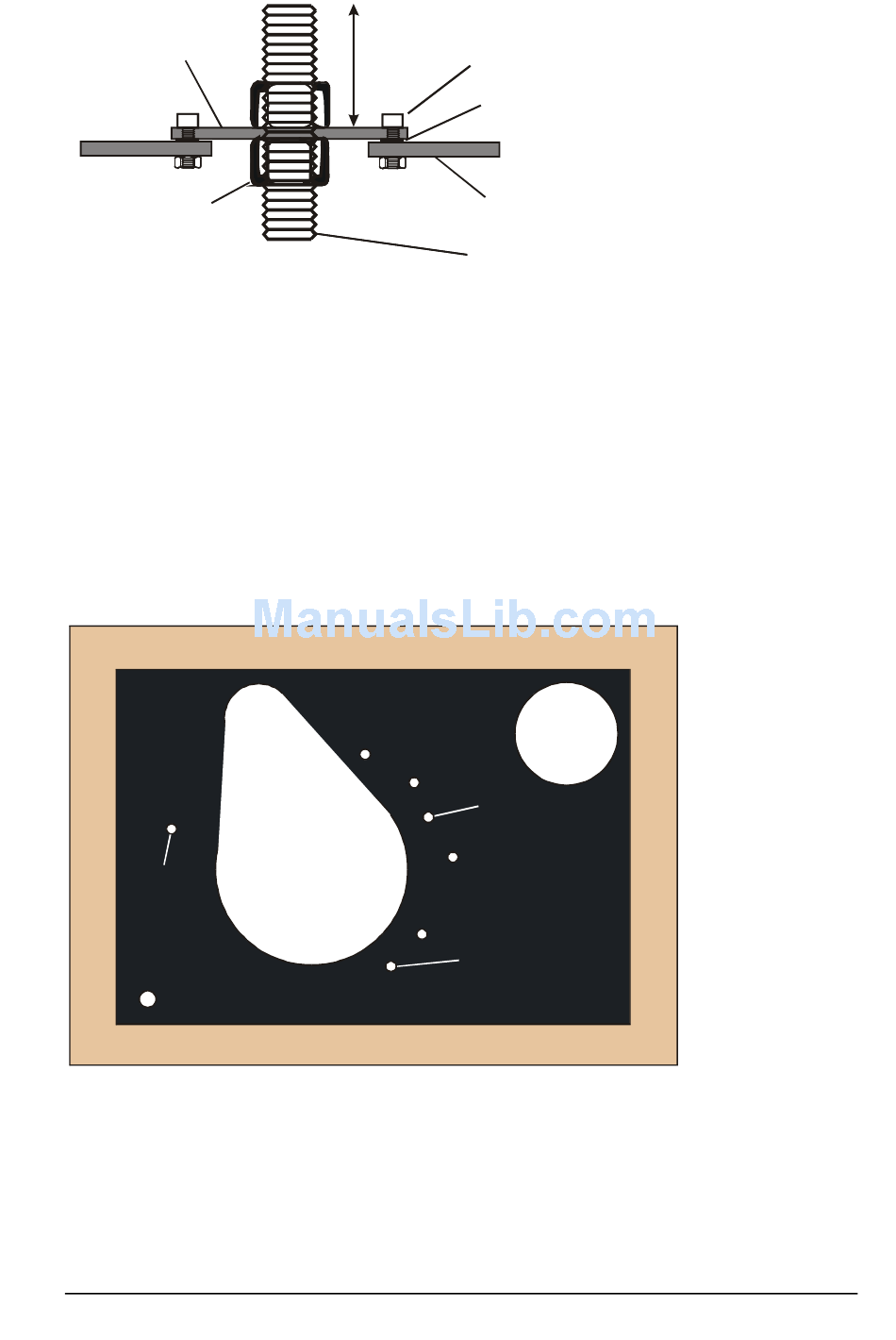

Diagram showing spring positions
MEDIUM
SPRING
POSITION

Dress the motor wires

Screw one of the cable clips onto the inner side wall of the left hand side of the plinth (see "top view of wiring layout and
connections") such that it holds the input and motor wires (brown, blue, red & black) away from the sub-chassis and any
danger of restricting it's movement. For full details on the motor and power supply set up read the relevant section
contained later in this manual.

Install the arm

It is necessary to fit the tonearm to the deck, before final "levelling" of the sub-chassis so that the weight distribution is
correct. At this stage the arm simply needs to be in position – it does not need to be adjusted for height or have the
Allen bolt
17 mm
Spacing washer
Sub-chassis plate
Bearing House Bearing House
THICK
SPRING
POSITION
THIN
SPRING
POSITION
9
