Dwyer Instruments DDM-01 Installation And Operating Instructions

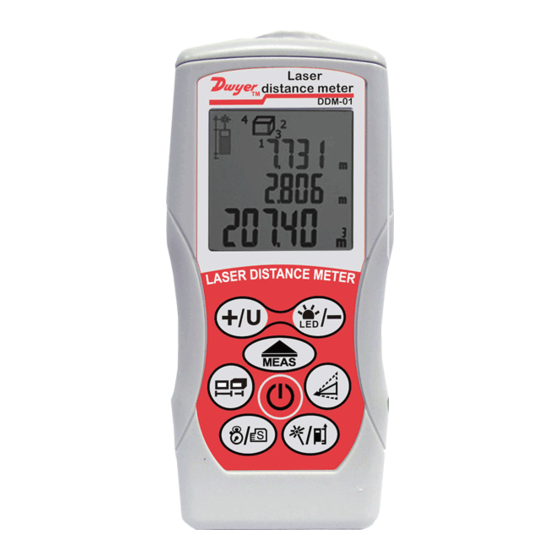

The Model DDM-01 Laser Distance Meter offers quick measurement of
distances up to 229.7 feet (70 meters) with the click of a button. It is also
able to easily make area and space calculations and volume measure-
ments from what it records. Another feature of the Model DDM-01 is that
it is able to use the Pythagorean Theorem to indirectly calculate the height
of an object. The meter can read out in feet, inches, or meters and in-
cludes a backlight for use in dark areas.

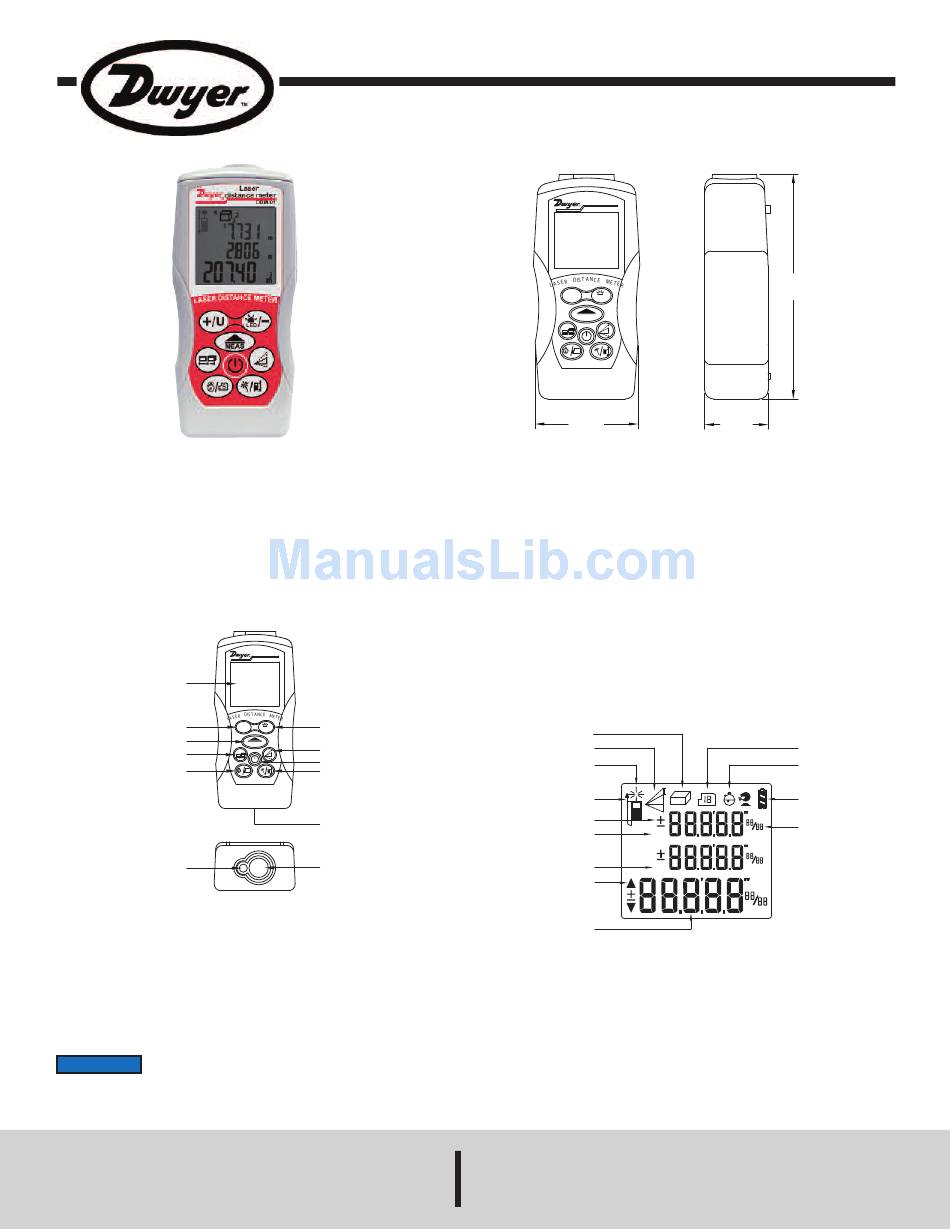

PRODUCT OVERVIEW
A
B
C
D
E
K
A. LCD
B. Add/Unit Switch
C. Measure/Continuous Measure
D. Measuring Function
(Area, Dimension, Stake Out)
E. Timer/Memory
F. Subtract/Backlight
NOTICE If there are two settings separated by a "/" for one button, the set-
ting that is listed before the slash will be activated when the but-
ton is pressed once. If it is listed after the slash, then it will be activated when the but-
ton is pressed and held.
DWYER INSTRUMENTS, INC.
P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.
Model DDM-01 Laser Distance Meter
Specifications - Installation and Operating Instructions
Laser
distance meter
DDM-01
F
+/U
/-
LED
MEAS
G
H
I
S
J
L
Figure 1
G. Pythagorean I, II, & III
H. Power Button/Clear
I. Reference Switch/Laser Pointer
J. Battery Cover
K. Laser Emitting Window
L. Receiving Window
Laser
distance meter
DDM-01
+/U
/-
LED
MEAS
S
2
[51.75]
SPECIFICATIONS
Range: 0.16 to 229.7 feet (0.05 to 70 m).
Accuracy: ±0.005 feet (±1.5 mm).
Display: Three line LCD (top two with 4 digits/bottom with 5 digits).
Resolution: 0.001 feet (0.001 m).
Response Time: 0.5 s.
Laser Type: 650 nm, class 2, <1 mW.
Beam Size: 25 mm at 30 m.
Temperature Limits:
Operating: 23 to 104°F (-5 to 40°C);
Storage: -4 to 140°F (-20 to 60°C).
Power Requirements: (2) 1.5 V AA carbon zinc batteries, included,
user replaceable.
Weight: 21.6 oz (612.35 g).
Agency Approvals: CE, RoHS.
1
2
3
4
5
6
7
8
9
1. Measuring Function Area
Measuring Volume Measuring
2. Indirect Measuring Single Height
Sum of Two Heights
Difference of Two Heights
3. Laser Indicator
4. Measuring Reference
5. Add and Subtract
6. Maximum Distance
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin TE-DDM-01
4-5/8
[116.69]
1-1/4
[31.88]
10
11
12
13
max ftinm
min ftinm
ftinm
Figure 2
7. Minimum Distance
8. Stakes Direction Indicator
9. Main Display & Units
10. Memory
11. Countdown Measuring
12. Battery Status
13. Sub-Display & Units
