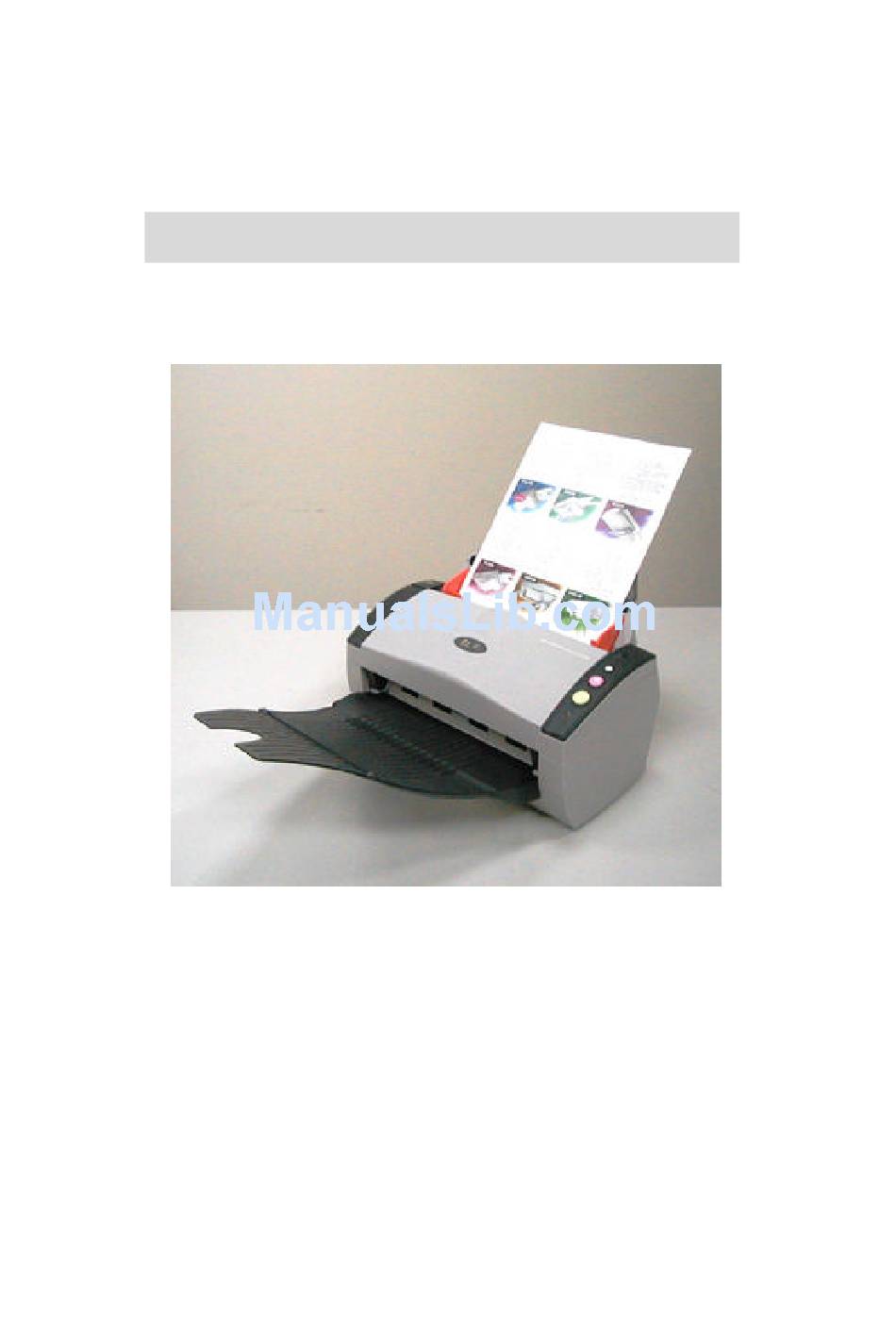

  • Page 1 AV220 User's Manual Avision Inc.
  • Page 2 Warranty The information contained in this document is subject to change without notice. Avision makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of fitness for a particular purpose. Avision shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
  • Page 3 AV220 User’s Manual FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4 EC Declaration of Conformity According to EN45014 Manufacturer's Name: AVISION INC. Manufacturer's Address: No. 20, Creation Road I, Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. declare that the product Model Number : AV220 conforms to the following Product Specifications: Emission: EN 50081-1 (1992)

  • Page 5: System Requirements

    AV220 User’s Manual System Requirements Windows IBM compatible PC Pentium III 600 or higher Ø Microsoft Windows 98 / 98SE / Me / 2000 / XP Ø USB port (Hi-Speed with USB 2.0 card only) (Compatible with Ø USB 1.1) At least 100 MB of free hard disk space Ø...

  • Page 6: Table Of Contents

    Table of Contents Introduction ............1-1 Scanner Installation ..........2-1 Installing the ADF Paper Tray......2-2 Installing the ADF Output Paper Tray.....2-3 Connecting the Cables ........2-4 2.3.1 Connecting to Power ...........2-4 2.3.2 Turning on the Power..........2-4 Install the Software.........2-5 Connecting to Computer ........2-5 Completing Your First Scan........
  • Page 7 AV220 User’s Manual Using the Advanced Features ......4-11 4.2.1 The Switch button............4-11 4.2.2 djusting Highlight/Shadow Levels .......4-12 4.2.3 djusting the Brightness Curve.......4-15 4.2.4 hanging Color Hue/Saturation/Lightness..4-16 4.2.5 sing Color Balance............4-17 4.2.6 olor Drop-out ..............4-18 Using other Tools .......... 4-19 Maintenance............

  • Page 8: Introduction

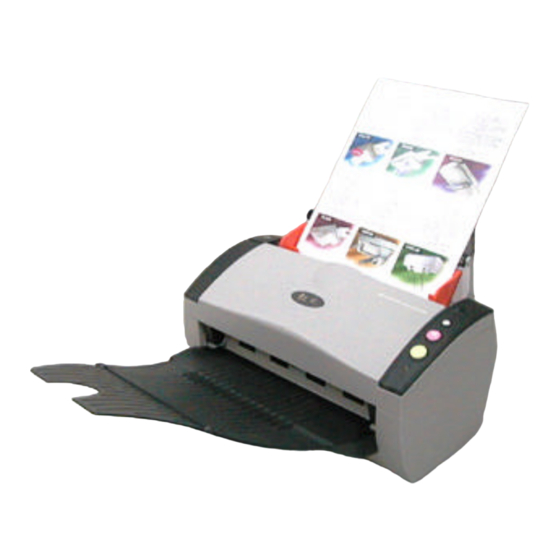

    AV220 User’s Manual 1. Introduction Congratulations on your purchase of the AV220 color sheet-fed image scanner. Avision is one of the leading companies in the world to develop high performance sheet-fed scanners. With this scanner, you can quickly scan two-sided paper documents to effectively increase your productivity.
  • Page 9 AV220 Main Unit ADF Paper Tray Flatbed Paper Tray USB Cable Power Adapter Power Cord Note: Only use the AC adapter (SA60-24 made by Sino-America) included in the machine. Using other AC adapters may damage the machine and void the warranty.

  • Page 10: Scanner Installation

    AV220 User’s Manual 2. Scanner Installation Precautions Keep the scanner out of direct sunlight. Direct exposure to the ¡ sun or excessive heat may cause damage to the unit. Do not install the scanner in a humid or dusty place.

  • Page 11: Installing The Adf Paper Tray

    2.1 Installing the ADF Paper Tray Attach the ADF Paper Tray to the clip joint of the scanner as indicated below. When properly insert, you will hear a snap-in sound. ADF Paper Tray Scanner Clip Joint...

  • Page 12: Installing The Adf Output Paper Tray

    AV220 User’s Manual 2.2 Installing the ADF Output Paper Tray 1. Hold the Output paper tray some 30 degrees as shown in below. 2. Insert the right protrusion of the Output Paper Tray into the hole on the front of the scanner.

  • Page 13: Connecting The Cables

    2.3 Connecting the Cables Make sure the power of scanner is off. 2.3.1 Connecting to Power Plug the small end of the power adaptor into the power jack of your scanner. Insert the other end to an appropriate power outlet. Power Cable 2.3.2 Turning on the Power...

  • Page 14: Install The Software

    AV220 User’s Manual 2.4 Install the Software NOTE: The Windows system CD may be requi red when installing on some PC’s. To ensure your computer can identify the USB scanner, please install scanner driver first before connecting the scanner to your computer.
  • Page 15 2. The computer should detect a new USB device and prompt a “New Hardware Found” message. (Windows 9X/Windows ME) (Windows 2000/XP) In Windows 9X or Windows ME, confirm that the “Search for a better driver.” is selected and click the “Next” button. In Windows XP, click the Next button to continue.
  • Page 16 AV220 User’s Manual When the Finish dialog is prompted, click the Finish button. (Windows 9X/Windows ME) (Windows 2000/XP) Click “Install Application” to install the applications including Roxio PhotoSuite 4 SE (the image editing and retouching application), ScanSoft TextBridge Pro 9.0 (The OCR software application), and AVCapture (The multi-page document scanning program).

  • Page 17: Completing Your First Scan

    AV220 User’s Manual Completing Your First Scan Loading Your Paper 3.1.1 Notice on Using the ADF Before using the ADF, please make sure that your paper meets the following specifications: • Document(s) can range in size from 3.5 by 2 inches to 8.5 by 14 inches (Legal).

  • Page 18: Placing Your Document In The Adf Paper Tray

    3.1.2 Placing Your Document in the ADF Paper Tray Fanning Your Document Standard paper size should feed easily through the scanner. To avoid occasional paper jam when automatically feeding multiple documents, loosen the paper before loading. Document feeding Place your document with the text face down on the ADF Paper Tray. Align the two sides of the document with the slide guides.

  • Page 19: Scanning With Image Editing Software

    Start a TWAIN compliant software application such as Roxio PhotoSuite 4 SE which is bundled in the CD. Click Get>Scanner (TWAIN). Choose AV220 as your scanning source. (You only need to do this once.) Place the document FACE DOWN on the document glass.
  • Page 20 Click Exit to return to the main screen and click Open Library and Photos at the upper-right corner to open your scanned image. Preview Zoom View Scan Exit Photos...

  • Page 21: A Glance Of The User Interface

    AV220 User’s Manual 3.2.1 A Glance of the user interface 1. Original Source Choice: ADF/Multipage 2. Image Type Choice: Black & White, Halftone, 8-bit Gray, 8-bit Color, 24-bit Color. 3. RESOLUTION Choice: 50, 72, 100, 144, 150, 200, 300, 600, 1200, 2400 (dpi).

  • Page 22: Editing Your Image

    AV220 User’s Manual Editing Your Image Using the Basic Features 4.1.1 Choosing Your Scan Method 1. Scan Method Choice: ADF/Multipage: Select this setting if you need to scan multi-page document from the automatic document feeder (ADF).

  • Page 23: Selecting A Proper Image Type

    4.1.2 Selecting a Proper Image Type 1. Image Type Please see following table for a choice of an ideal image type. Black & White Choose B&W if your original contains only B&W text, pencil or ink sketch. Halftone Halftones are reproduction of image that gives the illusion gray.
  • Page 24 AV220 User’s Manual Black & White Halftone Gray 8-bit Color 24- bit Color...

  • Page 25: Determining A Proper Resolution

    4.1.3 Determining a Proper Resolution 1. Resolution A proper resolution reproduces a clear image with good details. The resolution is measured by dots per inch (dpi). Resolution: 50 dpi Resolution: 100 dpi Note For your information, an A4 size color image scanned at 300 dpi at True Color mode consumes approximately 25 MB of disk space.

  • Page 26: Adjusting The Brightness And Contrast

    AV220 User’s Manual 4.1.4 Adjusting the Brightness and Contrast Brightness Adjusts the lightness or darkness of an image. The higher the value, the brighter the image. Contrast Adjusts the range between the darkest and the lightest shades in the image. The higher the contrast, the bigger the different grayscale.

  • Page 27: Enlarging Previewed Image

    4.1.5 Enlarging Previewed Image 1. Zoom View Enlarge your previewed image to the max. of the preview window. Note this function only enlarging your preview image. This does not enlarge your real image. Before Zoom After Zoom...

  • Page 28: Inverting And Selecting Your Image

    AV220 User’s Manual 4.1.6 Inverting and Selecting Your Image 1. Invert The invert command reverses the brightness and the color in the image. For color images, each pixel will be changed into its complementary color at the command of Invert.
  • Page 29 MIRROR FUNCTION Reverse the right and left side of your image. Before Mirror After Mirror Auto Select Image Automatically set the whole image as your scan area. (Or you may resize the area by “drag and drop” diagonally.)

  • Page 30: Enhancing Your Image

    AV220 User’s Manual 4.1.7 Enhancing Your Image 1. Descreen Eliminates the moire patterns* commonly found in printed matter. 2. Sharpen Sharpen the scanned image. 2 3 4 Before Descreen After Descreen Before Sharpen After Sharpen *Moire pattern: An undesirable pattern in a color printing resulting...

  • Page 31: Color Adjustment

    Color Adjustment Adjusts the color quality of the image so that it comes close to the original. This function uses default parameters to adjust the image. After Color Matching Normal Auto Level Automatically adjusts the highlight and shadow areas of the scanned image to optimize your image.

  • Page 32: Using The Advanced Features

    AV220 User’s Manual Using the Advanced Features 4.2.1 The Switch button 1. Click the button to pop up the advanced settings bar at the right side. The advanced settings include Highlight/Shadow, Hue/Saturation/Lightness , Curve, Color Balance, Color Drop-out. 2. The Advanced Settings bar...

  • Page 33: Djusting Highlight/Shadow Levels

    4.2.2 Adjusting Highlight/Shadow Levels Highlight refers the lightest point in a scanned image while shadow refers the darkest point. Using Highlight and Shadow tool together allows you to extend the range of color and reveal more details in a gray or color image. 1.
  • Page 34 AV220 User’s Manual When the value of gamma changes, the image changes accordingly. Gamma Value: 1.0 Gamma Value: 1.4 Gamma Value: 2.0 4-13...
  • Page 35 When the value of highlight and shadow change, the image changes accordingly. Highlight: 255/Shadow: 0(Normal) Highlight: 210/Shadow:10 Highlight: 200/Shadow:0 Highlight: 255/Shadow: 50 4-14...

  • Page 36: Djusting The Brightness Curve

    AV220 User’s Manual 4.2.3 Adjusting the Brightness Curve Adjusts the midtones of the image without dramatically altering then lightest and the darkest areas. When the curve is moved up or down, the image turn brighter or darker. 4-15...

  • Page 37: Hanging Color Hue/Saturation/Lightness

    4.2.4 Changing Color Hue/Saturation/Lightness Improve your image by changing the level of hue/saturation/lightness. (1). Hue Adjust the hue by moving the triangle to the right or left. (Note the level of intensity for the color will be changed simultaneously when the hue adjustment is made).

  • Page 38: Sing Color Balance

    AV220 User’s Manual 4.2.5 Using Color Balance The Color Balance allows you to obtain an optimal image quality. Move the pointer toward Red, the image turns into a reddish hue. Move the pointer toward Green, the image turns into a greenish hue.

  • Page 39: Olor Drop-Out

    4.2.6 Color Drop-out Click the button and a dialog box in below will be displayed. This dialog allows you to remove one of the R (Red), G (Green), or B (Blue) color channel. This function is particularly useful when you need to convert text using OCR software.

  • Page 40: Using Other Tools

    AV220 User’s Manual Using other Tools 1. Measuring Unit A reminder of the measuring system in use. By clicking the button, you can change the measuring unit. Choice: Inch, cm, Pixel. 2. Paper Size Provide frequently scan sizes. Choice: Card 4”x2.5”, Photo 5”x3”, Photo 6”x4”, B5, A5, A4, Letter, and Scanner...

  • Page 41: Maintenance

    AV220 User’s Manual 5. Maintenance Cleaning the ADF From time to time the pad assembly and feeding rollers may become contaminated with ink, toner particles or paper dust. In this case the scanner may not feed documents smoothly. If this occurs please follow the cleaning procedures to return your machine to its original state.

  • Page 42: Cleaning The Calibration Area

    5.2 Cleaning the Calibration Area As shown below, clean the calibration area (white glass) with an air- blower or a small brush to rid the board of dust or dirt. Please handle with care and dexterity. Calibration Area ADF Front Door...

  • Page 43: Replacing The Snap-In Pad Module

    AV220 User’s Manual Replacing the Snap-in Pad Module After scanning approximately 20,000 pages through the ADF, the pad may be worn out and you may experience problems with document feeding. In this case, it is highly recommended to replace the pad module with a new one.

  • Page 44: Troubleshooting

    AV220 User/s Manual 6. Troubleshooting 6.1 Clearing a Paper Jam In the event of a paper jam, follow the procedures below to remove the paper: Press the ADF Release Button on the left side. Gently open the Scanner Front Door to the left.
  • Page 45 Original Document...

  • Page 46: Questions And Answers

    AV220 User’s Manual 6.2 Questions and Answers Question: Paper becomes jammed during scanning. Answer: 1) Open the scanner front door. 2) Pull out the jammed paper carefully. 3) Close the scanner front door. Question: More than one sheet of paper are fed into the scanner.
  • Page 47 Question: Sometimes it seems the scanner does not detect paper? Answer: The AV220 scanner paper sensor is located at the center of the paper guide. Please place the document you need to scan on the paper guide and use the slide guides to...

  • Page 48: Technical Service

    AV220 User’s Manual 6.3 Technical Service Before contact Avision, please prepare the following information: ¡ Scanner serial & revision number (located on the bottom of the scanner); ¡ Hardware configuration (e.g., your host CPU type, RAM size, free disk space, display card, interface card);...

  • Page 49: Specifications

    AV220 User’s Manual 7. Specifications All specifications are subject to change without notice. Scanner Type: Desktop sheet-fed Optical Resolution: 600 dpi * 1200 dpi Scanning Modes: Black & White mode Halftone mode (64-step) Error Diffusion 16-bit gray scale 24-bit color...
