US-24-250W, US-24-500W Quick Start Guide

Package Contents

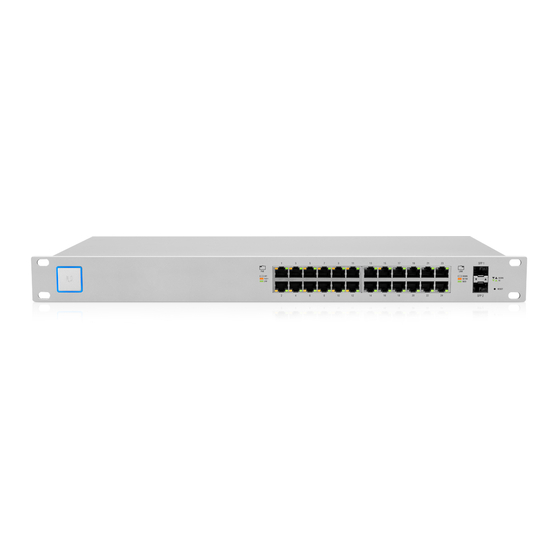

UniFi Switch
Cage Nuts (Qty. 4)

Installation Requirements

Phillips screwdriver
Standard-sized, 19" wide rack with a minimum of 1U height available
For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.
For outdoor applications, shielded Category 5 (or above) cabling should be used for all
wired Ethernet connections and should be grounded through the AC ground of the power
supply.
We recommend that you protect your networks from harmful outdoor environments and
destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For
more details, visit:
Note:
housed inside a protective enclosure.
IMPORTANT:
https://dl.ubnt.com/qsg/US-24-250W_US-24-500W/US-24-250W_US-24-500W_EN.html[3/2/2020 2:43:36 PM]
US-24-250W, US-24-500W Quick Start Guide
ui.com/toughcable
Although the cabling can be located outdoors, the UniFi Switch itself should be
We strongly recommend using UPS backup and power regulation to
Power Cord
Mounting Screws (Qty. 4)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UniFi US-24-250W and is the answer not in the manual?

Questions and answers

Summary of Contents for Ubiquiti UniFi US-24-250W

  • Page 1: Package Contents

    Ethernet connections and should be grounded through the AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable...
  • Page 2: Hardware Overview

    US-24-250W, US-24-500W Quick Start Guide prevent equipment damage due to stability issues with local AC power. System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Java Runtime Environment 1.6 (1.8 or newer recommended) Web Browser: Mozilla Firefox, Google Chrome, Microsoft Edge, or Microsoft Internet Explorer 11 UniFi Controller v5.4.x or higher Hardware Overview...
  • Page 3: Back Panel

    US-24-250W, US-24-500W Quick Start Guide SFP Speed/Link/Act LED (Ports 1 - 2) No Link Link Established at 1 Gbps Green Flashing Indicates Activity RJ45 (Ports 1 - 24) RJ45 ports support Power over Ethernet (PoE) and 10/100/1000 Ethernet connections. SFP (Ports 1 - 2) Hot-swappable SFP ports support 1 Gbps connections.
  • Page 4: Hardware Installation

    US-24-250W, US-24-500W Quick Start Guide Connect the included Power Cord to the Power port. Hardware Installation https://dl.ubnt.com/qsg/US-24-250W_US-24-500W/US-24-250W_US-24-500W_EN.html[3/2/2020 2:43:36 PM]...
  • Page 5 US-24-250W, US-24-500W Quick Start Guide https://dl.ubnt.com/qsg/US-24-250W_US-24-500W/US-24-250W_US-24-500W_EN.html[3/2/2020 2:43:36 PM]...
  • Page 6 US-24-250W, US-24-500W Quick Start Guide https://dl.ubnt.com/qsg/US-24-250W_US-24-500W/US-24-250W_US-24-500W_EN.html[3/2/2020 2:43:36 PM]...
  • Page 7: Connecting Ethernet

    US-24-250W, US-24-500W Quick Start Guide Connecting Ethernet https://dl.ubnt.com/qsg/US-24-250W_US-24-500W/US-24-250W_US-24-500W_EN.html[3/2/2020 2:43:36 PM]...
  • Page 8 US-24-250W, US-24-500W Quick Start Guide Using SFP Ports https://dl.ubnt.com/qsg/US-24-250W_US-24-500W/US-24-250W_US-24-500W_EN.html[3/2/2020 2:43:36 PM]...
  • Page 9 US-24-250W, US-24-500W Quick Start Guide For information about compatible fiber SFP modules, visit: community.ubnt.com/unifi https://dl.ubnt.com/qsg/US-24-250W_US-24-500W/US-24-250W_US-24-500W_EN.html[3/2/2020 2:43:36 PM]...
  • Page 10: Software Installation

    US-24-250W, US-24-500W Quick Start Guide Software Installation Download and install the latest version of the UniFi Controller software at ui.com/download/unifi and follow the on-screen instructions. Note: If you already have UniFi Controller v5.4.x or higher installed, go to the section, Adopting the UniFi Switch.
  • Page 11: Configuring Poe Settings

    US-24-250W, US-24-500W Quick Start Guide 2. Locate the UniFi Switch in the list of devices under the Model column. Click Adopt. 3. The System LED on the UniFi Switch will turn blue to confirm that it has been successfully adopted. To configure PoE settings, proceed to the section, Configuring PoE Settings.
  • Page 12 US-24-250W, US-24-500W Quick Start Guide 1. On the Devices screen, locate the UniFi Switch. Click the switch to access its settings. 2. Click the Ports tab. 3. Click Actions for the port you want to configure. https://dl.ubnt.com/qsg/US-24-250W_US-24-500W/US-24-250W_US-24-500W_EN.html[3/2/2020 2:43:36 PM]...
  • Page 13: Specifications

    US-24-250W, US-24-500W Quick Start Guide 4. Select the appropriate PoE setting: Off, 24V Passive, or PoE+. Then click Apply. For more information, refer to the User Guide on the website: ui.com/download/unifi Specifications US-24-250W/US-24-500W https://dl.ubnt.com/qsg/US-24-250W_US-24-500W/US-24-250W_US-24-500W_EN.html[3/2/2020 2:43:36 PM]...
  • Page 14: Safety Notices

    US-24-250W, US-24-500W Quick Start Guide Dimensions 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24") Weight US-24-250W 4.7 kg (10.4 lb) US-24-500W 4.8 kg (10.6 lb) Total Non-Blocking Line Rate 26 Gbps Max. Power Consumption US-24-250W 250W US-24-500W 500W Power Method 100-240VAC/50-60 Hz, Universal Input...
  • Page 15: Electrical Safety Information

    US-24-250W, US-24-500W Quick Start Guide WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
  • Page 16: Declaration Of Conformity

    US-24-250W, US-24-500W Quick Start Guide operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 17 US-24-250W, US-24-500W Quick Start Guide © 2020 Ubiquiti Inc. All rights reserved. https://dl.ubnt.com/qsg/US-24-250W_US-24-500W/US-24-250W_US-24-500W_EN.html[3/2/2020 2:43:36 PM]...
