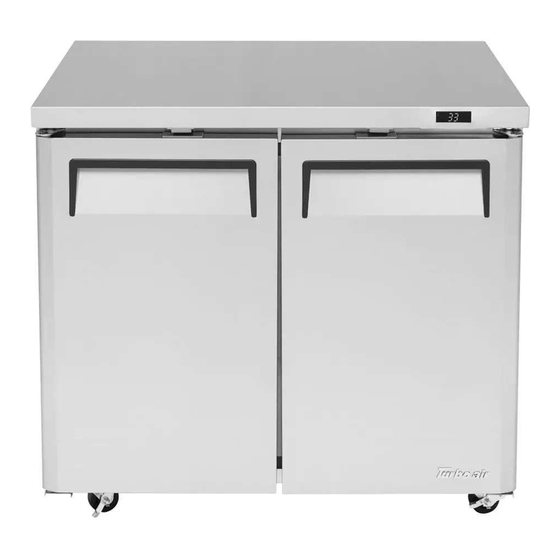

Turbo Air MUR-28L Service Manual

Undercounter refrigerator low boy
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

Turbo Air Speed up the Pace of Innovation
Undercounter Refrigerator
Low Boy
Service Manual
Please read this manual completely before attempting to install or operate this equipment!
Undercounter Refrigerator
MUR-28L
MUR-36L
www.turboairinc.com
CAUTION!
PLEASE KEEP POWER
SWITCH ON BEFORE
OPERATING THIS EQUIPMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MUR-28L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Turbo Air MUR-28L

Summary of Contents for Turbo Air MUR-28L

  • Page 1 CAUTION! PLEASE KEEP POWER SWITCH ON BEFORE OPERATING THIS EQUIPMENT Turbo Air Speed up the Pace of Innovation Undercounter Refrigerator Low Boy Service Manual Please read this manual completely before attempting to install or operate this equipment! Undercounter Refrigerator MUR-28L MUR-36L www.turboairinc.com...
  • Page 2 MUR-28L/MUR-36L 1-1. MUR-28L Explode View Part Cord Part Name Part Cord Part Name WM27800101 SHELF M725300201 SHELF STARDAND M279500200 CABINET ASSY S2853A0302 TOP HINGE R CONDENSER FAN IS 4420DWSG-1 ULB2000400 DOOR MOTOR HBL 27YE-1 COMPRESSOR S2853A0500 BOTTOM HINGE UR TAMPERATURE...
  • Page 3 1-2. MUR-36L Explode View Part Cord Part Name Part Cord Part Name WM35800100 SHELF ULB2800300 EVAP FAN DUCT M 369500200 CABINET ASSY M725300201 SHELF STARDAND CONDENSER FAN IS 4420 DWSG -1 M722900209 TOP HINGE L MOTOR HBL 27 YE -1 COMPRESSOR ULB3000200 DOOR...
  • Page 4 2. Wiring Diagram (MUR-28L/MUR-36L)

  • Page 5: Main Components

    3. MAIN COMPONENTS 3-1.COMPRESSOR TYPE MODEL PART NAME PART NO. INPUT REFRIGERANT HBL 27YE-1 115V,60Hz MUR-28L RSCR R-134a HBL 27YE-1 115V,60Hz MUR-36L RSCR R-134a 3-2.CONDENSER FAN MOTOR MODEL PART NAME PART NO. POLE INPUT TYPE BLADE MAKER SHADED MUR-28L 115V,60Hz...

  • Page 6: Service Part List

    4-1. Service Part List LOW BOY Remark Part Name Part Code Description MUR-28L MUR-36L COUNTER TOP ASSY WU36700100 COUNTER TOP ASSY U279500100 DOOR ASSY(L) ULB3000200 DOOR ASSY(R) ULB3000300 DOOR ASSY ULB2000400 DOOR GASKET ULB3A00300 DOOR GASKET ULB2A00500 DOOR BUSHING M729200100...

  • Page 7: Capillary Tube Spec

    4-2. Capillary Tube Spec Suction Pipe A Suction Pipe B Model Tube I.D Length F Tube I.D Length F MUR-28L 2.4X 1.2 541mm 2.4X 1.2 959 mm MUR-36L 2.4X 1.2 675mm 2.4X 1.2 1125 mm 4-3. The cycle pressure of model starting (refrigerant weight)
