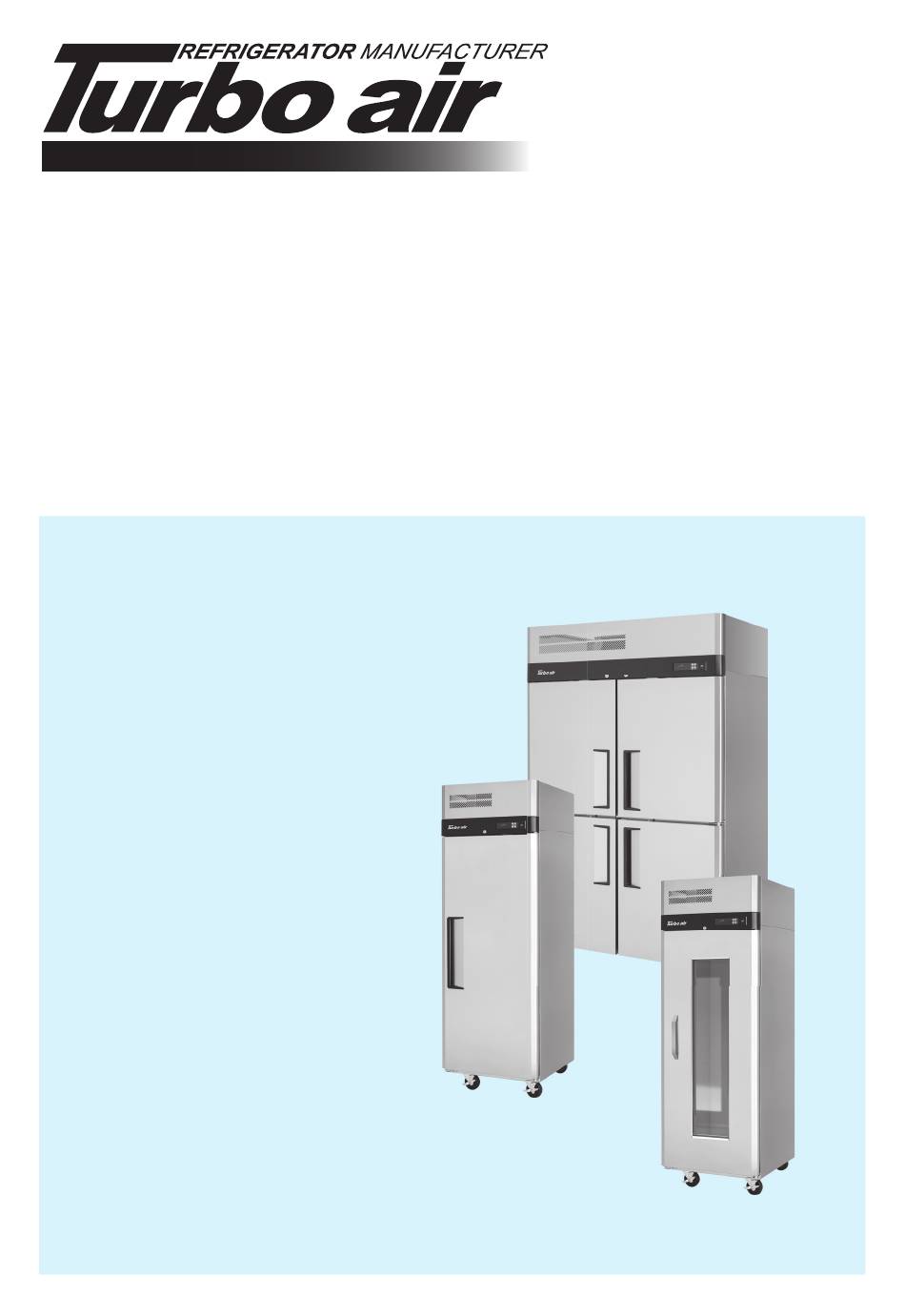

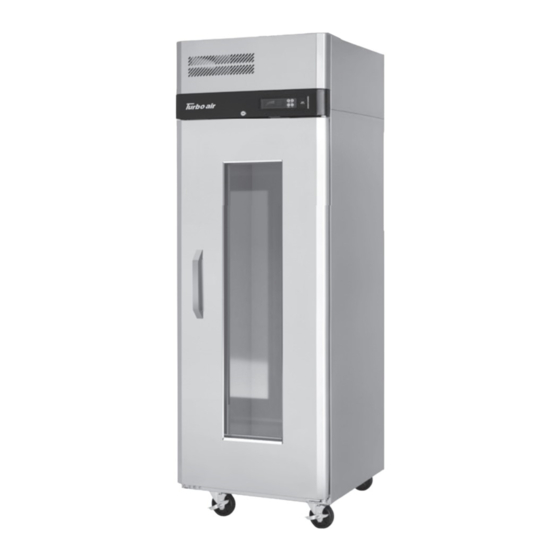

Turbo Air Speeds up the Pace of Innovation
M3 Series Reach-Ins
Refrigerators & Freezers
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment.
SOLID DOOR REFRIGERATORS
M3R19-1-N
M3R24-1-N
M3R24-2-N
M3R24-2-N-L
M3R47-2-N
M3R47-2-N-AL
M3R47-2-N-AR
SOLID DOOR FREEZERS
M3F19-1-N
M3F24-1-N
M3F24-2-N
M3F24-2-N-L
M3F47-2-N
M3F47-2-N-AL
SOLID DOOR DUAL
TEMPERATURE
M3RF19-2-N
M3RF19-2-N-L
M3RF45-2-N
GLASS DOOR REFRIGERATORS
M3R24-1-G-N
M3R24-1-G-N-L
M3R47-2-G-N
M3R47-4-N
M3R72-3-N
M3R72-3-N-AL
M3R72-3-N-AR
M3R72-6-N
M3F47-2-N-AR
M3F47-4-N
M3F72-3-N
M3F72-3-N-AL
M3F72-3-N-AR
M3F72-6-N
www.turboairinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M3R24-1-N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Turbo Air M3R24-1-N

Summary of Contents for Turbo Air M3R24-1-N

  • Page 1 Turbo Air Speeds up the Pace of Innovation M3 Series Reach-Ins Refrigerators & Freezers Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment. SOLID DOOR REFRIGERATORS M3R19-1-N M3R47-4-N M3R24-1-N M3R72-3-N M3R24-2-N M3R72-3-N-AL...

  • Page 2: Table Of Contents

    CONTENTS PAGE NOTICE FOR HYDROCARBON REFRIGERATION UNITS IMPORTANT SAFETY INFORMATION SPECIFICATIONS / SERIAL NUMBER NOTICE TO CUSTOMER / INSTALLATION CLEANING / CAUTION BASIC OPERATION 13 - 18 REVERSIBLE DOOR INSTRUCTIONS 19 - 21 TROUBLESHOOTING STAINLESS STEEL EQUIPMENT CARE & CLEANING 23 - 24 WARRANTY INFORMATION 25 - 26...

  • Page 3: Notice

    NOTICE • This equipment is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions concerning the use of this equipment and the hazards involved by a person responsible for their safety. •...

  • Page 4: For Hydrocarbon Refrigeration Units

    FOR HYDROCARBON REFRIGERATION UNITS WARNING This unit uses R-290 (propane), or R-600a (isobutane) as a refrigerant. These hydrocarbon refrigerants are highly environmentally compatible but also are flammable and combustible. Please read this manual thoroughly before installing and operating the unit. Please take cautious measures to avoid risk of fire or explosion. PLEASE REFER TO THE LABEL INSIDE THE CABINET TO CHECK REFRIGERATION TYPE AND VOLUME.
  • Page 5 FOR HYDROCARBON REFRIGERATION UNITS WARNING • Handle the unit with care in order to avoid any serious damage to the refrigeration system. • The refrigerant tubing, condenser, and evaporator coils are prone to damage while handling, moving, installing, and cleaning the unit, which may lead to fire or even explosion.

  • Page 6: Important Safety Information

    IMPORTANT SAFETY INFORMATION SAFETY PRECAUTIONS To avoid any risk of fire, explosion, electric shock, personal injury, material damage or incorrect use of the appliance, be sure to observe the following safety precautions (After reading these owner’s manual instructions, please keep the manual booklet in a safe place for reference.
  • Page 7 IMPORTANT SAFETY INFORMATION INSTALLATION & USAGE WARNING • Do not install the unit in a damp place where it could be splashed with water. Incorrect insulation of the electrical parts may cause fire or electric shock. • Do not plug several appliances into the same sockets. This could cause fire due to overheating.
  • Page 8 IMPORTANT SAFETY INFORMATION INSTALLATION & USAGE CAUTION • There is a risk of death from suffocation if a child puts the packing materials on his or her head. • Do not store any articles on top of the appliance. Articles may fall while opening or closing the door, and could cause personal injury or material damage.
  • Page 9 IMPORTANT SAFETY INFORMATION PROPER DISPOSAL OF OLD APPLIANCE For environmental purposes, refrigeration appliances must be properly disposed. This applies to your old appliance, and at the end of its service life, for your new appliance as well. WARNING Before disposing of old appliances, make them inoperable. Remove plug from mains, severe the power cable, and remove or destroy any snap or latch closures.

  • Page 10: Specifications / Serial Number

    SPECIFICATIONS Refrigerators CRATED MODEL COMP H.P. V/Hz REFRIGERANT AMPS WEIGHT (lbs.) M3R19-1-N 115V/60Hz R-290 M3R24-1-N 1/4+ 115V/60Hz R-290 M3R24-2-N(-L) 1/4+ 115V/60Hz R-290 M3R47-2-N(-AL)(-AR) 115V/60Hz R-290 M3R47-4-N 115V/60Hz R-290 M3R72-3-N(-AL)(-AR) 115V/60Hz R-290 M3R72-6-N 115V/60Hz R-290 Freezers CRATED MODEL COMP H.P. V/Hz...

  • Page 11: Notice To Customer / Installation

    Insufficient space causes vibration noise, inefficient refrigeration, damage to the refrigeration system, and the waste of electricity (Turbo Air recommends that the rear of the unit should be no less than 5 inches from the wall).

  • Page 12: Cleaning / Caution

    CLEANING Before cleaning, unplug the unit and disconnect the power. Wipe and clean the inside and outside of appliance with a damp cloth. 1. CLEANING THE INTERIOR AND EXTERIOR - The interior and exterior of the unit can be cleaned using warm water and soap. - Do not use an abrasive cleaner because it will scratch the surface.

  • Page 13: Basic Operation

    BASIC OPERATION M3R19-1-N M3R47-2-N M3R72-3-N M3R24-1-G-N REFRIGERATORS M3R24-1-N M3R47-2-N-AL M3R72-3-N-AL M3R24-1-G-N-L M3R24-2-N M3R47-2-N-AR M3R72-3-N-AR M3R47-2-G-N M3R24-2-N-L M3R47-4-N M3R72-6-N 1. Plug in and turn on the power switch located on the control box. The Display panel will be lighted and make a beep sound. The compressor will begin to run.
  • Page 14 UP/DOWN BUTTON (Temperature control button) 1. By pushing the up/down button, you can set the inside temperature level from ‘1’ to ‘7’. 2. If you want to lower the temperature, push the Down button to increase and light higher number. INNER TEMPERATURE DISPLAY 1.
  • Page 15 BASIC OPERATION M3F19-1-N M3F47-2-N M3F72-3-N FREEZERS M3F24-1-N M3F47-2-N-AL M3F72-3-N-AL M3F24-2-N M3F47-2-N-AR M3F72-3-N-AR M3F24-2-N-L M3F47-4-N M3F72-6-N 1. Plug in and turn on the power switch located on the control box. The Display panel will be lighted and make a beep sound. The compressor will begin to run. 2.
  • Page 16 MANUAL DEFROST 1. Press the down ( ) button 5 times while pressing the up ( ) button and the defrost will start. 2. During the manual defrost mode, the up/down button for the temperature control can not make the compressor cycle turn ON or OFF. UP/DOWN BUTTON (Temperature control button) 1.
  • Page 17 BASIC OPERATION M3RF19-2-N DUAL TEMPERATURE M3RF19-2-N-L M3RF45-2-N 1. When plugged in the display panel will light up and make a beeping sound. The compressor will begin to run. 2. The compressor is automatically cycled by the electronic controller (PCB). 3. The defrost cycle is automatically controlled by the PCB. 4.
  • Page 18 UP/DOWN BUTTON (Temperature control button) 1. By pushing the up/down button, you can set the inside temperature. 2. If you want to lower the temperature, push the down button to lower level numbers. TURBO FREEZE BUTTON 1. Push the turbo freeze button and the unit will operate at full speed. 2.

  • Page 19: Reversible Door Instructions

    REVERSIBLE DOOR INSTRUCTIONS (For M3R19-1-N / M3R24-1-N / M3R24-1-G-N / M3F19-1-N / M3F24-1-N) 1. TOP GRILLE (T) AND TOP GRILLE (B) A. Disassemble the top grille fixture as below. D. Unscrew the screws located on the bottom of top grille (B).
  • Page 20 REVERSIBLE DOOR INSTRUCTIONS (For M3R19-1-N / M3R24-1-N / M3F19-1-N / M3F24-1-N) 2. REPLACING DOOR A. Unscrew screws located on top hinge (right). C-2. Disassemble bottom hinge (left). B. Lift the door, then remove it. C-1. Disassemble the top hinge (left).
  • Page 21 REVERSIBLE DOOR INSTRUCTIONS (For M3R19-1-N / M3R24-1-N / M3F19-1-N / M3F24-1-N) G. Assemble stopper plate in original positions. E. Disassemble stopper plate which located on bottom hinge (right), then assemble bottom hinge (right) on position of top hinge (left). H. Assemble the door, then rotate it about 180 degrees.

  • Page 22: Troubleshooting

    TROUBLESHOOTING SYMPTOMS CAUSES SOLUTIONS • Thermostat set too cold. • Turn the thermostat setting Cooler is freezing to a higher temperature food. position. Freezer is melting • The controller is set too low to • Turn the temperature dial to a food.

  • Page 23: Stainless Steel Equipment Care & Cleaning

    STAINLESS STEEL EQUIPMENT CARE AND CLEANING CAUTION : Do not use any steel wool, abrasive or chlorine based products to clean stainless steel surfaces. There are three basic things which can break down your stainless steel’s passivity layer and allow corrosion to occur.
  • Page 24 STAINLESS STEEL EQUIPMENT CARE AND CLEANING 4. Water Treatment To reduce deposits, soften the hard water when possible. Installation of certain filters can remove corrosive and distasteful elements. Salts in a properly maintained water softener can be to your advantage. Contact a treatment specialist if you are not sure of the proper water treatment.

  • Page 25: Warranty Information

    Air and upon proper installation* (indoor building only) and start-up in accordance with the instruction packet supplied with each Turbo Air unit. Turbo Air s obligation under this warranty is limited to a period of five (5) years from the date of original installation or sixty three (63) months after shipment date from Turbo Air, whichever occurs first.
  • Page 26 WARRANTY INFORMATION What is Not Covered by This Warranty... Turbo Air’s sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty.

  • Page 27: Warranty Registration Card

    Address: (Street / Unit #) (City) (State) (Zip Code) hereby inform and certify to Turbo Air Inc. (Manufacturer) that the product model (Owner’s Name) and serial number mentioned above was purchased on from (Date of Purchase) (Name of the Dealer) Turbo Air Inc.
  • Page 28 4184 E. Conant St., Long Beach, CA 90808 Toll Free: 1-800-381-7770 Fax: 310-900-1033 Email: warranty@turboairinc.com www.turboairinc.com...
