Turbo Air Mega Top Prep Table MST-28-12 Service Manual

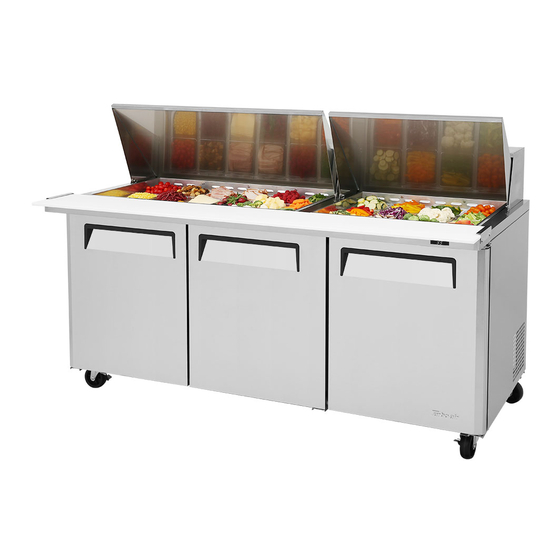

Commercial refrigerator mega top prep table
Hide thumbs Also See for Mega Top Prep Table MST-28-12:

Advertisement

Table of Contents

See also: Operation & Installation Manual
Commercial
Refrigerator
Service Manual
Mega Top Prep Table
Model: MST-28-12
MST-48-18
MST-60-24
MST-72-30

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mega Top Prep Table MST-28-12 and is the answer not in the manual?

Questions and answers

Related Manuals for Turbo Air Mega Top Prep Table MST-28-12

Summary of Contents for Turbo Air Mega Top Prep Table MST-28-12

  • Page 1 Commercial Refrigerator Service Manual Mega Top Prep Table Model: MST-28-12 MST-48-18 MST-60-24 MST-72-30...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. EXPLODED VIEW 1-1. MST-28-12 EXPLODED VIEW 1-2. MST-48-18 EXPLODED VIEW 1-3. MST-60-24 EXPLODED VIEW 1-4. MST-72-30 EXPLODED VIEW 2. WIRING DIAGRAMS 2-1. MST-28-12 / MST-48-18 2-2. MST-60-24 / MST-72-30 3. MAIN COMPONENTS 4. TEMPERATURE CONTROL INSTRUCTION 5.

  • Page 3: Exploded View

    1. EXPLODED VIEW 1-1. MST-28-12 EXPLODED VIEW ◎ Part Name SHELF EVAPORATOR FAN DUCT TAMPERATURE CONTROL COVER CABINET ASSEMBLY LOUVE EVAPORATOR DUCT CONDENSER ASSEMBLY PAN DUCT SIDE(LF) PAN DUCT FRONT COMPRESSOR CASTER PAN DUCT MID MECH COVER PAN DUCT SIDE(RH) EVAPORATOR ASSEMBLY HOOD EVAPORATOR DRAIN GUI...

  • Page 4: Mst-48-18 Exploded View

    1-2. MST-48-18 EXPLODED VIEW ◎ Part Name SHELF LOUVER BOTTOM HINGE(RH) COMPRESSOR TAMPERATURE CONTROL COVER EVAPORATOR CONDENSER ASSEMBLY EVAPORATOR DUCT EVAP DRAIN GUIDE MECH COVER(RH) CASTER PAN DUCT SIDE(LF) UNIT COVER CABINET ASSEMBLY PAN DUCT MID MECH COVER(LF) PAN DUCT SIDE(RH) HOOD PAN DUCT FRONT HOOD LID...

  • Page 5: Mst-60-24 Exploded View

    1-3. MST-60-24 EXPLODED VIEW ◎ Part Name SHELF EVAPORATOR BOTTOM HINGE(RH) CABINET ASSEMBLY EVAP DRAIN GUIDE TAMPERATURE CONTROL COVER COMPRESSOR EVAP FAN DUCT EVAPORATOR DUCT CONDENSER ASSEMBLY LOUVER CASTER HOOD LID PAN DUCT SIDE(LF) BRACKET BOARD KITCHEN PAN DUCT MID HOOD PAN DUCT SIDE(RH) COUNTER TOP ASSEMBLY...

  • Page 6: Mst-72-30 Exploded View

    1-4.MST-72-30 EXPLODED VIEW ◎ Part Name SHELF EVAP DRIAN GUIDE DOOR ASSEMBLY(RH) CABINET ASSEMBLY EVAPORATOR TOP HINGE(RH) COMPRESSOR BOTTOM HINGE(RH) MECH COVER(LF) CONDENSER ASSEMBLY UNIT COVER TAMPERATURE CONTROL COVER EVAPORATOR DUCT HOOD LID(RH) MECH COVER(RH) CASTER BRACKET BOARD KITCHEN 19 PAN DUCT SIDE(LF) BRACKET BOARD PAN DUCT MID...

  • Page 7: Wiring Diagrams

    2. WIRING DIAGRAMS 2-1. MST-28-12 / MST-48-18 2-2. MST-60-24 / MST-72-30...

  • Page 8: Main Components

    3.MAIN COMPONENTS 1.COMPRESSOR MODEL PART NAME PART NO. HORSE CAPACITY TYPE OF INPUT MAKER MST-28-12 M369700100 DAEWOO HBL-27YE-1 1/4HP CSIR 115V 60Hz MST-48-18 SAMSUNG M609700100 SK1A1C-L2W 1/3HP CSIR 115V 60Hz MST-60-24 TECUMSHE M729700100 CAE4456Y 1/2HP CSIR 115V 60Hz MST-72-30 TECUMSHE M729700100 CAE4456Y 1/2HP...

  • Page 9: Temperature Control Instruction

    4.TEMPERATURE CONTROL INSTRUCTION - Temperature can be controlled by the user. - Factory setting is at "NORMAL" Settings can be changed by Dial Knob. ◎ Indicates temperature level setting.

  • Page 10: Parts List

    5. PARTS LIST Model Part Name Part Code Description Remark 1. DOOR DOOR ASSEMBLY (L) WM61700200 DOOR ASSEMBLY (L) WM71700200 DOOR ASSEMBLY (M) WM71700300 DOOR ASSEMBLY (R) WM20000900 DOOR ASSEMBLY (R) WM61700100 DOOR ASSEMBLY (R) WM71700100 M720700100 DOOR BUSHING PA-66 M272300100 DOOR GASKET M602300100...
  • Page 11 Model Part Name Part Code Description Remark COMP BASE M600300100 COMP BASE M600300300 COMP BASE M720300100 CONDENSER FAN MOTOR 3963328120 IS-4420DWSN-2A POWER CORD M721300100 KKP-30(9.85FT) CONDENSER FAN AIR GUIDE M722500900 DRAIN PAN 30211A0200 DRAIN PAN M729300100 M484400100 DRAIN PIPE M724400800 DRAIN PIPE 3020602200 CONDENSER MOTOR BRACK...

  • Page 12: Shelf

    Model Part Name Part Code Description Remark PAN DUCT FRONT M726900600 SUS304-2B LOUVER M275800100 SUS439-2B LOUVER M485800100 SUS439-2B LOUVER M605800100 SUS439-2B LOUVER M725800100 SUS439-2B SHELF M607800100 STS304 SHELF M727800100 STS304 SHELF M277800100 STS304 SHELF MID M727800300 STS304 FIXTURE SHELF CLIP 30220L0900 PA-66 SHELF MID BRACKET...

  • Page 13: Replacement Of Main Components

    6. REPLACEMENT OF MAIN COMPONENTS 6-1. REPLACING DOOR A. Unscrew the top hinge B. Lift the door 6-2. REFRIGERATION COMPARTMENT PARTS A.Disassemble the evaporator fan duct assembly B.Disassemble the evaporator duct...

  • Page 14: Compressor

    C.Remove the tamperature & sensor 6-3. COMPRESSOR COMPARTMENT PARTS A.Disassembly the rear grill B.Disassembly the condesing unit...
  • Page 15 6-4. REPLACING THE EVAPORATOR & EVAPORATOR FAN MOTOR A.Remove the evaporator coil B.Remove the evaporator fan motor...
