Turbo Air Speed up the Pace of Innovation

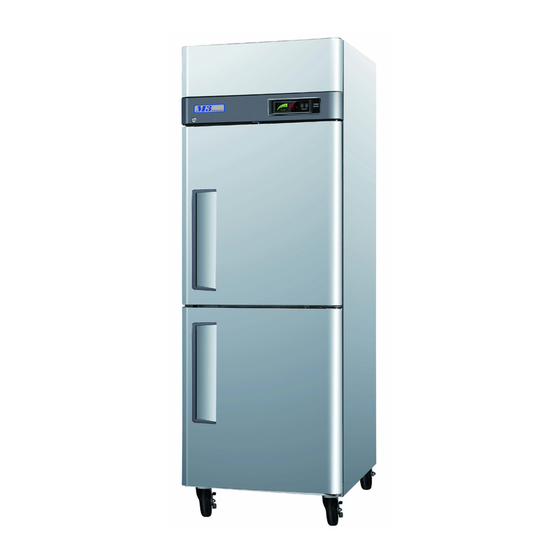

Refrigerator
Freezer
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
SOLID DOOR
REFRIGERATOR
M3R19-1
M3R24-1
M3R47-2
M3R72-3
SOLID DOOR
FREEZER
M3F19-1
M3F24-1
M3F47-2
M3F72-3
M3R24-2
M3R47-4
M3R72-6
M3F24-2
M3F47-4
M3F72-6
www.turboairinc.com
CAUTION!
PLEASE KEEP POWER
SWITCH ON BEFORE
OPERATING THIS EQUIPMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M3R19-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Turbo Air M3R19-1

Summary of Contents for Turbo Air M3R19-1

  • Page 1 CAUTION! PLEASE KEEP POWER SWITCH ON BEFORE OPERATING THIS EQUIPMENT Turbo Air Speed up the Pace of Innovation Refrigerator Freezer Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment! SOLID DOOR REFRIGERATOR...

  • Page 2: Table Of Contents

    7. BEFORE REQUESTING SERVICE 8. STAINLESS STEEL EQUIPMENT CARE AND CLEANING ....14~16 9. WARRANTY ..................16~18 SPECIFICATION Refrigerators MODEL COMP H.P. V/Hz REFRIGERANT AMPS WEIGHT M3R19-1 115V/60Hz R-134A 4.2A 194lbs M3R24-1 115V/60Hz R-134A 5.5A 270lbs 115V/60Hz R-134A 5.5A 270lbs...

  • Page 3: Installation

    - Be sure to avoid any partition and object which may stop the air flow. - Be sure that air space is allowed to flow the rear of the unit. Turbo air recommends that the rear of the unit would be no less than 5 inches from the wall.

  • Page 4: Cleaning

    CLEANING 1. CLEANING THE INTERIOR AND EXTERIOR - The interior and exterior of the unit can be cleaned using warm water with soap. - Do not use an abrasive cleaner because it will scratch the surface. 2. CLEANING THE CONDENSER FINS - To maintain proper refrigeration performance, the Condenser coil must be free of dust, dirt, and grease.

  • Page 5: Basic Operation

    BASIC OPERATION M3R19-1 REFRIGERATORS M3R24-1 M3R24-2 M3R47-2 M3R47-4 M3R72-3 M3R72-6 1. Plug in and turn on the power switch located on the control box. The Display panel will be lighted and make a beep sound. The compressor will begin to run.
  • Page 6 UP/DOWN BUTTON (Temperature control button) 1. By pushing the up/down button, you can set the inside temperature level from ‘1’ to ‘7’. 2. If you want lower temperature, push the Down button to be lighted higher level numbers. INNER TEMPERATURE DISPLAY 1.

  • Page 7: Freezers

    BASIC OPERATION M3F19-1 Freezers M3F24-1 M3F24-2 M3F47-2 M3F47-4 M3F72-3 M3F72-6 1. Plug in and turn on the power switch located on the bottom of the top grille right side. The Display panel will be lighted and make a beep sound. The compressor will begin to run. 2.
  • Page 8 INNER TEMPERATURE DISPLAY 1. Press the down ( ) buttom 5 times while pressing up ( ) button, the Defrost will start. 2. During the Manual Defrost mode, the Up/Down button for the temp, control can not make the compressor cycle ON or OFF. UP/DOWN BUTTON (Temperature control button) 1.

  • Page 9: Doors Reversible Instruction

    Doors Reversible Instruction (For M3R-19-1 / M3R-24-1 / M3F-19-1 / M3F-24-1) 1.TOP GRILLE(T) AND TOP GRILLE (B) D. Unscrew the screws located on the bottom of top A. Disassemble the top grille fixture as below. grille (B). E. Pull out the harness of the display PCB and the B.

  • Page 10: Replacing Door

    Doors Reversible Instruction (For M3R-19-1 / M3R-24-1 / M3F-19-1 / M3F-24-1) 2.Replacing Door A. Unscrew screws located on top grille. *Caution: When unscrewing, hold the top grille. Falling down top grille may cause bruise. D. Disassemble top hinge(right),then screw stopper plate on top hinge(right) B.
  • Page 11 Doors Reversible Instruction (For M3R-19-1 / M3R-24-1 / M3F-19-1 / M3F-24-1) G. Assemble stopper plate in original positions. H. Assemble the door, then rotate it about 180 degrees. Assemble top hinge(right) with stopper plate in Disassemble stopper plate,then tight screws. bottom hinge (left) position.
  • Page 12 Doors Reversible Instruction (For M3R-19-1 / M3R-24-1 / M3F-19-1 / M3F-24-1) Assemble top hinge (right) with fixtures in original positions. Screw top grille (T) and top grille (B). (This process is opposite of disassembling).

  • Page 13: Before Requesting Service

    BEFORE REQUESTING SERVICE SYMPTOMS CAUSES SOLUTIONS Freezer is melting • The controller is set too high to • Turn the temperature dial to a food. contain food fresh. warmer position. The unit does not • Check the power cord and plug in •...

  • Page 14: Stainless Steel Equipment Care And Cleaning

    STAINLESS STEEL EQUIPMENT CARE AND CLEANING CAUTION : Do not use any steel wool, abrasive or chlorine based products to clean stainless steel surfaces. Stainless Steel Opponents There are three basic things which can break down your stainless steel’s passivity layer and allow corrosion to rear its ugly head.
  • Page 15 4. Water Treatment To reduce deposits, soften the hard water when possible. Installation of certain filters can remove corrosive and distasteful elements. Salts in a properly maintained water softener can be to your advantage. Contact a treatment specialist if you are not sure of the proper water treatment.
  • Page 16 TWO YEAR WARRANTY Turbo air warrants to the original purchaser of every new Turbo air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of two (2) year from the date of original installation or 27 months after shipment date from Turbo air , whichever occurs first.
  • Page 17 3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. TURBO AIR is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or an Act of God.

  • Page 18: Warranty

    (2) year from the date of original installation or 27 months after shipment date from Turbo Air, whichever occurs first. Any part, covered under this warranty, that are by Turbo Air to have been defective within two (2) year of original installation or twenty seven (27) months after shipment date from manufacturer, whichever occurs first, is limited to the repair or replacement, including labor charges, of defective parts or assemblies.
