Appearance View - Sharp R-340A Service Manual

1. Ventilation openings
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seals and sealing
surfaces
7. Coupling
8. Door open button
9. Touch control panel
10.Digital readout
11.Wave guide cover
12.Power supply cord
13.Rating label
14.Turntable tray
15.Turntable support
NUMBER PADS
Press to enter cooking times, clock
time or weight of food.
POWER LEVEL PAD
Press to select microwave power
setting. If not pressed, 100% is au-
tomatically selected.
Press to alter the cooking result for
automatic operations.
STOP/CLEAR PAD
Press to clear during programming.
Press once to stop operation of oven
during cooking; press twice to can-
cel cooking programme.

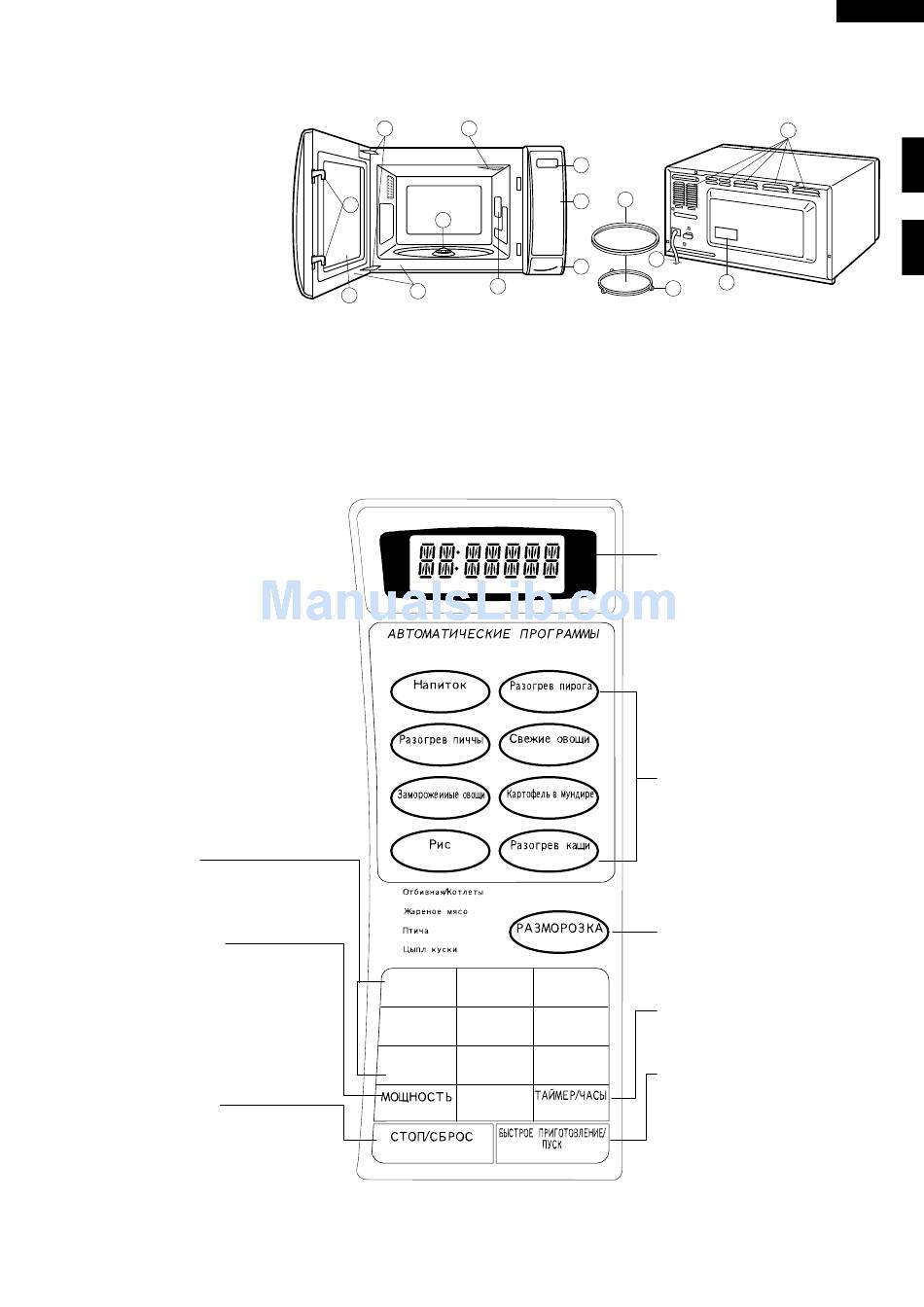

APPEARANCE VIEW

2
3
4
7
11
6
5
TOUCH CONTROL PANEL
COOK KG DEF HELP
INSTANT ACTION
To adjust quantity - touch pad again
BEVERAGE
REHEAT PIZZA
FRESH VEGETABLES
FROZEN VEGETABLES JACKET POTATO
RICE REHEAT PORRIDGE
1.
SREAK / CHOPS
2.
ROAST MEAT
3.
POULTRY
4.
CHICKEN PIECES
1 2
4 5
7 8
O
POWER LEVEL
STOP/CLEAR
INSTANT COOK /START
3
10
14
9
12
8
15
Indicator
REHEAT PIE
INSTANT ACTION PADS
Press to cook or reheat 8 popular
manus.
DEFROST PAD
DEFROST
Press to select the Defrost menu.
3
TIMER / CLOCK PAD
6
Press to set Clock, timer, child
lock or demonstration mode.
9
INSTANT COOK/START PAD
Press to start oven after setting
programmes. Press once to cook
TIMER/CLOCK
for 1 minute on HIGH or increase
in 1 minute increments each time
this pad is pressed during cook-
ing.
R-340A
1
13
