Wiring Diagram - Sharp R-340A Service Manual

SCHEMATIC
NOTE: CONDITION OF OVEN
1.DOOR CLOSED
2.CLOCK APPEARS ON DISPLAY
NOISE FILTER
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED
2. COOKING TIME PROGRAMMED
3. START KEY TOUCHED
NOISE FILTER
NOTE: " " indicates components with potentials above 250V.
THERMAL CUT-OUT
125˚C (OVEN)
COM.
2ND INTERLOCK
RELAY CONTROL
SWITCH
THERMAL CUT-OUT 1ST. LATCH
95˚C (MG) SWITCH

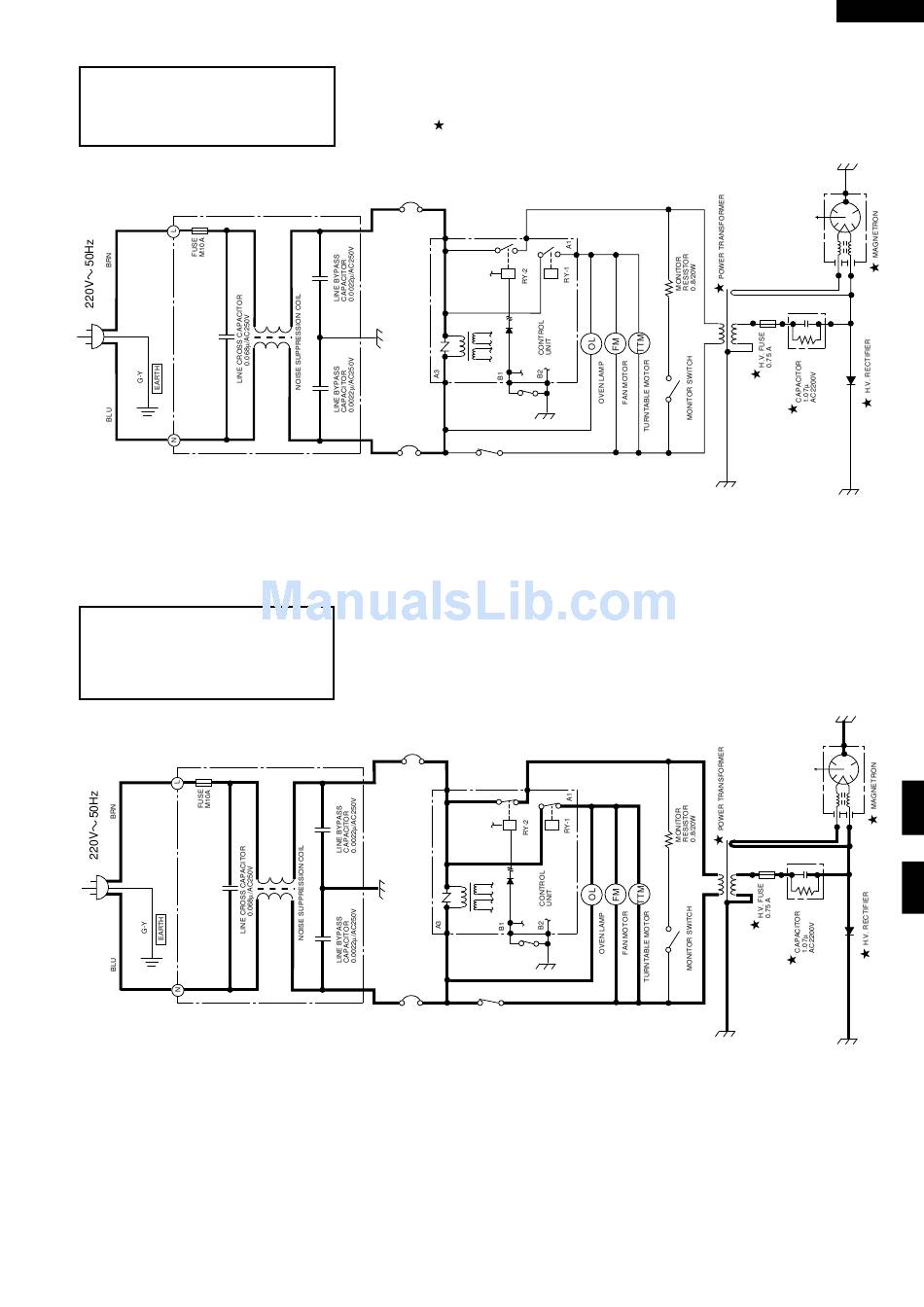

Figure O-1. Oven Schematic-OFF Condition
THERMAL CUT-OUT
125˚C (OVEN)
COM.
2ND INTERLOCK
RELAY CONTROL
SWITCH
THERMAL CUT-OUT 1ST. LATCH
95˚C (MG) SWITCH
Figure O-2. Oven Schematic-Cooking Condition
25
2ND
INTERLOCK
N.O.
RELAY
2ND
INTERLOCK
N.O.
RELAY
R-340A
