View; front side of door frame
19.Now, door screen is free.
RE-INSTALL
1. Re-install door screen to door frame by reversing the
procedure of item 18 of "REMOVAL".
2. Re-install the latch spring to the latch head. Re-install
the latch spring to the door frame. Re-install latch head
to door frame.
3. Re-install door panel to door frame by fitting nine (9)
tabs of door frame to nine (9) holes of door panel.
4. Hold the door panel to the door frame by sliding the
door panel upward.
5. Put sealer film on door panel. Refer to "Sealer Film"
about how to handle new one.
6. Re-install choke cover to door panel by pushing.
7. Catch two (2) pins of door panel on two (2) hole of upper
and lower oven hinges.
8. Re-install the door stopper to the door assembly.
Note: After any service to the door;
(A) Make sure that door sensing switch and secondary
interlock switch are operating properly. (Refer to
chapter "Test Procedures".).
(B) An approved microwave survey meter should be
used to assure compliance with proper microwave
radiation emission limitation standards.
After any service, make sure of the following :
1. Door latch heads smoothly catch latch hook through
latch holes and that latch head goes through center of
latch hole.
2. Deviation of door alignment from horizontal line of
cavity face plate is to be less than 1.0mm.
3. Door is positioned with its face pressed toward cavity
face plate.
4. Check for microwave leakage around door with an
approved microwave survey meter. (Refer to Microwave
Measurement Procedure.)
Note: The door on a microwave oven is designed to act
as an electronic seal preventing the leakage of
microwave energy from oven cavity during cook
cycle. This function does not require that door be
air-tight, moisture (condensation)-tight or light-
tight. Therefore, occasional appearance of
moisture, light or sensing of gentle warm air
movement around oven door is not abnormal and
do not of themselves indicate a leakage of
microwave energy from oven cavity.
4
Pin
Door panel
Lower
oven
Pin
hinge

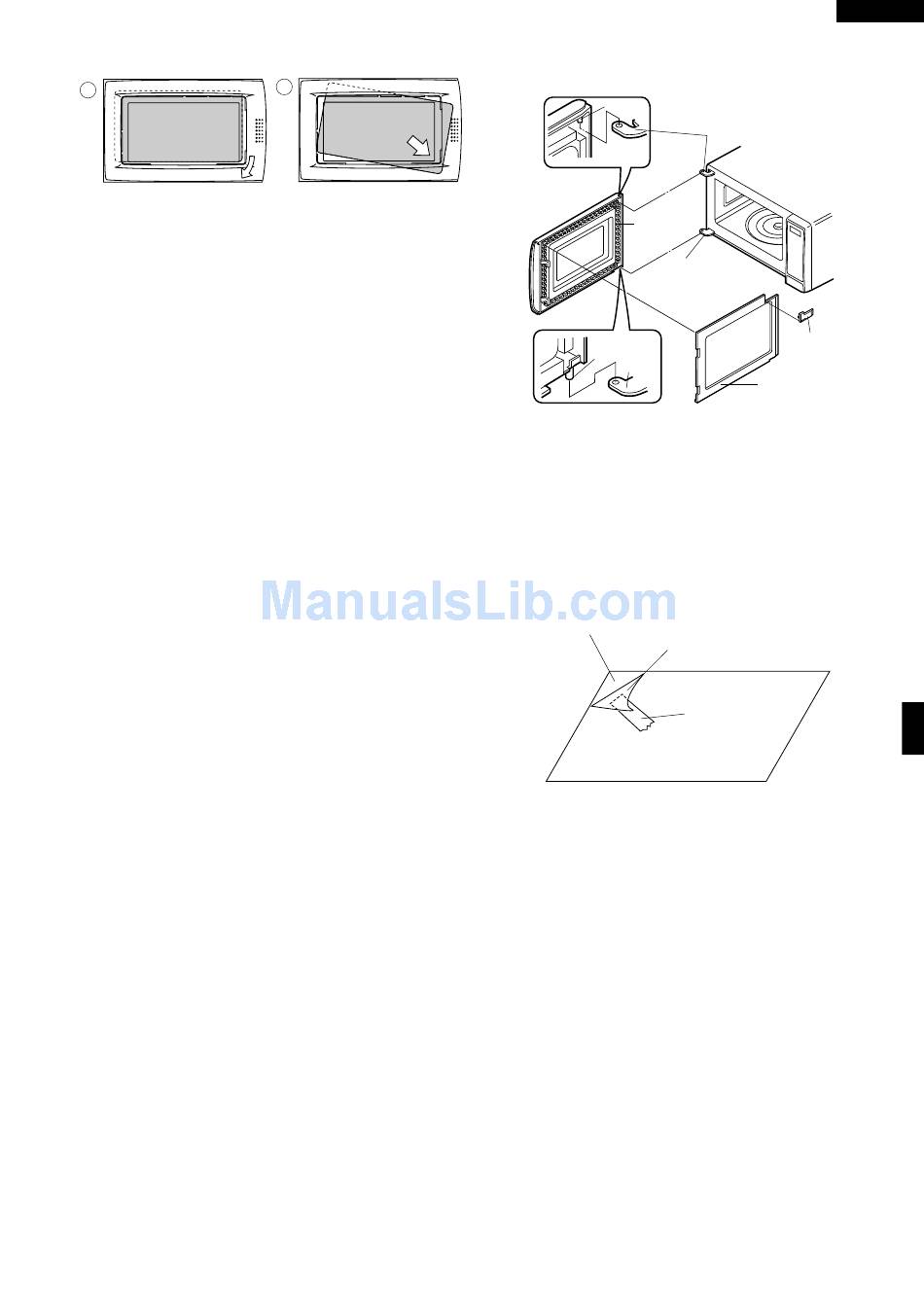

Figure C-9. Door Replacement
SEALER FILM
Installation
1. Put the adhesive tape on the backing film of the sealer
film as shown in Fig. C-10.
2. Tear the backing film by pulling the adhesive tape.
3. Put the pasted side of the sealer film on the door panel
Sealer film
Figure C-10. Sealer film
23
R-340A
Upper oven hinge
Lower oven
hinge
Door
stopper
Choke cover
Backing film
Adhesive tape
