Chauvet ColorAdo 1-Quad Zoom Tour User Manual

Hide thumbs Also See for ColorAdo 1-Quad Zoom Tour:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Quick Reference Manual
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Chauvet ColorAdo 1-Quad Zoom Tour

Summary of Contents for Chauvet ColorAdo 1-Quad Zoom Tour

  • Page 1 User Manual...
  • Page 2 Chauvet owns the content of this User Manual in its entirety, including but not limited to Copyright Notice pictures, logos, trademarks, and resources.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1. Before You Begin ............................1 What Is Included ................................1 Claims ......................................1 Manual Conventions ..................................1 Symbols ....................................... 1 Product At A Glance ..............................1 Safety Notes ................................. 2 Personal Safety .................................... 2 Mounting And Rigging ..................................
  • Page 4 Table of Contents DMX Control....................................15 Loss Of Signal Setting ................................15 Zoom Limit Settings ................................... 15 DMX Values ................................16 DMX Values (Cont.) ..............................17 DMX Values (Cont.) ..............................18 DMX Values (Cont.) ..............................19 DMX Values (Cont.) ..............................20 DMX Values (Cont.) ..............................

  • Page 5: Before You Begin

    If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.

  • Page 6: Safety Notes

    This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs.

  • Page 7: Introduction

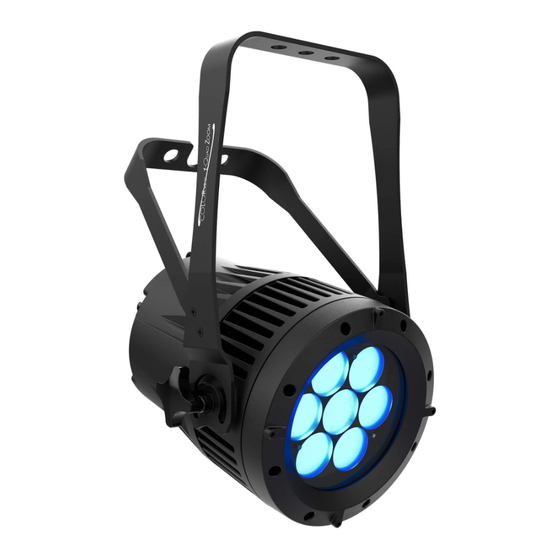

    Introduction 2. I NTRODUCTION The COLORado™ 1-Quad Zoom Tour is a high-power quad-color (RGBW) LED wash product Description with color mixing and zoom control. This product consists of a single module that houses the internal power supply, the control panel, the LED drivers, the LED boards, and motorized moving lenses, as well as the power and signal connectors.

  • Page 8: Overview

    Introduction Overview Bracket Adjustment Knob Front View Power In /Out 5-Pin DMX In/Out 3- Pin DMX In/Out Control Panel Rear View Double-Bracketed Yoke Side View Colorado™ 1-Quad Zoom Tour User Manual Rev. 1...

  • Page 9: Dimensions

    Introduction Dimensions 13.14 in 334 mm 9.37 in 238 mm 7.48 in 190 mm 9.25 in 235 mm Colorado™ 1-Quad Zoom Tour User Manual Rev. 1...

  • Page 10: Setup

    The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the Chauvet website: http://www.chauvetlighting.com/download/. Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire.

  • Page 11: Mounting

    You must supply your own mounting clamps. Make sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product. For our Chauvet line of mounting clamps, go to http://trusst.com/products/.

  • Page 12: Operation

    Operation 4. O PERATION Control Panel Button Function Description <MENU> Exits from the current menu or function <ENTER> Enables the currently displayed menu or sets the currently selected value in to the current function <UP> Navigates upward through the menu list or increases the numeric value when in a function <DOWN>...

  • Page 13: Menu Map

    Operation Menu Map Main Level Programming Levels Description GREN Combines red, green, blue, and white to make a custom color (0–100%) BLUE 000–255 STAT WHIT ZOOM Changes the beam angle (Zoom) Selects the strobe frequency STRB 00–20 (0–20 Hz) 01–10 000–255 10 automatic programs and speed AUTO...

  • Page 14: Menu Map (Cont.)

    Operation Menu Map (Cont.) Main Level Programming Levels Description GREN Combines red, green, blue, and white to 000– generate a custom color (0–100%) BLUE WHIT ZOOM Selects beam angle (zoom) EDIT 01–10 01–30 Selects the strobe frequency STRB 00–20 (0–20 Hz) Defines the step duration TIME (slow to fast)

  • Page 15: Menu Map (Cont.)

    Operation Menu Map (Cont.) Main Level Programming Levels Description GREN Modifies the color macros used in the TOUR, CAL1 01–11 FULL, C1Q, TR16, and STD.Y personalities BLUE 000– WHIT **** (Enter Defines the color temperature used when CAL2 GREN Passcode) COLR is set to RGBW BLUE ****...

  • Page 16: Configuration (Standalone)

    Operation Use standalone configuration to operate the product without a DMX controller. Configuration (Standalone) Auto Programs Auto programs allow for dynamic RGBW color mixing without a DMX controller. 1. Go to the AUTO main level. 2. Select the desired auto program (AT. 01–10) and speed of the program (P. 000–255) or custom program (PR.

  • Page 17: Dimmer Profiles

    · Red indicates that the upload process failed due to an error. Recheck all cable connections and restart the process. If the issue persists, contact Chauvet Technical Support. DO NOT upload the data from a Colorado™ 1-Quad Zoom Tour to a different product. The other product may become inoperative.

  • Page 18: Whites Setting

    Operation Whites Setting This setting allows you to select and edit the temperature of the white colors used in channel 6 (Macros) when in the TOUR and C1Q mode, channel 11 when in the TR16 and STD.Y mode, or channel 19 when in the FULL mode. 1.

  • Page 19: Configuration (Dmx)

    Operation Use DMX configurations to operate the product with a DMX controller. Configuration (DMX) This setting allows you to choose a particular DMX personality. 1. Go to the PERS main level. Personalities 2. Select the desired personality (TOUR, TR16, STD.Y, FULL, C1Q, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, or HSV).

  • Page 20: Dmx Values

    Operation DMX Values TOUR Channel Function Value Percent/Setting Dimmer 000ó255 0–100% 000ó255 0–100% (Step Duration if Custom 1–10 in CH. 8 is active) 000ó255 0–100% Green (Fade Duration if Custom 1–10 in CH. 8 is active) Blue 000ó255 0–100% White 000ó255 0–100% 000ó010...

  • Page 21: Dmx Values (Cont.)

    Operation DMX Values (Cont.) TOUR Channel Function Value Percent/Setting (Cont.) 000ó040 No function 041ó050 Auto 1 051ó060 Auto 2 061ó070 Auto 3 071ó080 Auto 4 081ó090 Auto 5 091ó100 Auto 6 101ó110 Auto 7 111ó120 Auto 8 121ó130 Auto 9 Programs 131ó140 Auto 10...

  • Page 22: Dmx Values (Cont.)

    Operation DMX Values (Cont.) AR1.D Channel Function Value Percent/Setting Dimmer 000ó255 0–100% 000ó255 0–100% Green 000ó255 0–100% Blue 000ó255 0–100% ARC.2 Channel Function Value Percent/Setting 000ó255 0–100% Green 000ó255 0–100% Blue 000ó255 0–100% White 000ó255 0–100% AR2.D Channel Function Value Percent/Setting Dimmer 000ó255...

  • Page 23: Dmx Values (Cont.)

    Operation DMX Values (Cont.) TR16 Channel Function Value Percent/Setting Dimmer 000ó255 0–100% 000ó255 Fine control (16-bit) (Step Duration if Custom 1–10 Fine Dimmer in CH. 13 is active) 000ó255 0–100% (Fade Duration if Custom 1–10 in CH. 13 is active) Fine Red 000ó255 Fine control (16-bit)

  • Page 24: Dmx Values (Cont.)

    Operation DMX Values (Cont.) TR16 Channel Function Value Percent/Setting (Cont.) 000ó040 No function 041ó050 Auto 1 051ó060 Auto 2 061ó070 Auto 3 071ó080 Auto 4 081ó090 Auto 5 091ó100 Auto 6 101ó110 Auto 7 111ó120 Auto 8 121ó130 Auto 9 Programs 131ó140 Auto 10...

  • Page 25: Dmx Values (Cont.)

    Operation DMX Values (Cont.) STD.Y Channel Function Value Percent/Setting Dimmer 000ó255 0–100% 000ó255 Fine control (16-bit) Fine Dimmer (Step Duration if Custom 1–10 in CH. 13 is active) 000ó255 0–100% (Fade Duration if Custom 1–10 in CH. 13 is active) Fine Red 000ó255 Fine control (16-bit)

  • Page 26: Dmx Values (Cont.)

    Operation DMX Values (Cont.) STD.Y Channel Function Value Percent/Setting (Cont.) 000ó040 No function 041ó050 Auto 1 051ó060 Auto 2 061ó070 Auto 3 071ó080 Auto 4 081ó090 Auto 5 091ó100 Auto 6 101ó110 Auto 7 111ó120 Auto 8 121ó130 Auto 9 Programs 131ó140 Auto 10...

  • Page 27: Dmx Values (Cont.)

    Operation DMX Values (Cont.) FULL Channel Function Value Percent/Setting Dimmer 000ó255 0–100% 000ó255 Fine control (16-bit) Fine Dimmer (Step Duration if Custom 1–10 in CH. 21 is active) 000ó255 0–100% Red 1 (Fade Duration if Custom 1–10 in CH. 21 is active) Fine Red 1 000ó255 Fine control (16-bit)

  • Page 28: Dmx Values (Cont.)

    Operation DMX Values (Cont.) FULL Channel Function Value Percent/Setting (Cont.) 000ó040 No function 041ó050 Auto 1 051ó060 Auto 2 061ó070 Auto 3 071ó080 Auto 4 081ó090 Auto 5 091ó100 Auto 6 101ó110 Auto 7 111ó120 Auto 8 121ó130 Auto 9 Programs 131ó140 Auto 10...

  • Page 29: Dmx Values (Cont.)

    Operation DMX Values (Cont.) Channel Function Value Percent/Setting Dimmer 000ó255 0–100% 000ó255 0–100% (Step Duration if Custom 1–10 in CH. 8 is active) 000ó255 0–100% Green (Fade Duration if Custom 1–10 in CH. 8 is active) Blue 000ó255 0–100% White 000ó255 0–100% 000ó010...

  • Page 30: Dmx Values (Cont.)

    Operation DMX Values (Cont.) Channel Function Value Percent/Setting (Cont.) 000ó040 No function 041ó050 Auto 1 051ó060 Auto 2 061ó070 Auto 3 071ó080 Auto 4 081ó090 Auto 5 091ó100 Auto 6 101ó110 Auto 7 111ó120 Auto 8 121ó130 Auto 9 Programs 131ó140 Auto 10 141ó150...

  • Page 31: Technical Information

    Technical Information 5. T ECHNICAL NFORMATION To maintain optimum performance and minimize wear, you should clean this product frequently. Product Usage and environment are contributing factors in determining the cleaning frequency. Maintenance As a rule, clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating.

  • Page 32: Technical Specifications

    Technical Information 6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 13.14 in (334 mm) 9.25 in (235 mm) 7.48 in (190 mm) 14.8 lb (6.7 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection...

  • Page 33: Returns

    Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number. DO NOT write the RMA number directly on the box. Instead, write it on a properly affixed label.
