Sinarcam Multipurpose Digital Camera User Manual page 18

• If not already done, attach the focusing screen (551.33.123) to the shifting adapter. Remember
where the rollfilmholder has to be inserted to find the correct position. Attach also the movable or
fixed lupe to the focusing screen. Note the exchangable format mask on the ground glas which
corresponds with the CCD format.
• Finally mount the sinarcam shift adapter to the sinarcam. Press the release lock on the top left of
the shift adapter to move the slider from one position to the other. Make sure the slider locks in
each position.
• To take a chemical picture on a roll film holder or a sheet film holder, lift the ground glass with the
lever and insert the film holder from the left. Note that the shutter blade automatically closes when
the film holder is fully inserted. By the way: the focus frame can also be used directly on the
sinarcam thus enabling to shoot chemical pictures also without a sliding adapter. To mount the
focus frame to the sinarcam directly you need however the holder for the focusing frame (461.36).
Sinarcam1UsersGuideE.rtf

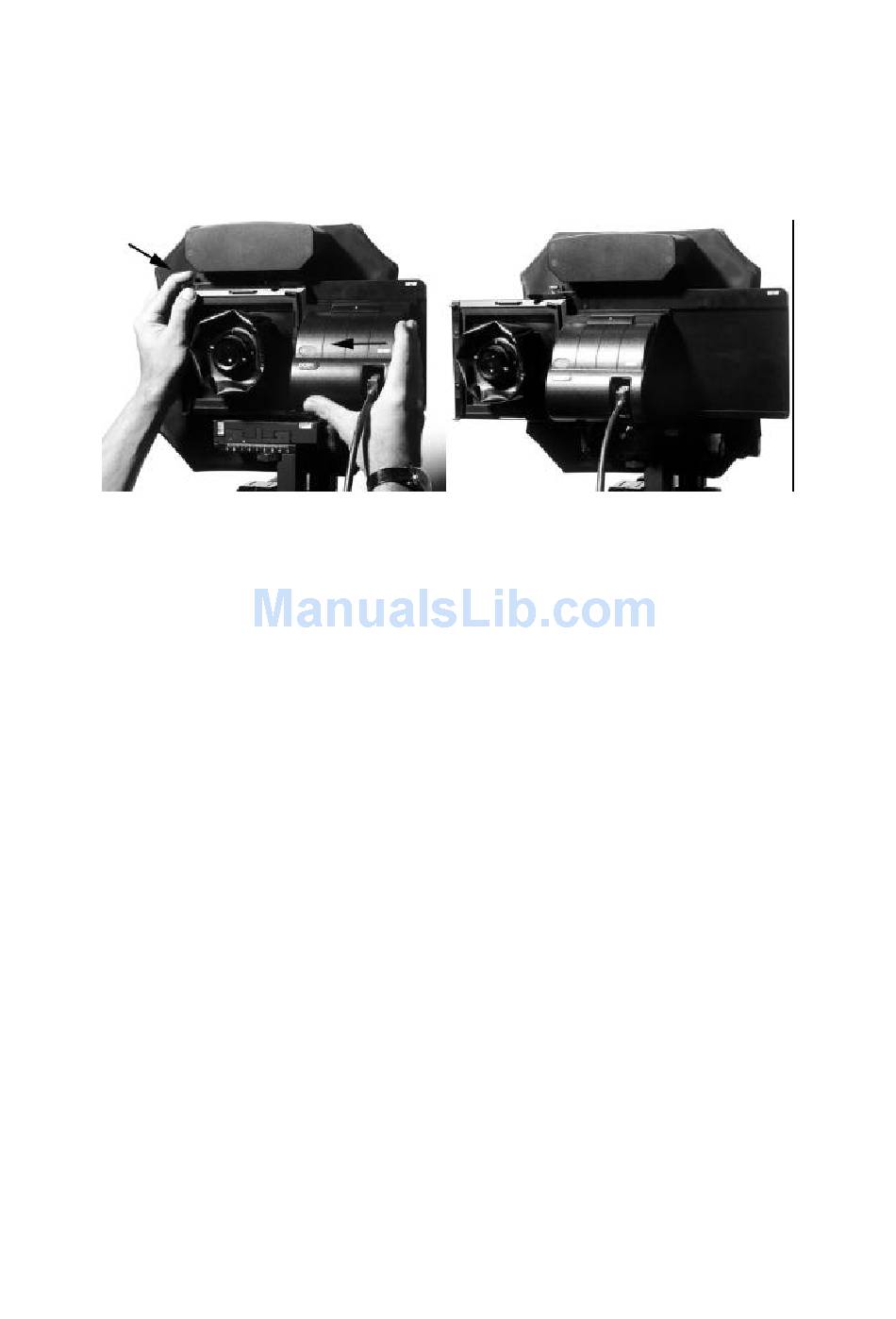

Press the release lock and shift the adapter from
viewing position (left) to taking position (right)
Date: 14.03.00 14:22
