8. With the help of a second person, hold the con-
sole assembly near the Right Upright (81) and
the Left Upright (not shown). Insert the Upright
Wire (78) through the looped plastic ties on the
bottom of the console assembly.

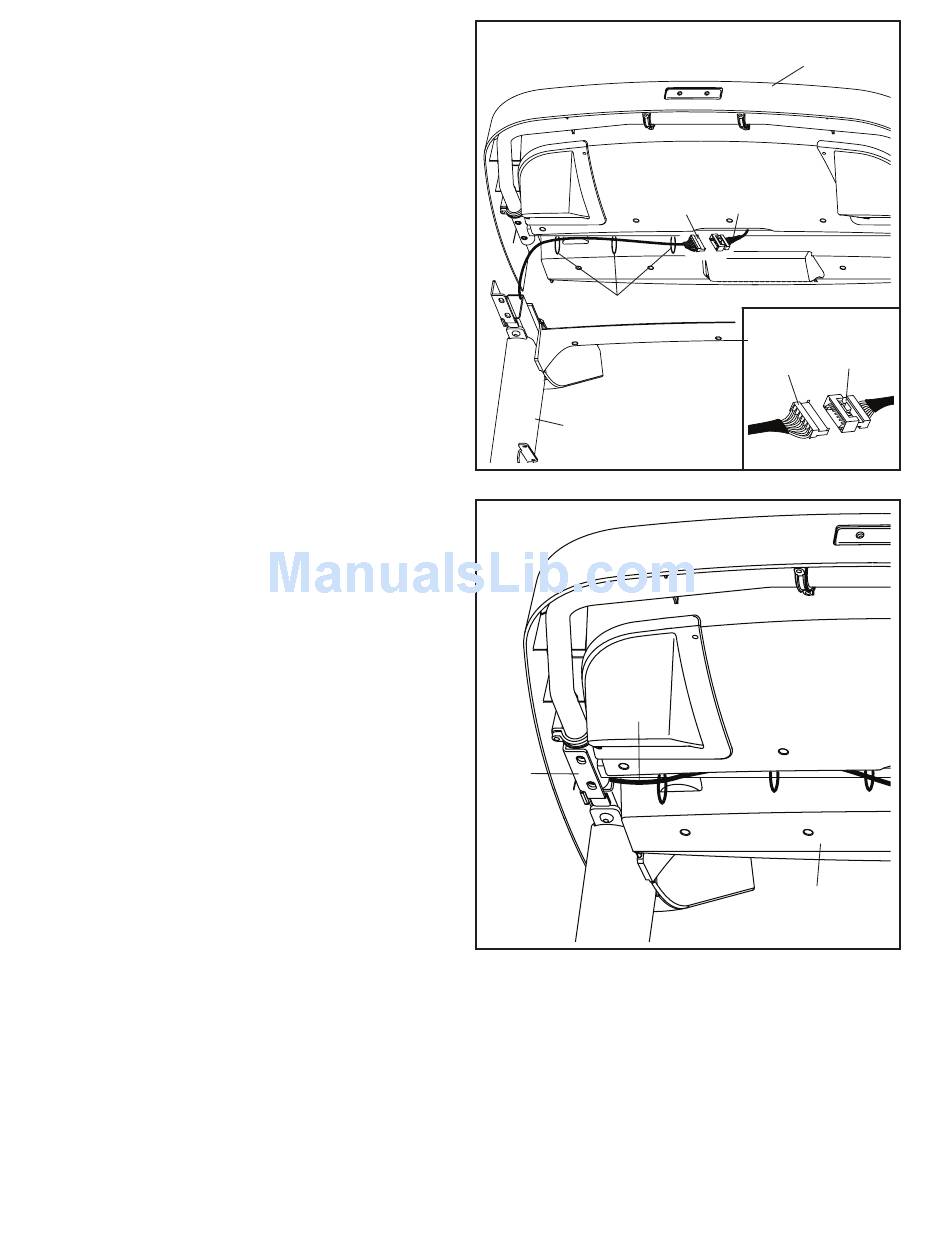

Connect the Upright Wire (78) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER.
9. Route the Upright Wire (78) as shown so that
it doesn’'t get pinched as you set the console
assembly onto the right handrail assembly (B)
and left handrail assembly (not shown).
