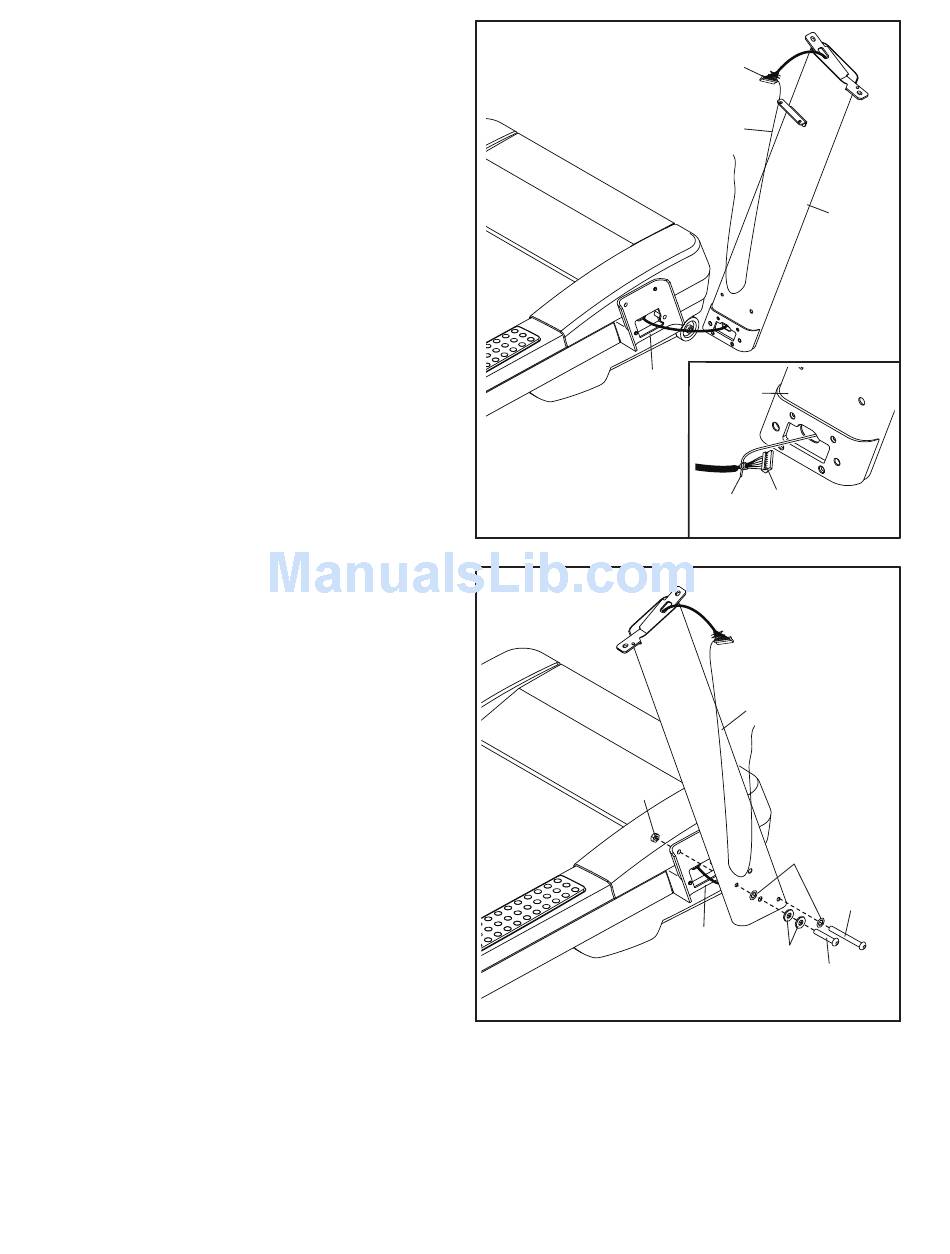

2. Make sure that the power cord is unplugged.
Identify the Right Upright (81). Have a second
person hold the Right Upright near the
Frame (51).
See the inset drawing. Tie the wire tie in the
Right Upright (81) securely around the end of the
Upright Wire (78). Then, pull the other end of the
wire tie until the Upright Wire is routed through
the Right Upright.
3. Hold the Right Upright (81) against the Frame
(51). Be careful not to pinch the wires. Start a
3/8" x 4 1/4" Screw (2) with a 3/8" Star Washer
(9) into the Right Upright and into the Frame; do
not fully tighten the Screw yet.
Insert a 3/8" x 2 3/4" Bolt (1) with two 3/8" Flat
Washers (29) and a 3/8" Star Washer (9) into the
Frame (51). Tighten a 3/8" Nut (8) onto the end
of the Bolt; do not fully tighten the Bolt yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
2
3
8
10
78
Wire
Tie
51
81
78
Wire
Tie
81
9
51
29
81
2
1
