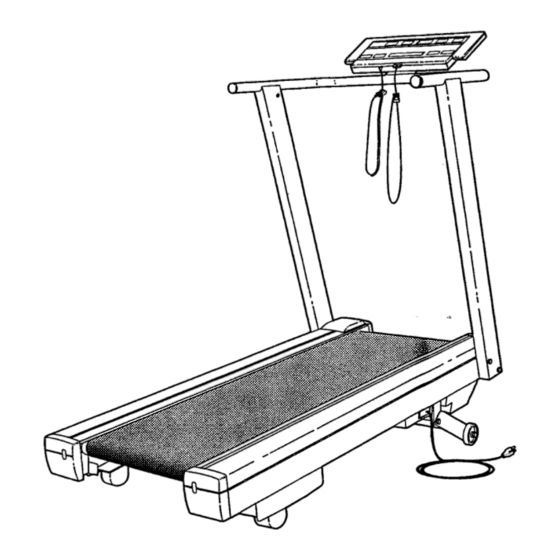

0-10
MPH
,
2.0
HP
' POWER
INCLINE
Model No. PFTL10043
Serial No.
Serial Number
Decal
QUESTIONS?
As a manufacturer,
we are com-
mitted to providing you complete
customer satisfaction.
If you
have questions, or find there are
missing or damaged parts, we
will guarantee you complete
satisfaction through direct
assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our Customer Hot Line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER
HOT LINE:
1-800-999-3756
Mon.-Fri., 6 a.m.-6 p.m. MST
,A CAUTION!
Read all precautions and Instruc-
tions in this manual carefully
before using this equipment.
Save this manual for reference.
OWNER'S MANUAL
Advertisement
Table of Contents
Related Manuals for ProForm 520
Summary of Contents for ProForm 520

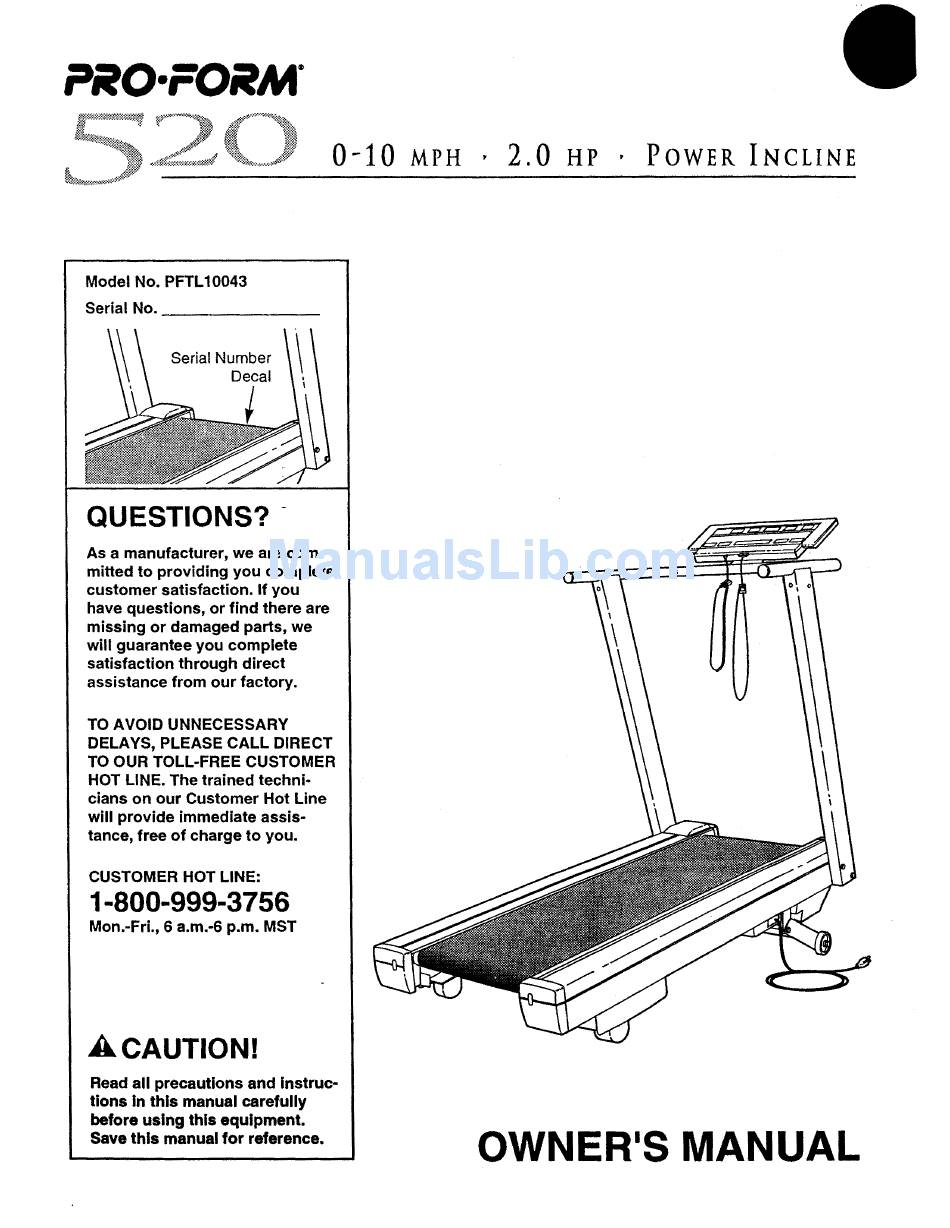

- Page 1 0-10 ' POWER INCLINE Model No. PFTL10043 Serial No. Serial Number Decal QUESTIONS? As a manufacturer, we are com- mitted to providing you complete customer satisfaction. If you have questions, or find there are missing or damaged parts, we will guarantee you complete satisfaction through direct assistance from our factory.
- Page 2 LIMITED WARRANTY ICON Health & Fitness, Inc. ("ICON"), warrants this product to be free from defects in workmanship material, under normal use and service conditions, for a period of ninety (90) days from the date of pur- chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim- ited to replacing or repairing, at ICON's option, the product at one of its authorized service centers.
- Page 3 PRO.FORM" 0-10 , 2.0 POWER INCLINE TABLE OF CONTENTS IMPORTANT PRECAUTIONS ..............BEFORE YOU BEGIN ............... ASSEMBLY ................OPERATION AND ADJUSTMENT ............. TROUBLE-SHOOTING AND STORAGE ............CONDITIONING GUIDELINES ............... PART LIST ................EXPLODED DRAWING ..: ......: ........ORDERING REPLACEMENT PARTS ..........
-
