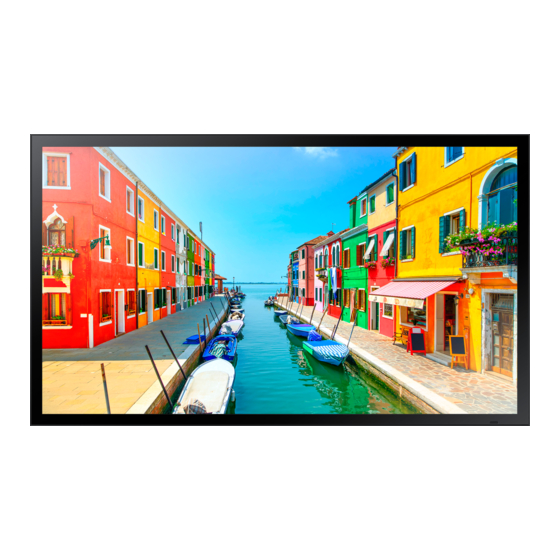

User Manual
OH46D OH55D
The colour and the appearance may differ depending on the
product, and the specifications are subject to change without
prior notice to improve the performance.

Advertisement

Table of Contents

   Also See for Samsung OH46D

   Summary of Contents for Samsung OH46D

  • Page 1 User Manual OH46D OH55D The colour and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance.
  • Page 2: Table Of Contents

    Table of contents Before Using the Product Connecting and Using a Source Home feature Device Copyright Player Approving a connected device from the server 36 Before Connecting Safety Precautions Network Channel Pre-connection Checkpoints Symbols Local Channel Before connecting cables Cleaning Deployed Folders Storage Connecting to a PC...
  • Page 3 Table of contents Ticker Sound Adjustment HDMI Black Level Film Mode More settings Dynamic Backlight Sound Mode Sound Output URL Launcher Picture Size Picture Size Reset Sound Position Zoom/Position Screen Adjustment Picture Off Network Picture Mode Reset Picture Network Status Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R) Network Settings...
  • Page 4 Available buttons and features during video Update now playback Screen Lamp Schedule Auto update No Signal Power Off Available buttons and features during music Contact Samsung Auto Power Off playback Go to Home Fan and Temperature Supported Subtitle and Media play file Player...
  • Page 5 Table of contents Troubleshooting Guide Optimum Picture Quality and Afterimage Burn- in Prevention Optimum Picture Quality Requirements Before Contacting Samsung Customer Service Centre Prevention of Afterimage Burn-in Testing the Product Licence Checking the Resolution and Frequency Check the followings. Terminology Q &...
  • Page 6: Before Using The Product

    © 2015 Samsung Electronics Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Microsoft, Windows are registered trademarks of Microsoft Corporation. VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
  • Page 7: Safety Precautions

    Safety Precautions Cleaning ― Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. ― Take the following steps when cleaning. Caution ― The following images are for reference only. Real-life situations may differ from what is shown in the images.
  • Page 8: Storage

    Storage Connect the power plug to a grounded power socket (type 1 insulated devices only). Due to the characteristics of high-glossy products, using a UV humidifier nearby may create white- • An electric shock or injury may result. coloured stains on the product. ―...
  • Page 9: Installation

    THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES. • A fire may result. Only use the power cord provided with your product by Samsung. Do not use the power cord with other products. • A fire or electric shock may result.
  • Page 10 SAMSUNG • Be sure to consult Samsung Customer Service Centre if you want to install the product at such a place.
  • Page 11: Operation

    If the product is dropped or the outer case is damaged, turn off the power Do not use or keep combustible spray or an inflammable substance near switch and disconnect the power cord. Then contact Samsung Customer the product. Service Centre.
  • Page 12 • Dust accumulation combined with heat can cause a fire, electric shock Then contact Samsung Customer Service Centre. or electric leakage. • Product failure, an electric shock or fire may result.
  • Page 13 Do not touch the screen when the product has been turned on for an When replacing the battery, insert it with the right polarity (+, -). extended period of time as it will become hot. • Otherwise, the battery may become damaged or it may cause fire, personal injury or damage due to leakage of the internal liquid.
  • Page 14: Preparations

    Chapter 02 Preparations Checking the Components Components ― Components may differ in different locations. - Contact the vendor where you purchased the product if any components are missing. - The appearance of the components may differ from the images shown. Warranty card Batteries Quick Setup Guide...
  • Page 15: Parts

    ― The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to Parts improve quality. Parts Description ILLUMINANCE SENSOR & REMOTE SENSOR Press a button on the remote control pointing at the sensor on the front of the product to perform the corresponding function.
  • Page 16: Reverse Side

    Port Description Reverse Side Connect to a USB memory device. ― The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. HDBT - Sends the HDMI signal to a connected LAN cable using an HDBaseT transmitter. - Connects to MDC using a LAN cable.
  • Page 17: Power Box

    Port Description Power Box Power Connect to the power cord. ― The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Main Power Out Connect to the MAIN POWER cable to supply power to the mainboard of the product. BLU Power Out Connects to the BLU POWER cable to supply power to the LED backlight of the product.
  • Page 18: Remote Control

    Remote Control ― Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled. ― A button without a description in the image below is not supported on the product. POWER Power on the product.
  • Page 19 Display information about the current input TOOLS INFO Quickly select frequently used functions. source. Move to the upper, lower, left or right menu, or adjust an option's setting. Confirm a menu selection. Exit the current menu. RETURN EXIT Return to the previous menu. Manually select a connected input source from HDMI HDMI1...
  • Page 20: Before Installing The Product (installation Guide)

    • Otherwise, it may fall and cause personal injury. • Make sure to install the specified wall mount. Switching between portrait and landscape ― Contact Samsung Customer Service Centre for further details. • To use the product in portrait orientation, rotate it clockwise. Ventilation...
  • Page 21 Installation on an Indented Wall ― Contact Samsung Customer Service Centre for further details. Plane view Minimum 50 mm Minimum 40 mm Ambient temperature: Under 35 C ― When installing the product on an indented wall, allow at least the space specified above between the product and wall for ventilation and ensure that the ambient temperature is kept below 35 C.
  • Page 22: Dimensions

    ― All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the dimensions prior to performing installation of your product. Not responsible for typographical or printed errors. Dimensions Unit: mm (inches) Model name OH46D 1069.0 (42.1) 1019.2 (40.1) 573.8 (22.6) 623.6 (24.6) 90.3 (3.6)
  • Page 23: Wall Mount Specifications

    ― Do not use a wall mount that can tilt. ― Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
  • Page 24: Connecting And Using A Source Device

    Chapter 03 Connecting and Using a Source Device Before Connecting Pre-connection Checkpoints ― Before connecting a source device, read the user manual provided with it. The number and locations of ports on source devices may differ from device to device. ―...
  • Page 25: Before Connecting Cables

    Before connecting cables Insert the appropriate cable into the hole from which the Silicone-Bar was removed. Unfasten the screws, then remove the cover. The cable should be connected as shown. Remove the appropriate silicon bar for the Close the cover, then fasten the screws. thickness of the cable to connect.
  • Page 26: Connecting To A Pc

    Connecting to a PC Connection Using an HDMI Cable • Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. • A PC can be connected to the product in a variety of ways. Select a connection method suitable for your PC.
  • Page 27: Connecting To A Video Device

    Connecting to a Video Device Connection Using an HDMI Cable Using an HDMI cable or HDMI to DVI Cable (up to 1080p) • Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. •...
  • Page 28: Connecting The Hdbase-t

    Connecting the HDBase-T ― Connecting parts may differ in different products. HDMI OUT HDBase-T Tx HDMI OUT HDMI IN LAN Cable HDMI OUT...
  • Page 29: Connecting To An Audio System

    Connecting to an Audio System ― Connecting parts may differ in different products.
  • Page 30: Connecting The Power Box

    Connecting the Power box Connect the cables to the Main Power in and BLU Power in ports on the product. Connect the other ends of the connected cables to the Main Power Out and BLU Power Out ports ― Connecting parts may differ in different products. on the power box respectively.
  • Page 31: Changing The Input Source

    Changing the Input source Source allows you to select a variety of sources and change source device names. You can display the screen of a source device connected to the product. Select a source from source list to display the screen of the selected source.
  • Page 32: Using Mdc

    Chapter 04 Using MDC Multiple display control "MDC" is an application that allows you to easily control multiple display devices simultaneously using a PC. For details on how to use the MDC programme, refer to Help after installing the programme. The MDC programme can be downloaded from the website. MDC Programme Installation/Uninstallation In the displayed "Ready to Install the...
  • Page 33: Connecting To Mdc

    Connecting to MDC Using MDC via RS-232C (serial data communications standards) An RS-232C serial cable must be connected to the serial ports on the PC and monitor. RS232C IN Computer...
  • Page 34: Using Mdc Via Ethernet

    Using MDC via Ethernet Enter the IP for the primary display device and connect the device to the PC. Display devices can be connected to each other using a LAN cable. Connection using a direct LAN cable ― Use the LAN cable to connect the HDBT port on the product to the LAN port on the PC. Computer Monitor 1 Monitor 2...
  • Page 35: Home Feature

    Chapter 05 Home feature → This feature is provided in Support Go to Home. Accessible using the HOME button on the remote control. Player ― To use the Player feature, set Play via MagicInfo in System. Play a range of content such as channels with schedules assigned, templates or files. Play channels or content using any of the following methods.
  • Page 36: Approving A Connected Device From The Server

    Approving a connected device from the server Select Device from the top menu bar. MagicInfo Mode MagicInfo Server Network Settings. • Set MagicInfo Approve and use the server now. ― First configure the server Network Settings before device approval. Access the server you have assigned to your device. Select MagicInfo from the menus on the left.
  • Page 37: Setting The Current Time

    Enter the information required to approve the device. When the device is approved by the server, the schedule registered in the selected group will be downloaded to the device. The schedule will run after it is downloaded. ― For further details on how to configure a schedule, refer to the <MagicInfo Server user's manual>.
  • Page 38: Network Channel

    Network Channel Device:Internal Contents: All Sort by: File name Options Player item(s) Browse and play content stored on the selected device. Play content, templates and schedules configured on the server. • You can view whether the server is connected (approval) in the Player menu screen.
  • Page 39: Available Features In The Player Page

    Available features in the Player page Player list page provides the following features. Device • Select either Internal to search for a desired device list. Internal Contents • Select a content type as criterion to search for a desired content list. Video Image Flash...
  • Page 40: Player Page Settings Menu

    Player page Settings menu Aspect Ratio Aspect Ratio to either Original or Full. Settings Full Original Fit to screen • ― This feature is only available for Videos, Images, Office files. Settings Display Duration Set whether to display content in the original aspect ratio or in full Set the duration for each page in a slideshow.
  • Page 41: When Content Is Running

    When Content is Running Press the INFO button on the remote control. Current Time: Display the current time. • • Type: Type of channel currently playing. Viewing the details of the content that is running ― Only applicable during Network Channel Local Channel playback.
  • Page 42 Changing the settings for the content that is running Press the TOOLS button on the remote control during content playback to configure settings such as Picture Mode Sound Mode. Playlist • View a list of content items currently playing. Music •...
  • Page 43: File Formats Compatible With Player

    File Formats Compatible with Player Template files and LFD(.lfd) files • Supported file systems include FAT32 and NTFS. Restrictions • A file with a vertical and horizontal resolution larger than the maximum resolution cannot be • Ensure a distributed folder (content / schedules) exists in Internal memory.
  • Page 44 Contents File Extension Container Video Codec Resolution Frame rate Bit rate Audio Codec (fps) (Mbps) *.avi DivX 3.11 / 4.x / 5.x / 6.x 1920 x 1080 6~30 *.mkv LPCM *.asf MPEG4 SP / ASP *.wmv HE-AAC *.mp4 *.mov H.264 BP / MP / HP *.3gp MPEG(MP3) *.vro...
  • Page 45 Video Audio Image • 3D video is not supported. • Audio content with a Bit rate or Frame rate • Compatible image file format : Jpeg larger than the rate specified in the table above • Content with a resolution larger than the •...
  • Page 46 Flash Power Point • Compatible with Flash 10.1 • Compatible document file formats • Compatible document file formats • Flash Animation - Extension : ppt, pptx - Extension : pdf - Version : Office 97 ~ Office 2007 - Compatible file format : SWF •...
  • Page 47 WORD Template files • Compatible document file formats • Creation/editing/playback are only available in • Supported in Network Channel Local Template. Channel - Extension : .doc, .docx - Version : Office 97 ~ Office 2007 • Compatible document file formats - Extension : .lfd •...
  • Page 48: File Formats Compatible With Video Wall

    File Formats Compatible with Video Wall ― Refer to the <MagicInfo Server user's manual> for further details. Video Image • 3D video is not supported. • Compatible image file format : Jpeg, png, bmp • Content with a resolution larger than the resolution specified in the table •...
  • Page 49 Restrictions • Only one video (Videos) file can be played per client. ― Different content files can be played on the displays of a video wall. Two video (Videos) files cannot be played on a single display of a video wall. Available Not available Available...
  • Page 50: Schedule

    Schedule Available features in the Schedule page Schedule page provides the following features. → → ENTER E HOME Schedule Type • - Local: Add or edit schedules. - Network: View the network schedule configured on the server. Schedule Type : Local Device : Internal Options Device...
  • Page 51: Configuring Channel Schedules

    Configuring channel schedules Play media content such as videos, photos and music at a desired time. Select a channel to configure. Select video, music and photo content you want to apply to the channel schedule. Set the time to play the schedule. (Start Time Stop Time)
  • Page 52: Template

    Template Available features in the Template page Create unique content using templates. It is easy to create content. Simply change images and text in a template. → → ENTER E HOME Template Sort the template list using the following criteria. Market •...
  • Page 53: Entering Text

    Inserting content such as videos, photos and PDF files Organize a template by inserting text, video, photo, or PDF files as desired. Entering text Template Select in the editable zone to add content or edit the existing text. Edit Item(s) selected Template Select in the editable zone to add content or edit the existing text.
  • Page 54 Preview Configure Template Name and Storage. Save Duration 23:59:59 Template Name Template01 Template preview is running. It will stop Storage Internal after 20 seconds. Save Cancel New town interior design Save Press the button to finish creating the content. Sustainble evolution unfolods tomorrw’s design Preview Preview the created template using the feature.
  • Page 55: Clone Product

    Clone Product Export the product settings to a USB device or load the settings via a USB device. This option is useful when assigning the same settings to several products. When USB does not contain a duplicate file → → ENTER E HOME Clone Product Clone Product...
  • Page 56: Id Settings

    ID Settings Assign an ID to a set. Press u/d to select a number, and press E. HOME → ID Settings → ENTER E Device ID Enter the ID number of the product connected to the input cable for input signal reception. (Range: 0~224) ―...
  • Page 57: Video Wall

    Customize the layout of multiple displays that are connected to form a video wall. Video Wall In addition, display part of a whole picture or repeat the same picture on each of the connected multiple displays. To display multiple images, refer to MDC Help or the MagicInfo user guide. Some models may not support the MagicInfo function.
  • Page 58: Network Status

    Format Select how to display images on the videowall display. • Full: Display images in full screen with no margin. • Natural: Display images in the original aspect ratio without enlarging or reducing the size. ― The Format option is only enabled when Video Wall is set to On.
  • Page 59: Picture Mode

    Colour Expert are applied. - To apply the Calibration mode properly, make sure you configure the picture quality settings, such as brightness, colour, gamma and uniformity, using the colour calibration programme Colour Expert . - To download the Colour Expert programme, visit www.samsung.com/displaysolutions.
  • Page 60: On/off Timer

    ― You must set the clock before you can use On/Off Timer On/Off Timer. On Timer → → ENTER E HOME On/Off Timer On Timer so that your product turns on automatically at a time and on a day of your choosing. The power is turned on with the specified volume or input source.
  • Page 61: Off Timer

    Off Timer Set the off timer (Off Timer) by making a selection from one of the seven options. (Off Timer 1 Off Timer • Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual. If you select Manual, you can choose the days you want Off Timer to turn off your product.
  • Page 62: Ticker

    Ticker Input text while a video or image is displayed and display the text on the screen. • • Message: Enter a message to display on the screen. HOME → Ticker → ENTER E • Time: Set the Start Time End Time to display a Message.
  • Page 63: Url Launcher

    URL Launcher For details on how to use the URL Launcher feature, contact the dealer the product was purchased from. ― To use the URL Launcher feature, set Play via URL Launcher in System. → → ENTER E HOME URL Launcher Change URL 12:00 URL Launcher...
  • Page 64: Screen Adjustment

    Colour Expert. · Tint (G/R) - To download the Colour Expert programme, visit www.samsung.com/displaysolutions. - The displayed image may differ depending on the model.
  • Page 65: Backlight / Contrast / Brightness / Sharpness / Colour / Tint (g/r)

    Backlight / Contrast / Brightness / Your product has several options for adjusting picture quality. Picture Mode Picture Mode settings Adjustable options Sharpness / Colour / Tint (G/R) Shops & Malls, Offices & Schools, Videos/Images Backlight Contrast Brightness Sharpness Terminals & Stations, Video Wall Colour...
  • Page 66: Colour Temperature

    Colour Temperature Adjust the colour temperature (Red / Green / Blue). (Range: 2800K–16000K) ― This option is available when Colour Tone is set to Off. ― If Picture Mode is set to Calibration, Colour Temperature is disabled. MENU m → Picture →...
  • Page 67: White Balance

    White Balance 2 Point Adjust the colour temperature for a more natural picture. MENU m → Picture → White Balance → ENTER E R-Offset G-Offset / B-Offset: Adjust each colour’s (red, green, blue) darkness. • R-Gain G-Gain / B-Gain: Adjust each colour’s (red, green, blue) brightness. •...
  • Page 68: Gamma

    Don't apply Apply • MENU m → Picture → Calibrated value → ENTER E ― To download the Colour Expert programme, visit www.samsung.com/displaysolutions. ― If Picture Mode is set to Calibration, Calibrated value is disabled. Picture Calibrated value - The displayed image may differ depending on the model.
  • Page 69: Advanced Settings

    Advanced Settings Picture Mode Picture Mode settings Adjustable options Shops & Malls, Offices & Schools, Videos/Images Dynamic Contrast Black Tone Flesh Tone Video Wall RGB Only Mode Colour Space MENU m → Picture → Advanced Settings → ENTER E Text Dynamic Contrast Black Tone Advanced Settings...
  • Page 70: Dynamic Contrast

    Dynamic Contrast Advanced Settings Adjust the screen contrast. Dynamic Contrast Medium Medium High • Black Tone Darker Black Tone Flesh Tone Select the black level to adjust the screen depth. RGB Only Mode Dark Darker Darkest • Colour Space Native Flesh Tone Motion Lighting Emphasize pink...
  • Page 71: Picture Options

    Picture Options Picture Mode Picture Mode settings Adjustable options Shops & Malls, Offices & Schools, Videos/Images Colour Tone Digital Clean View MPEG Terminals & Stations, Video Wall Noise Filter HDMI Black Level Film Mode MENU m → → → ENTER E Picture Picture Options Dynamic Backlight...
  • Page 72: Colour Tone

    Colour Tone Picture Options Picture Mode, is set to Text Colour Tone Cool Standard Warm • Picture Mode Videos/Images is set to Digital Clean View Cool Standard Warm1 Warm2 • MPEG Noise Filter ― If Picture Mode is set to Calibration, Colour Tone is disabled.
  • Page 73: Film Mode

    Film Mode Picture Options This mode is suitable to view movies. Colour Tone Sets the product to automatically sense and process film signals from all sources and adjust the picture for optimum quality. Auto1 Auto2 • Digital Clean View MPEG Noise Filter Dynamic Backlight HDMI Black Level Normal...
  • Page 74: Picture Size

    Picture Size choose size and aspect ratio picture displayed on screen. Picture Size MENU m → Picture → Picture Size → ENTER E ― Different screen adjustment options are displayed depending on the current input source. • 16:09: Sets the picture to 16:09 wide mode.
  • Page 75: Position

    Position Adjusts the picture position. Position is only available if Picture Size is set to Zoom1, Zoom2, Wide Fit, Screen Fit or Custom. ― To use the Position function after selecting Zoom1, Zoom2, Wide Fit, Screen Fit or Custom, follow these steps. Press the d button to select Position.
  • Page 76: Picture Off

    Picture Off Picture Off Selecting switches off the screen. The volume is not disabled. To switch the screen on, press any button other than the volume button. MENU m → Picture → Picture Off → ENTER E Picture Picture Off - The displayed image may differ depending on the model.
  • Page 77: Onscreen Display

    Chapter 07 OnScreen Display Display Orientation Onscreen Menu Orientation Configure the menu screen. MENUm → OnScreen Display → Display Orientation → ENTERE • Landscape: Display the menu in landscape mode (default). • Portrait: Display the menu in portrait mode on the right side of the product screen. Display Orientation Source Content Orientation Onscreen Menu Orientation...
  • Page 78: Screen Protection

    Screen Protection Auto Protection Time If the screen displays a still image for a certain period of time you define, the product activates the screen saver to prevent the formation of burnt in ghost images on the screen. MENUm → OnScreen Display →...
  • Page 79 Timer Screen Burn Protection Screen Burn Protection. You can set the timer for Pixel Shift Screen Burn Protection feature stops automatically after a specified period of time. Timer Timer Immediate display Repeat: Display the image retention-preventive pattern set in Mode at specified time intervals(Period).
  • Page 80: Immediate Display

    Immediate display Screen Burn Protection Select the screen saver you want to display immediately. Pixel Shift Pixel Rolling bar Fading screen • Timer Side Grey Immediate display When the screen is set to 4:3 aspect ratio, adjust the brightness of white margins on sides to protect the screen. Light Dark •...
  • Page 81: Message Display

    Message Display Source Info Select whether to display the source OSD when the input source changes. MENUm → OnScreen Display → Message Display → ENTERE • No Signal Message Message Display Select whether to display the no-signal OSD when no signal is detected. Source Info •...
  • Page 82: Menu Transparency

    Menu Transparency Adjust transparency of menu box. High Medium • MENU m → OnScreen Display → Menu Transparency → ENTER E OnScreen Display Menu Transparency Medium - The displayed image may differ depending on the model. Menu Language Set the menu language. ―...
  • Page 83: Reset Onscreen Display

    Reset OnScreen Display This option returns the current settings under OnScreen Display to the default factory settings. MENU m → OnScreen Display → Reset OnScreen Display → ENTER E OnScreen Display Reset OnScreen Display - The displayed image may differ depending on the model.
  • Page 84: Sound Adjustment

    Chapter 08 Sound Adjustment Sound Configure the sound ( ) settings for the product. Sound Mode Sound Output External Receiver • ― If there is no video signal, both the products speakers and the external speakers will be mute. MENU m → Sound →...
  • Page 85: Reset Sound

    Reset Sound The displayed image may differ depending on the model. Reset all sound settings to the factory defaults. MENU m → Sound → Reset Sound → ENTER E Sound Speaker Settings Reset Sound - The displayed image may differ depending on the model.
  • Page 86: Network

    Chapter 09 Network Network Status Network Settings MENU m → Network → Network Status → ENTER E MENU m → Network → Network Settings → ENTER E You can check the current network and Internet status. Configure network settings to use various smart hub features such as Internet search, content sharing through a home network and feature updates.
  • Page 87: Network Settings (wired)

    Network Settings (Wired) • Depending on how your network is configured, you may be able to attach your product to your LAN by connecting the LAN port on the back of your product directly to a network wall outlet using a LAN cable. Connecting to a Wired Network See the diagram below.
  • Page 88: Automatic Network Settings (wired)

    Set the network connection to use Internet services such as perform software upgrades. In the pop-up menu that appears, click Status. Automatic Network Settings (Wired) On the dialog that appears, click the Support tab. Connect to the network using a LAN cable. On the Support Tab, click the Details button.
  • Page 89: Multimedia Device Settings

    Multimedia Device Settings Device Name MENU m → Network → Multimedia Device Settings → ENTER E MENU m → Network → Device Name → ENTER E Allow other devices such as smart phones and tablets on your network, to share content with your Select or enter a device name.
  • Page 90: System

    Chapter 10 System Setup Initial settings (System) After powering on the product for the first time, configure basic settings such as the language, channel and time. MENU m → System → Setup → ENTER E Press the button. ― Enter your 4 digit PIN number. The default PIN number is “0-0-0-0". System Change PIN If you want to change the PIN number, use the...
  • Page 91 Clock Set Set the current date and time, and then select Next. Setup Complete Congratulations! Setup is complete and you're ready to get started.
  • Page 92: Time

    Time You can configure Clock Set Sleep Timer. You can also set the product to automatically turn on or off at a specified time Timer using the function. ― Press the INFO button if you want to view the current time. MENU m →...
  • Page 93: Auto Source Switching

    Auto Source Switching Turning on the display with Auto Source Switching On, and the previous video source selection is not active, the display will automatically search the different video input sources for active video. Auto Source Switching MENU m → →...
  • Page 94: Power Control

    Power Control Auto Power On This feature automatically turns on the product as soon as it is plugged in. Pressing the power button is not needed. MENU m → → → ENTER E System Power Control • Max. Power Saving Power Control Turns off the product to reduce power consumption after the PC has been left idle for a specified period of time.
  • Page 95: Eco Solution

    Eco Solution Brightness Limit Limit the screen's maximum backlight level. MENU m → → → ENTER E System Eco Solution • Off: allows you to use the maximum brightness available. • On: prevents the use of maximum brightness and saves energy. Eco Solution Energy Saving Brightness Limit...
  • Page 96: Screen Lamp Schedule

    Screen Lamp Schedule Eco Solution Screen Lamp Schedule Brightness Limit Enable or disable the lamp schedule. Energy Saving • Eco Sensor Schedule 1, Schedule 2 Screen Lamp Schedule No Signal Power Off Time Time The panel brightness will change to the brightness set in at a specified time.
  • Page 97: Fan And Temperature

    Fan and Temperature Protects the product by detecting the fan speed and internal temperature. Fan Control MENU m → → → ENTER E System Fan and Temperature Selects auto or manual for the fan speed settings. System Auto Manual • Fan Speed Setting Fan and Temperature Sets the fan speed within a range of 0 and 100.
  • Page 98: Device Manager

    Device Manager Configure options for external input devices connected to the product. Keyboard Settings MENU m → → → ENTER E System Device Manager Keyboard Settings Connecting a keyboard to the product displays the menu. Device Manager Select Keyboard Keyboard Settings Select a keyboard you want to use from the available connected keyboards.
  • Page 99: Mouse Settings

    Mouse Settings Device Manager Mouse Settings Connecting a mouse to the product displays the menu. Keyboard Settings Select Mouse Mouse Settings Configure mouse connection settings or options for connected mouse devices. Pointer Settings ― Among connected mouse devices, only one mouse can be used. Mouse Options ―...
  • Page 100: Pointer Settings

    Pointer Settings Device Manager Specify the pointer size, speed and shape. Keyboard Settings Pointer Size Mouse Settings Specify the pointer size. Pointer Settings Small Medium Large Extra Large • Pointer Speed Specify the pointer speed. A higher speed increases the pointer sensitivity. - The displayed image may differ depending on the model.
  • Page 101: Play Via

    Play via Select the appropriate Play via mode depending on the environment where you are using the product. The home screen may be different depending on the setting. MagicInfo URL Launcher • MENU m → System → Play via → ENTER E System Play via MagicInfo...
  • Page 102: General

    USB device automatically. BD Wise - The displayed image may differ depending on the model. Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support Wise. When Wise is turned On, the picture mode is automatically changed to the optimal resolution.
  • Page 103: Anynet+ (hdmi-cec)

    Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung BD Wise product remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.
  • Page 104: Auto Turn Off

    Auto Turn Off Anynet+ (HDMI-CEC) Anynet+ Setting an Device to turn automatically when the product is turned off. Anynet+ (HDMI-CEC) • ― If Auto Turn Off is set to Yes, running external devices will turn off at the same time as the product powers off. Auto Turn Off ―...
  • Page 105: Troubleshooting For Anynet

    Troubleshooting for Anynet+ Problem Possible Solution Anynet+ does not work. • Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. • Check if the Anynet+ device power cord is properly connected. • Check the Anynet+ device’s Video/Audio/HDMI cable connections. •...
  • Page 106 Problem Possible Solution The connected device is not • Check whether or not the device supports Anynet+ functions. displayed. • Check whether or not the HDMI cable is properly connected. Anynet+ (HDMI-CEC) System • Check whether is set to in the menu.
  • Page 107: Hdmi Hot Plug

    HDMI Hot Plug General This feature is used to activate the time delay to turn on a DVI/HDMI source device. Security • BD Wise DivX® Video On Demand Anynet+ (HDMI-CEC) Shows the registration code authorized for the product. HDMI Hot Plug If you connect to the DivXⓇ...
  • Page 108: Reset System

    Reset System This option returns the current settings under system to the default factory settings. MENU m → System → Reset System → ENTER E System Reset System - The displayed image may differ depending on the model.
  • Page 109: Support

    Version: This is the software version already installed in the product. Update the software to the latest version. Auto update This feature automatically updates the product when not in use. • Contact Samsung MENU m → Support → Contact Samsung → ENTER E View this information when your product does not work properly or when you want to upgrade the software.
  • Page 110: Go To Home

    Go to Home Go to Home to play a variety of content from a memory device or a connected network. Player Accessible using the HOME button on the remote control. Search or play channels or content saved on devices. MENU m → Support →...
  • Page 111: Video Wall

    Video Wall Customize the layout of multiple displays that are connected to form a video wall. In addition, display part of a whole picture or repeat the same picture on each of the connected multiple displays. To display multiple images, refer to MDC Help or the MagicInfo user guide. Some models may not support the MagicInfo function. Network Status Check the current network and Internet connection.
  • Page 112: Reset All

    Reset All This option returns all the current settings for a display to the default factory settings. MENU m → Support → Reset All → ENTER E Support Reset All - The displayed image may differ depending on the model.
  • Page 113: Playing Photos, Videos And Music (media Play)

    • Before connecting a USB device to the product, back up files to ensure your data is not damaged or lost. Samsung Electronics is not liable for any damage or loss of data. • Do not remove a USB device while it is loading.
  • Page 114: Compatible Devices With Media Play

    Compatible devices with media play • Some USB digital cameras, smartphones and audio devices may not be compatible with the product. • Media play is only compatible with USB MSC devices. • MSC device refers to a Mass Storage Class Bulk-Only Transport device. Examples of MSC devices include Thumb drives, Flash card readers and USB HDDs.
  • Page 115: Using A Usb Device

    Using a USB device Connecting a USB device Turn on your product. Connect a USB device containing photo, music and/or movie files to the USB port on the back or side panel of the product. Player page automatically appears as soon as a USB device connects to the product. ―...
  • Page 116: Playing Media Content From A Pc/mobile Device

    Playing media content from a PC/mobile device Approving a PC/mobile device connection Play photos, videos or music saved on a PC or mobile device. To play media content from a PC or mobile device on the product, the connection with the PC or mobile device must be approved. ―...
  • Page 117: Features Provided In The Media Content List Page

    Play content saved on a device connected to a home network. ― Playing media content using a non-Samsung DLNA server may result in a compatibility issue. ― Playback of some media content shared with a PC or mobile device may not be possible depending on the content encoding type or the content file format. Some functions may not be available.
  • Page 118: Menu Items In The Media Content List Page

    Menu items in the media content list page Option Name Operations Photos Videos Music Slide Show Start a slideshow. ― This menu item is not available if Sort by is set to Folder. Encoding Select an encoding language if the title of media content appears corrupted. Rename Playlist Rename a playlist.
  • Page 119: Available Buttons And Features During Photo Playback

    Available buttons and features during photo playback Pressing the E or TOOLS button displays the following buttons. The RETURN button makes the buttons disappear. Pause Play • Start or stop a slideshow. Using a slideshow, it is possible to play all photos in a folder. Previous Next •...
  • Page 120: Available Buttons And Features During Video Playback

    Available buttons and features Option Name Operations during video playback Select Scene Thumbnails: Select a scene and play the video from the scene. ― Thumbnails is not available if 1) the thumbnail of the video is not extracted yet, 2) the video contains audio only or 3) the video play time is shorter than 60 seconds.
  • Page 121: Available Buttons And Features During Music Playback

    Available buttons and features during music playback Pressing the E or TOOLS button displays the following buttons. The RETURN button makes the buttons disappear. Pause Play • Pause or play music. Rewind Fast Forward • Rewind or fast forward music. Speed up playback up to 3x, if required. To play the previous music file, select ∂ twice. Previous Next •...
  • Page 122: Supported Subtitle And Media Play File Formats

    Supported Subtitle and Media play file formats Subtitle External Internal • MPEG-4 timed text (.ttxt) • Xsub Container: AVI • SAMI (.smi) • SubStation Alpha • SubRip (.srt) Container: MKV • SubViewer (.sub) • Advanced SubStation Alpha • Micro DVD (.sub or .txt) Container: MKV •...
  • Page 123: Supported Music File Formats

    Supported music file formats File Extension Type Codec Comments *.mp3 MPEG MPEG1 Audio Layer 3 *.m4a, *.mpa, *.aac, *.3ga MPEG4 *.flac FLAC FLAC The Seek (jump) function is not supported. Supports up to 2 channel Supported Video Formats • Video content will not play, or not play correctly, if there is an error in the content or the container. •...
  • Page 124 File Container Video Codec Resolution Frame rate Bit rate Audio Codec Extension (fps) (Mbps) *.avi DivX 3.11 / 4.x / 5.x / 6.x 1920 x 1080 6~30 *.mkv LPCM *.asf ADMPCM MPEG4 SP / ASP *.wmv (IMA, MS) *.mp4 *.mov HE-AAC H.264 BP / MP / HP *.3gp...
  • Page 125: Troubleshooting Guide

    Chapter 13 Troubleshooting Guide Requirements Before Contacting Samsung Customer Service Centre Before calling Samsung Customer Service Testing the Product Centre, test your product as follows. If the problem persists, contact Samsung Check if your product is operating normally by using the product test function.
  • Page 126: Check The Followings

    Check the followings. Installation issue (PC mode) The screen keeps switching on and off. Check the cable connection between the product and PC, and ensure the connection is secure. Blank spaces are found on all four sides of the screen when The blank spaces found on the screen have nothing to do with the product.
  • Page 127 Screen issue The screen is not clear. The screen is blurry. Adjust Coarse and Fine. Remove any accessories (video extension cable, etc) and try again. Set the resolution and frequency to the recommended level. The screen appears unstable and shaky. Check that the resolution and frequency of the PC and graphics card are set within a range compatible with the product.
  • Page 128 Lines (red, green or blue) are displayed on the screen. These lines are displayed when there is a defect in DATA SOURCE DRIVER IC on the monitor. Contact a Samsung Service Centre to resolve the issue. The display looks unstable and then freezes.
  • Page 129 Sound issue The volume is too low. Adjust the volume. If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software programme. Video is available but there is no sound. If an HDMI cable is connected, check the audio output settings on the PC.
  • Page 130 Remote control issue The remote control does not work. Make sure that the batteries are correctly in place (+/-). Check if the batteries are flat. Check for power failure. Make sure that the power cord is connected. Check for any special lighting or neon signs switched on in the vicinity. Source device issue A beeping sound is heard when my PC is booting.
  • Page 131 Other issue The product smells like plastic. The plastic smell is normal and disappears over time. The monitor appears tilted. Remove and then attach the stand again to the product. Audio or video cuts out intermittently. Check the cable connection and connect it again if required. Using a very hard or thick cable may corrupt audio and video files.
  • Page 132: Q & A

    Q & A Question Answer How can I change the frequency? Set the frequency on your graphics card. • Windows XP: Go to Control Panel → Appearance and Themes → Display → Settings → Advanced → Monitor and adjust the frequency in Monitor Settings. •...
  • Page 133 Question Answer • Windows XP: Set power-saving mode in Control Panel → Appearance and Themes → Display How do I set powersaving mode? → Screen Saver Settings or BIOS SETUP on the PC. • Windows ME/2000: Set power-saving mode in Control Panel → Display → Screen Saver Settings or BIOS SETUP on the PC.
  • Page 134: Specifications

    Chapter 14 Specifications General - Size Model Name OH46D OH55D Panel Size 46 CLASS (46 inches / 116 cm) 55 CLASS (55 inches / 138 cm) Display area 1019.2 mm (H) x 573.8 mm (V) 1210.6 mm (H) x 681.4 mm (V) 40.1 inches (H) x 22.6 inches (V)
  • Page 135 Model Name OH46D OH55D Power Supply AC 100 to 240 VAC (+/- 10%), 60 / 50Hz ± 3Hz Refer to the label at the back of the product as the standard voltage can vary in different countries. Environmental Operating Temperature : -22 F - 122 F (-30 C - 50 C)
  • Page 136: Powersaver

    PowerSaver Normal Operation Power saving mode Power off (In PC mode) Rating Typical Power Indicator Blinking Power Consumption OH46D 600 W 205 W 600 W Less than 0.5 W Less than 0.5 W OH55D 650 W 290 W 650 W ―...
  • Page 137: Preset Timing Modes

    ― Check the frequency when you exchange a CDT product (connected to a PC) for an LCD product. If the LCD product does not support 85Hz, change the vertical frequency to 60Hz using the CDT product before you exchange it with the LCD product. Model Name OH46D / OH55D Synchronization Horizontal Frequency 30 –...
  • Page 138 Resolution Horizontal Frequency Vertical Frequency Pixel Clock Sync Polarity (kHz) (Hz) (MHz) (H/V) VESA DMT, 640 x 480 37.500 75.000 31.500 VESA, 800 x 600 35.156 56.250 36.000 VESA DMT, 800 x 600 37.879 60.317 40.000 VESA DMT, 800 x 600 48.077 72.188 50.000...
  • Page 139: Appendix

    ― When the service is requested, in spite of in warranty, we may charge you for a visit from a service • Use of supplies or separatly sold product unspecified by Samsung. technician in the following cases. • Repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Ltd. Not a product defect •...
  • Page 140: Weee

    WEEE Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
  • Page 141: Optimum Picture Quality And Afterimage Burn-in Prevention

    Optimum Picture Quality and Afterimage Black Matrix Colour-Filter Common Electrode (ITO) Burn-in Prevention Optimum Picture Quality Source Drain • Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the panel. This does not affect product performance. - The number of sub-pixels by panel type: 6,220,800 •...
  • Page 142 Preventing afterimage burn-in • Regular Text colour Change - Use bright colours of similar brightness. ― The best way to protect the product from afterimage burn-in is switching the power off or setting the Interval: Change text colour and background colour every 30 minutes PC or system to run a screen saver when not in use.
  • Page 143: Licence

    The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in For information on the Open Source Licence Notice, contact the Samsung Customer Centre or send the United States and other countries.
  • Page 144: Terminology

    Terminology 480i / 480p / 720p / 1080i / Non-interlace Mode and Interlace Vertical Frequency____ The product Plug & Play____ Plug & Play is a DVD (Digital Versatile Disc)____ DVD 1080p____ Each of the scanning Mode____ Non-interlace mode displays a single image many times function that allows the automatic refers to a CD-sized mass storage disk rates above refers to the number of...

This manual is also suitable for:

Oh55d

Comments to this Manuals

Symbols: 0
Latest comments:
