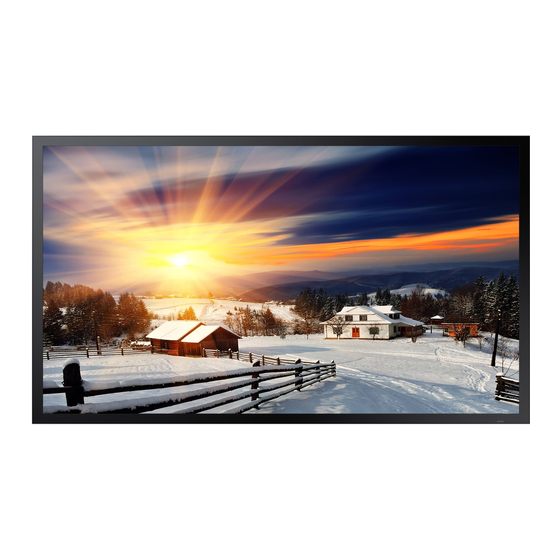

Samsung OH46F Installation Manual

Hide thumbs Also See for OH46F:

Advertisement

Outdoor Installation Guide
OH46F OH55F OH75F OH85F
Follow the instructions provided in this guide when installing the product.
Samsung will not provide warranty coverage for problems that may arise as a result of failure to
follow the guide.
The color and shape of the product may vary. In addition, instructions in the installation guide
may change without prior notice when necessary to improve the product.
© Samsung Electronics
Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks other than Samsung Electronics are
property of their respective owners.

Advertisement

Table of Contents
loading

Summary of Contents for Samsung OH46F

  • Page 1 © Samsung Electronics Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks other than Samsung Electronics are property of their respective owners.
  • Page 2: Table Of Contents

    Table of contents Enclosure unit design guide Installation requirements Handling guide Surrounding environment Air flow direction Moving by crane Rotation and tilt angle Enclosure unit partition design Partition design guide Installing the wall-mount Partitions when installing with an optional Installing the wall-mount brackets Cleaning and cautions media player Wall-mount standard (VESA)
  • Page 3: Enclosure Unit Design Guide

    The outdoor unit uses cooling fans to take in outside air to lower the internal temperature and discharge the hot air. " When installing an outdoor unit, remove any obstacles near the air inlet and outlet that may affect air flow. OH46F/OH55F OH75F/OH85F...
  • Page 4: Enclosure Unit Partition Design

    For outdoor units, add partitions between the inlet and outlet inside the enclosure unit to keep air paths separated. • Partitions should fit perfectly inside the enclosure unit, with no gap between the outdoor unit and enclosure unit. If there is a gap, use a foam tape to fill it. OH46F/OH55F OH75F/OH85F Foam tape...
  • Page 5: Partitions When Installing With An Optional Media Player

    Partitions when installing with an optional media player To install an optional media player with the outdoor unit, use partitions to isolate the player. " There should be no gap between the media player and outdoor unit; only allow cables through the partition. "...
  • Page 6: Inlet And Outlet Types

    Inlet and outlet types Opening size and ratio The opening size for air inlet and outlet should be minimum 50%. Follow the guide when combining the outdoor unit with the enclosure unit. Air inlet and outlet should be grid or mesh types. "...
  • Page 7: Single Enclosure Unit

    Single enclosure unit Design the outdoor unit according to the following specifications to keep discharged hot air Example 1 from flowing back into the inlet. OH46F/OH55F • Air inlet( Opening size: 53000 mm⁲ or more Opening ratio (% of total opening): 50 % or more •...
  • Page 8 OH75F/OH85F • Air inlet( Opening size: 142000 mm⁲ or more Opening ratio (% of total opening): 50 % or more • Air outlet( Opening size: 57000 mm⁲ or more Opening ratio (% of total opening): 50 % or more " Design the locations of the enclosure unit inlet and outlet to match the locations of the outdoor unit inlet and outlet.
  • Page 9: 1 X N One-Side Enclosure Unit

    1 x N one-side enclosure unit When designing the 1 x N one-side enclosure unit, add partitions between the products to keep the air paths separated. " Refer to the 'Opening size and ratio’ . (Page " Make sure there is no gap between the partitions and the enclosure unit. Product 3 Product 2 Product 1...
  • Page 10: Double-Sided Enclosure Unit

    Design your outdoor unit to keep discharged hot air from flowing back into the inlet. Example 1 " When designing the double-sided enclosure units, position the inlet on the side. " Outlet can be on the top/bottom or on the side. OH46F/OH55F • Clearance between outdoor units ( ): 100 mm or more •...
  • Page 11: Installation Requirements

    Chapter 02 Installation requirements Surrounding environment • When installed in places such as a ski resort, fans may not operate if the inlet is blocked by • The product can be used in a train or subway station. a pile of snow. Install a cover to avoid snow piling directly onto the inlet. The outdoor unit is designed to keep out iron dust.
  • Page 12: Rotation And Tilt Angle

    Rotation and tilt angle • The outdoor unit can be installed in Landscape or Portrait orientations. • The outdoor unit can be installed in a tilted position on a vertical wall or an obstacle, up to 15°. Wall or obstacle Landscape Portrait 50 mm or more...
  • Page 13: Installing The Wall-Mount

    To use a VESA compatible wall-mount, you must first install the appropriate brackets. • If you have any questions regarding wall-mount brackets, please contact your provider or the Samsung Electronics Service Center. Remove the bolts ( ) from the product.
  • Page 14: Wall-Mount Standard (Vesa)

    " For more information about wall mounting, refer to the user guide enclosed with the wall-mount parts. " Installation of the wall-mount must be performed by a technician. " Samsung is not responsible for any damage or injury caused to the product, you or other people by installing the product without expert help. VESA hole...
  • Page 15: Clearance For Wall Mounting

    Installing the outdoor unit only • When installing close to the wall, maintain a sufficient clearance in order to secure air flow. • Clearance for OH46F/OH55F ( ): 50 mm or more • Clearance for OH75F/OH85F ( – Example 1) Exposure to direct sunlight: 200 mm or more –...
  • Page 16: Installing With Enclosure Unit

    When installing an enclosure unit close to the wall, maintain the clearance in order to secure air flow. Consult your provider for detailed requirements before installing the product. Excessive heat due to the use of the enclosure unit with an obstacle or a wall may cause a malfunction or a problem with the product. • Clearance for OH46F/OH55F ( ): 100 mm or more •...
  • Page 17: Clearance For Built-In Installation

    • When installing built-in to the wall, maintain the clearance from the back, top, bottom, and sides of the product in order to secure air flow. • Clearance for OH46F/OH55F ( ): 50 mm or more • Clearance for OH75F/OH85F ( –...
  • Page 18: Handling Guide

    Chapter 03 Handling guide Supported models: OH75F, OH85F Moving by crane Use the crane to move the product. When the product has been brought to the Place Cover-Caps in the holes on the top To use a crane, attach Bracket-Hang ( installation site, unfasten and remove the and sides.
  • Page 19: Cleaning And Cautions

    Chapter 04 Cleaning and cautions Cleaning Cleaning the protection glass Cleaning the inlet and outlet Use water and a dry cloth to clean the protection glass. Use a brush to remove any debris from the inlet and outlet opening. Wipe with a clean wet cloth. "...
  • Page 20: Precautions

    Route cables connected to the outdoor unit in a manner that keeps them away from water. • When installing the 1 x N one-sided enclosure unit, route cables away from the inlet and outlet. " Use the provided Samsung power cable only. Media Player...
  • Page 21: Cautions When Connecting Cables

    Cautions when connecting cables • Remove the appropriate silicon bar before connecting cables. • After complete cabling, ensure that there is no gap between the set panel and the silicon – 7 Ø hole: For inserting 7-7.5 Ø cables covers. –...
  • Page 22: Cautions When Replacing Parts

    Cautions when replacing parts • The outdoor unit is designed to resist water and dust. Do not disassemble the product. " If disassembly is necessary due to a malfunction, contact the service center.
