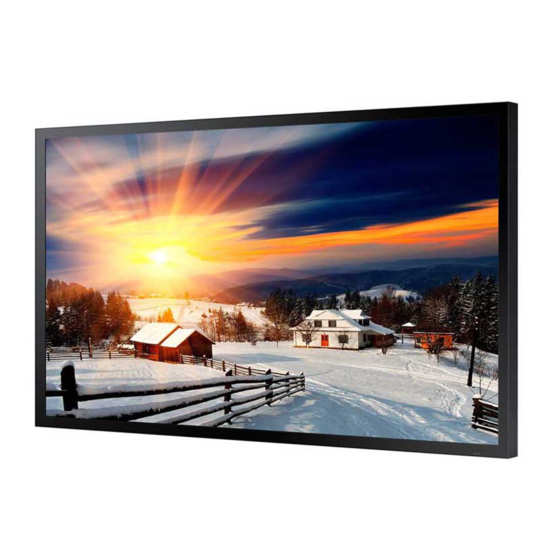

Samsung OH55F Installation Manual

Samsung OH55F Installation Manual

Hide thumbs Also See for OH55F:

Advertisement

Outdoor Installation Guide
OH46F OH55A OH55F OH75A OH75F OH85F
Follow the instructions provided in this guide when installing the product.
Samsung will not provide warranty coverage for problems that may arise as a result of failure to
follow the guide.
The color and shape of the product may vary. In addition, instructions in the installation guide
may change without prior notice when necessary to improve the product.
2021.12
© Samsung Electronics
Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks other than Samsung Electronics are
property of their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OH55F and is the answer not in the manual?

Questions and answers

Summary of Contents for Samsung OH55F

  • Page 1 © Samsung Electronics Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks other than Samsung Electronics are property of their respective owners.
  • Page 2 Notice 1. When installing signage, Samsung Electronics recommends that Signage is installed by itself, without an enclosure. 2. When installing signage with an enclosure, it requires the enclosure review process by engineering team in Samsung Electronics.
  • Page 3: Table Of Contents

    Table of contents Enclosure unit design guide Installation requirements Handling guide Air flow direction Surrounding environment Moving by crane Enclosure unit partition design Rotation and tilt angle Partition design guide Installing the wall-mount Partitions when installing with an optional Cleaning and cautions The mount hole depth media player Installing the wall-mount brackets...
  • Page 4: Enclosure Unit Design Guide

    The outdoor unit uses cooling fans to take in outside air to lower the internal temperature and discharge the hot air. " When installing an outdoor unit, remove any obstacles near the air inlet and outlet that may affect air flow. OH46F/OH55A/OH55F OH75A/OH75F/OH85F...
  • Page 5: Enclosure Unit Partition Design

    For outdoor units, add partitions between the inlet and outlet inside the enclosure unit to keep air paths separated. • Partitions should fit perfectly inside the enclosure unit, with no gap between the outdoor unit and enclosure unit. If there is a gap, use a foam tape to fill it. OH46F/OH55A/OH55F OH75A/OH75F/OH85F Foam tape...
  • Page 6: Partitions When Installing With An Optional Media Player

    Partitions when installing with an optional media player To install an optional media player with the outdoor unit, use partitions to isolate the player. " There should be no gap between the media player and outdoor unit; only allow cables through the partition. "...
  • Page 7: Inlet And Outlet Types

    Inlet and outlet types Total open area of the ventilation holes and ratio Ventilation opening ratio for air inlet and outlet should be minimum 50%. Air inlet and outlet should be grid or mesh types. Follow the guide when combining the outdoor unit with the enclosure unit. "...
  • Page 8: Single Enclosure Unit

    Single enclosure unit Design the outdoor unit according to the following specifications to keep discharged hot air from flowing back Example 1 into the inlet. OH46F/OH55A/OH55F • Air inlet( Total open area of the ventilation holes: 53000 mm⁲ or more Ventilation opening ratio (% of total opening): 50 % or more •...
  • Page 9 OH75A/OH75F/OH85F • Air inlet( Total open area of the ventilation holes: 63000 mm⁲ or more Ventilation opening ratio (% of total opening): 50 % or more • Air outlet( Total open area of the ventilation holes: 57000 mm⁲ or more Ventilation opening ratio (% of total opening): 50 % or more "...
  • Page 10: 1 X N One-Side Enclosure Unit

    1 x N one-side enclosure unit When designing the 1 x N one-side enclosure unit, add partitions between the products to keep the air paths separated. " Refer to the 'Total open area of the ventilation holes and ratio’ . (Page "...
  • Page 11: Double-Sided Enclosure Unit

    Example 1 " When designing double-sided enclosure units, position the inlet on the top or to the side. " Outlet can be on the top/bottom or on the side. OH46F/OH55A/OH55F • Clearance between outdoor units ( ): 100 mm or more •...
  • Page 12 OH75A/OH75F/OH85F Example 1 At least 400 mm of clearance • Clearance ( ): 400 mm or more between products • Air inlet ( Total open area of the ventilation holes: 126000 mm⁲ or more Ventilation opening ratio (% of total opening): 50 % or more •...
  • Page 13: Precautions For Enclosure Unit Designing

    If the product temperature increases due to high outside temperature or the environment in which the product is installed, the luminance decreases for product overheating mitigation and accident prevention. • Applying tempered glass on the front side of the display is prohibited. OH46F/OH55A/OH55F Landscape Portrait OH75A/OH75F/OH85F IR Remote Sensor/Eco Sensor...
  • Page 14: Installation Requirements

    Chapter 02 Installation requirements Surrounding environment • When installed in places such as a ski resort, fans may not operate if the inlet is blocked by • The product can be used in a train or subway station. a pile of snow. Install a cover to avoid snow piling directly onto the inlet The outdoor unit is designed to keep out iron dust.
  • Page 15 • When installed on beach area, make sure the display is placed where seawater is not accessible. " Ensure the display unit installed location is within safe distance from the possible contact from rising seawater due to strong winds due to storm or other natural phenomenon.
  • Page 16: Rotation And Tilt Angle

    The outdoor unit can be installed in Landscape or Portrait orientations. • The outdoor unit can be installed in a tilted position on a vertical wall or an Wall or Wall or obstacle obstacle obstacle, up to 15°. OH46F/OH55F/OH55A OH75A/OH75F/OH85F Portrait Landscape Back Landscape Portrait Back...
  • Page 17: Installing The Wall-Mount

    To use a VESA compatible wall-mount, you must first install the appropriate brackets. • If you have any questions regarding wall-mount brackets, please contact your provider or the Samsung Electronics Service Center. Remove the bolts ( ) from the product.
  • Page 18: Wall-Mount Standard (Vesa)

    " For more information about wall mounting, refer to the user guide enclosed with the wall-mount parts. " Installation of the wall-mount must be performed by a technician. " Samsung is not responsible for any damage or injury caused to the product, you or other people by installing the product without expert help. VESA hole...
  • Page 19: Clearance For Wall Mounting

    • When installing close to the wall, maintain a sufficient clearance in order to secure air flow. 50 mm • Clearance for OH46F/OH55A/OH55F ( ): 50 mm or more • Clearance for OH75A/OH75F/OH85F ( – Example 1) Exposure to direct sunlight: 200 mm or more –...
  • Page 20: Installing With Enclosure Unit

    When installing an enclosure unit close to the wall, maintain the clearance in order to secure air flow. Consult your provider for detailed requirements before installing the product. Excessive heat due to the use of the enclosure unit with an obstacle or a wall may cause a malfunction or a problem with the product. • Clearance for OH46F/OH55A/OH55F ( ): 100 mm or more •...
  • Page 21: Clearance For Built-In Installation

    • When installing built-in to the wall, maintain the clearance from the back, top, bottom, and sides of the product in order to secure air flow. • Clearance for OH46F/OH55A/OH55F ( ): 50 mm or more • Clearance for OH75A/OH75F/OH85F ( –...
  • Page 22: Handling Guide

    Chapter 03 Handling guide Supported models: OH75A/OH75F/OH85F Moving by crane Use the crane to move the product. When the product has been brought to the Place Cover-Caps in the holes on the top To use a crane, attach Bracket-Hang ( to the top and the sides of the product, and installation site, unfasten and remove the and sides.
  • Page 23: Cleaning And Cautions

    Chapter 04 Cleaning and cautions Cleaning Cleaning the protection glass Cleaning the inlet and outlet • (areas except the Magic-Glass): Use a clean, soft cloth dampened with water to wipe off Use a brush to remove any debris from the inlet and outlet opening. the surface.
  • Page 24: Cleaning The Inlet And Outlet

    Cleaning the inlet and outlet Use a brush to remove any debris from the inlet and outlet opening. " To remove tough stains, wipe using a cloth with a small amount of ethanol based cleaner. " If washing with water, keep the pressure below 0.5 bar. Check once every 6 months and clean the inlet and outlet if they are covered/blocked by dust and other materials (more than 20 %).
  • Page 25: Heat Exchanger Cleaning/Maintenance

    At dusty areas such as bus stops or subway stations, it is recommended to clean the display every month. • Samsung outdoor display is designed to be cool down mostly with air ventilation. Check if the cooling fan of the display operates properly on every visit for inspection.
  • Page 26: Precautions

    Route cables connected to the outdoor unit in a manner that keeps them away from water. • When installing the 1 x N one-sided enclosure unit, route cables away from the inlet and outlet. " Use the provided Samsung power cable only. Media Player...
  • Page 27: Cautions When Connecting Cables

    Cautions when connecting cables • Remove the appropriate silicon bar before connecting cables. • After complete cabling, ensure that there is no gap between the set panel and the silicon – 7 Ø hole: For inserting 7-7.5 Ø cables covers. –...
  • Page 28: Cautions When Replacing Parts

    Cautions when replacing parts • The outdoor unit is designed to resist water and dust. Do not disassemble the product. " If disassembly is necessary due to a malfunction, contact the service center.
