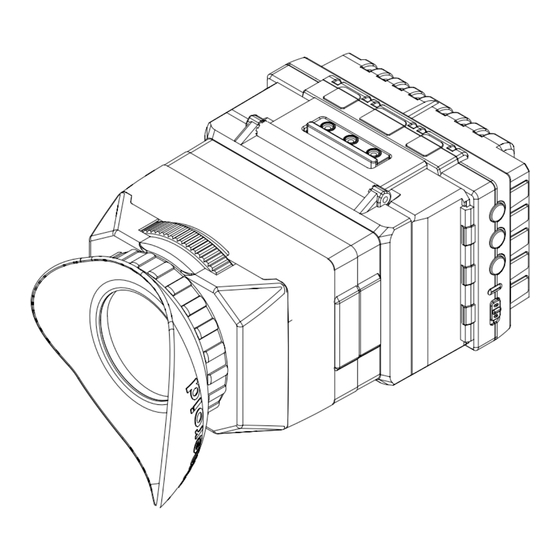

- Page 1 User’s Manual ELECTRONIC VIEW FINDER...
-
Page 2: Safety Precautions
Thank you for purchasing the Cineroid EVF. The Cineroid EVF (hereafter referred to as “EVF") is a view finder that can be mounted on any video camera with a HDMI output signal. Please thoroughly read the user manual for best operation and understanding of all of the functions of the EVF. -
Page 3: Safety Precautions
ELECTRONIC VIEW FINDER Safety Precautions Please observe the following safety precautions as they are meant for the safe and proper use of the product to reduce the risk of accidents. Upon reading the user manual, keep it in a safe and available place. ◎... -
Page 4: Table Of Contents
ELECTRONIC VIEW FINDER Table of Contents Safety Precautions Table of Contents Configuration Parts Before Using the EVF Openable Optical Loupe Detachable Optical Loupe Adjusting the Diopter Extendable Loupe Installing the Battery Connecting External Power Connecting a HDMI Cable Power On/Off Basic Features Operating the Menu Adjusting Color... - Page 5 ELECTRONIC VIEW FINDER Shooting Features Peaking Pixel to Pixel Clip guide False color Monochrome Look up table Freeze Over Scaling Underscan Crop Guide Center Marker Anamorphic Screen Flip Setting User Controls Custom Button Functions Firmware Upgrade Custom Display Settings Parameter Save And Restore Product Specifications Optional Products MEMO...
-
Page 6: Configuration
ELECTRONIC VIEW FINDER Components Please ensure all parts are present after opening the box. A. LCD VF + Optical Loupe B. Extention tube C. User's manual EVF4C... -
Page 7: Parts
ELECTRONIC VIEW FINDER Parts Diopter Adjuster Loupe Latch Menu Buttons Power Switch Lens Feature Buttons DC in HDMI In USB Port HDMI Out 1/4” Screw Mount Loupe Flip-up Latch Eye Cup 3.2 Inch LCD Screen EVF4C... -
Page 8: Before Using The Evf
ELECTRONIC VIEW FINDER Before Using the EVF Openable Optical Loupe The optical loupe attached to the EVF body can be flipped open 180 degrees. Detachable Optical Loupe The optical loupe attached to the EVF body can be detached completely. EVF4C... -
Page 9: Adjusting The Diopter
ELECTRONIC VIEW FINDER Before Using the EVF Adjusting the Diopter When viewing through the optical loupe, the user can adjust the diopter accordingly. Rotate the dial in either direction until the image becomes clear. Extendable Loupe / Connecting Extention Tube The optical loupe can be splitted. -
Page 10: Installing The Battery
ELECTRONIC VIEW FINDER Before Using the EVF Installing the Battery The Cineroid EVF uses Canon LP-E6 battery. The battery or the connectors may be damaged if not aligned properly. Connecting External Power 6-17V DC in Proper voltage for external power is 6-17V. -
Page 11: Connecting A Hdmi Cable
ELECTRONIC VIEW FINDER Before Using the EVF Connecting a HDMI Cable First connect the HDMI cable to a camera, and then connect the other end into the HDMI IN connection on the EVF. Check whether the image on the LCD is correctly displaying the image on the camera. -
Page 12: Basic Features
ELECTRONIC VIEW FINDER Basic Features Operating the Menu 1. Access the setting and features by pressing the menu button on the right side of the EVF. 2. Press the M button to select the main menu. When not in the menu, you can adjust the speaker volume by pressing the up and down arrow keys. -
Page 13: Adjusting Color
ELECTRONIC VIEW FINDER Basic Features Adjusting Color Menu : Setting2 - Color Adjust Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Color Adjust ▶ Red Gain[1~100] Color Adjust ▶ Screen Adjust ▶ Red Offset[1~100] Screen Adjust ▶... -
Page 14: Shooting Features
ELECTRONIC VIEW FINDER Shooting Features Peaking On/Off : Menu - Control1 - Peaking Setting : Menu - Setting1 - Peaking Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Peaking Peaking ▶ Mode Sharpen Pixel to Pixel Clip Guide ▶... -
Page 15: Pixel To Pixel
ELECTRONIC VIEW FINDER Shooting Features Pixel to pixel On/Off : Menu - Control1 - Pixel to Pixel Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Peaking Peaking Pixel to Pixel Pixel to Pixel Clip Guide Clip Guide False Color 1 False Color 1 False Color 2... -
Page 16: False Color
ELECTRONIC VIEW FINDER Shooting Features False Color On/Off : Menu - Control1 - False Color1 or False Color 2 Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Peaking Peaking Pixel to Pixel Pixel to Pixel Clip Guide Clip Guide False Color 1 False Color 1... -
Page 17: Look Up Table
ELECTRONIC VIEW FINDER Shooting Features Look up table On/Off : Menu - Control1 - Look up table Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Peaking Peaking Pixel to Pixel Pixel to Pixel Clip Guide Clip Guide False Color 1 False Color 1 False Color 2... -
Page 18: Over Scaling
ELECTRONIC VIEW FINDER Shooting Features Over Scaling On/Off : Menu - Control2 - Over Scaling Setting : Menu - Setting1 - Over Scaling Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Over Scaling Peaking ▶ ▶ Under Scan Clip Guide ▶... -
Page 19: Crop Guide
ELECTRONIC VIEW FINDER Shooting Features Crop guide On/Off : Menu - Control2 - Crop Guide Setting : Menu - Setting1 - Crop Guide Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Over Scaling Peaking ▶ Under Scan Clip Guide ▶... -
Page 20: Anamorphic
ELECTRONIC VIEW FINDER Shooting Features Anamorphic On/Off : Menu - Control2 - Anamorphic Setting : Menu - Setting1 - Anamorphic Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Over Scaling Peaking ▶ Under Scan Clip Guide ▶... -
Page 21: Setting User Controls
ELECTRONIC VIEW FINDER Setting User Controls Custom Button Functions Setting : Menu - Setting2 - Key Allocation The left side of the EVF body contains the buttons PK, F1, F2, F3. The factory default for these buttons are peaking (PK), Pixel to Pixel (F1), False Color 1 (F2), and Clip Guide (F3). Each button can be customized to a particular feature by selecting CUSTOM SETUP on the main menu. -
Page 22: Custom Display Settings
ELECTRONIC VIEW FINDER Setting User Controls Custom Display Settings Setting : Menu - Setting1 - Anamorphic You can select to view the current state of the battery usage, volume, etc. on the LCD. Control1 Control2 Setting1 Setting2 System Exit Color Adjust ▶... -
Page 23: Product Specifications
ELECTRONIC VIEW FINDER Product Specifications Model EVF4C input HDMI output Size Resolution Color Viewing angle Display area Phone Jack Audio out Internal speaker Battery Power External -10ºC to 70ºC Operating Temperature Storage Temperature -20ºC to 70ºC Power consumption 3.5W (3hours with LP-E6 battery) Optional Product O External Power Adapter DC plug with D-tap... -
Page 24: Optional Products
Mini ball head MBH-P Rein force d plastic Metal Mini ball head MBH-M O Soft Eyecup Cover ECO : Orange color For Cineroid EVF & Others ECR : Red color 119 x 86 x 8.5(mm) ECB : Blue color EVF4C... - Page 25 ELECTRONIC VIEW FINDER Optional Products O HDMI Cable Model Length Plug form EVF4C...
-
Page 26: Memo
ELECTRONIC VIEW FINDER MEMO EVF4C... - Page 27 ELECTRONIC VIEW FINDER MEMO EVF4C...
- Page 28 We will strive to create the best products and provide superb service. Customer Support Center Seculine Co., LTD. Tel +82.70.4347.4901 / Fax +82.2.850.3027 Rm.510, Kolon Science Valley #2, Guro-dong, 811, Guro-gu, Seoul, 152-728, Korea Homepage www.cineroid.com E-mail sales@secu-line.com EVF1.0 Printed in Korea...
