Cineroid LM200 User Manual

Cineroid on camera led light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LM200
ON CAMERA LED LIGHT
Variable Color Temperature
High Power LED Light Source
Dimming Brightness 30 steps
Attachable Battery
Connecting External Power
User's Manual
Support for variety Accessories

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM200 and is the answer not in the manual?

Questions and answers

Related Manuals for Cineroid LM200

Summary of Contents for Cineroid LM200

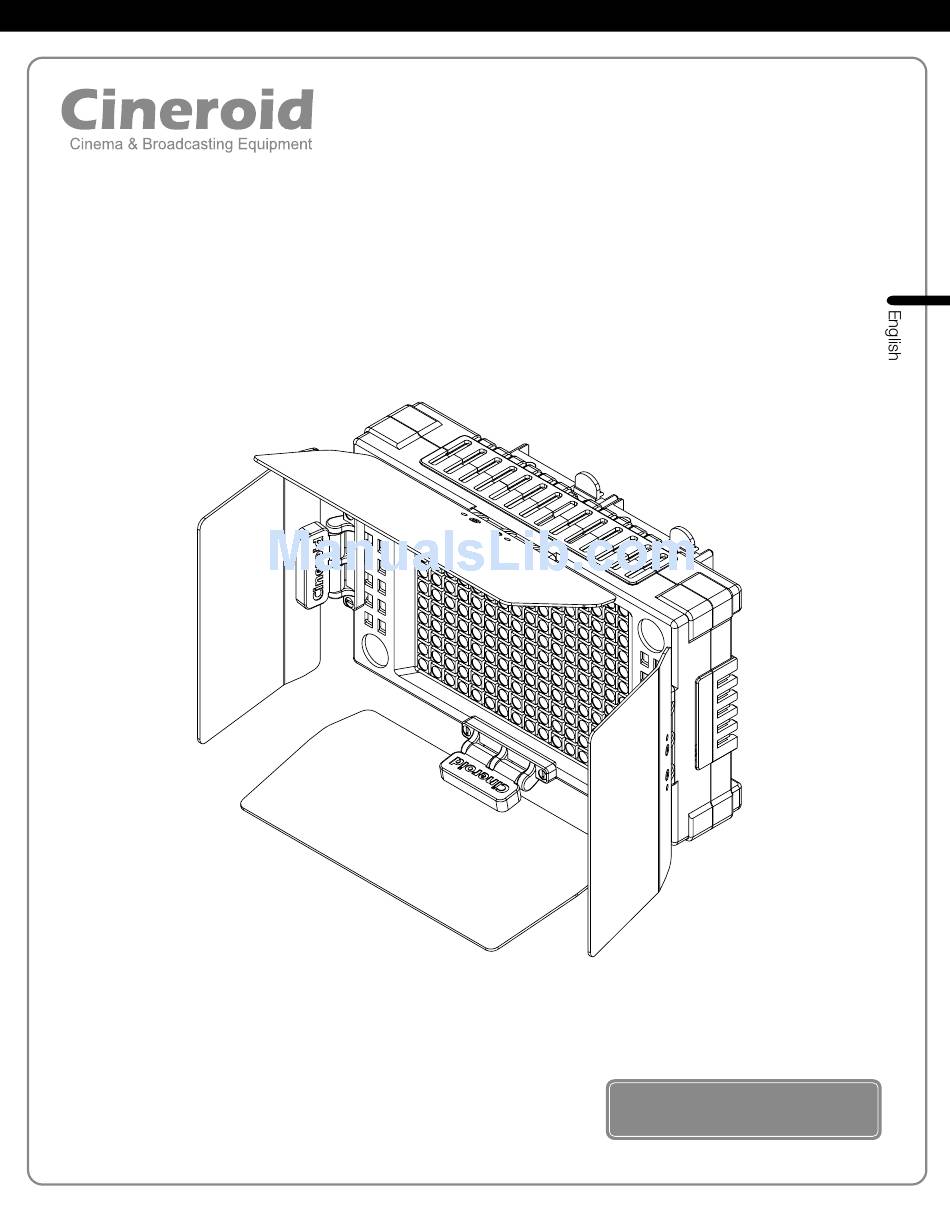

  • Page 1 LM200 ON CAMERA LED LIGHT Variable Color Temperature High Power LED Light Source Dimming Brightness 30 steps Attachable Battery Connecting External Power User’s Manual Support for variety Accessories...
  • Page 2 Please read this user manual thoroughly before using the Cineroid LED. Test Before Operating It is recommended to test the Cineroid LED before use. Make sure the light comes on when powered and that the brightness control works properly. Copyrights and Prohibitions The use of images of people, property, and places can without permission can be prohibited by law.

  • Page 3: Safety Precautions

    Cineroid LM200 ON CAMERA LED LIGHT Safety Precautions Please observe the following safety precautions as they are meant for the safe and proper use of the product to reduce the risk of accidents. Upon reading the user manual, keep it in a safe and available place.

  • Page 4: Table Of Contents

    Cineroid LM200 Cineroid LM200 ON CAMERA LED LIGHT Table of Contents Safety Precautions Table of Contents Components Names of Parts Installing the Battery Powering On/Off Adjusting Brightness / Color temperature Mounting Diffuser Pannel Connecting External Power Product Specification Optional Products...

  • Page 5: Components

    Cineroid LM200 ON CAMERA LED LIGHT Components Please ensure all parts are present after opening the box. A. LM200 Body C. Battery Mount C. Mini Ball Head D. Diffuser pannel E. User's Manual F. Bag...

  • Page 6: Names Of Parts

    Cineroid LM200 Cineroid LM200 ON CAMERA LED LIGHT Parts DC in Power switch Color temp. display Color temp. switch Dimmer switch Brightness display 1/4" Screw mount Screw Power cable...

  • Page 7: Installing The Battery

    Cineroid LM200 ON CAMERA LED LIGHT Installing the Battery 1. Attach the battery mount to the back of the body with the use of the two screws on the mount. 2. Connect the cable on the battery mount to the body.

  • Page 8: Adjusting Brightness / Color Temperature

    Adjusting Brightness / color temperature value Adjusting color temperature 1. The LM200 can be changed color temperature by color temperature switch. 2. LCD displays color temperature value from 9 to -9. 3. The highest value on the LCD is 9 that represents daylight and -9 is tungsten.

  • Page 9: Mounting Diffuser Pannel

    Cineroid LM200 ON CAMERA LED LIGHT Mounting the diffuser pannel 1. Mounting the diffuser pannel will prevent the light from spreading to the sides. Connecting External Power DC in 6 ~17 V 1. In addition to the rechargeable battery, external power sources can also be used to power the light.

  • Page 10: Product Specification

    Cineroid LM200 Cineroid LM200 ON CAMERA LED LIGHT LM200 Specification Size 152 x 94 x 35 mm Power input 6 ~17 V Light angle 120 degree Brightness step 30 steps Mount 1/4” Screw mount External power D-tap cable(optional) Weight 281 g (without Battery) Display info.
  • Page 11 Cineroid LM200 ON CAMERA LED LIGHT Memo...
  • Page 12 LM200 ON CAMERA LED LIGHT Customer Support Center Seculine Co., LTD. Tel +82.70.4347.4901 / Fax +82.2.850.3027 SECULINE CO., Ltd. Room.510, 55 (Kolon Science Vally #2), Digital-ro 34-gil, Guro-gu, Seoul, KOREA 152-728 Homepage www.cineroid.com E-mail support@secu-line.com Printed in Korea LM200-1.0V...
