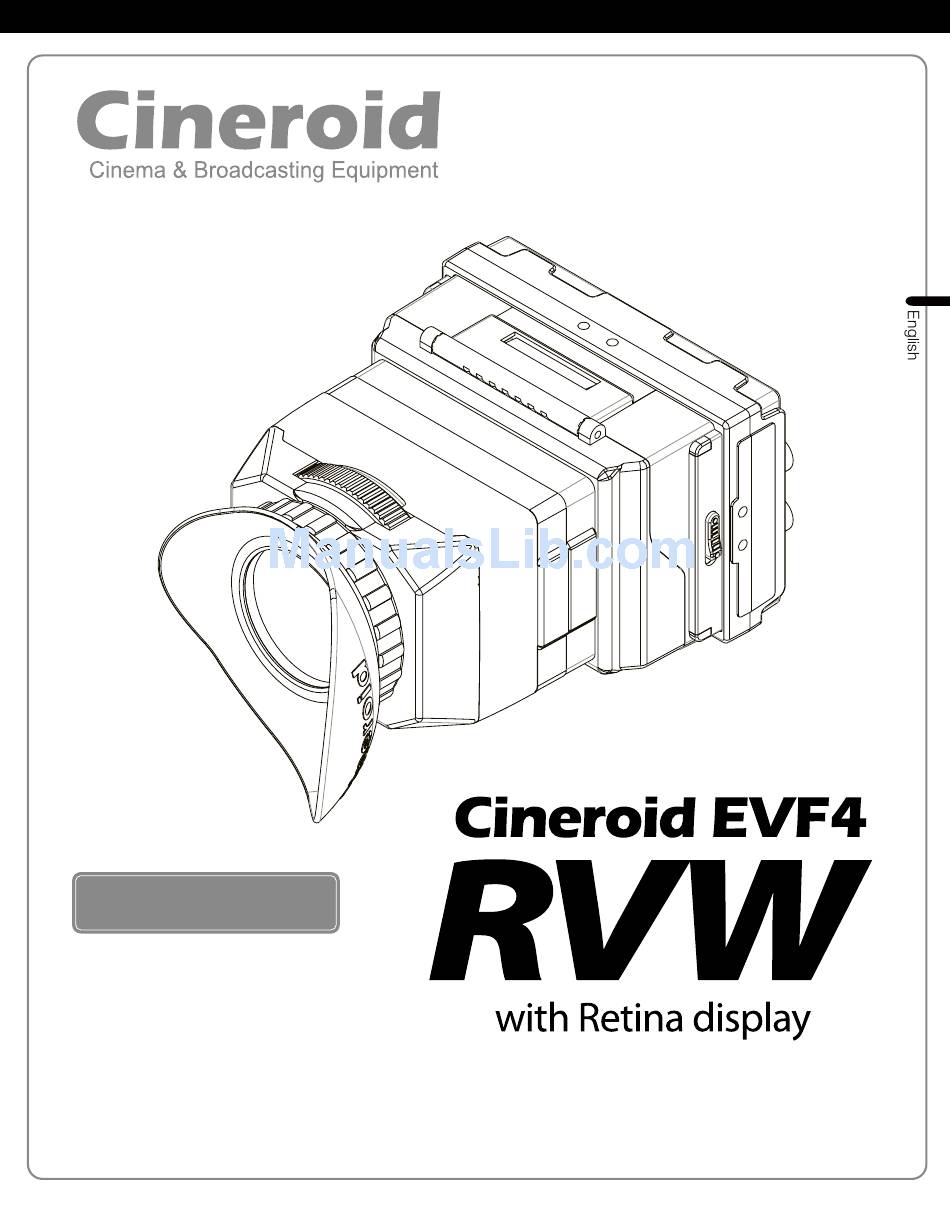

- Page 1 User’s Manual 3.5 inch Retina LCD (HDMI/HD-SDI input / HD-SDI ouptout) Various Advantage LCD Loupe Multi vendor Battery support Waveform / Vectorscope / Peaking / Saturation Pixel to Pixel / Clip Guide / Crop Guide / Overscan Underscan / Anamorphic / Monochrome and etc.
-
Page 2: False Color
Thank you for purchasing the Cineroid EVF. The Cineroid EVF (hereafter referred to as “EVF") is a view finder that can be mounted on any video camera with a HDMI output signal. Please thoroughly read the user manual for best operation and understanding of all of the functions of the EVF. -
Page 3: Safety Precautions
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Safety Precautions Please observe the following safety precautions as they are meant for the safe and proper use of the product to reduce the risk of accidents. Upon reading the user manual, keep it in a safe and available place. -
Page 4: Table Of Contents
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Table of Contents Safety Precautions Table of Contents Components Parts Before Using the EVF Openable Optical Loupe Hood for Loupe Separate of Loupe Adjusting the Diopter / Connecting Extention Tube Installing the Battery Connecting External Power... - Page 5 Cineroid EVF4RVW ELECTRONIC VIEW FINDER Shooting Features Peaking Pixel to Pixel Clip guide Waveform / Vectorscope False color 1 False color 2 Monochrome Look up table Freeze Over Scaling Underscan Crop Guide Anamorphic Center Marker Time Code Screen Flip Setting User Controls...
-
Page 6: Components
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Components Please ensure all parts are present after opening the box. A. LCD VF + Optiacl Loupe B. D-tap to mini XLR cabl C. Battery holder mount D. Canon LP-E6 E. Cannon BP911 F. Sony NPF... -
Page 7: Parts
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Parts Loupe Latch Diopter Adjuster Wheel Controller Lens Soft Eyecup Hood Latch Menu Buttons HDMI input HDMI output External power HD-SDI output Power Switch Multi Vendor Battery support Mono Speaker USB port Loupe Flip-up Latch... -
Page 8: Before Using The Evf
The optical loupe attached to the EVF body can be flipped open 180 degrees. Hood for Loupe The opened Optical Loupe You can use the LCD hood in the open state by using seperated part from the optical loupe which was attached to the cineroid EVF4RVW. -
Page 9: Separate Of Loupe
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Before Using the EVF Separate of Loupe Please operate both side of latchs on the optical loupe and remove the optical loupe. The optical loupe attached to the EVF body can be detached completely. Adjusting the Diopter / Connecting Extension tube... -
Page 10: Installing The Battery
Before Using the EVF Installing the Battery 1. Open the battery pin cover 2. Attach the battery mount The Cineroid EVF4RVW uses Canon, Nikon and Panasonic's some types of batteries. Each type of Battery Mount battery can be used with battery mount base and battery holder. -
Page 11: Connecting Input / Output
Parameter Restore Test Pattern Firmware Input : HDMI Exit 2 Serial Digital Inputs the EVF4RVW module has HD-SDI switchable 3G-SDi input connectors for monitoring. F1-Back / Exit Input Source Set Connect input then select the type of input in menu. -
Page 12: Basic Features
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Basic Features Operating the Menu 1. Access the setting and features by pressing the wheel button on the left side of the EVF. 2. Press the wheel button to select the main menu. When not in the menu, you can adjust the speaker volume by scroll the up and down wheel button. -
Page 13: Adjusting Color
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Basic Features Adjusting Color Menu : Setting2 - Color Adjust Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Color Adjust Red Gain[1~100] Color Adjust ▶ ▶ Screen Adjust Red Offset[1~100] Screen Adjust ▶... -
Page 14: Shooting Features
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Shooting Features Peaking On/Off : Menu - Control1 - Peaking Setting : Menu - Setting1 - Peaking Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Peaking Peaking Threshold[1~5] 5 ▶ Pixel to Pixel... -
Page 15: Pixel To Pixel
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Shooting Features Pixel to pixel On/Off : Menu - Control1 - Pixel to Pixel Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Peaking Peaking Pixel to Pixel Pixel to Pixel Clip Guide... -
Page 16: Waveform / Vectorscope
T o c h a n g e t h e w a v e f o r m s t y l e , s i m p l y s c r o l l the wheel button on the left side of the cineroid E V F 4 R V W ' s b o d y . -
Page 17: False Color 1
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Shooting Features False Color 1 On/Off : Menu - Control1 - False Color1 Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Peaking Peaking Pixel to Pixel Pixel to Pixel Clip Guide... -
Page 18: Monochrome
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Shooting Features Monochrome (B /W, Blue, Red, Green) On/Off : Menu - Control1 - Monochrome Setting : Menu - Setting1 - Monochrome Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Peaking Peaking ▶... -
Page 19: Freeze
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Shooting Features Freeze On/Off : Menu - Control1 - Freeze Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Peaking Peaking Pixel to Pixel Pixel to Pixel Clip Guide Clip Guide Waveform... -
Page 20: Underscan
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Shooting Features Underscan On/Off : Menu - Control2 - Underscan Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Over Scaling Over Scaling Under Scan Under Scan Crop Guide Crop Guide Center Marker... -
Page 21: Anamorphic
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Shooting Features Anamorphic On/Off : Menu - Control2 - Anamorphic Setting : Menu - Setting1 - Anamorphic Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Over Scaling Peaking ▶ Under Scan Clip Guide ▶... -
Page 22: Time Code
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Time Code On/Off : Menu - Control2 - Time Code Control1 Control2 Setting1 Setting2 System Exit Control1 Control2 Setting1 Setting2 System Exit Over Scaling Over Scaling Under Scan Under Scan Crop Guide Crop Guide Center Marker... -
Page 23: Setting User Controls
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Setting User Controls Custom Button Functions Setting : Menu - Setting2 - Key Allocation The left side of the EVF body contains the buttons F1, F2, F3, F4. The factory default for these buttons are peaking (F1), Waveform (F2), False Color 1 (F3), False Color 2 (F4). -
Page 24: Custom Display Settings
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Setting User Controls Custom Display Settings Setting : Menu - Setting1 - Anamorphic You can select to view the current state of the battery usage, volume, etc. on the LCD. Control1 Control2 Setting1 Setting2 System Exit Color Adjust ▶... -
Page 25: Product Specifications
Cineroid EVF4RVW ELECTRONIC VIEW FINDER Product Specifications Input HDMI Input HD-SDI Output HD-SDI Size Resolution Color Viewing angle Display area Audio out Phone Jack Internal speaker Power Battery External Operating Temperature -10ºC to 60ºC Storage Temperature -20ºC to 70ºC Power consumption 3.5 W... -
Page 26: Optional Products
Material Mini ball head MBH-P Rein force d plastic Metal Mini ball head MBH-M O Soft Eyecup Cover ECO : Orange color For Cineroid EVF & Others ECR : Red color 119 x 86 x 8.5(mm) ECB : Blue color... - Page 27 Cineroid EVF4RVW ELECTRONIC VIEW FINDER Optional Products O HDMI Cable Model Length Plug form...
- Page 28 We will strive to create the best products and provide superb service. Customer Support Center Seculine Co., LTD. Tel +82.70.4347.4901 / Fax +82.2.850.3027 Rm.510, Kolon Science Valley #2, Guro-dong, 811, Guro-gu, Seoul, 152-728, Korea Homepage www.cineroid.com E-mail sales@secu-line.com EVF1.0 Printed in Korea...
