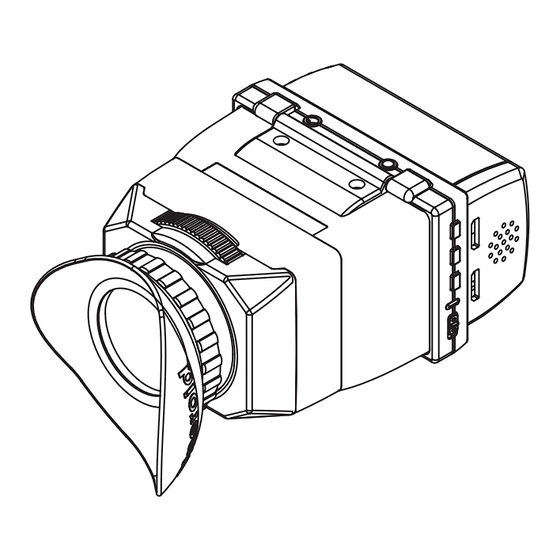

- Page 1 Cineroid E l e c t r o n i c V i e w F i n d e r User Manual Model : EVF 4Le EVF 4Be Cineroid...
- Page 2 SECULINE Co., Ltd Thank you for purchasing the Cineroid EVF. The Cineroid EVF (hereafter referred to as “EVF” ) is a view finder that can be mounted on any video camera with a HDMI output signal. Please thoroughly read the user manual for best operation and understanding of all of the functions of the EVF.
-
Page 3: Safety Precautions
SECULINE Co., Ltd Safety Precautions Please observe the following safety precautions as they are meant for the safe and proper use of the product to reduce the risk of accidents. Upon reading the user manual, keep it in a safe and available place. ◎... -
Page 4: Table Of Contents
SECULINE Co., Ltd Table of Contents Safety Precautions Table of Contents Configuration Parts Before Using the EVF Detachable Optical Viewfinder Installing the Battery Connecting External Power Powering On/Off Adjusting the Diopter Connecting a HDMI Cable Connecting a Composite Cable Connection a Monitor Basic Features Operating the Menu Input Selection... - Page 5 SECULINE Co., Ltd Shooting Features Peaking Anamorphic Crop Guide Over Scaling Center Maker Clip guide False color Firmware Upgrade Screen Flip Pixel to Pixel Underscan Monochrome Custom Button Functions Setting User Controls OSD Setting Parameter save and restore Factory reset Product Specifications Optional Products MEMO...
-
Page 6: Configuration
Please ensure all parts are present after opening the box. B. Battery Cover C. Battery A. LCD VF + Optical Loupe D. Battery Charger E. Mini HDMI Cable F. Mini Shoe Mount Adapter G. User Manual H. Cineroid EVF Carrying Case EVF4... -
Page 7: Parts
SECULINE Co., Ltd Parts Menu Button Battery Cover Analog A/V input Power Switch Eye Cup External Speaker Feature Buttons φ Diopter Adjuster Headphone Jack 1/4”Screw Mount 3.2 inch LCD screen HDMI In HDMI Out (EVF4L only) EVF4... -
Page 8: Before Using The Evf
To replace the loupe, slide the small latch to the left and place the loupe back into place. Installing the Battery 1. The Cineroid EVF can be used with small, medium or large sized batteries. The battery cover can only be used with the small sized batteries. 2. Remove the battery cover. -
Page 9: Connecting External Power
SECULINE Co., Ltd Before Using the EVF Connecting External Power 1. External power is supplied through the use of the PA01 adapter. 2. Proper voltage for external power is 6-17V. 3. To install the PA01 adapter, first remove the battery from the body. 4. -
Page 10: Adjusting The Diopter
SECULINE Co., Ltd Before Using the EVF Adjusting the Diopter 1. When viewing through the optical loupe, the user can adjust the diopter accordingly. Turn on the EVF and verify the LCD image output. 2. Rotating the dial to the right will bring the eye cup towards you and rotating it to the left will move the eye cup away from you. -
Page 11: Connecting A Composite Cable
1. Make sure the EVF input selection is set to Composite. Please refer to 'Input Selection' on page 13. 2. You can purchase a composite cable from Cineroid or use your own cable if it is similar to the illustration below. -
Page 12: Basic Features
SECULINE Co., Ltd Basic Features Operating the Menu 1. Access the setting and features by pressing the menu button on the left side of the EVF. 2. Press the M button to select the main menu. When not in the menu, you can adjust the speaker volume by pressing the up and down arrow keys. -
Page 13: Input Selection
SECULINE Co., Ltd Basic Features Input Selection 1. You can choose between composite and HDMI for your external input selection. 2. The HDMI input can receive 480i, 480p, 576p, 720p and 1080i signals. 3. Press the M button for the main menu. Move the cursor to INPUT SELECT and press the M button. -
Page 14: Adjusting The Screen
SECULINE Co., Ltd Basic Features Adjusting the Screen 1. You can adjust the LCD brightness, contrast, and sharpness. Choose between 1-100 for the brightness and contrast and 1-10 for the sharpness. 2. Press the M button for the main menu. 3. -
Page 15: Shooting Features Peaking
SECULINE Co., Ltd Shooting Features Peaking 1. The EVF provides the peaking feature in both the Red and Sharpness mode. The Red mode displays in red and the Sharpness mode displays an outline in white. 2. To activate the peaking feature, simply press the PK button on the left side of the EVF body. -
Page 16: Anamorphic
SECULINE Co., Ltd Shooting Features Anamorphic 1. The screen size can be changed for anamorphic lens. 2. The screen size is set for each input resolution. 3. The position of center is adjustable at Offset menu. Crop guide 1. The crop guide information is displayed on screen. 2. -
Page 17: Over Scaling
SECULINE Co., Ltd Shooting Features Over Scaling 1. The image can be stretched to 1.5 times. 2. The aspect ratio of image is not changed. Also, it is set for each resolution, 480p, 720p, 1080i. 3. Image can be moved to vertical or horizontal. Center Marker 1. -
Page 18: Clip Guide
SECULINE Co., Ltd Shooting Features Clip guide 1. There are three Clip guide modes, Color and Zebra, both. 2. Zebra range is selectable among 3%, 5%, 8%, 11%. Also, Zebra mark has two types, moving or fixed. 3. There is three kinds of threshould, High, Middle, Low. False color 1. -
Page 19: Firmware Upgrade
SECULINE Co., Ltd Shooting Features Firmware Upgrade 1. Firmware is upgradable by special cable. 2. Connect EVF and computer by cable. 3. Select On of Firmware Upgrade. The screen is changed to waiting message. 4. EVF starts firmware upgrade. Screen Flip 1. -
Page 20: Pixel To Pixel
SECULINE Co., Ltd Shooting Features Pixel to pixel 1. Enabling pixel to pixel eliminates the need for you to zoom in/out of your native video. 2. If the native video is larger than the LCD resolution then that creates a zooming effect. Conversely, if the native video is smaller than the LCD resolution then that creates a scale-down effect. -
Page 21: Monochrome
SECULINE Co., Ltd Shooting Features Monochrome (B/W, Blue, Red, Green) 1. You can view the image on the LCD in B/W by activating the monochrome feature. The color mode is B/W, Blue, Red, Green. 2. To activate the monochrome feature, press the M button for the main menu, select MONOCHROME and turn the feature on. -
Page 22: Setting User Controls
SECULINE Co., Ltd Setting User Controls Custom Display Settings 1. You can select to view the current state of the battery usage, volume, etc. on the LCD. 2. Press the M button for the main menu and select STATUS DISPLAY to view the options. 3. -
Page 23: Product Specifications
SECULINE Co., Ltd Product Specifications Size 3.2inch TFT LCD Resolution 800 x 480 Color 16.7M H: 180 degrees, V: 180 degrees Viewing angle Display area 69.6(H) x 41.76(V)mm (480i/480p/576p/720p/1080i) HDMI Input Composite Video/Stereo Audio Video output (480i/480p/576p/720p/1080i) HDMI Phone Jack 3.5φ... -
Page 24: Optional Products
SECULINE Co., Ltd Optional Products ○External power adapter PA01 SET Power Adapter + DC plug with D-tap (PA01+FCB043) Power Adapter DC plug with D-tap for PA01 FCB043 FCB044 DC plug only for PA01 ○Articulating Arm Model Length Form Material (6inch) (10inch) EVF4... - Page 25 SECULINE Co., Ltd Optional Products ○HDMI Cable Plug form Model Length ○Mini ball head Model Weight Form Material Mini ball head MBH-P Reinforced plastic Metal Mini ball head MBH-M Model Length Plug form RCA x 3EA EVF4...
- Page 26 SECULINE Co., Ltd Optional Products ○별매품 Form Model EVF Remote controller RM01 Trigger functions of EVF by wired Functions are assigned in EVF menu EVF Remote controller RM01 Trigger functions of EVF by wired Functions are assigned in EVF menu L-clamp Extends ¼”...
-
Page 27: Memo
SECULINE Co., Ltd MEMO EVF4... - Page 28 We will strive to create the best products and provide superb service. Customer Support Center Seculine Co., LTD. Tel +82.2.850.3021 / Fax +82.2.850.3027 Rm.510, Kolon Science Valley #2, Guro-dong, 811, Guro-gu, Seoul, 152-878, Korea Homepage www.cineroid.com E-mail sales@secu-line.com EVF1.0 Printed in Korea...
