PG32e
3G Pattern Generator & Converter
- SMPTE pattern and various pattern generating
- 3G-SDI <-> HDMI Cross conversion
- Loopout cable tester
- Real time waveform monitor and Vector scope
- Video display on Color LCD
- Support 1080@60P
- Sound level meter and Internal speaker
User's Manual
- Progressive to Interlaced conversion
- Durable metal body
Advertisement
Table of Contents
Related Manuals for Cineroid PG32e
Summary of Contents for Cineroid PG32e

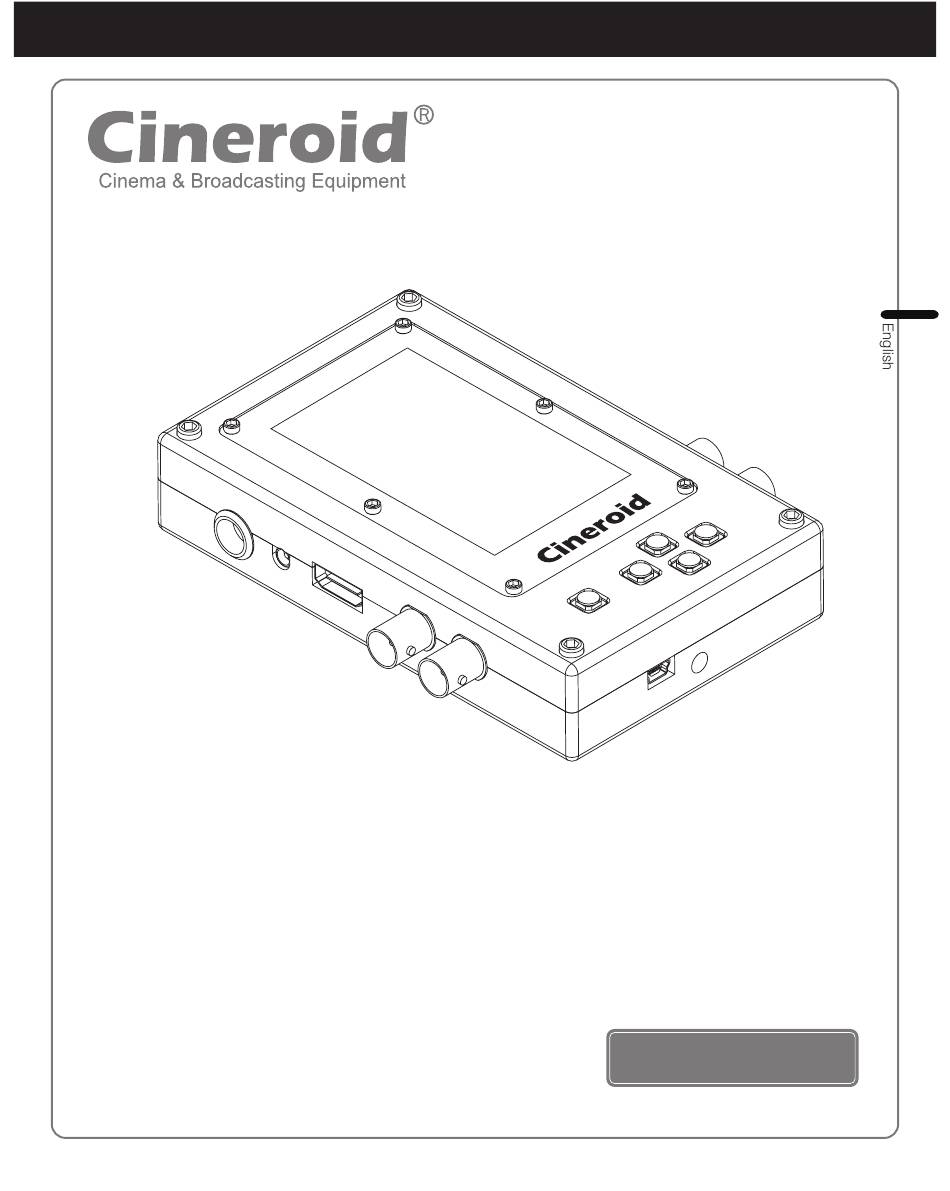

- Page 1 PG32e 3G Pattern Generator & Converter - SMPTE pattern and various pattern generating - 3G-SDI <-> HDMI Cross conversion - Loopout cable tester - Real time waveform monitor and Vector scope - Video display on Color LCD - Support 1080@60P - Sound level meter and Internal speaker User’s Manual...
- Page 2 3G PATTERN GENERATOR & CONVERTER Thank you for purchasing the Cineroid PG32e. The Cineroid EVF PG32e is a converter and pattern generator that can be mounted on any video camera with both HDMI and HD-SDI output signal. Please thoroughly read the user manual for best operation and understanding of all of the functions of the EVF.
-
Page 3: Safety Precautions
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Safety Precautions Please observe the following safety precautions as they are meant for the safe and proper use of the product to reduce the risk of accidents. Upon reading the user manual, keep it in a safe and available place. -
Page 4: Table Of Contents
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Table of Contents Safety Precautions Table of Contents Components Name of each part Before Using PG32e Installing the Battery Connecting External Power Connecting input / output Power On/Off Basic Features Operating the Menu... - Page 5 Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Pattern generator Turning on the pattern generator Setting output format Setting type of pattern Setting options of pattern Setting moving Setting moving direction Setting moving color Setting Speaker out Setting Speaker Volume Loopout Cable Tester...
-
Page 6: Components
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Component Please ensure all parts are present after opening the box. A. PG32e Body B. Battery holder mount C. Canon LP-E6 D. Canon BP911 E. Sony NPF Battery holder Battery holder Battery holder F. -
Page 7: Name Of Each Part

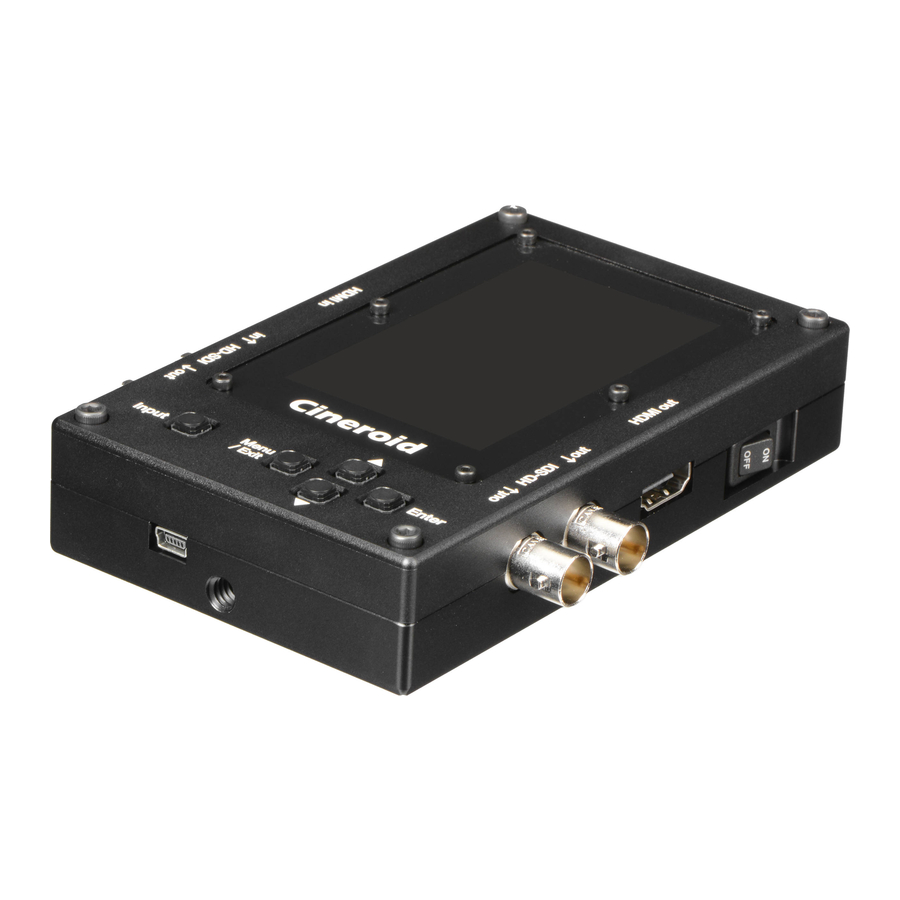

Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Name of each part Power switch HDMI out Input Button HD-SDI out Function buttons HD-SDI out Mono Speaker DC in (mini XLR) DC in (3Ø) HDMI in HD-SDI in HD-SDI loop out 1/4” screw mount... -
Page 8: Before Using Pg32E
3G PATTERN GENERATOR & CONVERTER Before Using PG32e Installing the Battery The PG32e can be powered by different types of Canon, Nikon, Panasonic or Sony style batteries. Each type of battery requires its own battery mount plate. As standard the PG32e is supplied with battery holders and battery mount included in the package. -
Page 9: Connecting Input / Output
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Before Using PG32e Connecting input / output Menu : System - Input Select *How to operate the menu, refer to page 10. System Pattern Exit Source Select HDMI HDMI out P2IC HDSDI HDSDI out P2IC... -
Page 10: Basic Features
Exit Exit System Parameter Setting 1. Access the setting and features by pressing the menu button on PG32e. 2. Press the Menu button to select the main menu. through the menu. The cursor is highlighted in red. 4. Move the cursor to the feature you want to select/change and press the up and down arrow buttons to access that feature. -
Page 11: Converter
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Converter Input selection Menu : System - Source Select - HDMI or HDSDI System Pattern Exit System Pattern Exit Source Select HDMI Source Select HDMI HDMI out P2IC HDMI out P2IC HDSDI HDSDI out P2IC... -
Page 12: Volumes And Level Meter
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Converter Volumes and Level meter On/Off : Menu : System - Spk. Volume and Audio meter System Pattern Exit System Pattern Exit Source Select HDMI Source Select HDMI out P2IC HDMI out P2IC... -
Page 13: Waveform / Vectorscope
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Converter Waveform / Vectorscope On/Off : Menu : System - Waveform/Vect System Pattern Exit System Pattern Exit Source Select HDMI Source Select HDMI out P2IC HDMI out P2IC HDSDI out P2IC HDSDI out P2IC... -
Page 14: Pattern Generator
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Pattern Generator Turning on Pattern generator On/Off : Menu : System - Source Select - Pattern Shortcut to turn on Pattern generator Main srceen -> Press the Input button System Pattern Exit System Pattern Exit... -
Page 15: Setting Type Of Pattern
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Pattern Generator Setting type(kind) of pattern Setting : Menu : Pattern - Pat. kind Shortcut to set type of pattern Main srceen -> Press button when cursor is on the kind. Pattern Gen... -
Page 16: Setting Options Of Pattern
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Pattern Generator Setting options of pattern Setting : Main screen - Enter : Kind - button Kind : SMPTE Color Bar Option : 75% White, Black Moving : Off Pattern Gen Format 1080@25PsF... -
Page 17: Setting Moving
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Pattern Generator Setting moving On/Off : Menu - Pattern - Mov. Select Shortcut to set moving direction Main srceen -> Press button when cursor is on the Moving. Pattern Gen System Pattern Exit... -
Page 18: Setting Moving Color
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Setting the moving color On/Off : Menu - Pattern - Mov. Select Shortcut to change moving color Main srceen -> Press button when cursor is on the Moving. Pattern Gen System Pattern Exit... -
Page 19: Setting Speaker Out
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Pattern Generator Setting Speaker out On/Off : Menu : Pattern - Spk. Out(1KHz) - On / Off System Pattern Exit System Pattern Exit 1080P Format 1080@60P 1080P Format 1080i Format No select 1080i Format... -
Page 20: Loopout Cable Tester
: Color 1. Checking a cable status. 2. Connect the cable to in and out port of PG32e. 3. Watch the signal both output and input. The signal screen should be same. 4. The signal screen can be changed at pattern generator mode in the menu. -
Page 21: Setting User Controls
Firmware Upgrade Setting : Menu - System - Firmware 1. Firmware is upgradable by usb cable. 2. Connect PG32e and computer by cable. 3. Select On of Firmware Upgrade. The screen is changed to screen for firmware upgrade. 4. In order to firm wareupgrade, follow the message and start firmware upgrade. -
Page 22: Product Specifications
Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER Product Specifications Input ports HDMI, HD-SDI Output ports HDMI 1 port, HD-SDI 2ports, HD-SDI loopout 1 port 480p59.94, 480i59.94, 480i60, 480p60, 576p50, 576i50, 720p23.98, HDMI 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080psF29.97, 1080p29.97, 1080psF30, Input / Output 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, 1080p60,... - Page 23 Cineroid PG32e 3G PATTERN GENERATOR & CONVERTER PG32e 3G Pattern Generator & Converter...
- Page 24 3G Pattern Generator & Converter Customer Support Center Seculine Co., LTD. SECULINE CO., Ltd. Room.510, 55 (Kolon Science Vally #2), Digital-ro 34-gil, Guro-gu, Seoul, KOREA 152-728 Tel +82.70.4347.4901 / Fax +82.2.850.3027 E-mail sales@secu-line.com / Homepage www.cineroid.com Printed in Korea PG32e_1.0...
