Infrared port
a
Earpiece / Speaker
b
Display
c
a s d My Contact
d
key
M Menu key / Soft key at the
e
upper left
Display the main menu.
g Mail key / Soft key at the
f
lower left
Display the mail menu.
A Start key
g
Make/receive a call.
Dial key
h
Enter a phone number or
character.
* Public mode (Drive
i
mode) key
Mouthpiece
j
k Charging terminal
S My function key
l
Navigation key
m
G Camera / TV / Upper right
n
soft key
Display still image shooting
screen or 1Seg watching
screen.
6
α
I i-mode / i- ppli / Soft key
o
at the lower right
Display i-mode menu.
Q Clear / i-Channel key
p
Display the channel list screen.
P Power / Exit key
q
End a call or exit a function.
# Manner mode key
r
s 1Seg antenna*
Sub-display
t
Light
u
Camera
v
FOMA antenna
w
x Back cover
Remove the back cover from
the FOMA terminal when
attaching/removing the UIM,
battery pack, microSD card.
Strap hole
y
External connector terminal
z
A F E Volume adjustment keys
Adjust volume.
B m Multi-tasking key
Display task list.
* The antenna is built into the main
body. Covering around the antenna
with your hand may affect the quality.
Using earphones
Connect optional earphones compatible
with the external connector terminal.
If you use the incompatible earphones,
connect the optional conversion plug
adapter to the earphones.

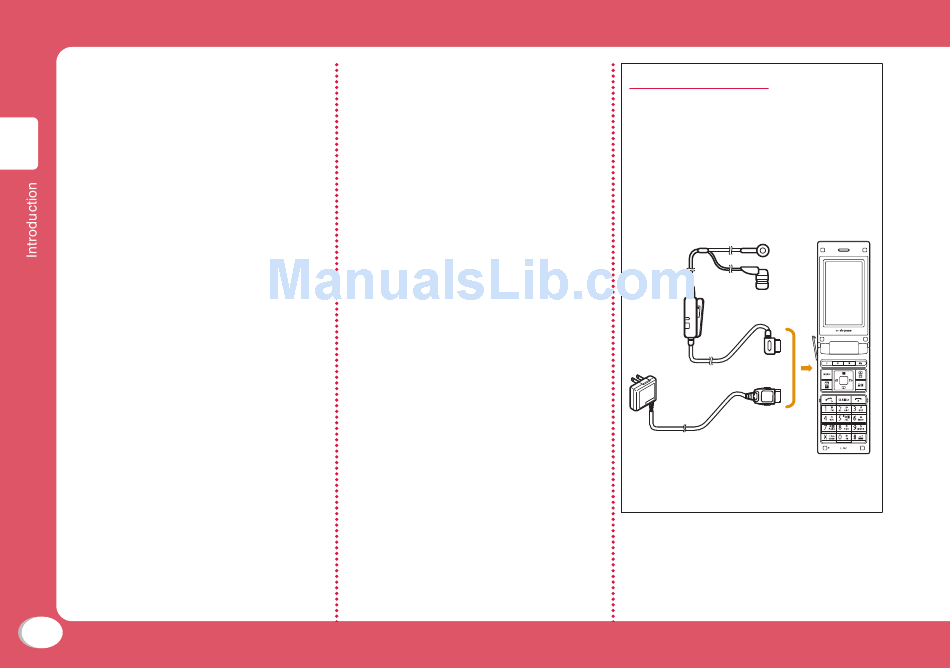

Common slot for both FOMA AC Adapter
01 (Optional) and Stereo Earphone/
Microphone 01 (Optional).
Stereo Earphone/Microphone 01
FOMA AC Adapter 01
Ex.: For external connector terminal
connecting the Stereo Earphone/
Microphone 01 (optional)
