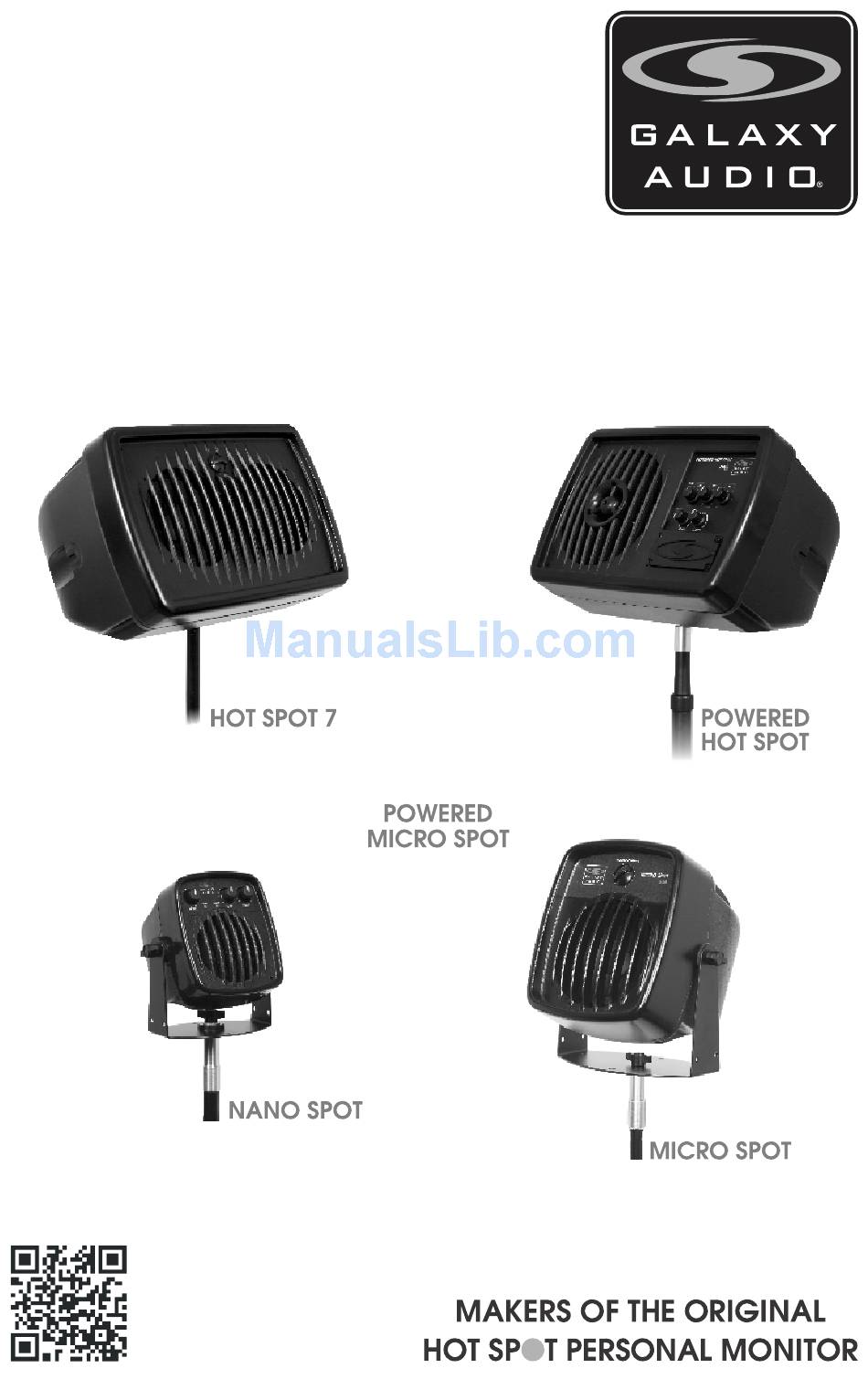

Page 1: User Guide
User Guide (HOT SPOT 7) ® (MICRO SPOT 5) MSPA5 (POWERED MICRO SPOT 5) PA6S (POWERED HOT SPOT) NSPA (POWERED NANO SPOT) http://www.galaxyaudio.com/HotSpots.php... -
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE IMPORTANT SAFETY INSTRUCTIONS........1 WELCOME................... 2 BEFORE YOU BEGIN..............2 OHM’S LAW AND THE HOT SPOT..........3-4 SOUND REINFORCEMENT BASICS...........5 HOT SPOT 7(HS7)/MICRO SPOT(MS5)........6-7 POWERED SPEAKERS PA6S/PA6SR/NSPA......8-11 USING THE PA6S..............8-9 POWERED NANO SPOT............10-11 STAND MOUNTING..............12 WALL MOUNTING..............13-15 SPECIFICATIONS..............16-17 ACCESSORIES AND REPLACEMENT PARTS......18 FOUR RUBBER FEET FOR HOT SPOT........19... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. -
Page 5: Welcome
Welcome Congratulations on your purchase of a Galaxy Audio Product! Backed by over 35 years of proven real-world performance and a 3 year warranty, the product you have selected is one of the finest personal monitoring devices available. Thank you for choosing Galaxy Audio. -
Page 6: Ohm's Law And The Hot Spot
OHM’S LAW AND THE HOT SPOT ® All unpowered HOT SPOTS and MICRO SPOTS have a 16 ohm impedance, and like most professional-type speakers have jacks which are wired in parallel (meaning the signal can travel into one jack and out of the other).Think of each speaker as a “load”... - Page 7 If you are having problems with any of these applications use Galaxy Audio’s CRICKET Polarity and Continuity Test Set to check the polarity of your cables. 16 x 16 8 Ohms for two HOT SPOTS...
-
Page 8: Sound Reinforcement Basics
SOUND REINFORCEMENT BASICS Avoiding feedback Feedback (the shriek sometimes emitted by PA systems) occurs when the microphone (or pickup) and speaker are positioned too close together for a given level of volume. Once feed back occurs, it will continue until either the volume is decreased or the microphone or speaker is moved. -
Page 9: Hot Spot 7(Hs7)/Micro Spot(Ms5)
The HOT SPOT's design is unsurpassed in efficiently reproducing the crucial vocal range frequencies. The HS7 & PA6S/R come with a built in stand mount that allows the unit to be placed on nearly any microphone stand, close to the... - Page 10 The HOT SPOT 7 (HS7) and MICRO SPOT (MS5) The impedance of the HOT SPOT 7 (HS7) and MICRO SPOT (MS5) is determined by the position of its volume control. Use the table below to determine the actual impedance. [T.1]...
-
Page 11: Powered Speakers Pa6S/Pa6Sr/Nspa

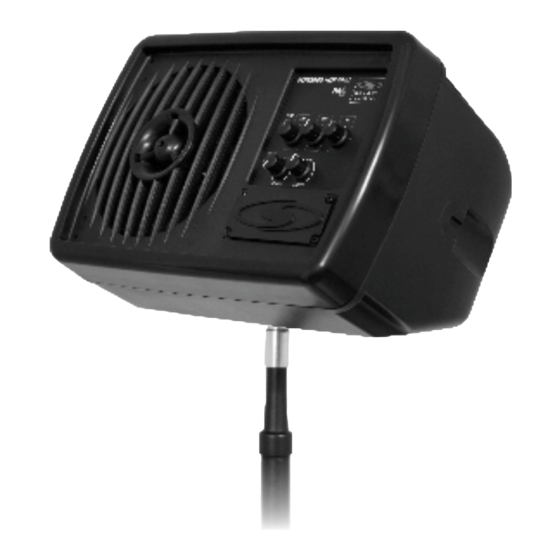

PA6S/PA6SR & NSPA FEATURES OF THE GALAXY AUDIO PA6S/PA6SR · Ultra light weight/high power design · Special design woofer and tweeter for full range sound · Two channels with XLR/1/4" inputs and XLR thru outputs · Additional 1/8" Stereo Line input on Channel 2 •... -
Page 12: Rear Panel
The PA6S (POWERED HOT SPOT) CONTROLS/INDICATORS and their operation (Front Panel) SPEAKER POWER LED 3 BAND EQ CHANNEL 1 LEVEL CHANNEL 2 LEVEL CLIP LED COMPRESSOR LED (Rear Panel) HANDLE ¼" PREAMP MIC BOOM OUTPUT MOUNT CHAN 1 XLR POWER BALANCED SWITCH MIC INPUT... -
Page 13: Powered Nano Spot
POWERED NANO SPOT NSPA The NSPA is the result of years of research and development to make the smallest and loudest speaker for it's size by Galaxy Audio. The NSPA has a 25-watt amplifier, with a universal power supply. That means this unit can be used anywhere in the world as it will function on 100-240 VAC (volts AC) at 50/60 Hz. - Page 14 The NSPA (POWERED NANO SPOT) CONTROLS/INDICATORS and their operation (Front Panel) SIGNAL PRESENCE INDICATOR COMPRESSOR LED POWER LED 2 BAND EQ LEVEL CONTROL SPEAKER CONTROLS/INDICATORS and their operation (Back Panel) -20 dB PAD SWITCH (XLR ONLY) SAFETY CABLE MOUNT 1/8" LINE INPUT 12-18VDC 2A Input XLR BALANCED POWER...
-
Page 15: Stand Mounting
The Micro Spot (MS5), and the Nano Spot are supplied with a bracket kit that allows either stand or wall mounting. Wall mount options are available for the Micro Spot (MS5) and PA6S HS7 from any Galaxy Audio dealer, or online at www.galaxyaudio.com... -
Page 16: Wall Mounting
WALL/CEILING MOUNTING Galaxy Audio yoke brackets can be used for permanently mounting HS7, PA6S and MICRO SPOT loudspeakers to walls and ceilings. The mounting angle can be adjusted by simply loosening the wing screws at either end of the yoke and by loosening the bolt where the yoke mounts to the wall plate. - Page 17 are smaller than the core diameter of the screw. Always use fasteners in all mounting holes and avoid over tightening, as this can weaken the mounting surface, damage the fasteners, and make the installation much less secure. As we recommend the use of a SECONDARY SUPPORT: secondary support for added safety, each yoke bracket is equipped with a safety cable.
- Page 18 Connect the speaker wires and the installation is complete. Note: When using the Yoke Bracket with HS7 or PA6S/R you must install the threaded inserts into the left and right sides of the cabinet. See instructions included with bracket kit.
-
Page 21: Accessories And Replacement Parts
ACCESSORIES AND REPLACEMENT PARTS Many of these parts and accessories may be found and purchased from the Galaxy Audio website in either the Galaxy Store (www.galaxyaudio.com/store.php) or in the accessories tab of each products web page. MBA - Mic Boom Adaptor Mounts to the top of the PA6S, PA6SR, OR HS7. -
Page 22: Four Rubber Feet For Hot Spot
Four rubber feet are included for those of you using the HOT SPOT as a stand alone wedge speaker. These rubber feet help prevent wandering and vibration of the HOT SPOT on hard surfaces. This pertains to the PA6SR Only FCC Consumer Alert for Wireless Microphones (U.S.) Most users do not need a license to operate this wireless microphone system. -
Page 24: Warranty
