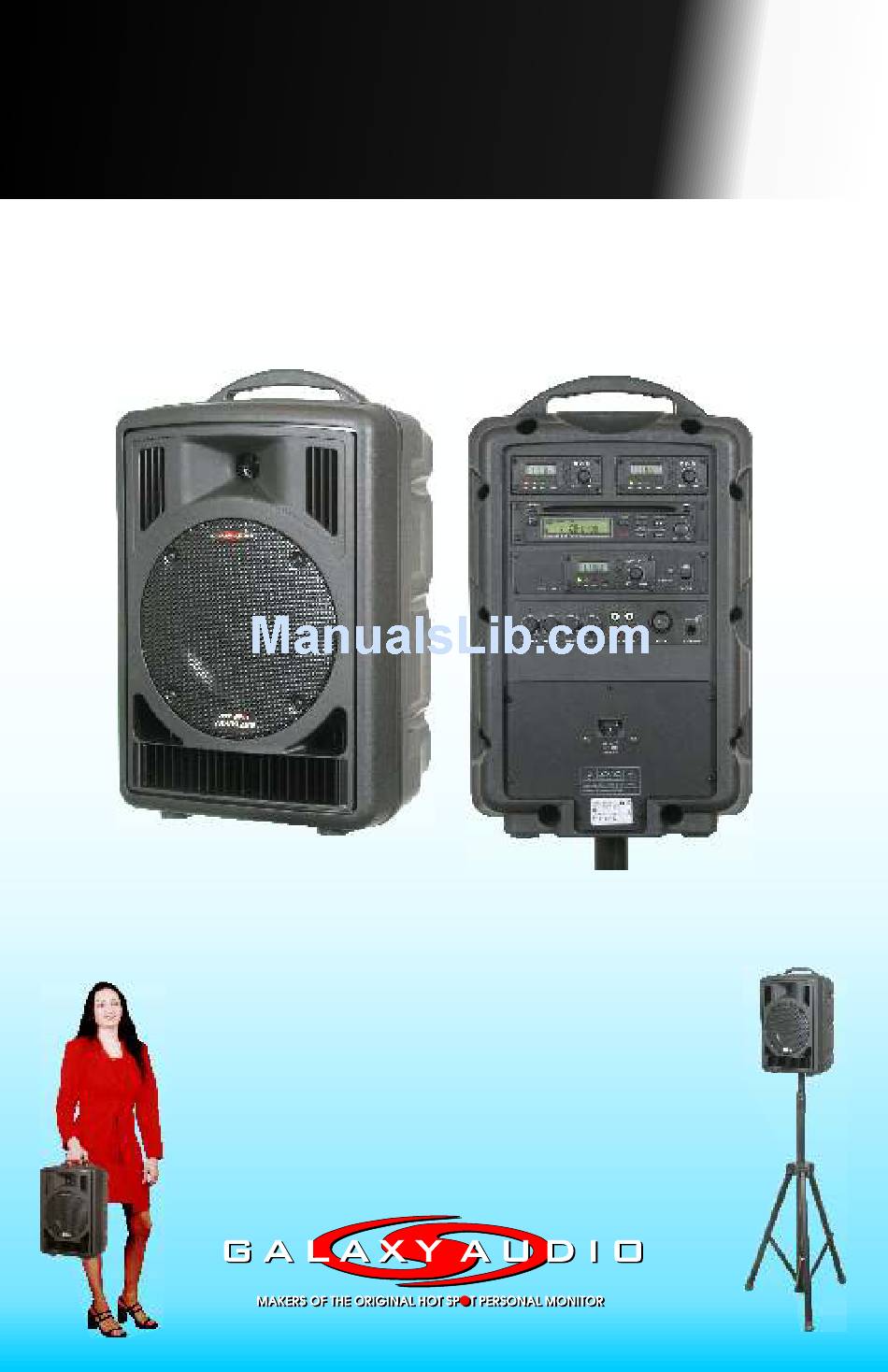

  • Page 1 ANY SP T ANY SPOT ® TRAVELER AS-TV8 USER'S GUIDE Wireless Portable Sound System Compact, Lightweight Clear sound quality High output power ®...
  • Page 2: Table Of Contents

    Contents Operating Manual for AS-TV8 Series... 1 Front Panel Configuration of AS-TV8 Series...2 Rear Panel Configuration of AS-TV8 Series ...3 Description of Functions of AS-TV8 Series...6 Caution Before Using the System...9 Installation and Operation of Portable Sound System...9 Wireless Mic/Receiver Audio Link...9 Anti Shock CD/CMP Player...10...
  • Page 3: Operating Manual For As-Tv8 Series

    Operating Manual for AS-TV8 Series **Please visit www.galaxyaudio.com Galaxy Audio introduces the Any Spot Traveler (AS-TV8); a new AC/battery operated portable PA system. This compact system features an 8” woofer, 1” horn, 50-watt amplifier, and can be configured in a variety of ways to meet your specific needs.

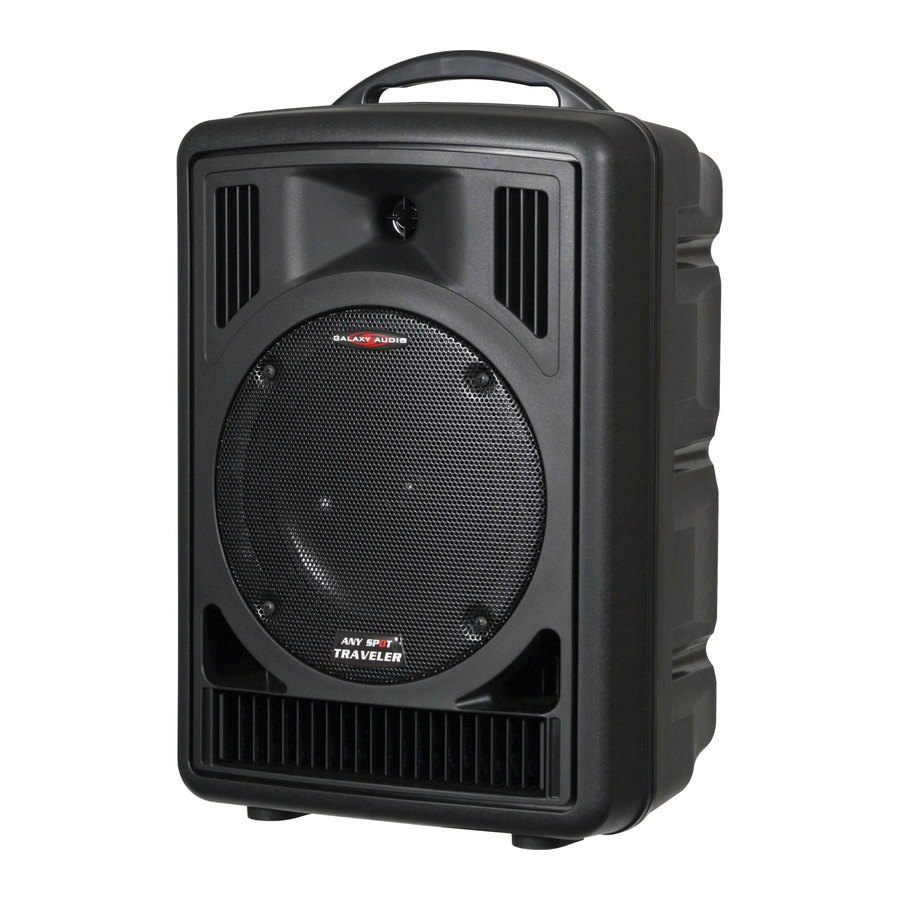

  • Page 4: Front Panel Configuration Of As-Tv8 Series

    Front Panel Configuration of AS-TV8 Series AS-TV8 Series Handle 1" Horn 8" Woofer Speaker Grille Heat Sink...
  • Page 5: Rear Panel Configuration Of As-Tv8 Series

    Rear Panel Configuration of AS-TV8C2 Series AS-TV8C2 Receiver Modules CD/CMP Player Power Switch Mixer Speaker Out In/Out Jacks Power Supply...
  • Page 6 Rear Panel Configuration of AS-TV8CE2 Series AS-TV8CE2 Digital Echo System Receiver Modules CD/CMP Player Power Switch Mixer Speaker Out In/Out Jacks Power Supply...
  • Page 7 Rear Panel Configuration of AS-TV8CT2 Series AS-TV8CT2 Receiver Modules CD/CMP Player Audio Link Transmitter Power Switch Mixer Speaker Out In/Out Jacks Power Supply...
  • Page 8: Description Of Functions Of As-Tv8 Series

    Description of Functions for AS-TV8 Series A. Wireless Microphone/Audio Link Receiver 1. LCD display 2. A/B diversity indicator 3. RF indicator 4. AF level indicator 5. Channel Set 6. Channel selector 7. Power switch & mic. volume B. Anti-Shock CD/CMP Player 1.
  • Page 9 C. Power Switch 1. Power LED 2.Charging indicator 3.Power On/Off switch D.Mixer 1. Master volume control 2. Treble control 3. Bass control 4. Mic volume control For wired Mic connected to Mic in jack) E. In/Out Jacks 1. Line in RCA jacks 2.
  • Page 10 H1. Digital Echo System (for AS-TV8CE2 ) 1. Power switch and master echo volume control 2. Delay repeat control 3. Delay time control 4. Wired mic 1 volume control 5. Wired mic 2 volume control 6. Wired mic 1 1/4” input jack 7.
  • Page 11: Caution Before Using The System

    RED and GREEN. After the battery is fully charged, the indicator lights GREEN. After the initial charge the Traveler may be operated on either AC or Battery power. When operating on AC power the Traveler will simultaneously recharge its internal batteries.
  • Page 12: Anti Shock Cd/Cmp Player

    B. Anti-Shock CD/CMP Player (see page 6) 1. Push the powerswitch (B2) Pg. 6 to turn on the player. Put a CD in the CD slot (B10) or push the Stop/Eject button (B5) to take a CD out of the slot. 2.
  • Page 13: In/Out Jacks

    H1-4 and H1-5 plus the Master (D-1). G. Audio Link Transmitter This module transmits the entire audio mix from one Traveler to another Traveler equiped with a wireless Mic/Audio Link Receiver. 1. Turn the power switch (H2-7) clockwise to turn on the transmitter.
  • Page 14 The AF Level indicator lights Yellow (H2-3) to show a low audio level and lights Red (H2-4) to show high audio level. 6. Set up the receiving Traveler according to the procedure outlined in: A. Wireless Mic/Audio Link Receiver on page 9. Select the channel chosen on the transmitting Traveler.
  • Page 15: Description Of Functions For Handheld Microphone Front

    Description of Functions for Handheld Microphone Front Panel Wind Screen: Pop Filter. Main Body: Contains Wireless Transmitter PCB. SET button for channel settings LCD panel: Channel and frequency display. UP and DOWN buttons: For Channel select and Frequency display. LED: Power status Power Switch: Charging Input: Remove lower housing to access.
  • Page 16: Description Of Functions For Handheld Microphone Back

    Description of Functions for Handheld Microphone Rear Panel Volume Control: Three level settings, including mute, LOW and HI. MUTE Pushing point: Slide the battery cover down by pressing here. Battery Cover Lower Housing: Remove to slide battery cover off or to connect charger...
  • Page 17: Operation Of Handheld Microphone

    Operation of Handheld Microphone A. Battery Installation Steps: 1. Turn off the microphone before inserting batteries. 2. Press in the latch to release the lower housing and slide it off. 3. Press in the latch to release the battery cover and slide it down. 4.
  • Page 18 4. Press the Down button to display a lower numbered channel. 5. Press the SET button to activate the selected channel. E. LCD Indications: :Three bars means batteries are fully charged. :One bar indicates low batteries. Replace or recharge the batteries.
  • Page 19 G. Trouble Shooting: 1. LED doesn't light when power switch is pressed to turn on mic. a. Make sure that the batteries are not discharged. b. Make sure that the batteries are installed correctly. 2. LCD shows a. Press the SET, UP and DOWN buttons at the same time in order to turn the microphone off automatically.
  • Page 20: Description Of Functions For Body Pack Transmitter

    Description of Functions for Body Pack Transmitter 1. Mini XLR Mic input jack (TA3M) 2. Power switch 3. Mute button 4. Antenna 5. Power light 6. Charging Jack 7. LCD light 8. Set button 9. Channel select button 10. Sensitivity control 11.
  • Page 21: Operation Of Bodypack Transmitter

    Operation of Bodypack Transmitter A. Battery Installation: 1. Switch the transmitter off before inserting batteries. 2. Slide the battery cover off. 3. Insert 2 disposable batteries (1.5V AA) or 2 rechargeable batteries (1.2V AA). 4. Observe correct polarity when inserting batteries. 5.
  • Page 22 E. Battery Charging Steps: 1. Insure that the batteries are the rechargeable type. 2. Switch Power to OFF position. 3. Insert AS-TVMBP into its own intelligent charger stand (AS-TV8DCC). 4. Batteries will recharge automatically. 5. For more details of charger stand please refer to AS-TV8DCC user guide. F.
  • Page 23: Maintenance

    Maintenance Avoid Excessive Heat Don't leave transmitter or receiver in hot sun, on a radiator, or near other sources of high temperature. Avoid Rough Handling The transmitter and receiver may be damaged if dropped. Storage Before storage, fully charge the batteries in both transmitters and receivers. If possible, recharge once a month during storage and again before first use.
  • Page 24: Specifications

    Danger of explosion if the batter y is incorrectly installed. Replace only with the same or the equivalent type. Sensitivity Maximum SPL Frequency response Speakers Receiver module Output power Signal to noise ratio CD/CMP player Audio link TX Audio input Audio output Controls Power requirement...
  • Page 25: Key Specs/Overall System

    Key Specifications / Overall System Oscilla tio n type Carrie r fr equency ra nge Adju stable fr equency Swit chin g bandwid th Ambie nt tempera ture Maxim um deviatio n Dynamic ra nge T. H. D. Pre /D e- emphasis Squelch Fre quency re sponse Opera tin g ra nge...
  • Page 26: Audio Link Transmitter Module

    Audio Link Transmitter Module RF output Spurio us emis sio n Dis pla y statu s Channel sele ct Ante nna Dim ensio ns ( L x W x H ) Weig ht Wireless Mic/Audio link Receiver Module Antenna mode Sensit iv it y Double in termediate Dis pla y status...
  • Page 27: Handheld Microphone

    Handheld Microphone Mic ro phone ty pe RF output Spurio us emis sio n Dis pla y statu s Channel sele ct AF contro ls Batt er y Batt er y li fe Ni- MH re chargeable 11 hou rs typi cal Batt er y li fe Alk ali ne dis posable 14 hou rs typi cal Ante nna Dim ensio ns ( Dia x L )
  • Page 28: Bodypack Transmitter

    Bodypack Transmitter Mike RF output Spurio us emis sio n Dis pla y status Channel sele ct AF contro ls Audio in put Batter y Batter y lif e Ni-M H re charg eable Batter y lif e Alk alin e dis posable Housin g Dim ensio ns ( D x W x H ) Weig ht wit h batter y...
  • Page 29 REGISTRATION CARD Registration information is used ONLY by GALAXY AUDIO and will be kept strictly confidential.
  • Page 31: Limited Warranty

    Headset Microphones, Tour Guide/Translator System, Wireless Camera Kit are covered by a 1 year warranty. 3. The Traveler is supported with a 3 year warranty on speaker components and casing, and a 1 year warranty on wireless and CD/MP3 player components.
