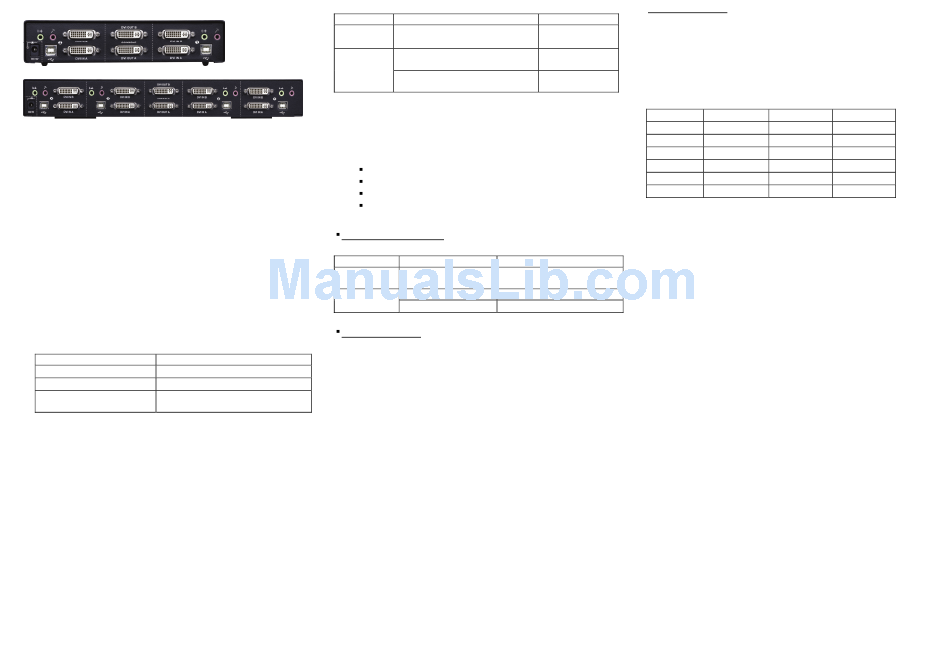

Rear View

1. Console DVI Connector.
2. CPU DVI Port Connectors.
3. CPU USB Port Connectors.
4. CPU Audio and Mic. Port Connectors.
Installation
Before the installation, make sure the peripherals of all PCs are
grounded properly and turned off.
1. Connect the monitor, keyboard, Audio, Mic. and mouse with
the Console Port Connectors.
2. Connect the power cord on the KVM.
3. Connect DVI cable, USB A to B cable, Audio cable and Mic.
cable between the PC and the CPU port.
4. Turn on the PCs.
Operation
1. The function of LED display:
LED DISPLAY DESCRIPTION
Light off PC power off
Green light on PC power on and connected
Green light on & Red light PC power on, connected and
flashing selected
Note: It occurs occasionally that the green light of LED display is
on and the red light of LED display keeps flashing after
shutting down the PC because of the PC default. The
condition will not affect the regular operation of KVM
switch.
2. 3 ways for PC selection – Push-button switch, hot key or
mouse clicking
2-1 Push-button switch (Manual Type)
Press the button on front panel to switch the CPU ports.
The red light of LED indicates which PC is selected.
-4-
2-2 Mouse clicking
Item Operation
IC-312-AUTD [Middle button] + [Left Button] or
IC-312-AUD [Middle button] + [Right Button]
[Middle button] + [Left Button]
IC-314-AUTD
IC-314-AUD
[Middle button] + [Right Button]
Note: 2-Key Mouse is NOT applicable.
2-3 Hot Key option
Hot Key Navigation allows you to select PC from the
keyboard directly.
Options for Hot Key Navigation:
Select PC by Hot Key
Command mode
Auto scan mode
Beep sound on/off option: Press [Right Shift] key
twice to turn on or off the beep sound when needed.
Select PC by Hot Key:
Press either left or right [Ctrl] key twice.
Item Hot Key Operation
IC-312-AUTD [L Ctrl] + [L Ctrl] or
Access between two PCs.
IC-312-AUD [R Ctrl] + [R Ctrl]
IC-314-AUTD [L Ctrl] + [L Ctrl] Switch to the previous PC.
IC-314-AUD
[R Ctrl] + [R Ctrl] Switch to the next PC
Command Mode:
Press [Num Lock] key twice, and the 3 keys [Num Lock],
[Caps Lock] and [Scroll Lock] will flash to access the
Command Mode.
a). Directly press the function key [F1] ~ [F2] for
IC-312-AUTD/IC-312-AUD or [F1] ~ [F4] for
IC-314-AUTD/IC-314-AUD to select PC.
b). Press [Left Ctrl] key to disable [Ctrl] and [Shift] hot key
function.
c). Press [Right Ctrl] key to enable [Ctrl] and [Shift] hot key
function.
d). Press [Left Shift] key to turn off the beep sound.
e). Press [Right Shift] key to turn on the beep sound.
f). Press [Left Win] key or mouse [Middle button] + [Left
Button] to disable Mouse clicking function.
g). Press [Right Win] key or mouse [Middle button] + [Right
Button] to enable Mouse clicking function.
h). Press [Left Alt] key to disable Auto skip function.
i). Press [Right Alt] key to enable Auto skip function.
j). Press [Esc] or [Enter] key to quit the mode.
Note: [Ctrl] Hot Key function – Selecting PC ports.
[Shift] Hot Key function – Beep sound on/off.
-5-
Auto Scan Mode:
Press [Scroll Lock] key twice to activate the Auto Scan Mode.
Function
The time scale of Auto Scan ranges from 5 to 30 seconds,
Access between
two PCs.
and it can be recognized by the lights of the 3 keys [Num
Switch to the Lock], [Caps Lock] and [Scroll Lock] as the timetable below.
previous PC.
a). Press the right number key [+] to increase time scale.
Switch to the next
b). Press the right number key [-] to decrease time scale.
PC.
c). Press [Esc] key to quit the mode.
Note: Light(s) corresponding timetable
Seconds Num Lock
5 seconds
10 seconds
15 seconds
20 seconds
25 seconds
30 seconds
1.The boot-up default of Smart View KVM Switch is
connected to your first activated PC.
2,When the PC is shut down under the function of "Auto
skips over the power-off PC", it cannot be turned on again
Function
by keyboard.
3.Console-Reconfirmed
Simultaneously press the Port Selection Switches
on the panel of port1 and port2, then Console
Reconfirmed function will update the EDID data from
the monitor.
Caps Lock Scroll Lock
Off Off On
On Off Off
On Off On
Off On Off
Off On On
On On Off
-6-
