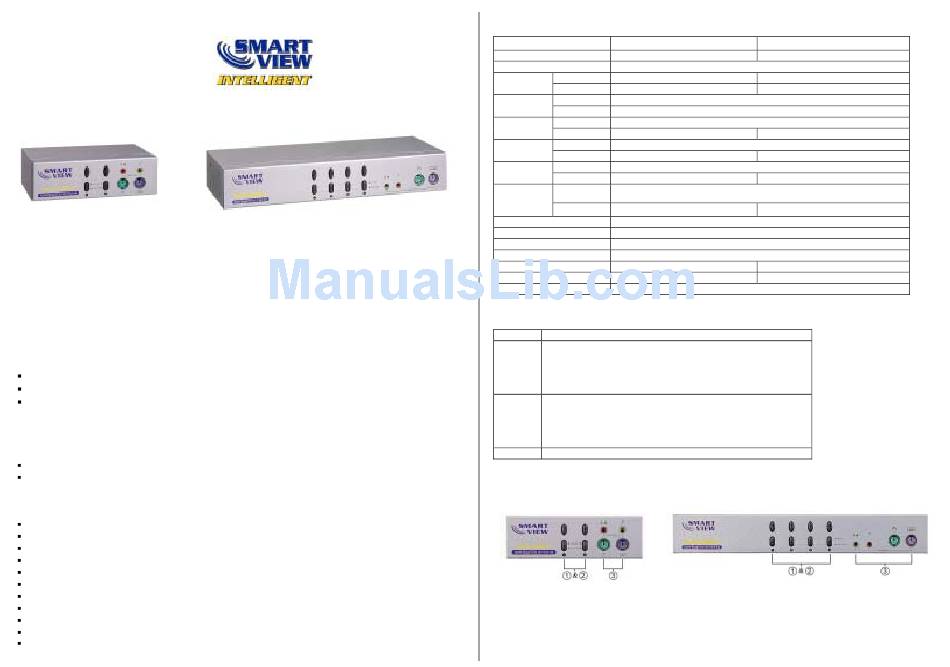

Smart view IC-712-IA User Manual

KVM
SWITCH
(IC-712-IA)
U M
SER ANUAL
IC-712-IA
IC-714-IA
Package Contents –
1 Smart View IC-712-IA or IC-714-IA KVM Switch
1 user Manual
2 rack rails, 8 screws for IC-714-IA only
Any thing missed, please contact with your vendor.
Features
Controls PCs with one PS/2 keyboard, PS/2 mouse and monitor respectively.
Supports the standard PS/2 mouse, Microsoft IntelliMouse (PS/2 compatible/Optical/
Explorer 3.0), WheelMouse Optical, Trackball (Optical 1.0/Explorer 1.0) & Logitech
TrackMan (Marble/Marble FX/ Marble+), Cordless MouseMan (Wheel/Optical), Cordless
TrackMan (FX/Live) mouse, Cordless Optical TrackMan, MX300 Optical mouse.
Fully supports the Microsoft IntelliPoint 4.0 mouse driver & Logitech MouseWare driver.
Supports the Window 95/98/98SE/Me/NT4.0/2000/XP, DOS, Linux, Novell, Free BSD.
Real mouse identification function.
Easily install and operate without software at all.
Keyboard and mouse emulation for skipping over the false boot-up.
2 ways PC selection - Push Button Switch or Hot Key.
Auto scan function to monitor PCs.
Superior video quality - Up to 1920 x 1440, DDC2, DDC2B, DDC2AB, 200MHz.
Auto skip over the power off PC.
Beep sound on/off option while switching PC Port.
Hot pluggable and the function of auto navigator to recognize mouse type and fulfill the OS.
(IC-714-IA)
-1-

Specifications

Function IC-712-IA
PC Connectors
Port Selection
On Line
LEDs
Selected
Keyboard
Emulation
Mouse
Connector Console Port
-Keyboard
CPU Port 2x6 pin mini-DIN Female (PS/2)
Connector Console Port
-Mouse CPU Port 2x6 pin mini-DIN Female (PS/2)
Connector Console Port
-Monitor
CPU Port 2x HD-15 Male (Std. VGA/SVGA)
Connector
Console Port
-Audio,Mic.
CPU Port 2 x Audio, Mic.
(Jack)
VGA Resolution 1920x1440 (Max.), DDC2, DDC2B, DDC2AB, 200MHz
Power Adapter
Scan Interval
Housing
Weight 475 g
Dimensions (LxWxH) 128x75x45 mm
Cable Requirement 3L-1512C (1.2m), 3L-1518 (1.8m) & 2L-1212C (1.2m), 2L-1218C (1.8m)

Hardware Requirements

Requirement specifications
One highest resolution VGA, SVGA or Multisync monitor.
One PS/2 mouse.
Console One PS/2 keyboard.
One pair of speakers.
One microphone.
One VGA, SVGA or Multisync card.
One 6-pin mini-DIN (PS/2) mouse port.
PC One 6-pin mini-DIN (PS/2) keyboard port.
One audio jack port.
One microphone port.
Cable Smart View custom cables or equivalent.
Appearance

Front View

1. Port Selection Switches (Manual type)
2. Port LEDs
3. Console Keyboard, Mouse, Audio and Microphone Ports
IC-714-IA
2 4
Push Button Switch / Hot Key
2 4
2 4
PS/2
PS/2
1x6 pin mini-DIN Female (PS/2)
4x6 pin mini-DIN Female (PS/2)
1x6 pin mini-DIN Female (PS/2)
4x6 pin mini-DIN Female (PS/2)
1x HD-15 Female (Std. VGA/SVGA)
4x HD-15 Male (Std. VGA/SVGA)
1 x Audio, Microphone
4 x Audio, Mic.
DC 9V 300mA (Min.) spare
5 sec ~ 30 sec
Metal
1085 g
269x104x45 mm
