Smart view IC-1612-IA User Manual

KVM
SWITCH
USER MANUAL
IC-1612-IA
IC-1614-IA
Package Contents –
§

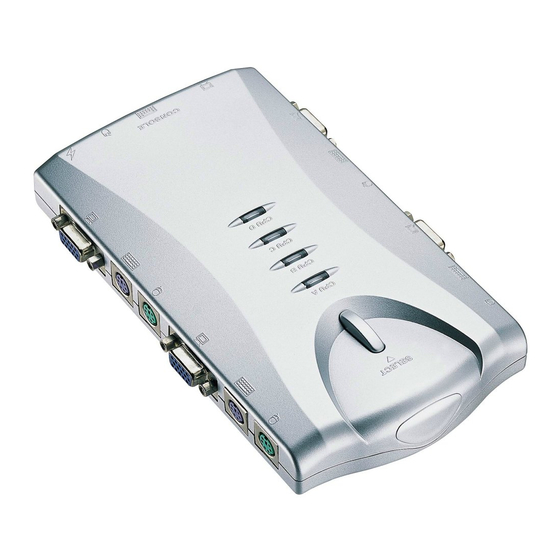

1 Smart View IC-1612-IA or IC-1614-IA KVM
Switch
§
1 User Manual
§
1 DC 9V 300mA power adapter
§
Cables: 1 pcs AL-20C for both items; AL-3012C &
AL-3018C each 1 pcs for IC-1612-IA, each 2 pcs
for IC-1614-IA
Please contact your vendor if anything is missed.
Features
§
Controls PCs with one PS/2 keyboard, PS/2 mouse and
monitor respectively
§
Supports speaker & microphone
§
Supports the standard PS/2 mouse, Microsoft IntelliMouse
(PS/2 compatible/Optical/Explorer 3.0), WheelMouse
Optical, Trackball (Optical 1.0/Explorer 1.0) & Logitech
TrackMan (Marble/Marble FX/ Marble+), Cordless
MouseMan (Wheel/Optical), Cordless TrackMan (FX/Live)
mouse, Cordless Optical TrackMan, MX300 Optical mouse
§
Fully supports the Microsoft IntelliPoint 5.0 mouse driver &
Logitech Mouse Ware driver
§
Supports the Window s 95/98/98SE/Me/NT4.0/2000/XP,
DOS, Linux, Novell Netware, FreeBSD
§
Superior video quality - Up to 1920 x 1440, DDC2, DDC2B,
DDC2AB, 200MHz
§
Real mouse identification function
§
2 ways for PC selection -- Push-button switch or hot key
§
Easy to install-- No software required
§
(IC-1612-IA) Hot Pluggable
§
Integral keyboard and mouse emulation for PC booting
error free
§
Auto scan function to monitor PCs
§
Auto skips over the power-off PC
§
Beep sound and multi selection ways on/off option for port
selection

Specifications

Function
PC Connectors
Port Selection
LEDs Selection
Keyboard
Emulation
(IC-1614-IA)
Mouse
Console Port
Connector
-Keyboard
CPU Port
V1.0
Console Port
Connector
-Mouse
CPU Port
Connector Console Port
-Monitor,
CPU Port
Audio, Mic.
VGA Resolution
Power Adapter
Scan Interval
Housing
Weight
Dimensions (LxWxH)
Cable Requirement
IC-1612-IA IC-1614-IA
2 4
Push Button Switch / Hot Key
2 4
PS/2
PS/2
1x6 pin mini- DIN Female (PS/2)
2x6 pin mini- DIN 4x6 pin mini- DIN
Female (PS/2) Female (PS/2)
1x6 pin mini- DIN Female (PS/2)
2x6 pin mini- DIN 4x6 pin mini- DIN
Female (PS/2) Female (PS/2)
1x HD- 15 Female
2x HD- 15 Female 4x HD- 15 Female
1920x1440 (Max.), DDC2, DDC2B,
DDC2AB, 200MHz
DC 9V 300mA (Min.)
5 sec ~ 30 sec
Plastic
180 g 290 g
115x110x30 mm 190x110x30 mm
AL-3012C (1.2m) / AL-3018C (1.8m)
Console: AL-20C
-1-

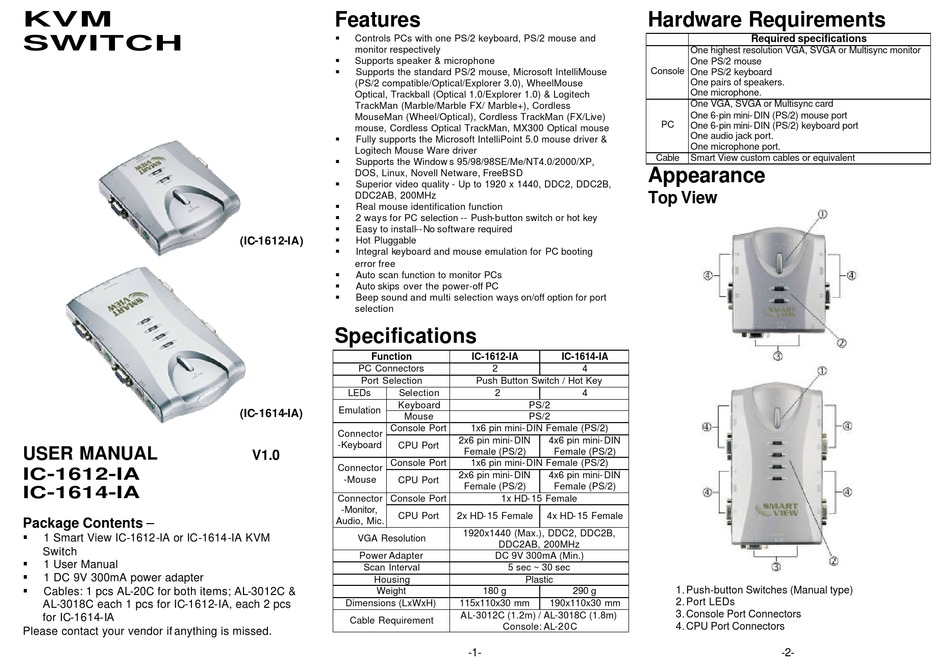

Hardware Requirements

Required specifications
One highest resolution VGA, SVGA or Multisync monitor
One PS/2 mouse
Console
One PS/2 keyboard
One pairs of speakers.
One microphone.
One VGA, SVGA or Multisync card
One 6-pin mini- DIN (PS/2) mouse port
PC
One 6-pin mini- DIN (PS/2) keyboard port
One audio jack port.
One microphone port.
Cable Smart View custom cables or equivalent
Appearance

Top View

1. Push-button Switches (Manual type)
2. Port LEDs
3. Console Port Connectors
4. CPU Port Connectors
-2-
